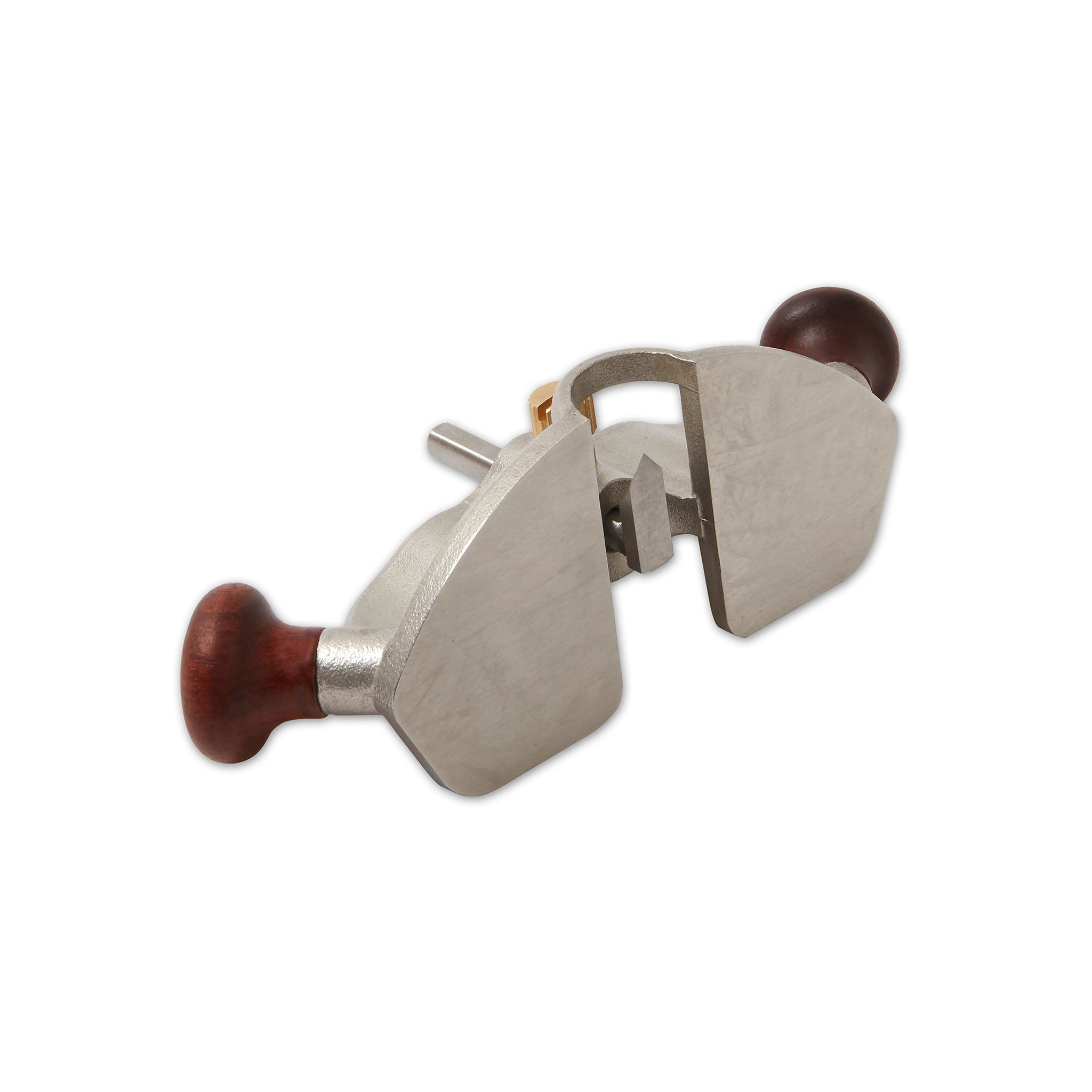

No 1 Router Plane

Regular price £65.00
Regular price £0.00Sale price £65.00
An extremely versatile tool for fine detail work, this router plane is designed for planing recesses, grooves, dados and for getting under the shoulders of dovetails, with the wide sole ensuring maximum registration on the workpiece.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,581 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
No 1 Router Plane
Regular price £65.00
Regular price £0.00Sale price £65.00
KEY FEATURES
  • 3 Year Warranty
  • Open design offers great visibility when planing and cleaning recesses, grooves and dados
  • Sole encircles the blade, for maximum support over gaps up to 40mm wide
  • Unbreakable CR40 steel castings are precision machined to ensure a flat sole
  • Supplied with 2.5mm and 6mm V blades for corners and 2.5mm straight blade for inlays
  • T10 carbon steel blades, hardened for maximum edge retention
FULL DESCRIPTION
Router Planes
Manufactured to British Standards, Rutlands® hand planes are recommended by discerning cabinetmakers and carpentry instructors for their superb construction, finish and performance. Using world leading manufacturing techniques, each precision ground plane represents a serious alternative to the premium brands produced in North America. A router plane is designed for planing recesses, grooves, dados and for getting under the shoulders of dovetails. The blades are secured to the body using a solid brass knurled screw which has a screwdriver slot to ensure the blades are tightened rigidly in position. The sole of the plane encircles the blade for maximum registration on the workpiece.

No 1 Router Plane
This compact router plane is an extremely versatile tool for fine detail work. The blades can be adjusted to sit 20mm below the sole to allow for deep cleaning and planing of grooves and recesses. It will sit securely over a gap up to 40mm wide and its open design offers great visibility and chip clearance. The plane is supplied with 3 blades, a 2.5mm V blade, a 6mm V blade and a 2.5mm straight blade. The straight blade is used for inlays and the V blades are used to get right into the corners. The planes sole plate measures 100mm x 45mm and it weighs 180g.

Materials & Manufacturing
The plane body features an unbreakable cast stainless steel body which is precision machined to ensure the sole is perfectly flat. The plane is fitted with a T10 high carbon steel tool blade which can take a keen edge, and that has been hardened to RC60-64 for maximum edge retention. The blades are secured to the body using a solid brass knurled screw which has a screwdriver slot to ensure the blades are tightened rigidly in position. The handles are made from solid bubinga wood which provides a firm and comfortable grip. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR1717
  • Plane Length100mm
  • Plane Width45mm
  • Blade Widths2.5mm and 6mm V blades and a 2.5mm straight blade
  • Weight0.18kg
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
M. G.
This is a neat little router plane - just right fo...

This is a neat little router plane - just right for small rebates and dadoes. Would have been better with a height adjuster - so a bit fiddly getting depth sometimes. But solidly made and works well.
