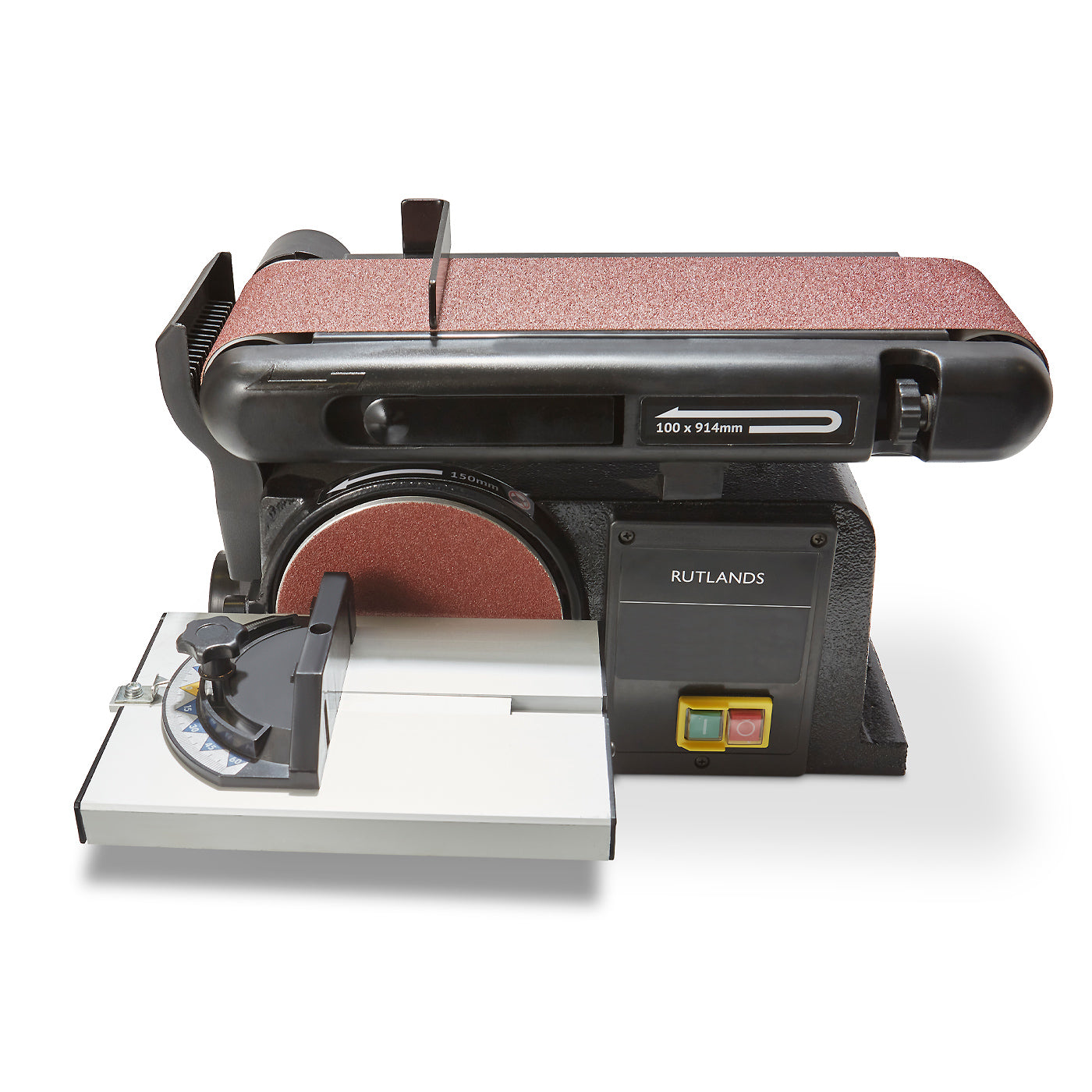

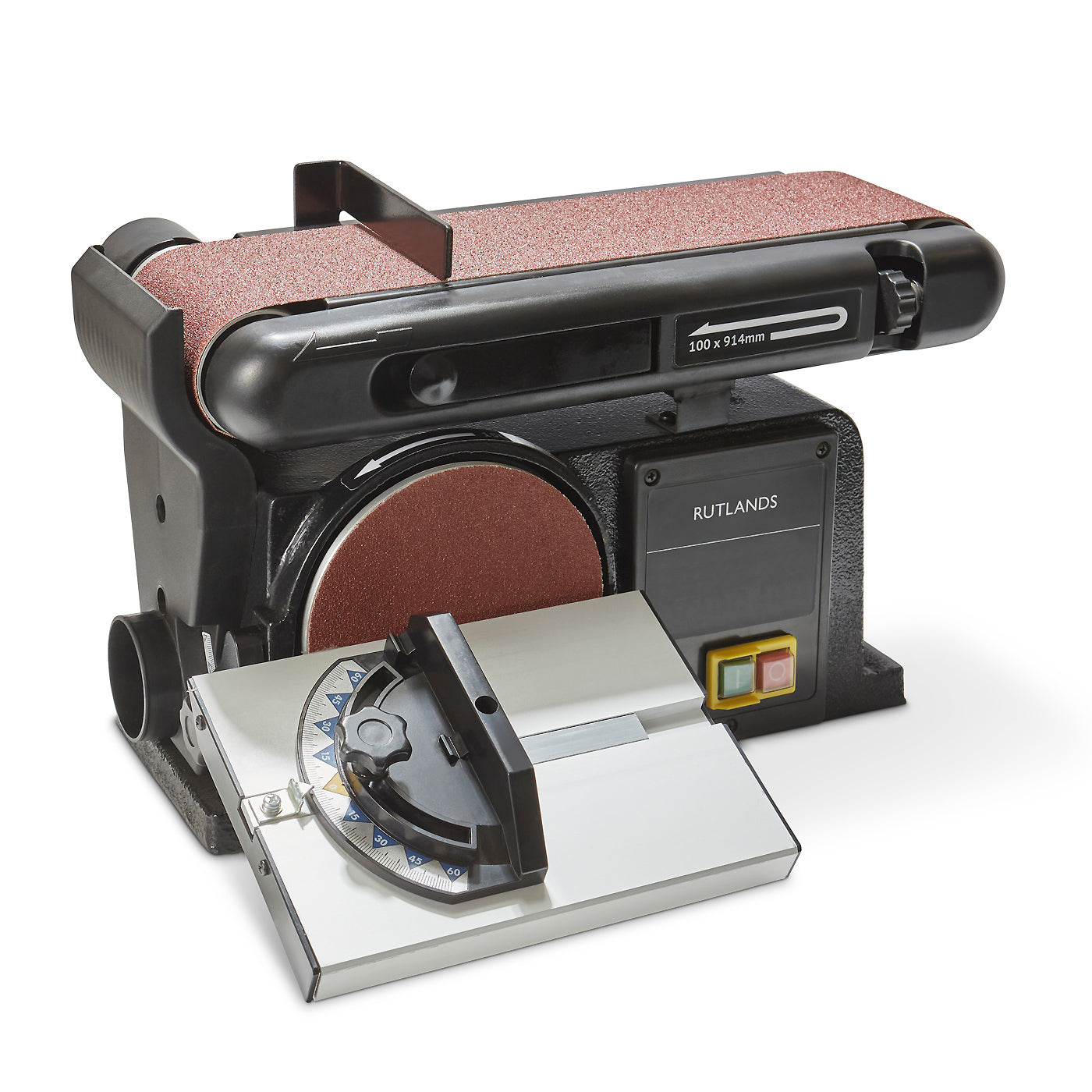

Belt & Disc Sander

This belt and disc sander will rapidly remove stock and leave a fine finish on hardwood, softwoods and composite woods whether working cross grain or end grain. The 18kg body of the sander is made from cast iron for structural strength and stiffness ensuring negligible levels of vibration. The high torque, induction motor maintains a constant speed under load, is extremely quiet in operation and is operated by a no volt release switch.

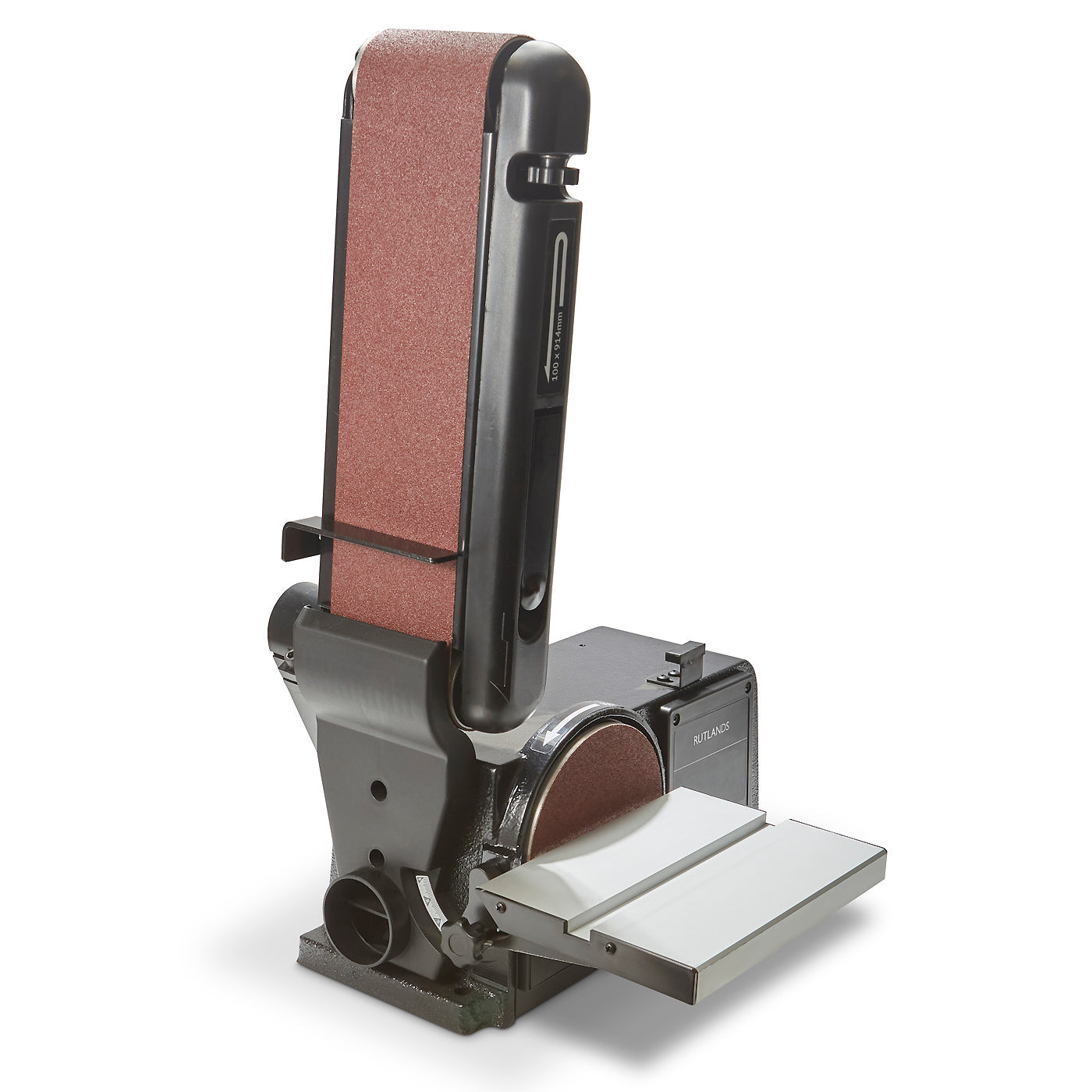

The belt has a large sanding surface area and runs on two heavy duty steel rollers. A stop positions the workpiece at 90° to the sanding belt and the belt can be micro adjusted to set both tension and tracking. The arm of the belt can be tilted upright through 90° and sanding can be carried out in vertical mode. The 150mm sanding disc is primarily used when sanding smaller workpieces and working on end grain. The disc is made of 5mm thick aluminium plate, will not flex under pressure and accepts self-adhesive sanding discs. The large sanding table offers substantial workpiece support and can be locked-off from 0 to 45° using the calibrated scale. The mitre gauge has a graduated scale of +/- 60° and when used in conjunction with the table allows for sanding bevels, mitres and compound mitres.

A 63mm dust port ensures that dust can be drawn from both belt and disc at the point of dust source, enhancing the finish of the workpiece. Supplied with one 80 grit sanding belt and one 80 grit sanding disc. ©
