Dovetail Jig

Regular price £115.00
Regular price £0.00Sale price £115.00
In Stock for delivery by
Order within
Taking the complication out of dovetail joinery, this jig will create precise half-blind dovetails, with complete ease and accuracy, producing perfectly matching male and female dovetail cuts in one smooth operation.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,998 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Dovetail Jig
Regular price £115.00
Regular price £0.00Sale price £115.00
KEY FEATURES
  • 3 Year Warranty
  • Produce precise half-blind dovetails joints with ease
  • Clamp and cut both workpieces simultaneously for perfectly matched dovetail cuts
  • CNC machined template provides a precise guide for the included router bit
  • Strong lever action clamps quickly and rigidly grips the wood
FULL DESCRIPTION

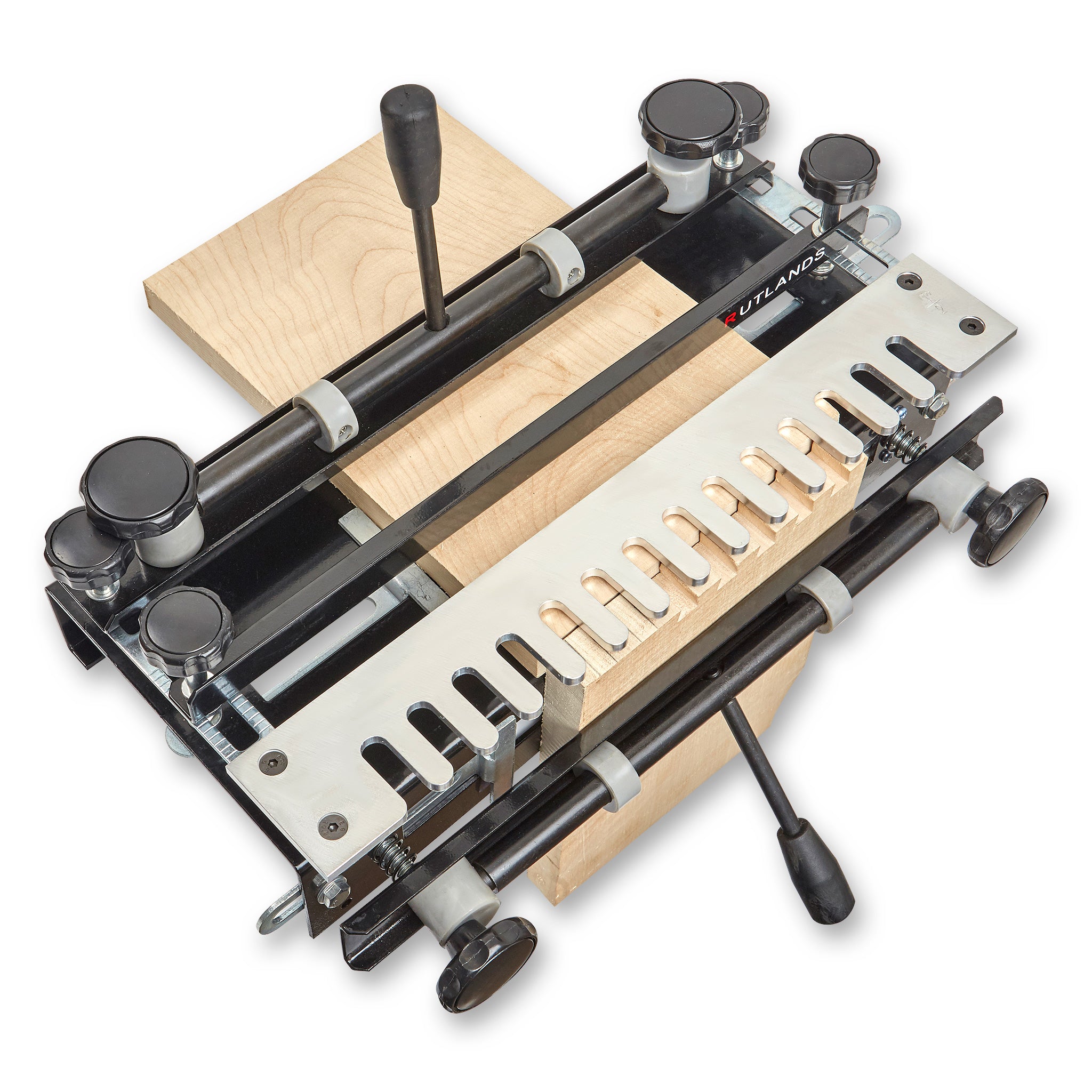

This dovetail jig is designed to produce classical dovetail joints that are both beautiful and strong when making boxes, drawers and fine furniture. Extremely simple to set up and use the jig comes complete and ready to rout with a half blind template and a bearing guided dovetail router bit for producing 12mm wide half blind dovetails.

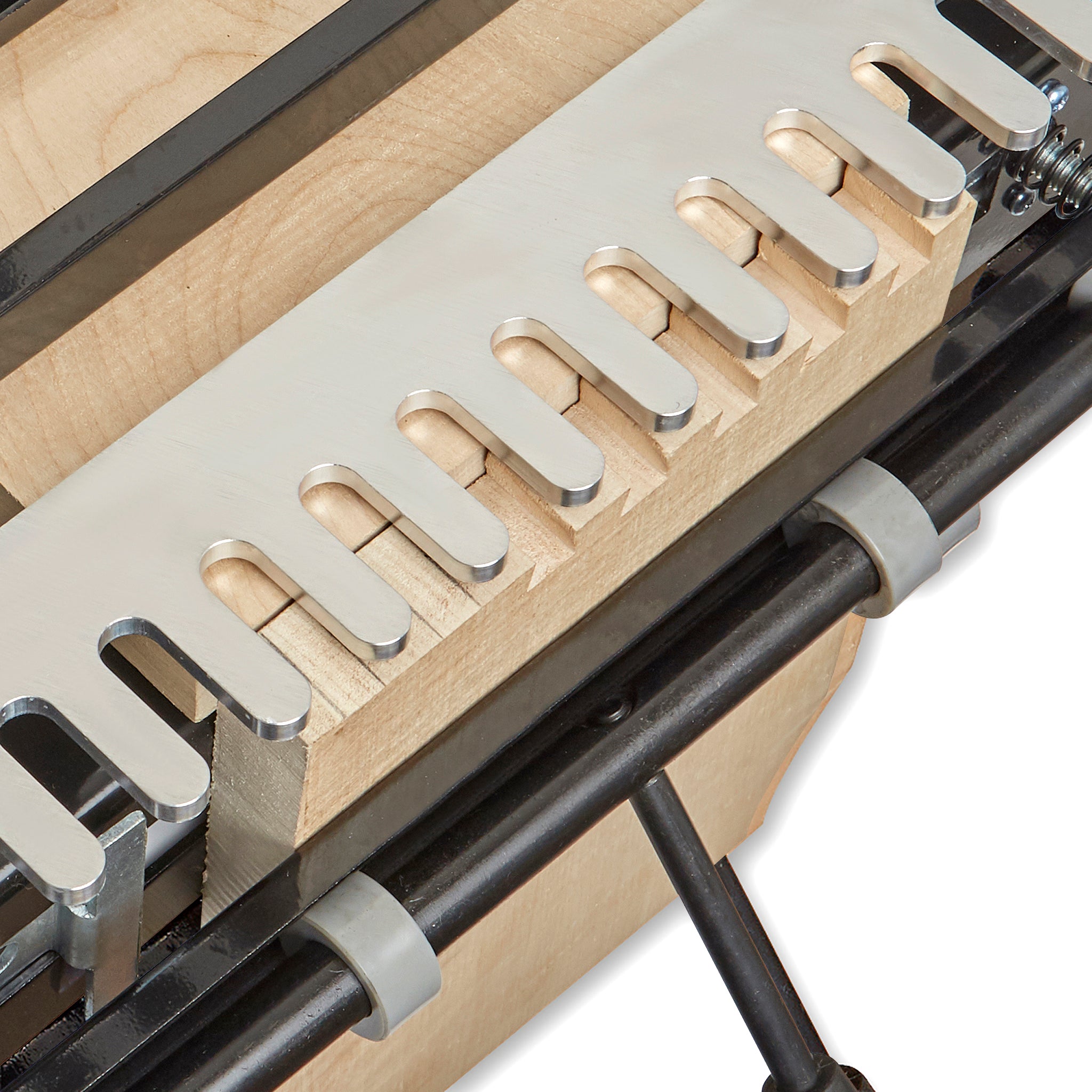

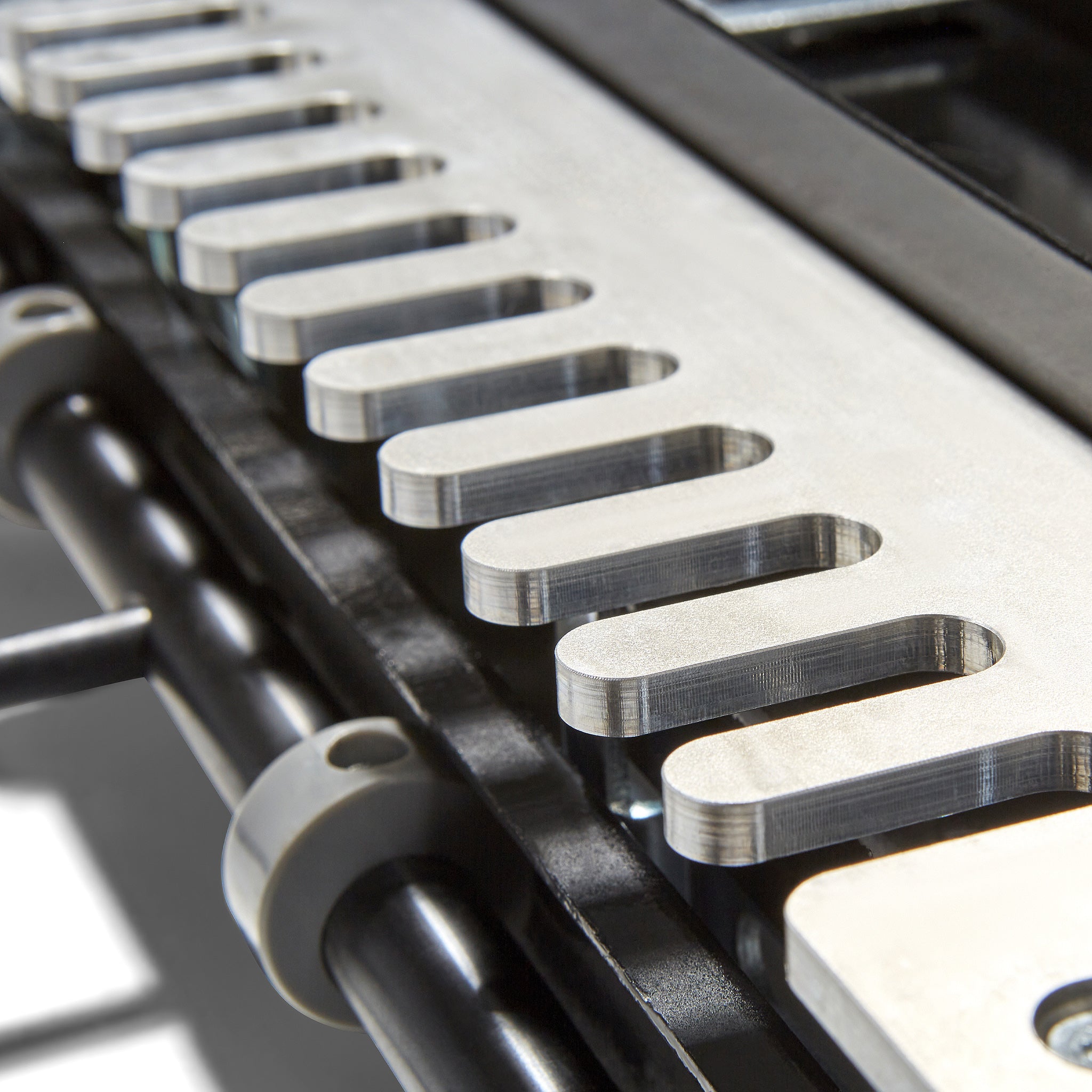

The body of the jig is manufactured from a heavy gauge steel pressing to prevent distortion when under load and the template is precision CNC machined from 6mm thick aluminium to ensure precise and accurate joints every time. Self aligning guides automatically position the workpiece for pin and tail locations reducing the need for tricky calculations. The jig holds both workpieces at the same time, so that the male and female dovetail cuts are a perfect match.

Two substantial levers operate on a cam lock action to quickly and rigidly grip the timbers eliminating the risk of the workpiece moving when being routed. The jig will accepts workpieces up to 300mm wide and from 15mm to 32mm in thickness. This is an excellent dovetail jig that will allow both the professional and novice woodworker to make precise and beautiful dovetails.

This premium performance jig should not be compared to the array of low cost budget jigs found elsewhere. Supplied with aluminium CNC machined template and a 1/4" shank router cutter with guide bearing. A premium quality router bit can be purchased using Rutlands® part number R5779. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR5020
  • Width CapacityUp to 300mm
  • Thickness Capacity15mm to 32mm
  • Dimensions440mm x 250mm x 125mm
  • Dovetail StylesHalf-Blind
  • Template MaterialPrecision CNC machined aluminium
  • Weight9kg
  • Replacement Router BitR5779 - D=15.9mm H=11.5mm A=14° S=1/4"
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 9 reviews
78%
(7)
22%
(2)
0%
(0)
0%
(0)
0%
(0)
A
Ashley
Dovetail jig

This is a good bit of quality kit and at a fair price. Took a few read throughs of the instructions and a few trial runs to get the hang of it but pleased with the outcome. Recommended.

M
Martyn P.
Good quality at a great price

Good quality at a great price

D
Domonic T.
brillent bit of kit At 1st I tried

brillent bit of kit At 1st I tried doing dovetail by hand didn't go so well then did it with this and wow can pass off as a professional 100% recommend it only down side took a while thinking about it as diagrams in the paper work wasn't clear enough

h
hayden c.
Pretty easy to set up was making some really nice joints after not much time at all, definitely d...

Pretty easy to set up was making some really nice joints after not much time at all, definitely do some test runs though

A
Allan G.
My first time at creating dovetail joints, this is a very well made, solid piece of kit.

My first time at creating dovetail joints, this is a very well made, solid piece of kit. As with others it does take a few trial and error goes before getting it right and when that skill is mastered it really does make visually attractive joints easily. Yes, use cheap scraps before moving on to hard woods. Am very happy with this choice and looking forward to making several projects where the joints are visible for that added attractive quality.
