Guide Bush Set - Metric

Regular price £40.00
Regular price £0.00Sale price £40.00
This guide bush set is precision machined from solid brass to ensure perfect concentricity and dimensional accuracy, for use with worktop jigs, hinge jigs, sign writing jigs and any other form of router template. Comprising of 8 metric sized bushes from 10 to 30mm outside diameter, with a 67.5mm adaptor ring to suit most leading brands of router.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 30,026 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Guide Bush Set - Metric
Regular price £40.00
Regular price £0.00Sale price £40.00
KEY FEATURES
  • 3 Year Warranty
  • Ideal for worktop jigs, lock jigs, hinge jigs, sign writing jigs and more
  • Precision machined from solid brass for perfect concentricity and dimensional accuracy
  • 100% concentric, ensuring the finished workpiece is a true copy of the template or jig
  • Industry standard, outside diameter guide bushes of 10, 12, 14, 16, 18, 20, 24, and 30mm
  • Requires an allowance of 3.5mm between the router bit and outside of the bush
FULL DESCRIPTION
Guide bushes are used when material is required to be routed to a set pattern or shape. They are used in conjunction with worktop jigs, lock jigs, hinge jigs, sign writing jigs and any other form of router copying template. These guide bushes are precision machined from solid brass to ensure perfect concentricity and dimensional accuracy. If a guide bush is not 100% concentric then the finished workpiece will not be a true copy of the template or jig and as such could ruin an expensive workpiece.

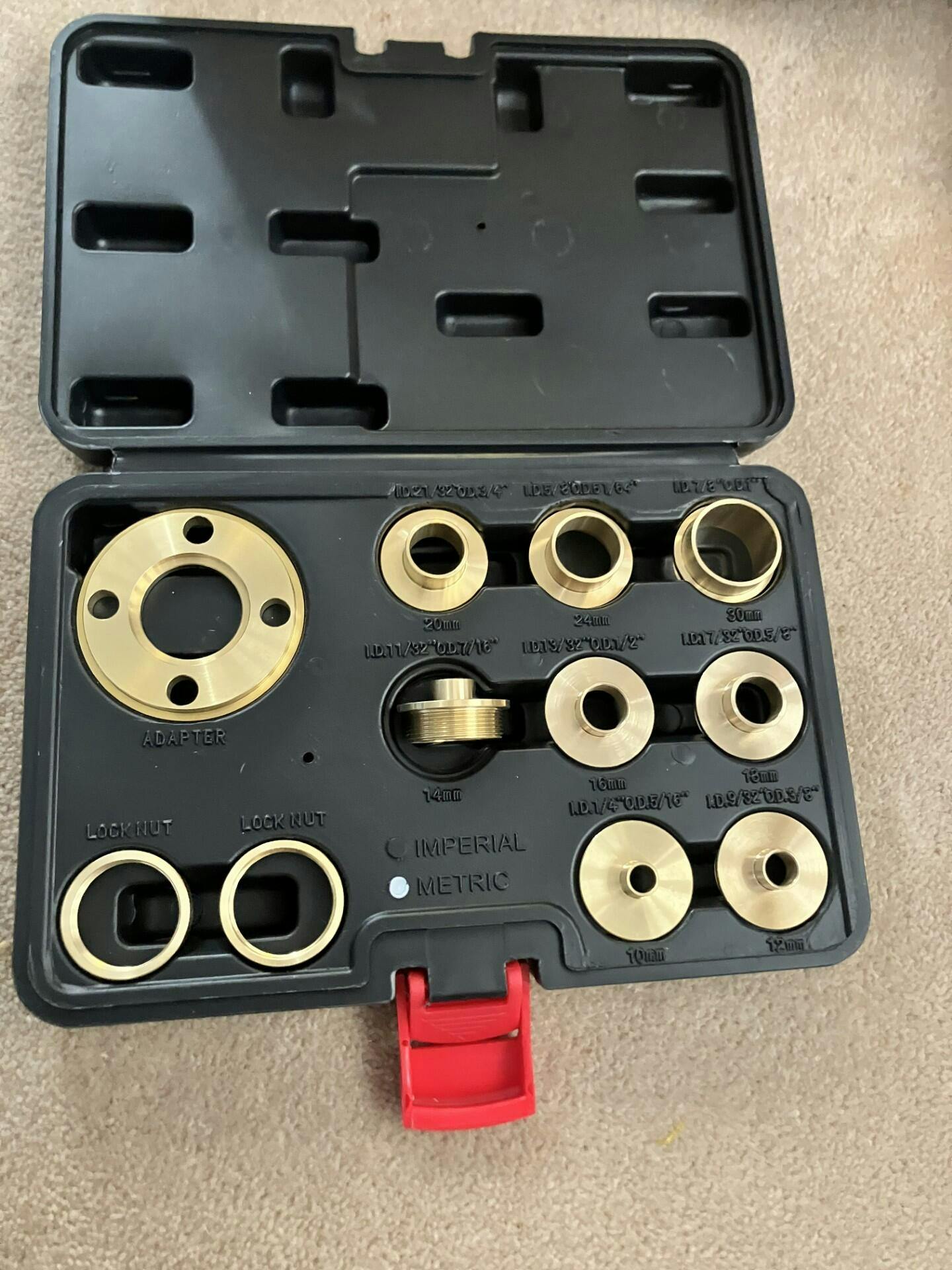

This 11 piece set is supplied in a heavy duty storage case and contains 8 x metric guide bushes, 2 x locking nuts and a solid brass adaptor plate which fits most leading brands of router. As well as fitting into the adaptor plate the individual guide bushes are commonly used on router sub-bases and router table inserts. When using these guide bushes it is recommended that a minimum allowance of 3.5mm between the router bit and outside of the bush is made, to allow the waste to clear the guide bush.

The set comprises of industry standard, outside diameter guide bushes of 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 24mm, and 30mm, all with a 30mm outside diameter threaded ring. The solid brass adaptor plate measures 67.5mm externally which is recessed to fit a 61mm router base opening. This is a premium guide bush set precision machined from solid brass that should not be confused with budget pressed steel or plastic guide bushes. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR5061
  • Guide Bush Outside Diameter10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 24mm and 30mm
  • Guide Bush Internal Diameter9mm, 11mm, 13mm, 15mm, 16mm, 18mm, 22mm and 28mm
  • Guide Bush Overall Width35mm
  • Adaptor Plate Bush Recess35mm
  • Adaptor Plate Outside Diameter67.5mm
  • Adaptor Plate Router Recess61mm
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 12 reviews
83%
(10)
17%
(2)
0%
(0)
0%
(0)
0%
(0)
T
Tom
Excellent

Really well made bit of kit. Fits perfectly with my Makita DRT50ZJ.

J
John M.
Absolutely brilliant set and the quality is super

Absolutely brilliant set and the quality is super and I had absolutely no problems attaching to my Rutland Router. Fitted like a glove. Excellent value for money and absolutely looks amazing when you open the box

B
Boots
I don't seem to have had the same issues others ha...

I don't seem to have had the same issues others have said, maybe I just haven't used them enough yet. They seem to be well made. I don't often need to use a bush for what I route, but useful to have.

P
Paul B.
I bought a lower priced, look-a-like set off Ebay ...

I bought a lower priced, look-a-like set off Ebay and they were very poorly machined. There was about 0.5mm of side movement in the bush holder so every time I tried to route a dovetail joint the tails and the pins would not fit. I ordered the Rutlands set and there is no side movement and my dovetail joint fitted first attempt. I waisted over £20 on hardwood trying to make the Ebay set work. Buy once buy quality.

E
Ernest B.
I do have some guide bushes but the Guide Bush Set...

I do have some guide bushes but the Guide Bush Set I Purchased from you are Excellent. And come in a presentation boxI would recommend them

Guide Bush Set - Metric

Precision machined

Ensuring perfect concentricity and dimensional accuracy, for a workpiece which is a true copy of the template or jig.
