Planer Thicknesser

Regular price £335.00
Regular price £0.00Sale price £335.00
In Stock for delivery by
Order within
Combining planing and thicknessing functions in a smaller footprint, a powerful high torque motor drives the precision machined cutting block, rotating two high speed steel blades at 8,500rpm, ensuring an ultra-smooth even thickness on soft, hard and composite woods.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 29,221 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Planer Thicknesser
Regular price £335.00
Regular price £0.00Sale price £335.00
KEY FEATURES
  • 3 Year Warranty
  • Precision machined, cast aluminium surface tables are ribbed to maintain flatness
  • 8500rpm cutter block leaves a smooth, ripple free finish on hard and softwoods
  • Adjustable planing depth, up to 2mm per pass
  • Rigid alloy fence can be titled through 45°
  • Dust extraction facility with industry standard 63mm port
FULL DESCRIPTION
For the workshop where space is at a premium, the combination of a planer and thicknesser is favoured, as they take up far less valuable space. The principle of a planer thicknesser is that the surface planer flattens and squares a board and the thicknesser gets the board to an even thickness.

The surface tables on this machine are precision machined from cast aluminium and are heavily ribbed underneath to maintain flatness. The twin blade cutter block is powered by a 1250W high torque motor, rotating at 8500rpm ensuring an extremely smooth, ripple free finish on both hard and softwoods. The rigid alloy fence supports the work and can be titled through 45°, whilst the full width Suva guard gives maximum protection. As an additional safety feature a micro switch prevents the planer from operation if the Suva guard is not correctly fitted. When surface planing you can control the depth of cut from 0mm to 2mm in one pass.

In thicknessing mode the in feed and out feed rollers take hold of the wood and move the wood through the cutter block at a consistent feed rate. The thicknessing bed features a stainless steel plate and will accept workpieces up to 200mm wide by 120mm deep, allowing for up to 2mm to be planed in one pass. When connected to a vacuum, fine dust is drawn from the cutter block via the dust chute, which is positioned on the surface table. The dust chute doubles as a blade guard and features a micro switch to prevent operation if not fitted. Weighing 25kg this is a solid, well engineered planer thicknesser that leaves an excellent finish and is supplied with a pair of HSS planer blades. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR1602
  • Voltage230V
  • Power1250W
  • Dimensions800mm x 460mm x 440mm
  • Weight25kg
  • No Load Speed8,500rpm
  • Surface Table200mm x 735mm
  • Planing Depth0-2mm
  • Fence Size520mm x 120mm
  • Blade MaterialHSS
  • Thickness Table Size250mm x 200mm
  • Thicknessing Planing Capacity6mm to 120mm
  • Feed Rate6m/min
  • Dust Port Diameter63mm
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 19 reviews
100%
(19)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
John K.
A bit of a steal

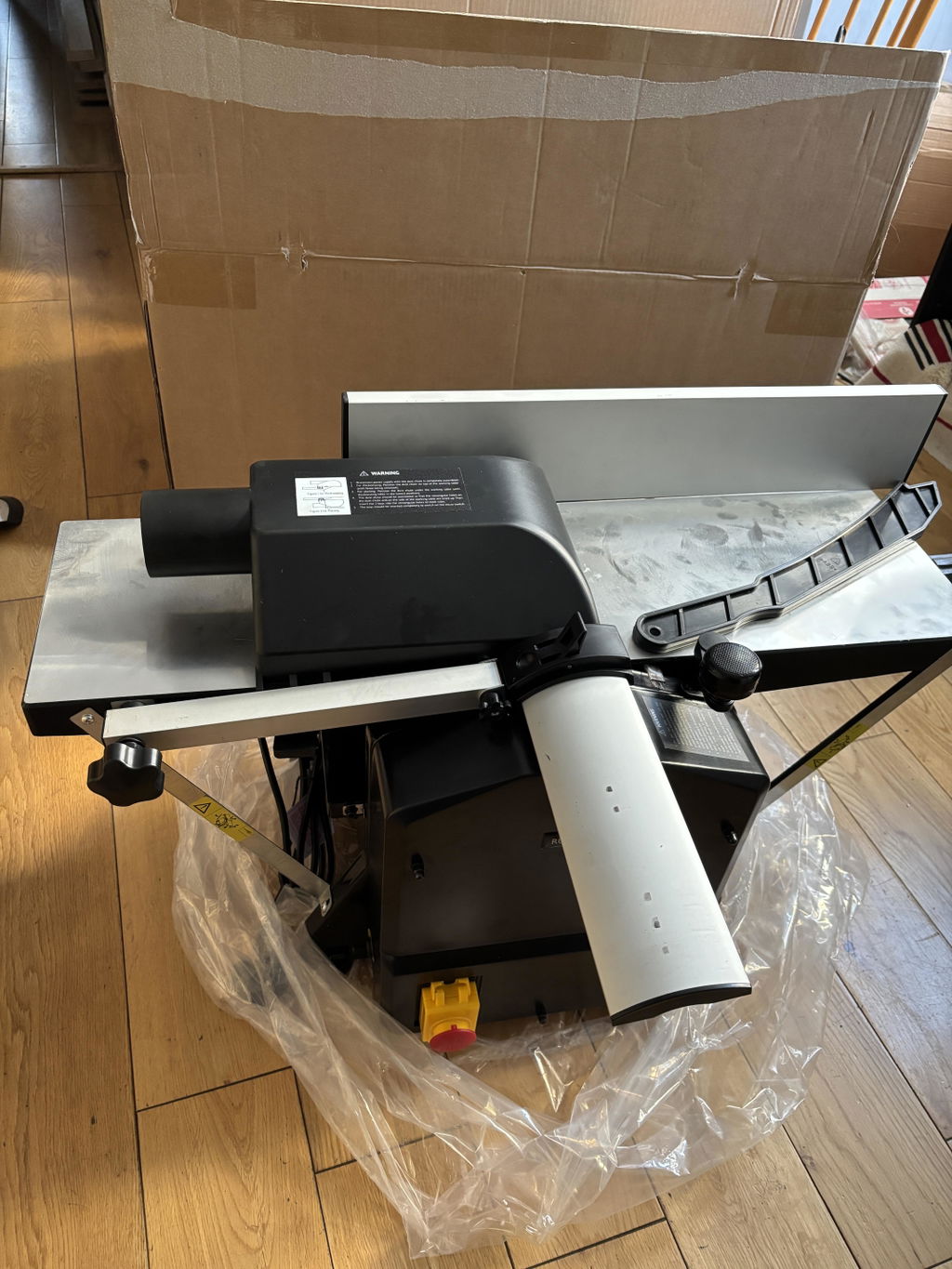

In 1989 I bought a Woody HM160 planer thicknesses and used it regularly up until today. It ran wonderfully for over thirty years and the only things that I replaced were the blades and two drive belts. These became increasingly difficult to source until I discovered that Mafell made an identical machine. My old machine is coming towards the end and when I saw this one on offer I thought it was time to replace it. It arrived today and I’ve just run a piece of oak through it and found the finish quite acceptable. The machine is obviously modelled on the Mafell design and I’m hoping that it will last as long as my old Woody. If it does I will be 109 years old by then. The only thing I would fault is there do not seem to be any instructions on how to change and set the blades. I don’t need them but anyone new to this type of machine might need some instruction to get it correct without too much trial and error. But in truth at £245 it was a bargain…

A
Andy K.
Planer Thicknesser

Great machine for the price. Small footprint and good performance. Quieter than expected.

P
Peter F.
A Beautiful Machine

Received delivery of my planer thicknesser today, excellent service.
Never used one of these before but as I use a lot of recycled wood I thought it would be a good investment. Tried it with a really shabby piece of pallet wood. Wow, even with the first pass set at 1mm it prepared that piece beyond my best expectations. All of a sudden, projects that I would not have entertained are easily achievable.
I love the look and finish of Rutlands tools. They look posh and make me feel like I know what I'm doing. I have a small metal detection wand that I use with all my recycled wood prior to using the T/P. I recommend this little bit of kit so that I can keep my T/P in its prime.

i
ian
perfect piece of equipment

where to start. i have been after one of these for a while now but the price tag put me off. i did not want to go for another brand that it available elsewhere. so i waited. when it came down to £200 in the black friday deal i snapped it up. boy am i glad i did. 10 mins setting up. 10 mins working out the adjustments. 10 mins swapping out the extractor/safety unit. first the planer. ran some pallet wood along it. kept running it to take of .5mm to 1mm. after a couple of passes, you could se it starting to smooth out. once i finished the wood needed no sanding. it was super smooth. i then flipped over to the Thicknesser. once i got the adjustment right again through multiple small passes the finish is superb. no need to sand. the fence is about 1deg out. but it isnt a great problem for me & i will play with it to get it square. as others have said the extraction/safety device is a bit fiddly. but it only takes a couple of mins to do, it he fence is slid fully towards the planer adjusting knob. all in all i am delighted with this purchase. it is solid, well built, fantastic price i got it for. the bed is totally level. no gaps anywhere on it. using a set square & spirit level. it was delivered on time exactly when Rutlands said it would be. it even comes with a push block, and a spare drive belt. rutlands have really excelled themselves with this piece of equipment. if you are in the market for a planer/thicknesser. buy it

W
Will J.
Great machine for the budget

Compact, well built and a great performer. Don’t confuse this with similar looking but cheaper tools, even if some casings are shared, having had both, this is miles ahead. The fence isn’t quite as robust as I’d like, however with a little bit of time spent setting up it runs straight and true. So far I have used this on oak, larch, C16 Pine and Tulipwood for a guitar body. I am very happy with the results, great finish and if you are careful feeding your work piece into the rollers, snipe is minimal to nonexistent! I got this with the Black Friday offer at an absolute steal, but would’ve been happy to pay full price. Excellent customer service as always. Thank you again Rutlands!

Planer Thicknesser

Smooth, ripple free finishes

The twin blade cutter block rotates at 8,500rpm, leaving a smooth finish when planing and thicknessing both hard and softwoods.
