< Air Nailers

Headless Pinner - 23g

Regular price £235.00
Regular price £0.00Sale price £235.00
This premium performance 23g headless pinner provides ultra-smooth and exceptionally powerful firing of the driving pin, with virtually no kick back in the hand. The headless pins displace minimal material, leaving an almost invisible hole, ideal for furniture production, decorative trim work and beading.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,841 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Headless Pinner - 23g
Regular price £235.00
Regular price £0.00Sale price £235.00
KEY FEATURES
  • 3 Year Warranty
  • Precision machined cylinder and piston valve, for ultra-smooth, powerful firing
  • Leaves an almost invisible hole, for delicate mouldings or pre-finished trim
  • 0.6mm diameter pin will drive tight up to an edge without splitting the wood
  • No kick back in the hand, even when firing into exotic hardwoods
  • Engineered to exacting tolerances, for near jam-free operation
FULL DESCRIPTION
This is an exceptional headless pinner, designed and patented in the USA. Unlike other pinners, it features a precision machined aluminium cylinder and piston valve, which when you squeeze the trigger results in ultra-smooth and exceptionally powerful firing of the driving pin. There is virtually no kick back in the hand, even when firing into exotic hardwoods with 50mm pins, leaving an inconspicuous hole that can simply be painted-over or filled with sanding dust to colour match the surrounding wood. 23 gauge headless pins are 0.6mm in diameter and displace minimal material allowing you to drive tight up to an edge without risk of splitting the wood.

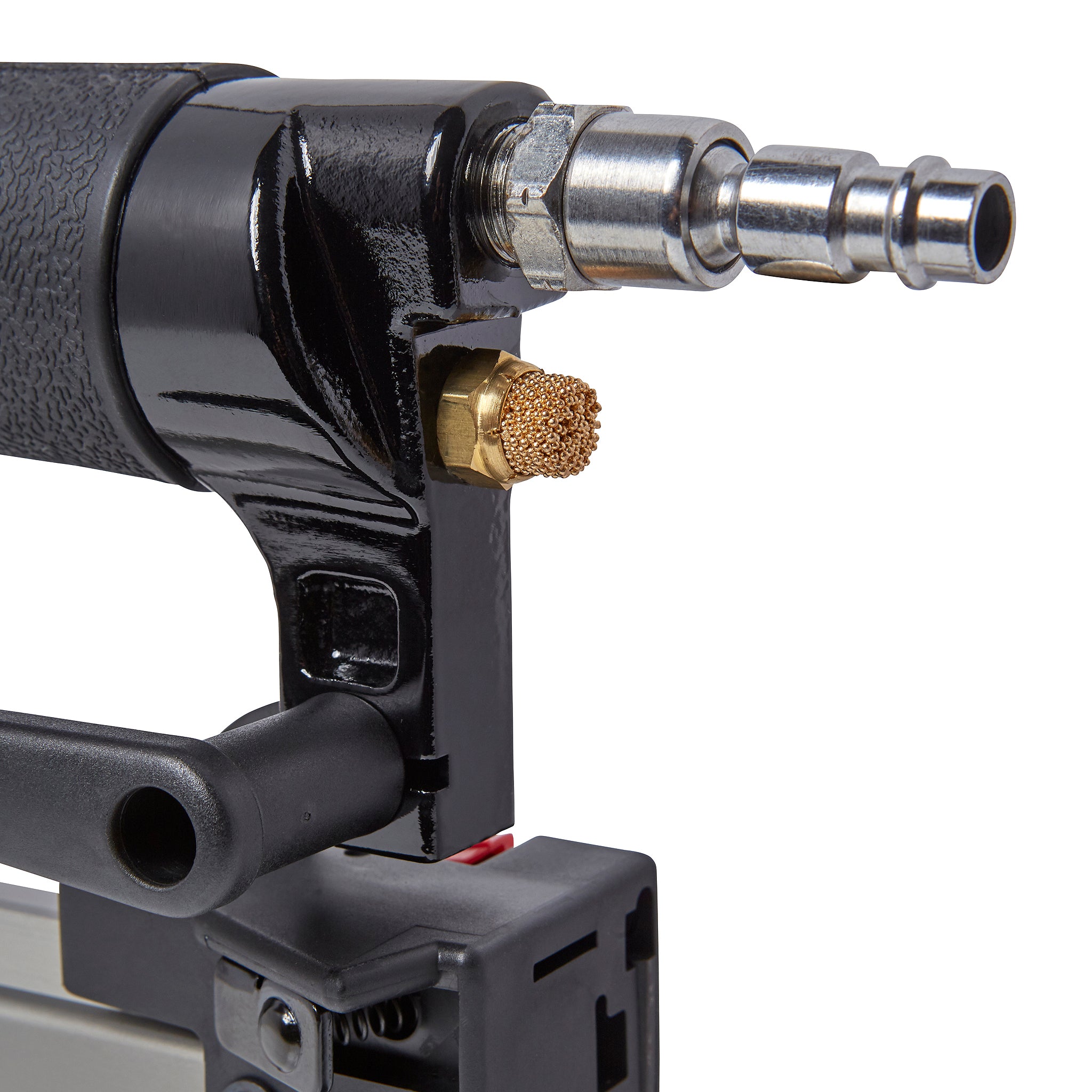

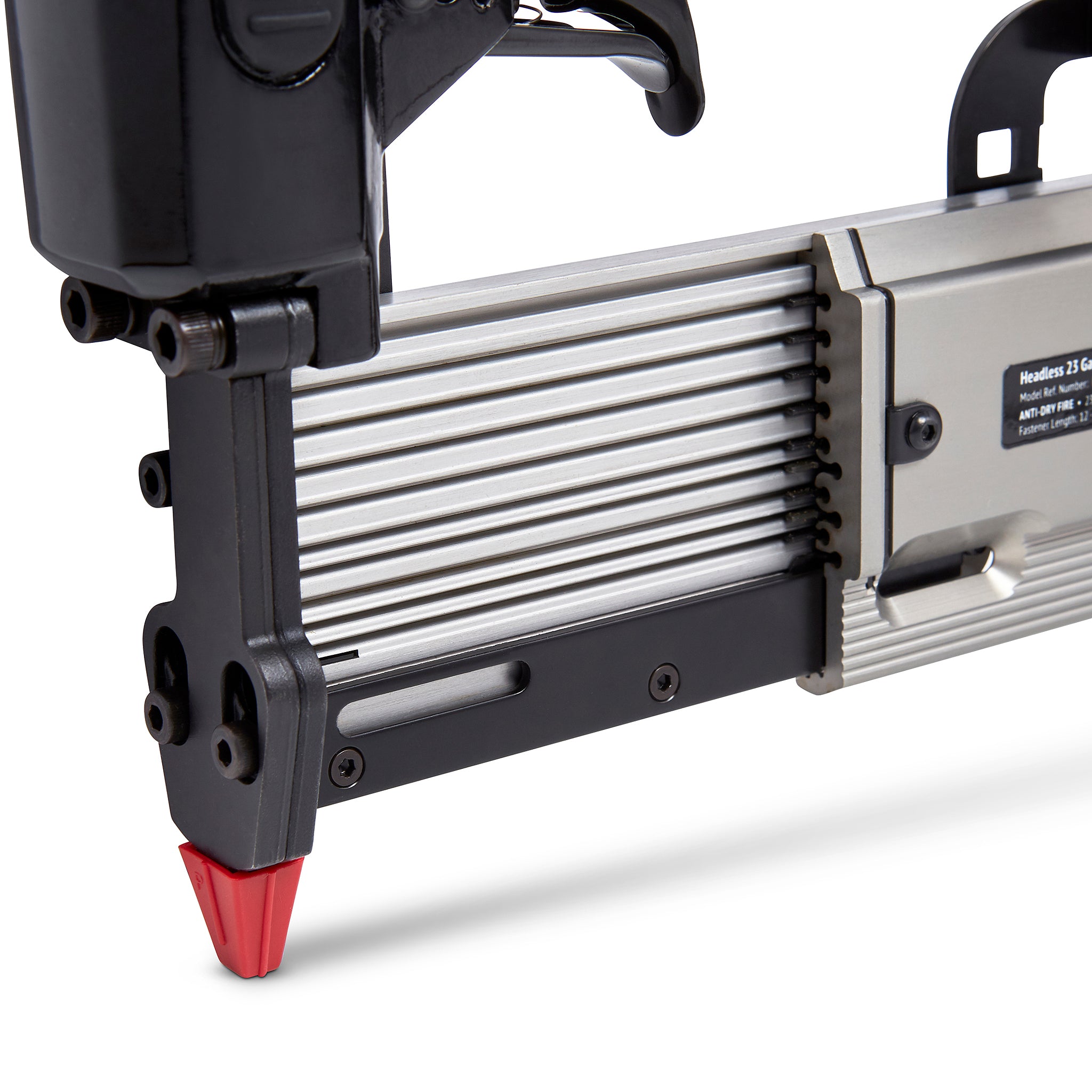

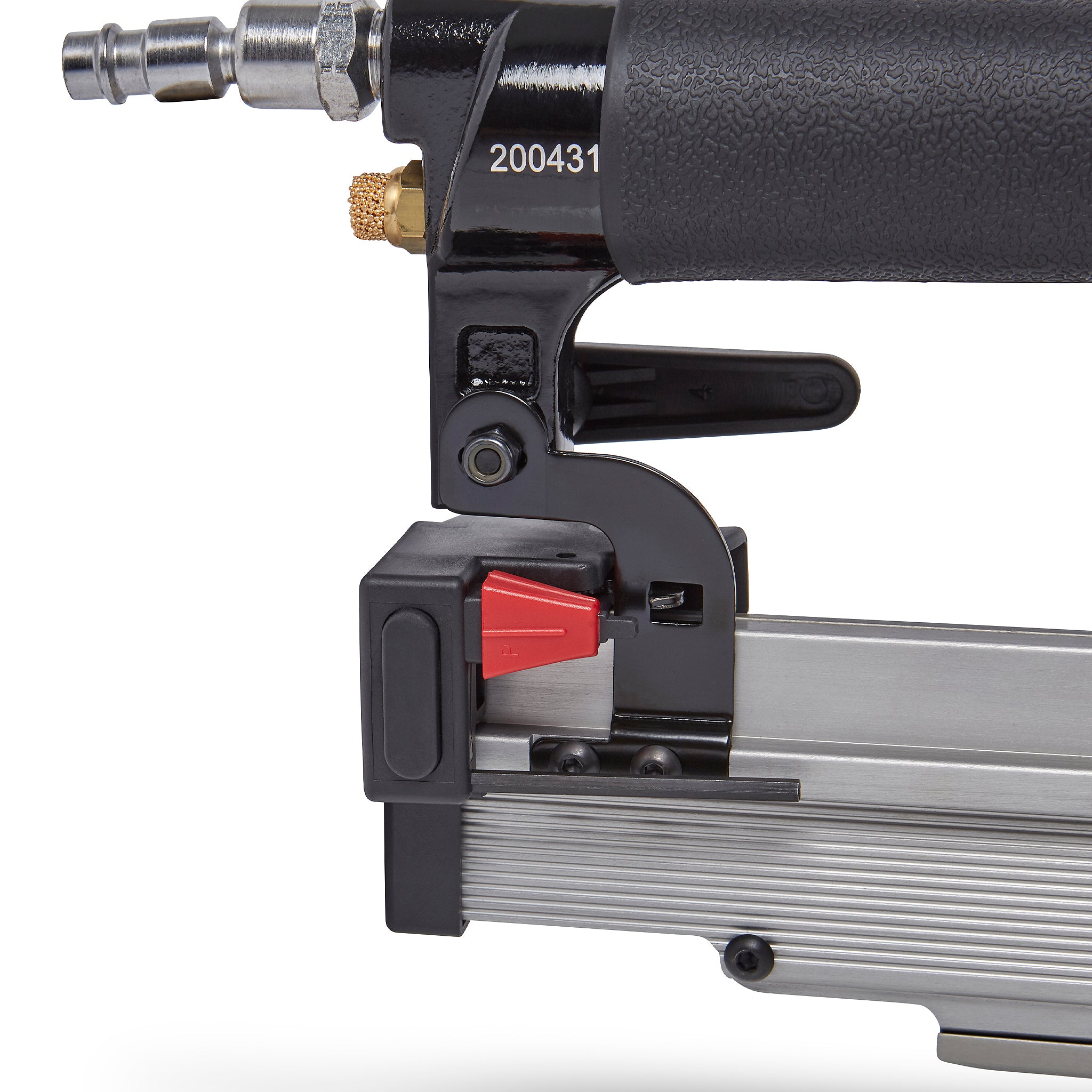

The patented, easy to fill and side loading magazine is made from machined aluminium and self-adjusts to accept pins from 12mm to 50mm. The trigger automatically disengages as you reach the last few pins in the magazine, eliminating the risk of dry firing and preventing damage to the surface of your work. You can quickly and simply override dry firing mode, if you want to use the remaining pins. A swivel coupling prevents the hose from tangling and a rear mounted exhaust vent directs air away from the operator. The pinner operates at 5 to 7 bar pressure and can be used up to 8 bar when firing pins into very dense hardwoods. The narrow nose design allows for access to tight areas and angles, and the soft silicone tip prevents marring of contoured faces. Precision engineering tolerances on the nose of the pinner ensure for jam free operation and tool longevity.

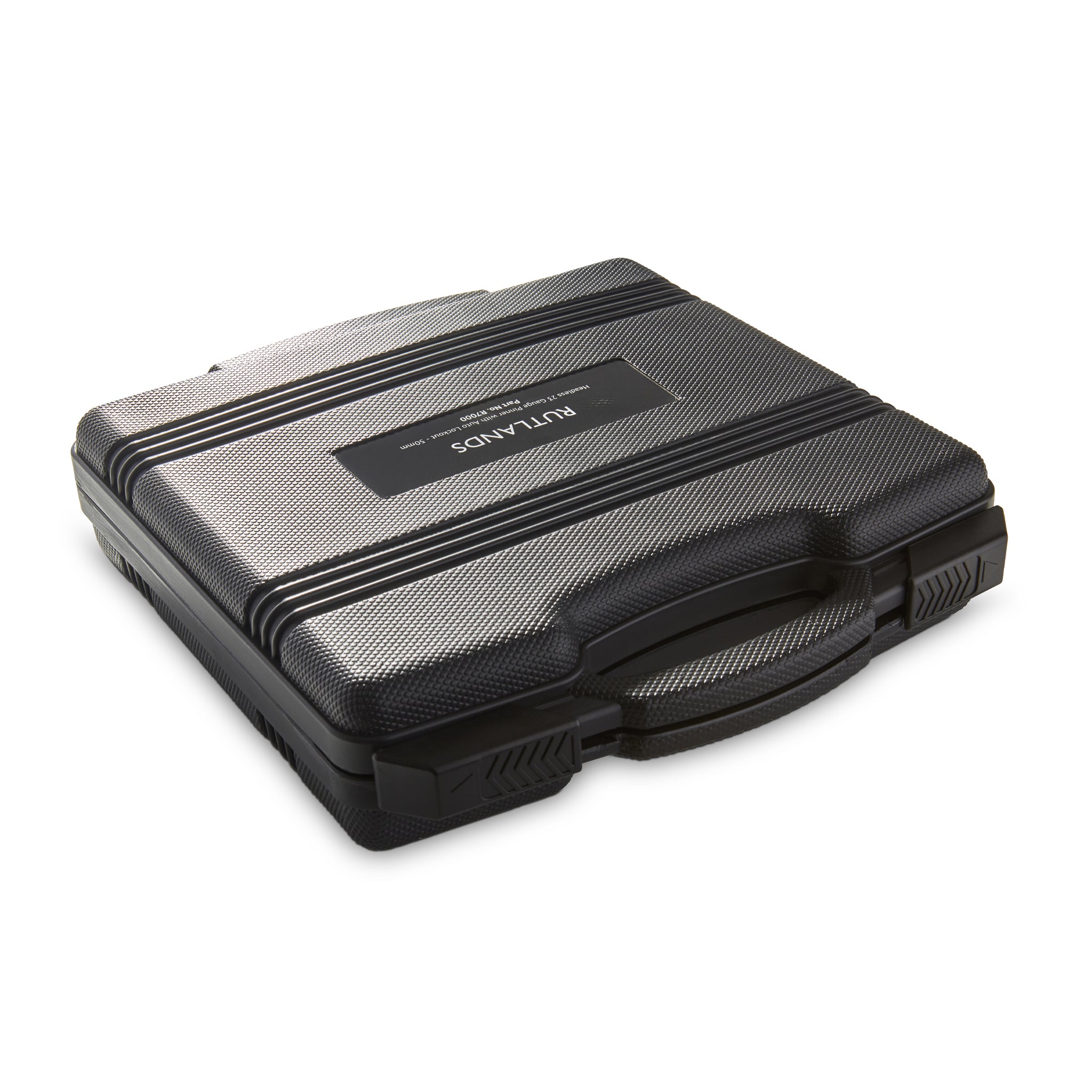

Only when you use this pinner for the first time can you truly appreciate its premium quality. Simply squeeze the trigger and without any recoil the pin is delivered precisely where you want and to the depth you want into the workpiece. It is quite an exceptional tool for furniture production and assembly, finish and trim work, decorative trim, mirror and picture frame assembly and window beading. Supplied with carry case, replaceable no mar tip and on board Allen keys.©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR7000
  • Gauge23g
  • Pin Diameter0.6mm
  • Pin Lengths12mm - 50mm
  • Operating Pressure5-8 bar
  • Magazine Capacity100
  • Dimensions200mm x 220mm x 45mm
  • Fitting TypeEuropean Type PT1/4"
  • Weight1.2kgs
