Multi-Angle T Rule - 510mm

Name: Multi-Angle T Rule - 510mm
Brand: Rutlands®
SKU: R9086
Price: 40.00 GBP
Availability: InStock

£40.00

In Stock for delivery by

Order within

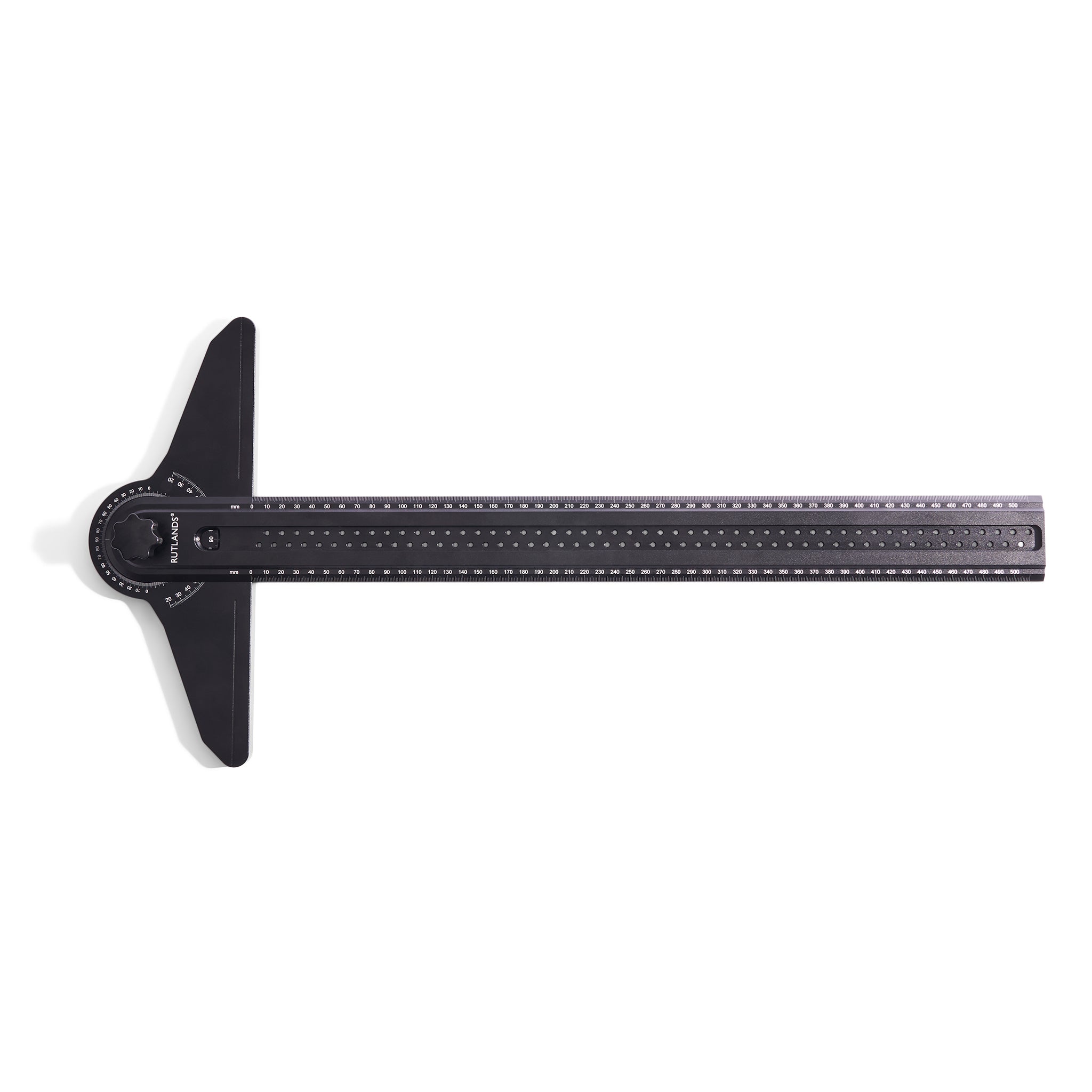

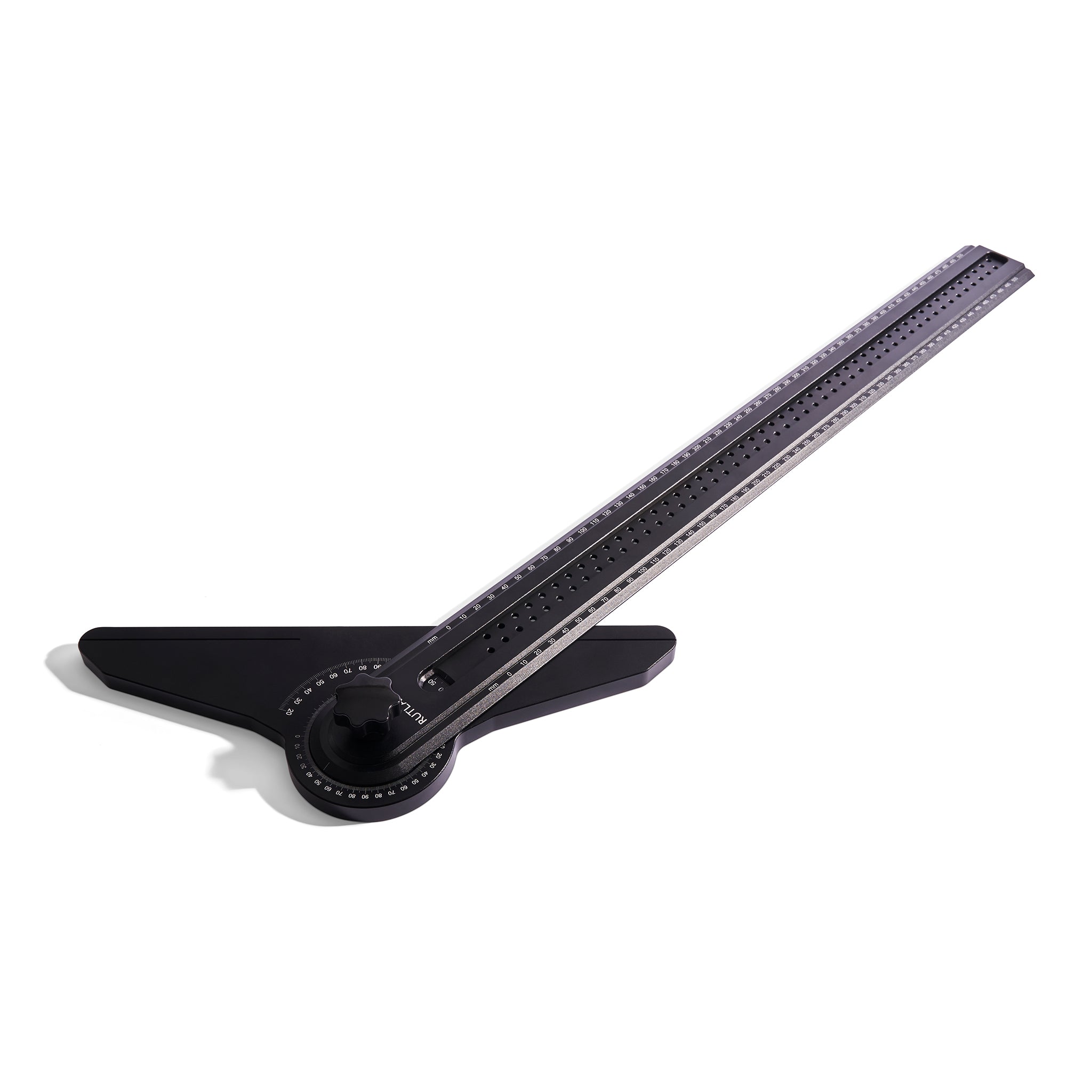

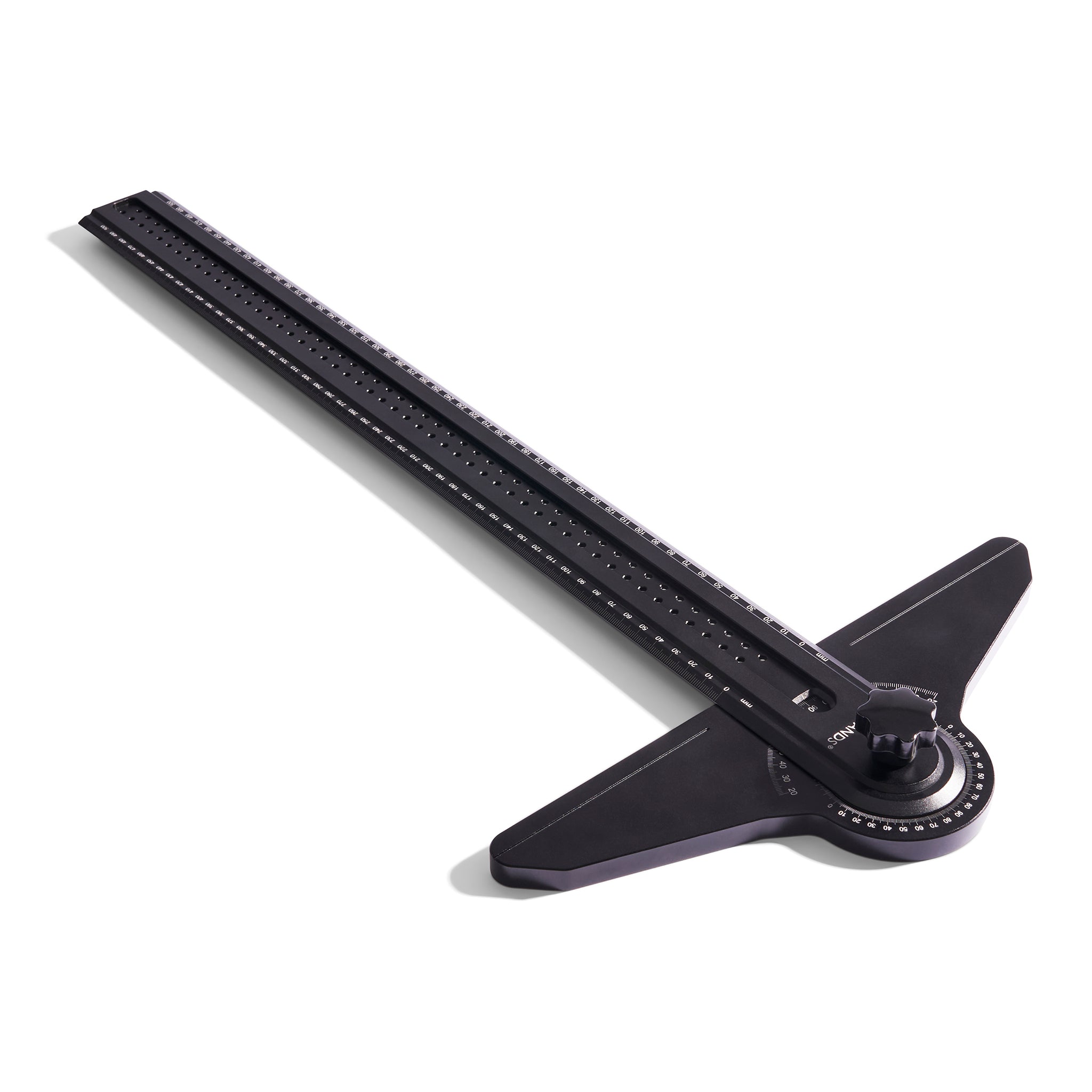

The Rutlands® multi-angle T rule is an indispensable tool for marking, measuring and a multitude of other layout applications across a full 360° range. The 510mm rule features bevelled edges for accurate pencil alignment and reduced parallax error, whilst a series of marking holes every 5mm allow the drawing of straight and parallel lines from the edge of the workpiece.

Product variants

Shop with confidence with our 1 Year Warranty
Rated excellent based on 11,938 product reviews
Over 3.5 million Rutlands® premium tools sold worldwide

Multi-Angle T Rule - 510mm

£40.00

1 Year Warranty
Accurate marking, measuring and angle layout across a full 360° range
Clear, laser etched graduations at every 1°, with scale pointer for quick angle identification
510mm rule with bevelled edges, for accurate pencil alignment, reducing parallax error
Marking holes every 5mm allow straight & parallel lines to be drawn from the workpiece edge
300mm wide reference face sits securely against the edge of the workpiece

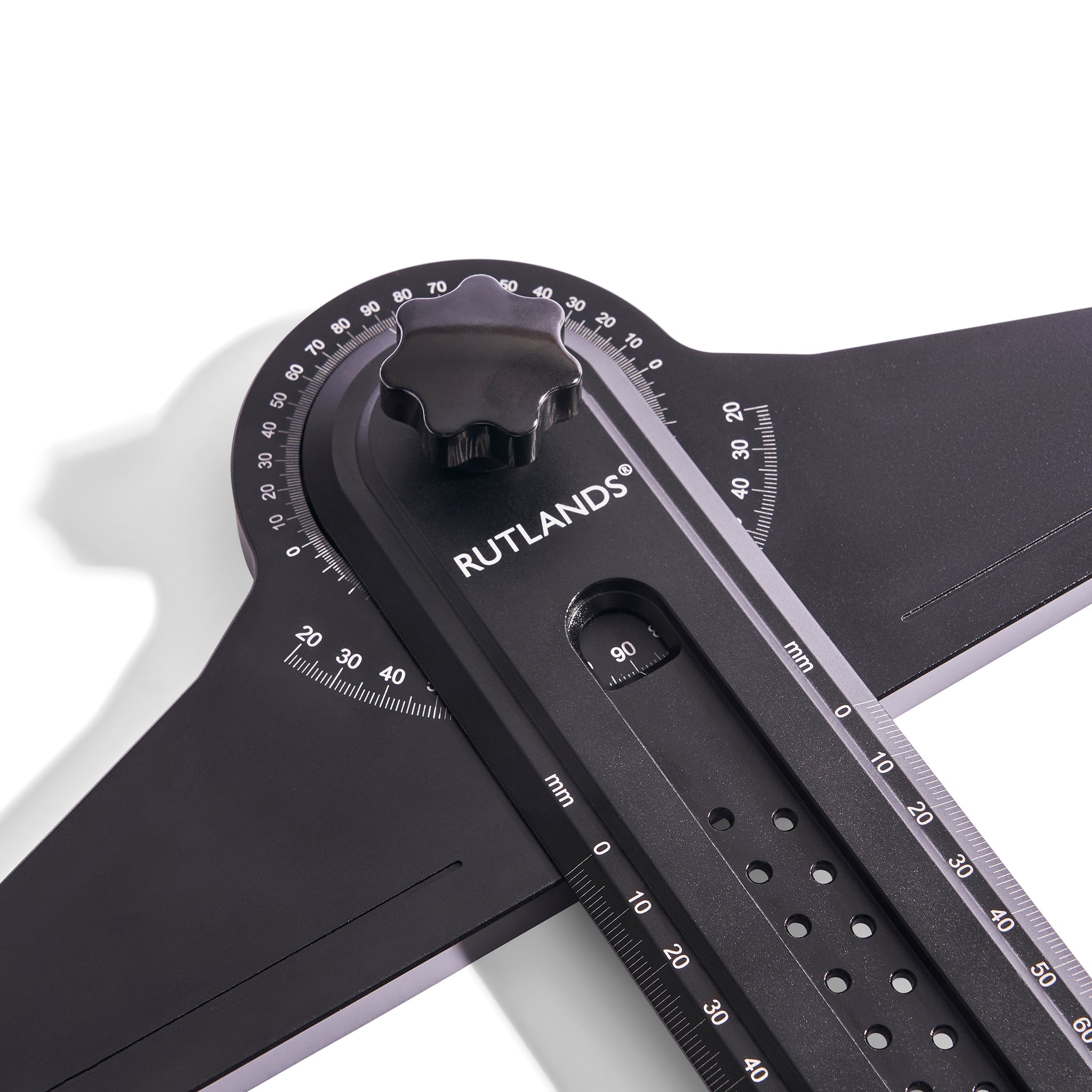

The Rutlands® multi-angle T rule is an indispensable tool for marking, measuring and a multitude of other layout applications. Providing a full 360° range of movement, simply rotate the rule to the desired angle, lock in place using the large locking knob, butt the flat reference face up against the edge of the workpiece and scribe a line. Clear, laser etched graduations are provided for every degree, with larger graduations every 5° and degree numbers given every 10°. A scale pointer within the centre of the protractor provides quick and easy identification of the required angle.

The rule reads up to 510mm on both edges, allowing you to mark right up the edge of a workpiece on both the left and right hand side. Tapered edges on both sides position the scale markings closer to the work surface, reducing parallax error for the highest level of accuracy. Within the middle recess of the rule is a series of marking holes placed at 5mm increments, used for drawing straight and parallel lines from the edge of the workpiece. The large reference face of the edge guide measures 300mm wide by 12mm deep, providing excellent registration to sit securely against the workpiece.

The large locking knob can quickly be removed and the rule then used independently as a standard straight rule. Rule and protractor are precision CNC machined from aluminium with a durable, scratch-resistant anodised finish. ©

BrandRutlands®
Product CodeR9086
Rule Length510mm
Rule Width55mm
T Width300mm
Overall Size (L x W x H)630mm x 300mm x 40mm

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £8. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Gift Cards
Rutlands® gift cards are delivered instantly by email to the email address entered at checkout and contain a unique code for use at checkout. You can forward the email and code directly to the recipient. Visit our Gift Card page for more information.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

very well made item and well worth the price

very well made item and well worth the price,It will be well used,one of the very many items that I have purchased from Rutlands

saw this on my usual Rutland's notifications and took a quick look

saw this on my usual Rutland's notifications and took a quick look. Then I did my usual Temu, Amazon' and eBay to see if there was any similar - there wasn't - there were lots offered but not as good as the photo and price that Rutlands had. Bought the Rutland's one and mus add it is accurate and well made (wherever that is) don't waste your time for decent stuff use Rutland's gear. Even the router bits are better than some household names.

Fantastic product.

Delivering the Multi-Angle T Rule the next day was fantastic. The product itself is fantastic, making angle measurement a breeze. The small holes allow for drawing straight lines at a set measurement across the piece and arcs at set radii. I would highly recommend this product for its quality materials and versatile range of uses, simplifying the job significantly.

Proper quality easy to read scale

Proper quality easy to read scale billet aluminium you can’t buy this anywhere else at this price (some of the stuff I’ve wasted money on flimsy rubbish) not this sound buy recommended to craftsmen

This is a substantial piece of kit

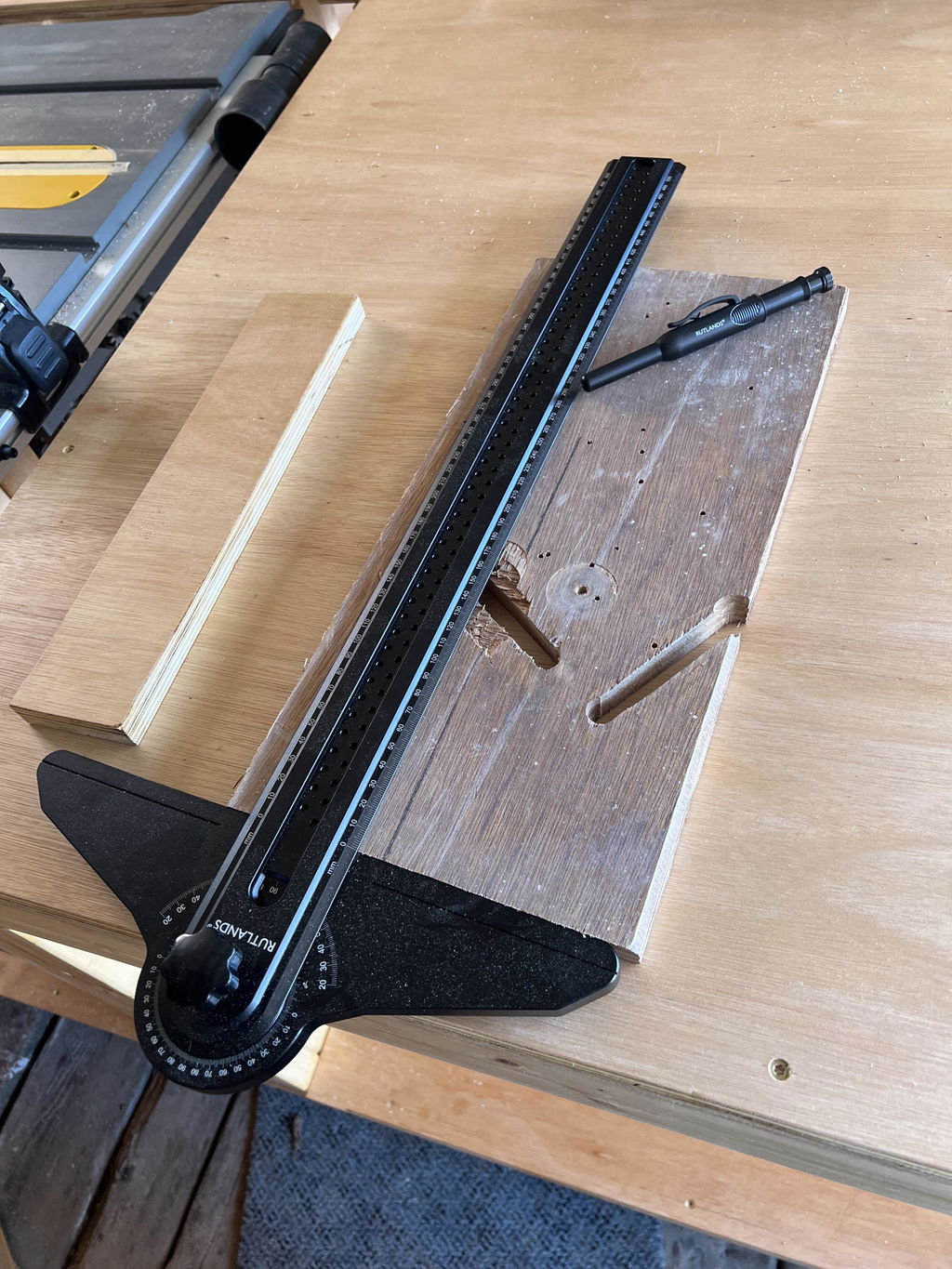

This is a substantial piece of kit. I was quite surprised by the weight, much heavier than I thought that it would be. However this is for the good as it sits really well and stays in place. It is really easy to use and the markings are very clear. I have only used it a couple of times and only to scribe a couple of lines but it was so much easier and more accurate than trying to draft the angle using a protractor. The package it comes in I will retain as it will keep the Tee Square safe.
