R20 Electronic Router Lift and Motor with Speed Control NVR Switch

Regular price £795.00
Regular price £0.00Sale price £795.00
In Stock for delivery by
Order within
This premium performance router lift and motor package features a powerful 2400w router motor with variable speed control NVR switch, featuring both a speed control knob for fine speed adjustment and a built-in NVR switch, providing a safe, convenient way to control power to the motor. Height adjustment is operated by a digital control box, featuring a touch screen LED display, for pinpoint accuracy down to 0.1mm.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 30,011 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
R20 Electronic Router Lift and Motor with Speed Control NVR Switch
Regular price £795.00
Regular price £0.00Sale price £795.00
KEY FEATURES
  • 3 Year Warranty
  • Powerful 2400W motor tackles the most demanding hardwoods and end grain with ease
  • Variable speed control NVR switch for full, external control of the router motor
  • Digital control box sets the router bit height to an accuracy of 0.1mm
  • Manually enter the height adjustment or simply hold the up or down button
  • Reset to zero at any height and adjust in 0.1mm increments for incremental passes
FULL DESCRIPTION

This is a premium performance router lift and router motor package featuring the R5063 Electronic Router Lift and the R5269 Router Motor with Variable Speed Control NVR Switch.

Electronic Router Lift - R20
This new electronic router lift significantly reduces set up time and ensures pin point accuracy when table routing. The rise and fall of the router lift is operated by the digital control box which features an LED display. You simply press the start button on the control box and then select either metric or imperial graduations. Metric settings are displayed in 0.1mm increments and imperial settings in 0.001" increments.

There are two operating modes for the lift, the first method is to raise or lower the lift by pressing and holding the up or down button on the key pad until you reach your desired height. The second method is to raise or lower the lift by a specific increment by entering into the keypad the amount of height adjustment required. You can re-set to zero at any height by pressing the set zero height button. This is an excellent feature to ensure pin point routing accuracy down to 0.1mm increments.

The electronic router lift has an inbuilt thread tensioning design to ensure that the router will automatically lock in position after setting the cutting height, eliminating the risk of unwanted travel during routing. The carriage and threaded arms of the lift are CNC machined and feature sealed-for-life bearings to allow for smooth, stable control of the router motor. An adjustable motor clamping bracket accepts the Rutlands® variable speed router motor and any other router motor with a body diameter between 104mm and 110mm.

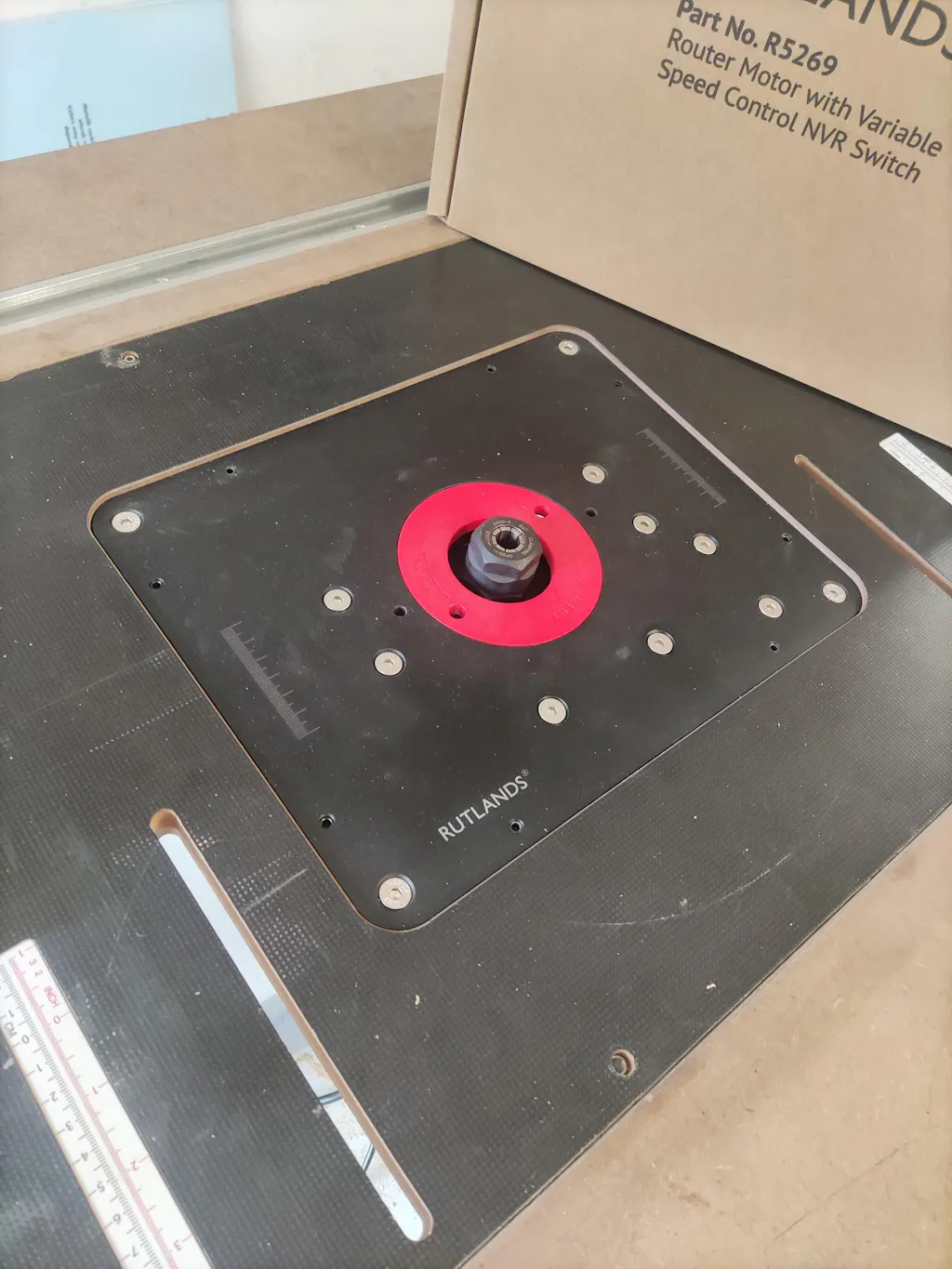

The top plate is CNC machined from 10mm thick aluminium plate and has a 100mm opening for accepting insert rings. The plate can be levelled to a table top via the 8 micro adjustment screws. Supplied with electronic router lift, digital control box, 230V cable and plug, 50mm insert ring, insert ring spanner and full operating instructions. This electronic router lift is a premium product that is extremely simple to use, will save valuable set up time and will ensure pinpoint accuracy. It is without doubt the finest electronic router lift available.

Router Motor with Variable Speed Control NVR Switch
The powerful, 2400W variable speed router motor features an intelligent torque control system, ensuring that the rotational speed remains constant and preventing the motor from slowing under load, no matter what diameter of router bit you are using or how hard the wood, resulting in a superior workpiece finish. The integrated air cool system delivers a constant flow of fresh air, preventing the motor from overheating when installed within the Rutlands® dust box or dust cabinet. The variable speed control NVR switch provides full, external control of the router motor and features both a speed control knob for fine speed adjustment between 10,000 to 21,000rpm, and a built-in NVR switch, providing a safe, convenient way to control power to the motor. For added piece of mind, in the event of a power cut the power will remain off and the router motor will not restart until you press the green 'On' button once again. With soft start technology, the router motor gradually increases the speed from zero to the desired level for a safer, more enjoyable routing experience.

The two 1/4" and 1/2" ER20 collets are precision machined to ensure perfect balance and concentricity, and the large off-set collet wrenches allow for fast bit change over. Optional 6mm, 8mm and 12mm metric collets are available. ©.

SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR5078
  • Router Motor
  • Voltage230V
  • Power2400W
  • Dimensions205mm x 106mm
  • Variable Speed Range10,000 - 21,000 rpm
  • Collet Diameter1/2" and 1/4"
  • Motor Diameter106mm
  • Cylindrical Length130mm
  • Motor Cable Length1.2m
  • Switch Cable Length2.4m
  • Weight3.87kg
  • Electronic Router Lift R20
  • Insert Plate Size298mm x 235mm
  • Insert Plate MaterialAluminium
  • Insert Plate Thickness10mm
  • Overall Lift Height330mm
  • Insert Plate Aperture90mm
  • Insert Ring Aperture50mm
  • Digital Increments0.1mm or 0.001"
  • Digital DisplayMetric and Imperial
  • Weight9kg
  • Motor Carriage Diameter106mm
  • Router Bit Travel0mm - 75mm
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Robby C.
A very clever bit of kit

A very clever bit of kit, must admit I was grinning like a kid when I typed in the height and watched the lift send itself up. For those like me that dont want to spend time with height gauges cranking lifts and checking the height this is the answer. A joy to use, with the cost justified by the time saved.

J
John B.
When using large raised filed panel cutters, even ...

When using large raised filed panel cutters, even in hardwood this little beauty does not falter and allows for an exceptional finish. My previous Makita 3612C router would slow under heavy loads and end up burning the surface.

D
Daryl A.
Well made products once dedicated space has been a...

Well made products once dedicated space has been allocated and fully set up should be a pleasure to use for years to come.

S
Sam M.
A match made in heaven that is perfect for a route...

A match made in heaven that is perfect for a router table project. I have never seen an electronic router lift before but liked the concept and the fact bit height can be set so reliably and easily. I have a couple of Rutlands routers so had full confidence in the router motor, and I can confirm that it is a beast and compliments the lift very well.

P
Paul F.
I toyed with ordering the electronic lift for a co...

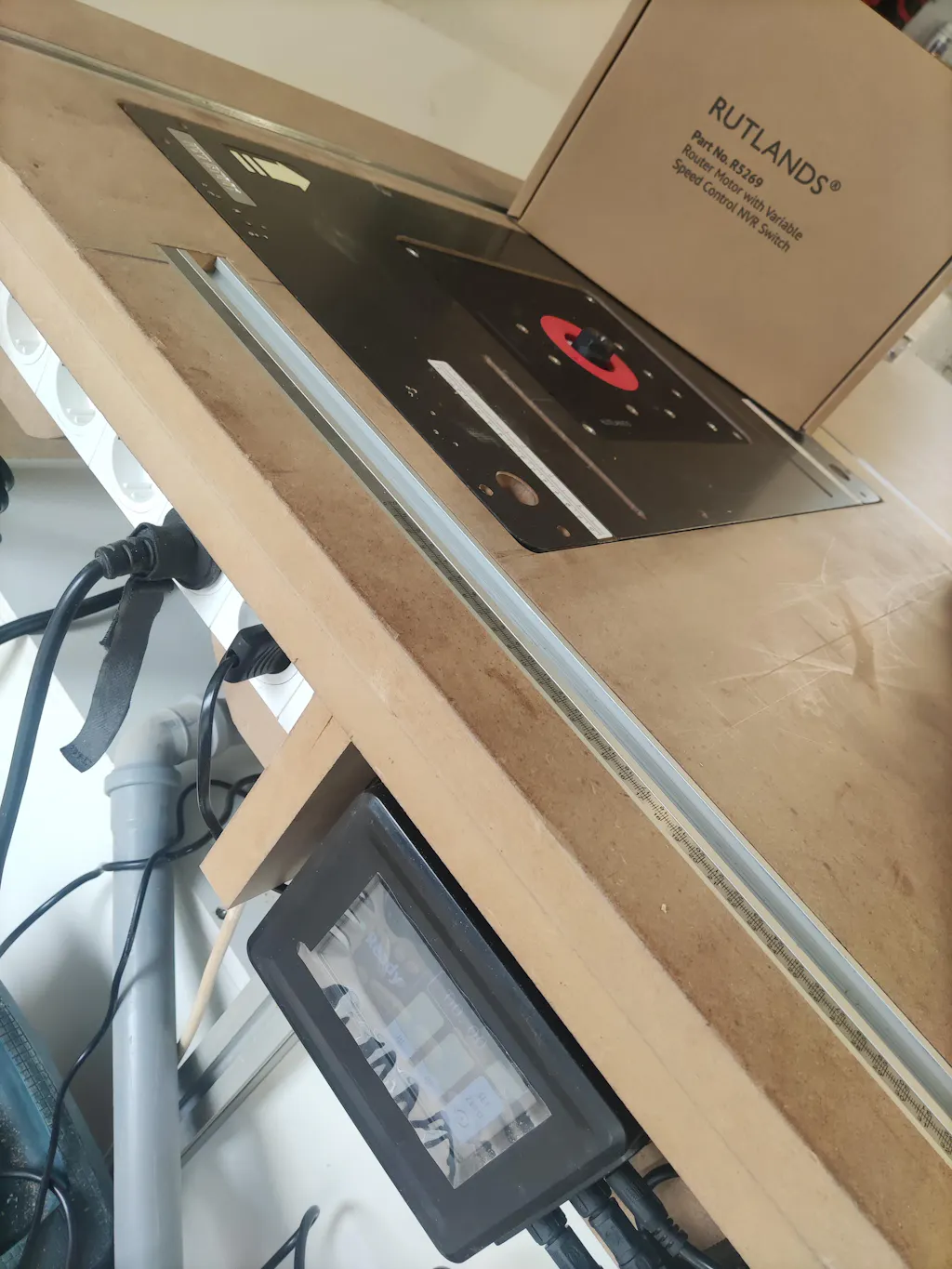

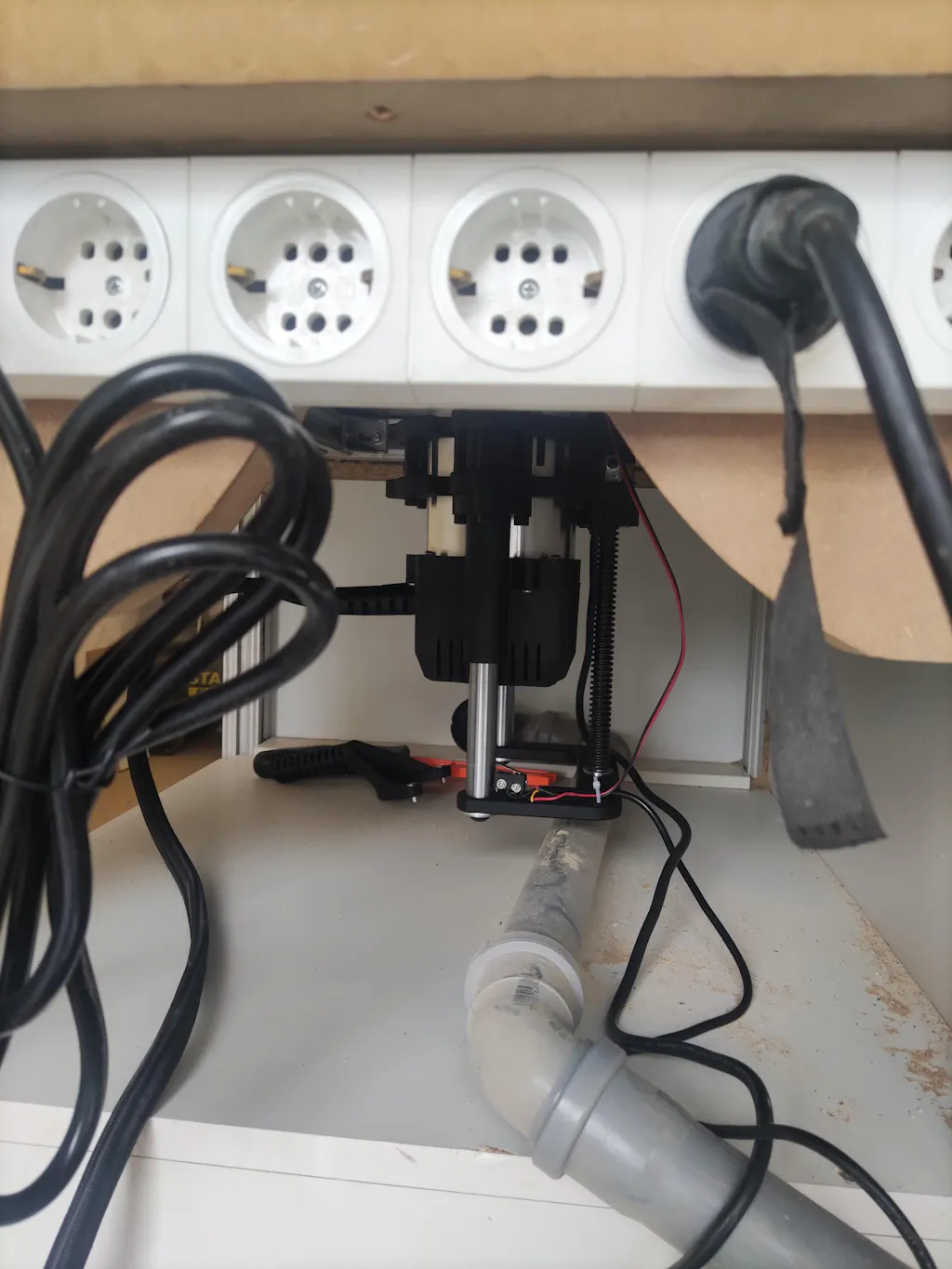

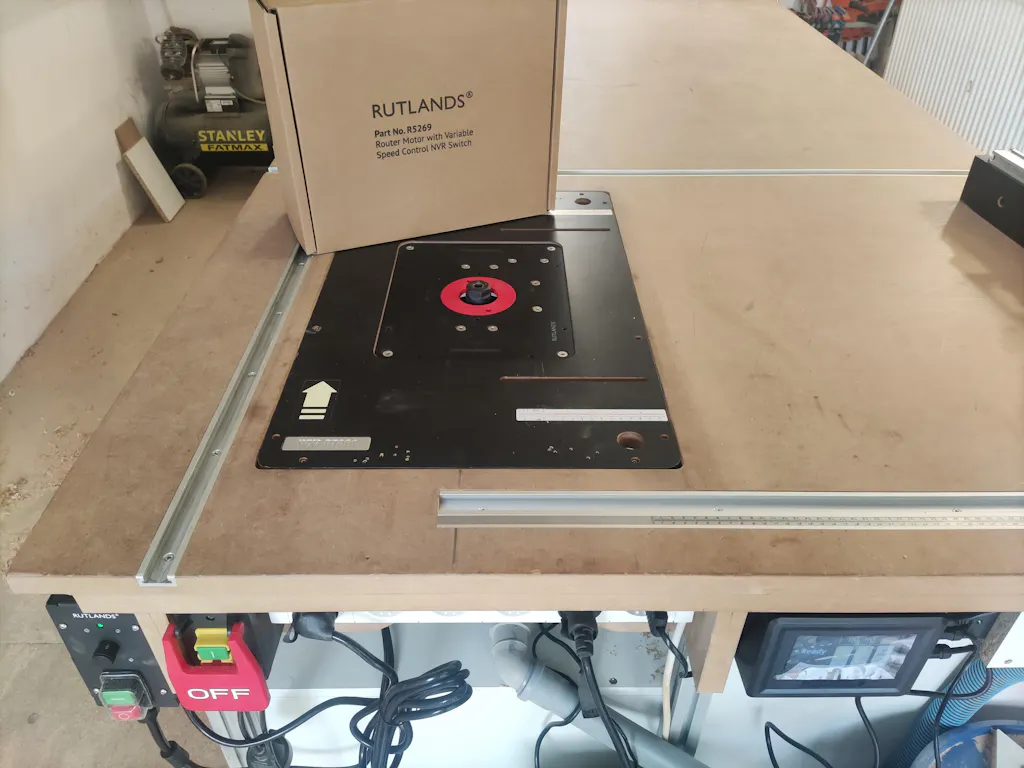

I toyed with ordering the electronic lift for a couple of days trying to justify to myself if I could warrant such a tool. I took the plunge and received delivery a couple of days ago. I have a Jessem table with router lift that you raise and lower by a side handwheel. I removed my old lift and replace it with my new electronic version. The table opening size was the same, so the fit was simple. I'm assuming that router table insert sizes are becoming standard now - at last. I attached the control box to the stand and positioned it at a slight angle so I could clearly see the keypad. I switched the control box on, pressed and held the up button and the lift smoothly raised itself with a quiet purring sound. There is a dedicated motor built into the lift that rotates via a drive belt, a nut on the main threaded spindle. As the nut rotates the carriage of the lift moves up and down. It's extremely precise and you can stop the movement instantaneously by releasing your finger form the key pad. After playing with the lift for a couple of hours to get a clear understanding of its operations I set to work on my first project. I needed to run a 12mm wide groove in tulip wood to a depth of 8.5mm. I set the control box to zero when the top of my router bit was flush with the router table and then keyed in 8.5mm to the control box. I pressed enter and the bit rose by 8.5mm. I made my first pass and then measured using a digital depth gauge the routed groove and it was precisely 8.5mm deep all the way along. I justified my purchase that very moment. An excellent piece of equipment that I will highly recommend to anyone.

R20 Electronic Router Lift and Motor with Speed Control NVR Switch

Revolutionary routing

Touch screen control panel provides super-fast set up and pin point accuracy of the router bit height, to a resolution of 0.1mm.
