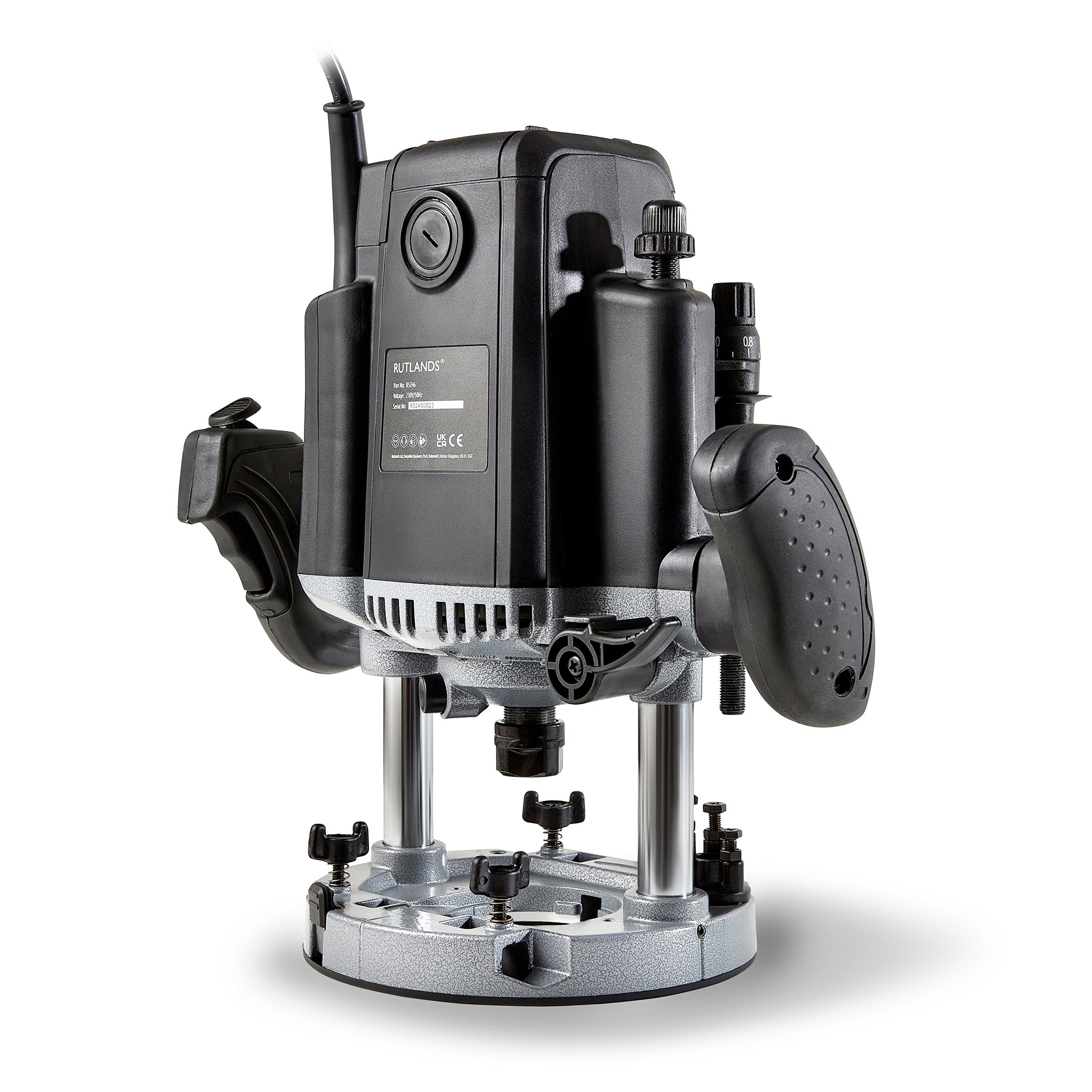

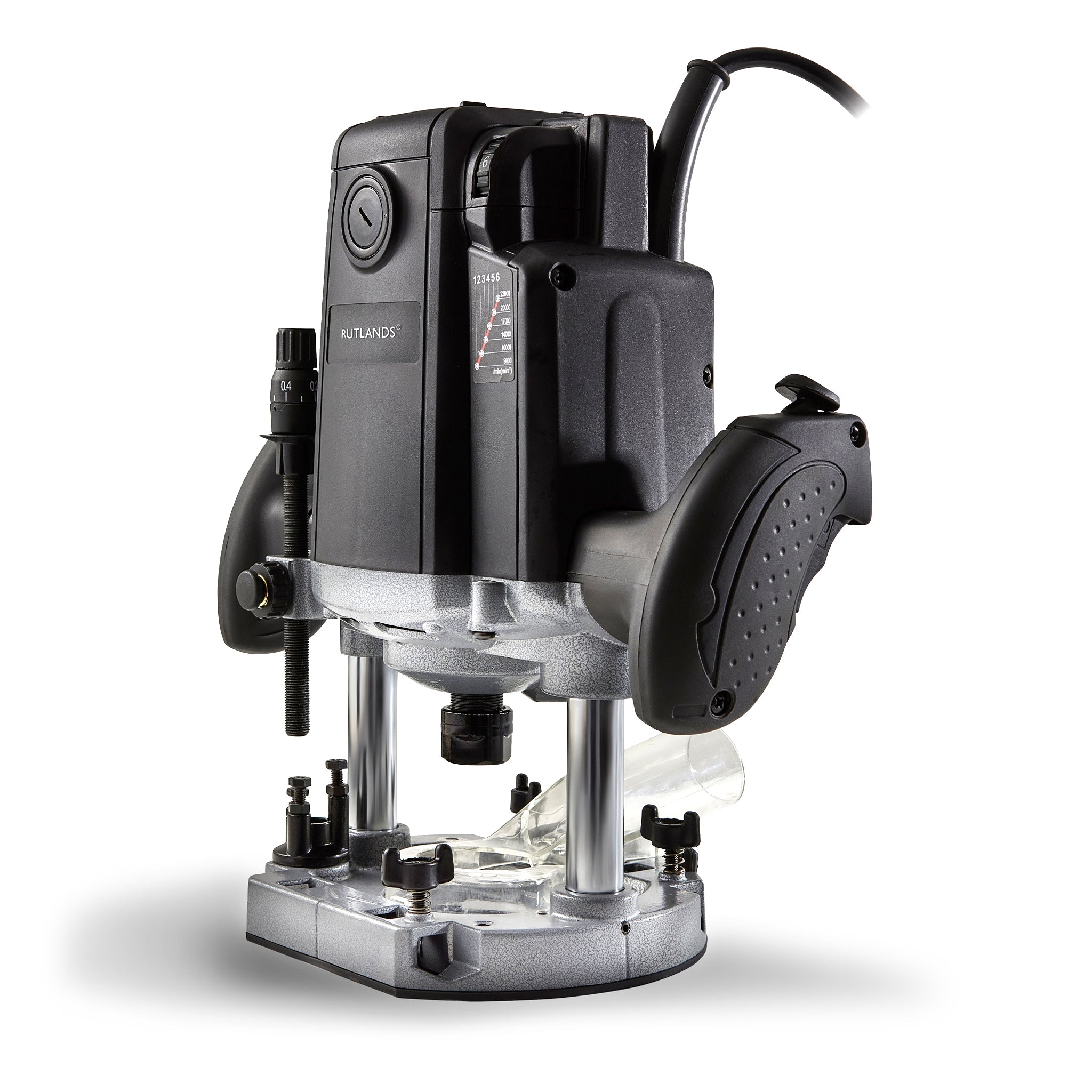

R80 1/2" Router

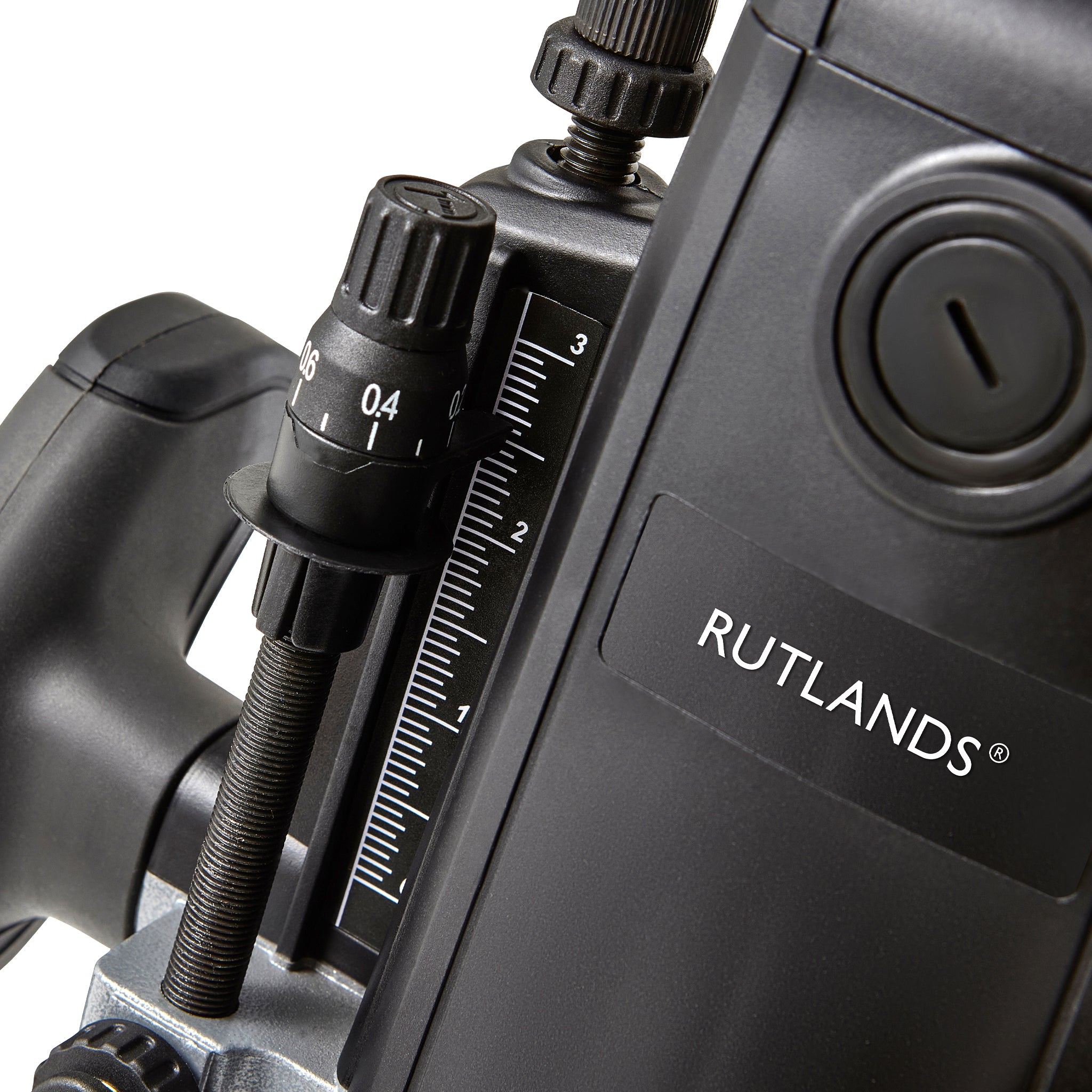

The Rutlands® R80 1/2" router delivers exceptional power at 2200W, whilst providing a smoother, more controlled freehand routing experience. A newly designed, linear ball bearing guided plunge mechanism vastly improves on the standard rigid plunge action, often prone to lateral movement. These ball bearing guides provide the smoothest, class-leading, friction free plunge stroke light enough to operate with just one hand. Plunging up to a depth of 70mm, the R80 travels through its range without excessive play or tightness, allowing routing with a higher level of accuracy and control. Depth adjustment is quickly and precisely controlled using the fine adjustment knob to a resolution of 0.1mm, clearly marked in easy to read graduations. A 3 turret depth stop and graduated depth scale allow for up to three different cut depths to be pre-set, ideal for making incremental passes.

The powerful 2200W motor runs at a variable speed range of between 9,000 – 22,000rpm, maintaining a constant rotational speed, even under demanding loads. Each of the six settings and its corresponding motor speed are visible just below the dial for quick reference. Soft start technology ensures that the motor is brought up to speed gradually, supressing any shock on start-up. The ergonomically contoured soft grip handles ensure optimum control of the router and feature a handle-mounted power switch for ease of use. A safety lock mechanism prevents accidental start-up, whilst a locking button allows the motor to run continually, ideal for extended use. The tool-free template guide system removes the need for screws, allowing quick and easy installation and interchange of guide bushings, minimising downtime during template work. Simply pull out the spring-loaded lever, place a guide within the base opening and release the lever to lock securely in place.

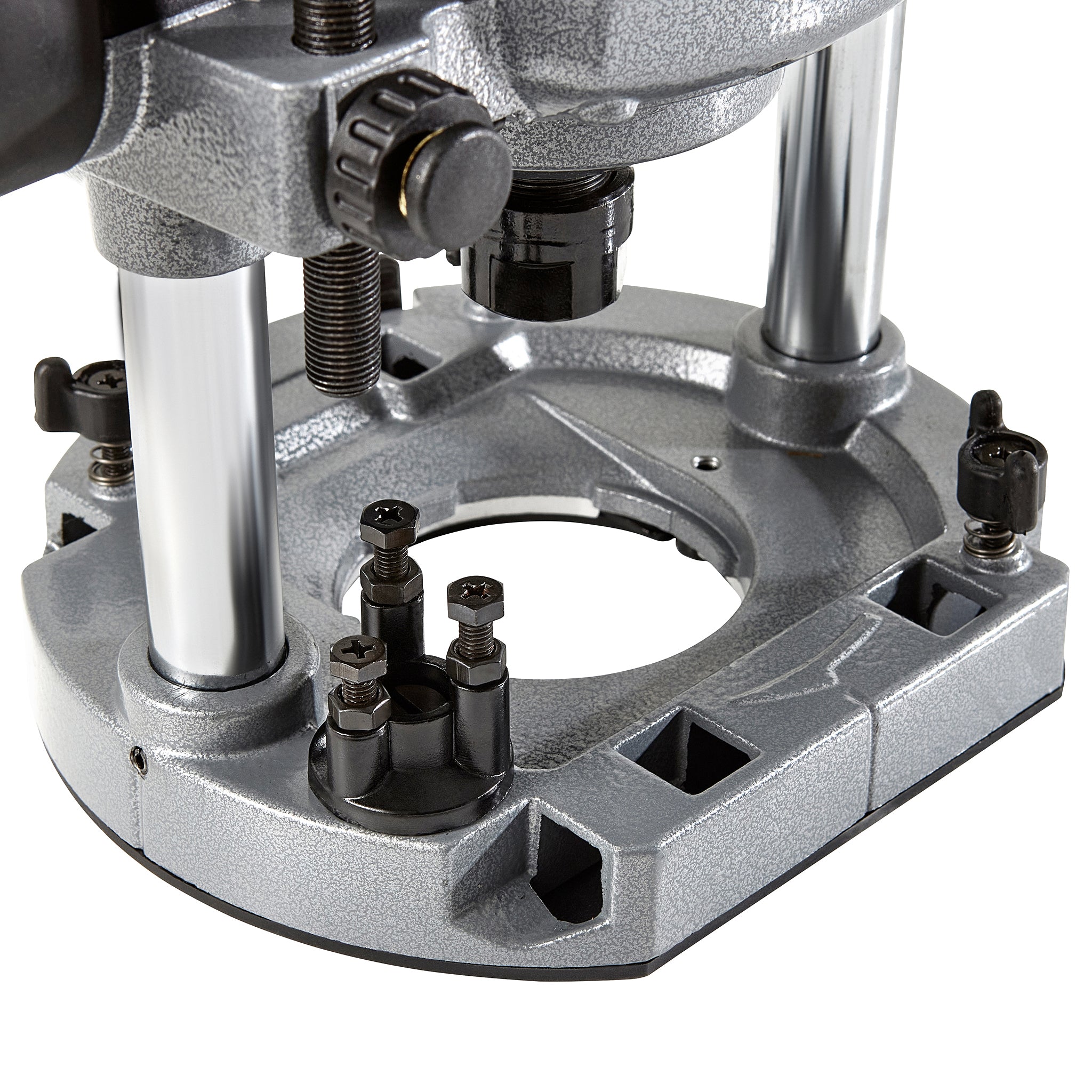

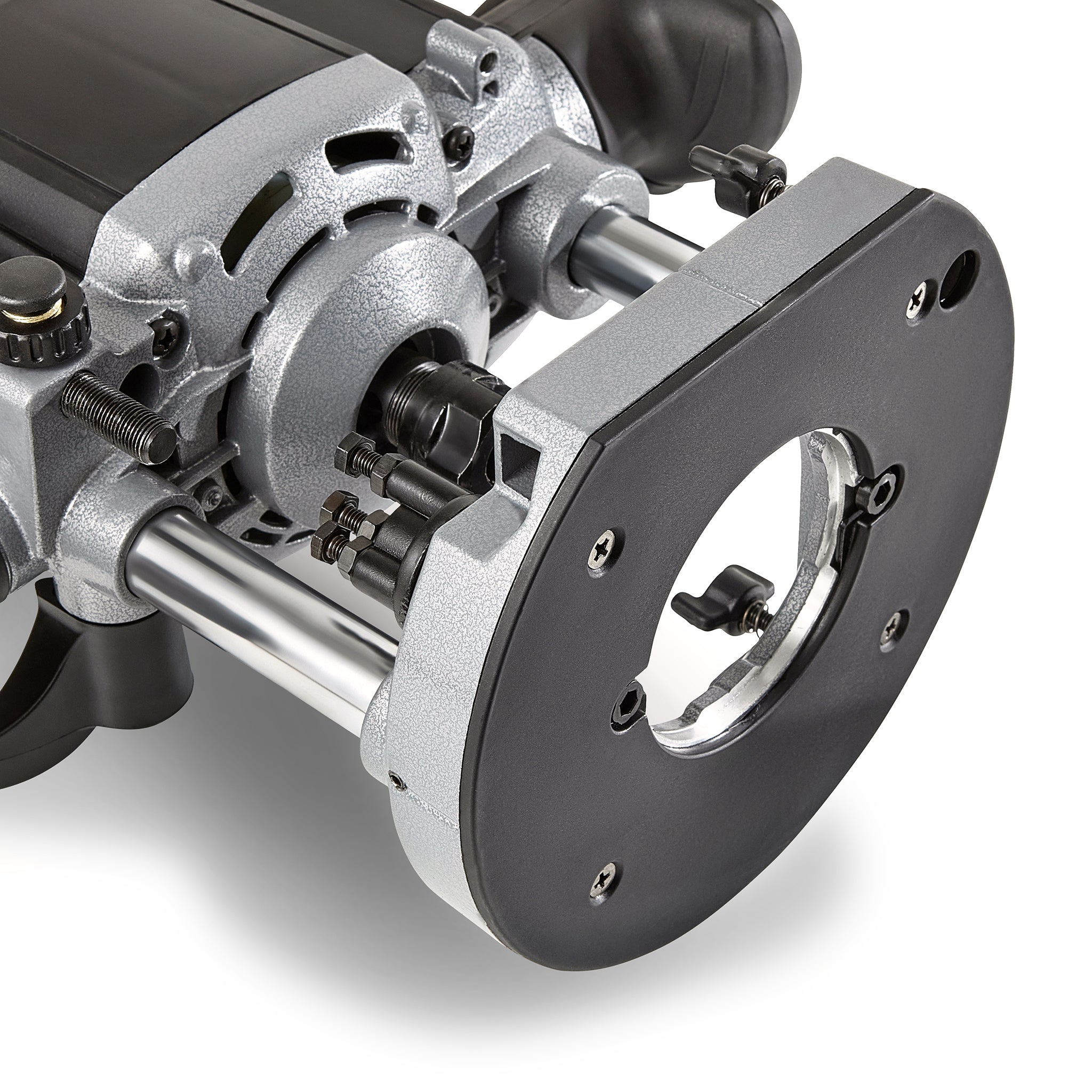

The 160mm diameter base is CNC machined from a strong aluminium die casting, offering superior rigidity and strength whilst reducing overall weight. An anti-friction, non-marring plastic sub base ensures a smooth sliding movement over the workpiece. The flat front face of the base has been designed to provide stability with the router lying down, making bit changes both quicker and easier. The R80 router is supplied with a 37mm diameter dust port, 1/2" & 1/4" collets, collet spanner, adjustable straight edge guide, trimmer guide, template guide and chip guard. ©
