Router Motor with Speed Control NVR Switch
- Shop with confidence with our 3 Year Warranty
- Rated excellent by Trustpilot based on 30,011 reviews
- Over 2.5 million Rutlands® premium woodworking tools sold worldwide
- 3 Year Warranty
- Powerful 2400W motor tackles the most demanding hardwoods and end grain with ease
- Variable speed control NVR switch for full, external control of the router motor
- Precision machined spindle bearings for smooth, vibration-free rotation up to 21,000rpm
- Air cool system maintains a constant flow of fresh air, to prevent the motor overheating
- If the NVR switch loses power, the motor will not restart until manually switched back on

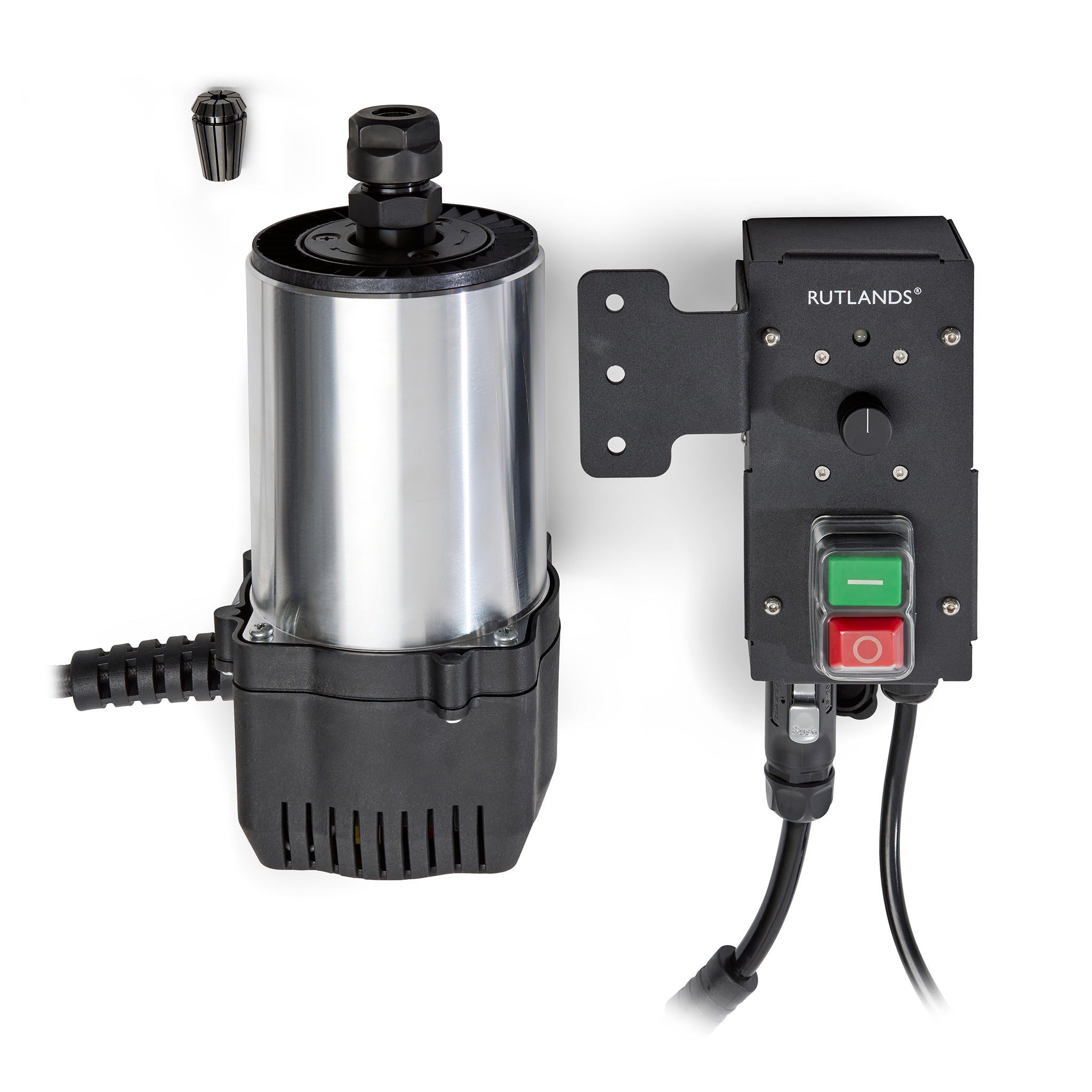

The powerful, 2400W variable speed Rutlands® router motor is designed and engineered specifically for use with router lifts. The variable speed control NVR switch provides full, external control of the router motor and features both a speed control knob for fine speed adjustment between 10,000 to 21,000rpm, and a built-in NVR switch, providing a safe, convenient way to control power to the motor. For added piece of mind, in the event of a power cut the power will remain off and the router motor will not restart until you press the green 'On' button once again.
The motor features an intelligent torque control system, ensuring that the rotational speed remains constant and preventing the motor from slowing under load, no matter what diameter of router bit you are using or how hard the wood, resulting in a superior workpiece finish. With soft start technology, the router motor gradually increases the speed from zero to the desired level for a safer, more enjoyable routing experience. The integrated air cool system delivers a constant flow of fresh air, preventing the motor from overheating when installed within the Rutlands® dust box or dust cabinet, or within a close-sided router table. The dust protection system prevents dust from causing damage to the motor to ensure a long trouble-free life and the precision machined spindle bearings are guaranteed for ultra smooth, vibration free rotation.

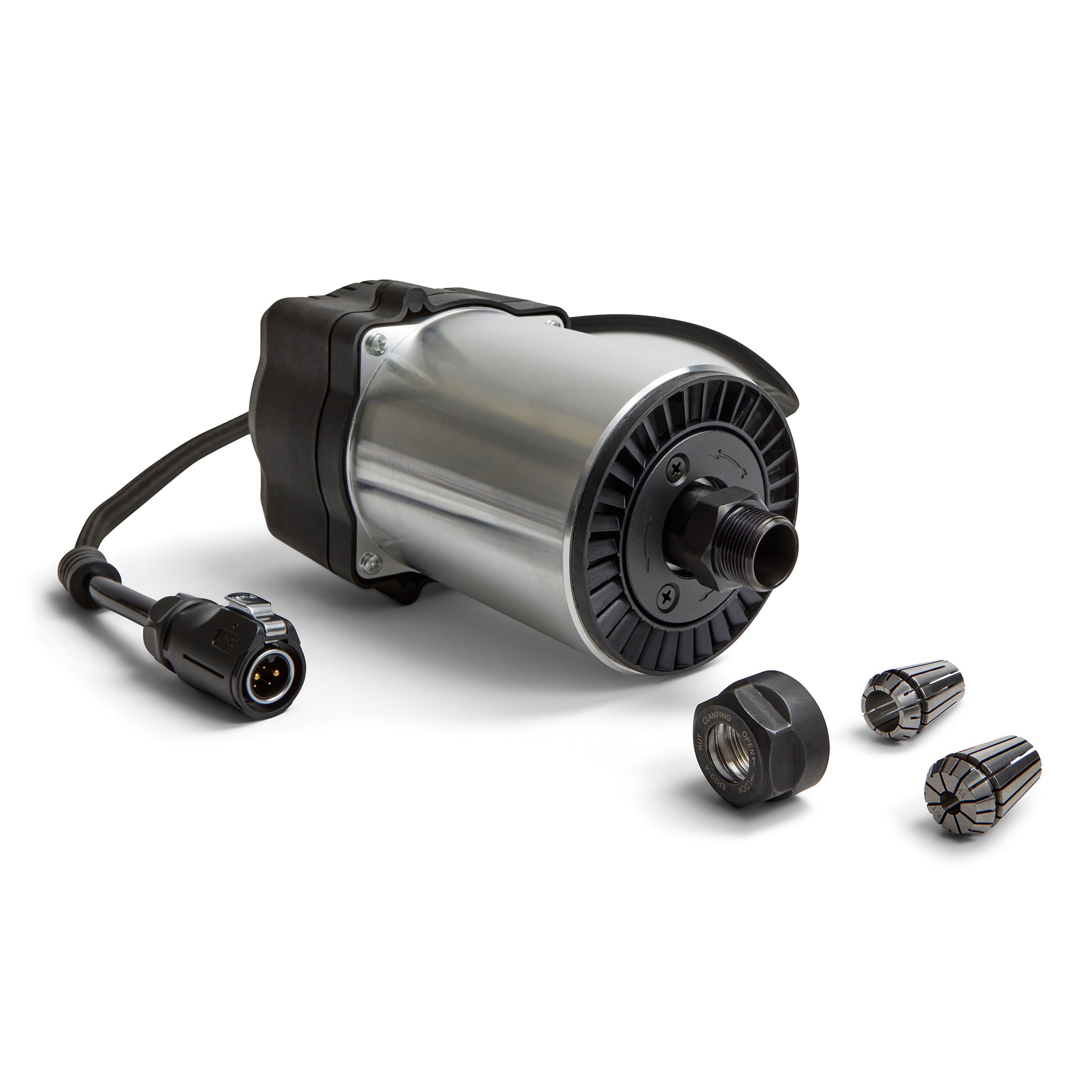

The variable speed control NVR switch features a robust, all steel housing and a hard wearing, black powder-coated finish, mounting directly to Rutlands® router table stands with no modification required. A 1.2m heavy duty braided cable connects the motor to the switch, and a 2.4m cable connects the switch to an external power supply. Supplied with the motor are two ER20 collets (1/4" and 1/2"), precision machined to ensure exceptional balance and concentricity. Optional 6mm, 8mm and 12mm metric collets are readily available. Two large off-set collet wrenches allow for quick and easy bit change over. This motor is engineered to fit all Rutlands® router lifts and any other lift that holds a 106mm diameter body. ©
- BrandRutlands®
- Product CodeR5269
- Voltage230V
- Power Input Rating2400W
- Power Output Rating1800W
- Variable Speed Range10,000 - 21,000rpm
- Included Collets1/2" and 1/4", ER20 Type
- Motor Diameter106mm
- Cylindrical Length130mm
- Overall Length215mm
- Motor Cable Length1.2m
- Switch Cable Length2.4m
- Motor Weight3.87kg
UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.
Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.
Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.
Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.
Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

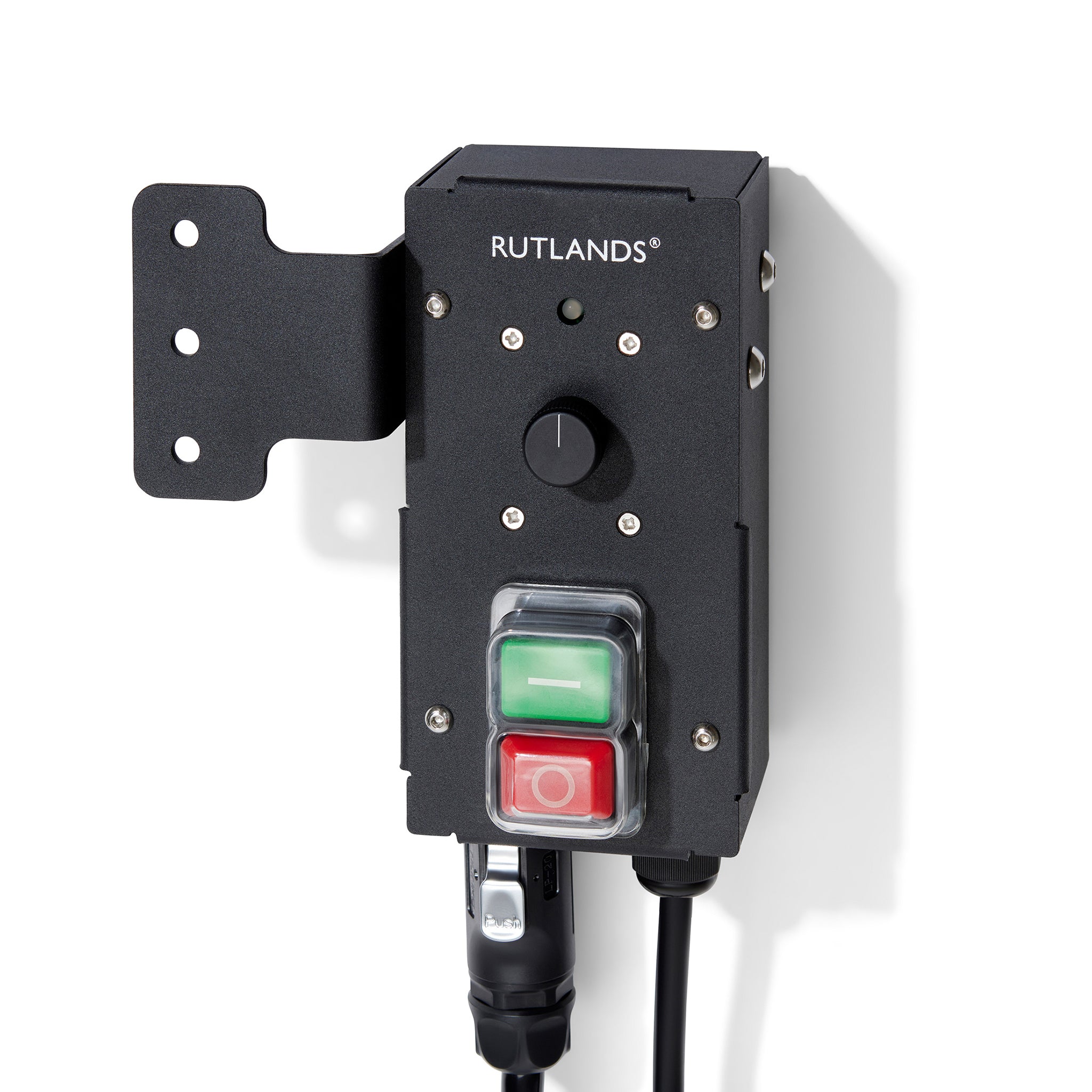

Convenient external control
