Bench Router Table - R5 Plunge Lift

Regular price £495.00
Regular price £0.00Sale price £495.00
In Stock for delivery by
Order within
Compact in size without compromising on performance, this portable routing package is ideal for use in a professional workshop with limited space. Designed for plunge routers, the lift will dial in the router bit height from above the table, to a resolution of 0.025mm.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,564 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Bench Router Table - R5 Plunge Lift
Regular price £495.00
Regular price £0.00Sale price £495.00
KEY FEATURES
  • 3 Year Warranty
  • Dial in plunge router height from above the table, to a resolution of 0.025mm
  • Frictionless phenolic laminate surface for complete control when guiding your workpiece
  • 19mm T track for the mounting of mitre gauges, feather boards and more
  • Strong edge banding provides a long-lasting durable barrier to protect against collisions
  • Work cleanly and safely with the 63mm dust port and underbody dust collection bag
FULL DESCRIPTION
This premium performance Rutlands® router table features the R5016 benchtop router table and R5141 plunge router lift

Bench Top Router Table
This bench top router table is compact in size without compromising on performance, making it ideal for use in a professional workshop with limited space. The legs and braces on this router table stand are made from 35mm tubular steel for guaranteed strength and rigidity.

The 600mm by 400mm table top ensures excellent workpiece support and is laminated on both faces with a low friction, premium-grade phenolic, which is highly wear resistant. The phenolic laminate is sandwiched around a 27mm solid moisture-resistant composite core which prevents the absorption of atmospheric moisture, eliminating the risk of warping or distortion of the table surface when working in cold or damp workshops. Set into the top is a 19mm extruded aluminium T track for use with mitre gauges, featherboards, stops and home made jigs.

The router table fence is precision CNC machined from aircraft-grade aluminium with a black anodized finish. On the top face of the fence is a metric scale and a 8.3mm T Track for use with Rutlands® flip stops and on the front face there is another 8.3mm T Track for mounting Rutlands® feather boards and the height adjustable router bit guard. The two sub-fences are made from a solid composite with a low friction, phenolic laminate surface to ensure smooth movement of the workpiece. The fences can be adjusted, tool free, to accommodate any router bit from 10mm to 125mm in diameter and the outfeed sub-fence can be off-set to allow for edge planning. With 125mm of travel, the position of the fence is adjusted quickly and easily with no tools required, simply by turning the two tall, easily accessible knobs.

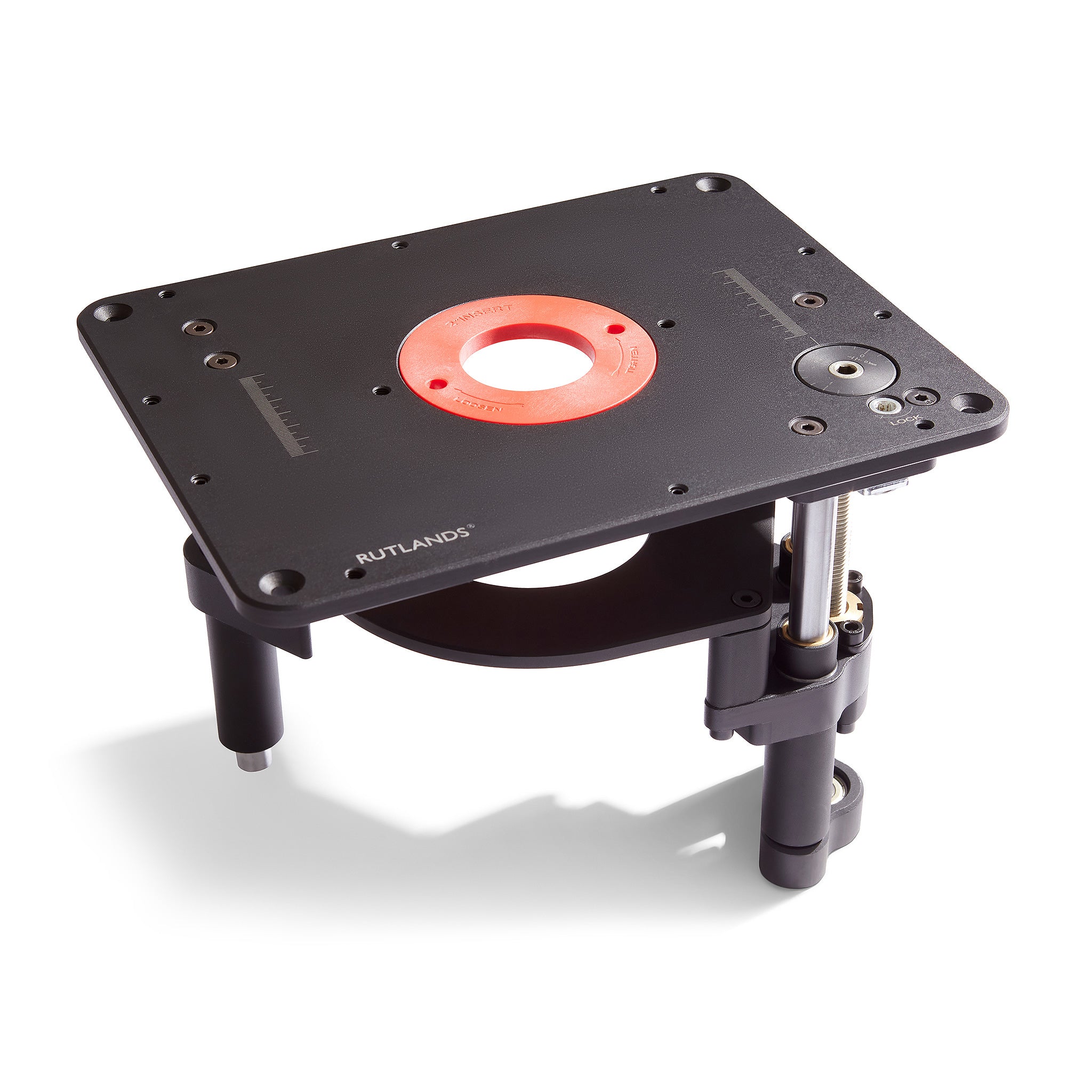

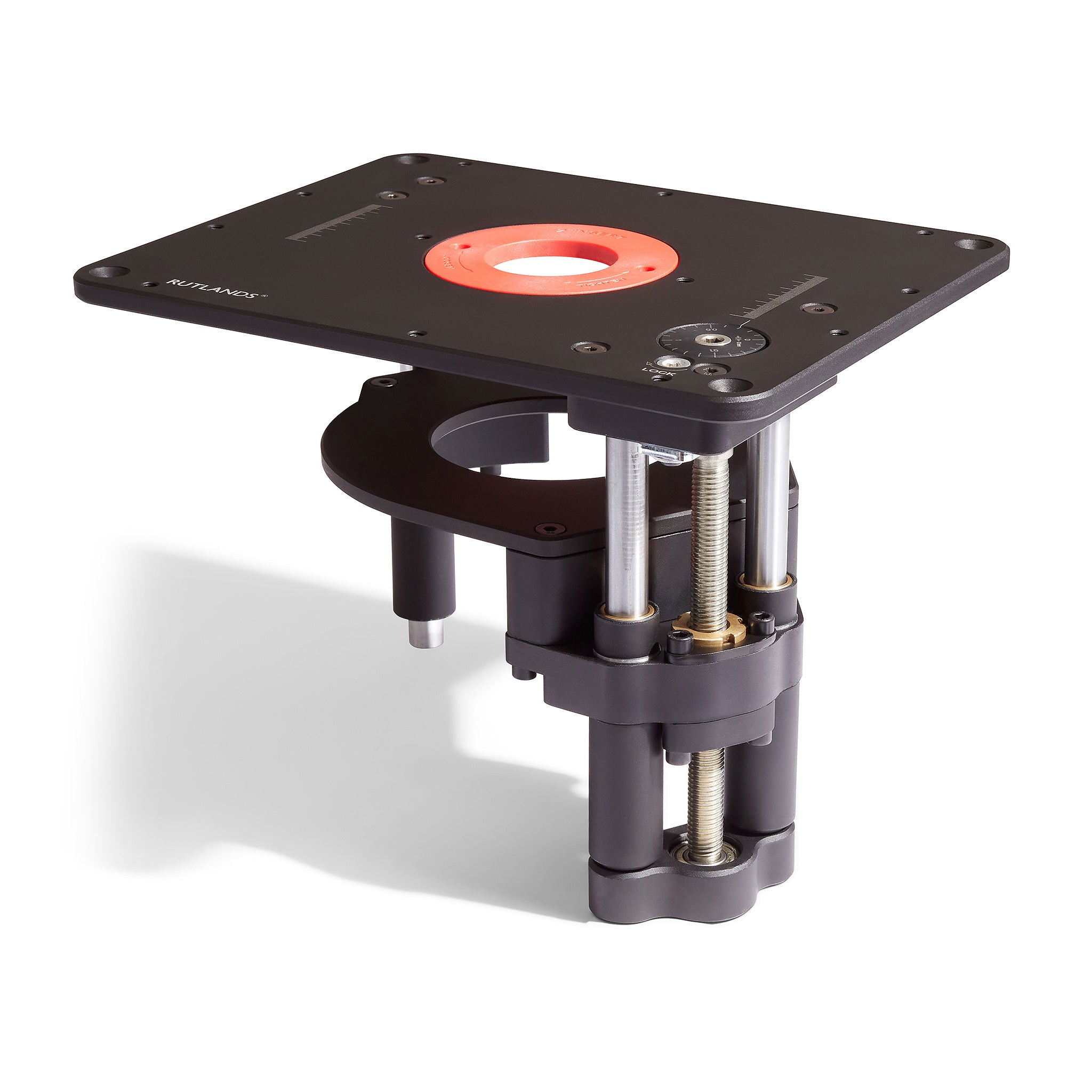

Plunge Router Lift - R5

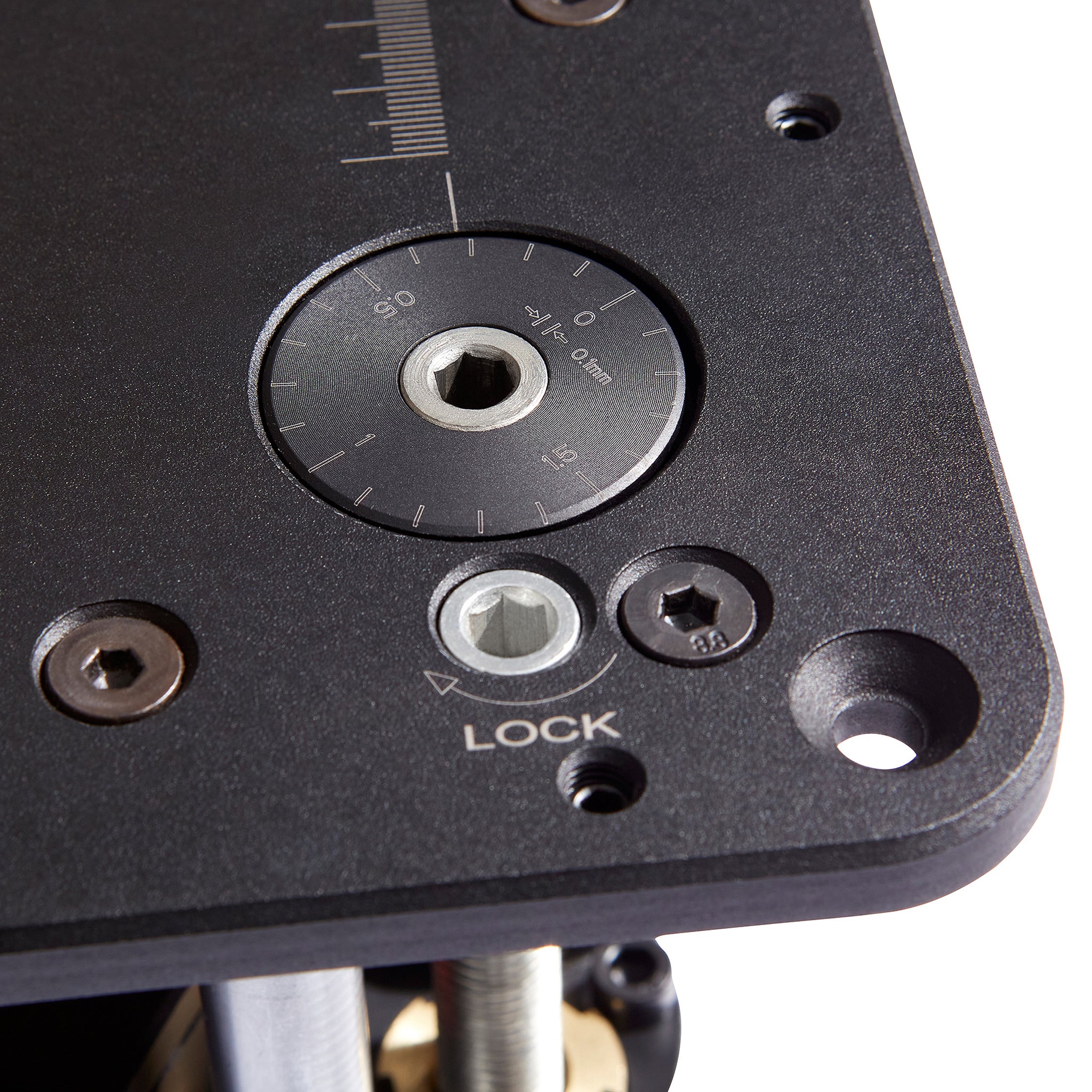

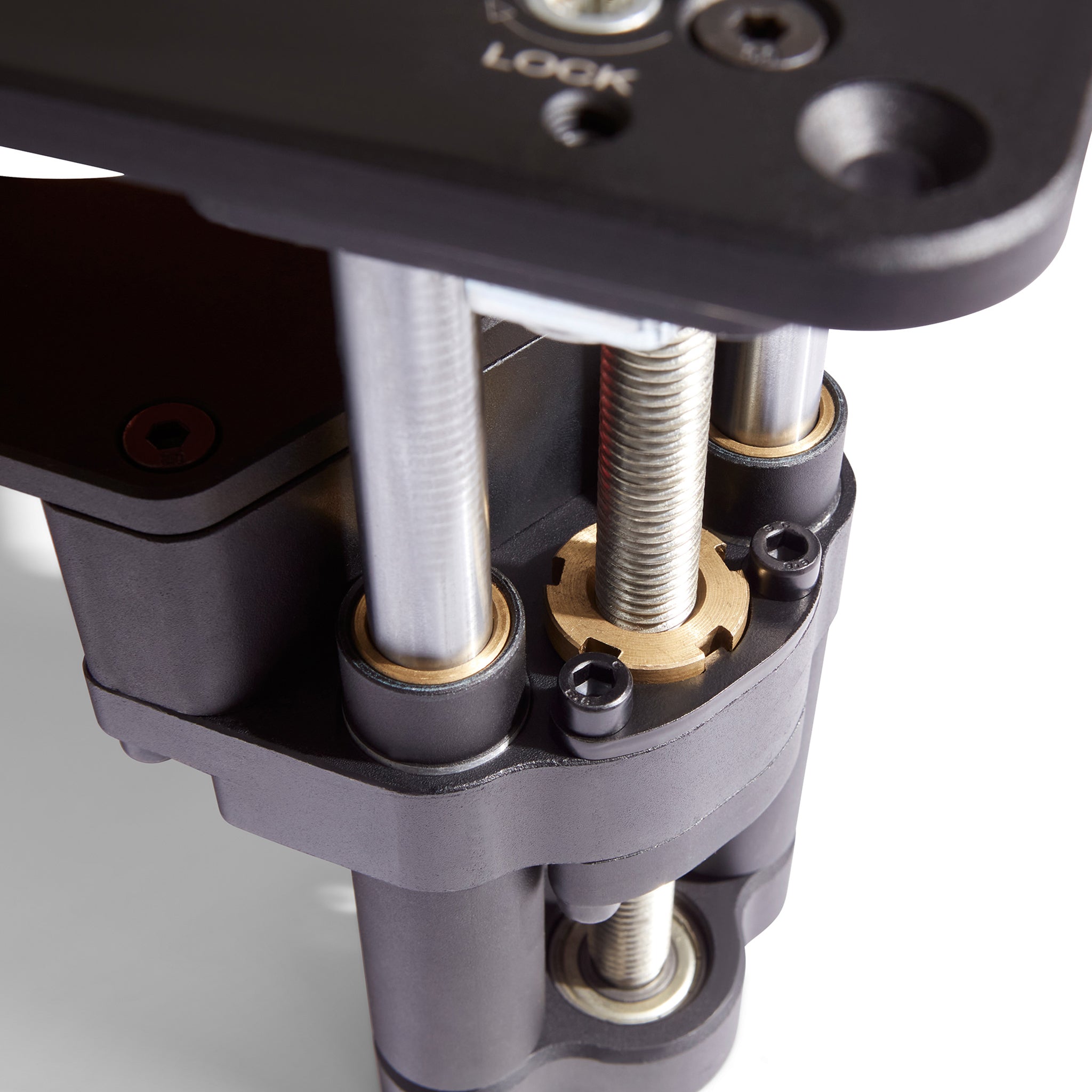

This router lift is designed for use with plunge routers and has been meticulously engineered to ensure precise, ultra smooth raising and lowering of the router bit from above the table. The height adjustment is controlled by inserting and rotating a crank handle, making adjustment fast, simple and extremely precise. The main drive spindle is precision machined with a fine-pitch metric thread that allows you to tune-in the height of the router bit to a resolution of 0.025mm, with one full revolution giving 2mm of movement. To lock off the height you simply insert the handle into the locking mechanism hole and rotate clockwise. The carriage of the lift travels on three steel guide posts, that are housed within sealed linear bearings to resist dust infiltration resulting in an ultra smooth rise and fall movement, with no side play. To mount your router, simply remove the router's sub-base and use it as a template to align and drill the 185mm diameter aluminium mounting plate. The insert plate is made from 10mm anodized aluminium which has an abrasion resistant finish and features a levelling system to ensure a flush fit to the table surface. The insert plate has a 90mm aperture and is supplied with two polycarbonate flush insert rings with centre holes of 50mm and 35mm.©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR5236
  • Bench Router Table
  • Top MaterialHigh pressure phenolic laminate
  • Top Dimensions600mm x 400mm
  • Insert Plate Opening298mm x 235mm
  • T Track Widths19mm and 6.3mm
  • T Track MaterialExtruded aluminium
  • Insert Plate Aperture90mm
  • Insert Rings50mm, 35mm
  • Maximum Router Base Diameter200mm
  • Fence MaterialExtruded aluminium
  • Sub-Fence MaterialHigh pressure phenolic laminate
  • Fence Height65mm
  • Fence LengthAdjustable from 600mm to 700mm
  • Fence LengthAdjustable from 600mm to 700mm
  • Overall Dimensions600mm x 400mm x 450mm
  • Plunge Router Lift R5
  • Insert Plate Size298mm x 235mm
  • Insert Plate MaterialAluminium
  • Insert Plate Thickness10mm
  • Overall Lift Height300mm
  • Insert Plate Aperture90mm
  • Insert Rings50mm, 35mm
  • Height Resolution0.025mm
  • Height Change After One Revolution2mm
  • Router Bit Travel0mm - 75mm
