This jig kit has been specifically designed to make dowel jointing faster, simpler and with greater accuracy. This jig will create edge to surface joints, edge to corner joints and edge to edge joints and features a 15mm drill guide for use with cam lock dowels.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,815 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Dowel Jig
Regular price £120.00
Regular price £0.00Sale price £120.00
  • 3 Year Warranty
  • Dowel edge to edge, edge to surface and edge to corner joints
  • 15mm guide bush for drilling and fitting cam lock dowels
  • Designed for use with industry standard 6, 8 and 10mm dowels
  • Tool steel guide bushes eliminate wear and play, for a true and consistent drilling line
  • Ready to use, supplied with 4 drill bits and depth stop collars
This jig kit has been specifically designed to make dowel jointing faster, simpler and with greater accuracy. Unlike conventional jigs that only allow for edge to edge jointing, with this jig you can create edge to surface joints, edge to corner joints and edge to edge joints and it features a 15mm drill guide for use with cam lock dowels.

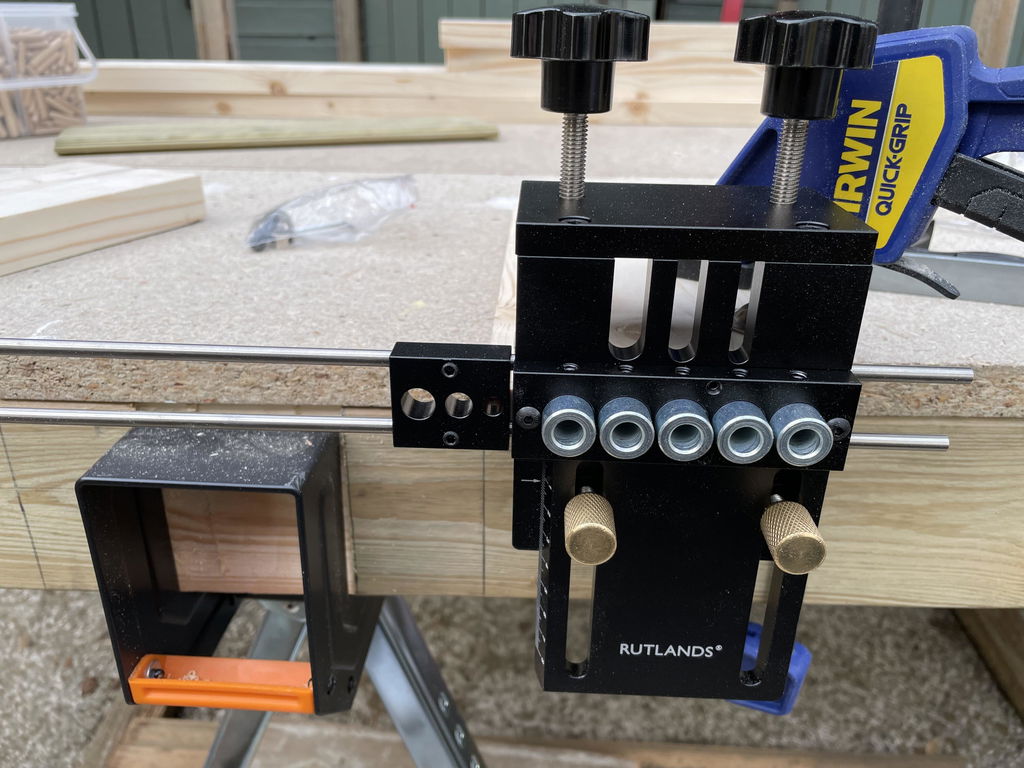

The main body of the jig features a series of five perfectly aligned holes to accept the drilling guide bushes of either 6, 8 or 10mm. The five bushes improve drilling accuracy and alignment as you do not need to remove and reposition the jig as many times. This dowel jig is manufactured from CNC machined aircraft-grade aluminium and beautifully finished in black electro-coating.

When edge drilling the jig adjusts to suit different board thicknesses from 10mm through to 50mm. Two round bars slot through the body of the jig, allowing you to slide the jig back and forth along the edge of the board to position your holes. A stop at the end of the bars enable you to transfer the hole positions for one edge to the other. When surface drilling you simply use the base of the jig and slide the drilling head to your desired position.

The jig is supplied in a purpose designed storage case with fifteen bushes 5 x 6mm, 5 x 8mm and 5 x 10mm, four drill bits 6mm, 8mm, 10mm and 15mm, four drill bit depth collars and three drill hole positioners 6mm, 8mm and 10mm, C spanner and guide rods. This is a very precise, simple to use dowel jig that allows you to create dowel joints in any face of the work piece. ©
  • BrandRutlands®
  • Product CodeR6004
  • Dowel Drilling Diameter6mm, 8mm and 10mm
  • Clamping Capacity10mm to 50mm
  • Dimensions340mm x 220mm x 60mm
  • Rod Length300mm
  • Adjustment Depth110mm
  • Cam Lock Dowel Diameter15mm

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

We accept all major credit cards and mobile payment methods. Visit our Payment page.

We will happily accept returns within 30 days. For more information about returns, visit our Returns page.


Customer Reviews

Based on 4 reviews
Kenneth T.
An extremely well made jig

Hi this seems to be an extremely well made jig it arrived today and after a short test it has performed very well. It looks professional, quite heavy and made of metal with all the accessories that you would need. I am very pleased with it so far and I think that it is well worth the price. Thank you Rutlands.

Tom C.
Glad I went for it

I had a much cheaper plastic dowelling jig but it failed after a small amount of use. This one looked a lot more rugged, easier to use and gave me more options. Only used briefly for T joints so far, but I'm glad I went for it. Includes all the drill bits you need plus depth stop collars for each, so I could get started straight away with no fuss.

Jim P.
Very well constructed

Very well constructed aluminium parts and very accurate in use. Each method of jointing is covered in the manual and I appreciate the inclusion of a moulded hard plastic storage case which keeps all parts neatly stowed away when not in use. Would highly reccomend as a do-it-all dowel jig.

Dowel jig

I read up quite a bit before buying this jig and although it looks like very similar jigs are available for less and may even be from the same manufacturer, I trust Rutlands having had numerous items from them before so would rather order from them. I have not had chance to use the jig but have had a really good look at it and the quality of machining and finish looks very good. The case it comes with is pretty decent too and will make it much easier to keep everything together and store flat with other tool boxes. The individual parts fit together well and the instructions are fairly good too. One slight disappointment is that other similar jigs seem to come with a 1mm spacer that fits on magnetically when required allowing for 1mm adjustment increments when centring the jig on a board. Without a shim / spacer his jig will only allow for 2mm adjustments so centring exactly may not always be possible. I have ordered a piece of 1mm aluminium sheet however so I should be able to get around this issue but it’s a shame something so simple and inexpensive isn’t included for the price. Overall, I’m pleased with my purchase though. It is the usual foot quality I always get from Rutlands.
