< Block Planes

No 9 1/2 Block Plane

Regular price £90.00
Regular price £0.00Sale price £90.00
In Stock for delivery by
Order within
Small enough to be used in one hand, this block plane is designed for cutting end grain and making trimming or fine adjustment cuts, with an effective angle of 45° and an adjustable mouth for fine or coarser work.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,669 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
No 9 1/2 Block Plane
Regular price £90.00
Regular price £0.00Sale price £90.00
KEY FEATURES
  • 3 Year Warranty
  • Standard 45° cutting angle designed for general purpose work
  • Fine pitch blade adjustment thread provides improved blade setting accuracy
  • Screw mechanism easily adjusts blade depth, without removing the blade
  • Precision machined ductile iron castings ensure the sole is flat and square to the sides
  • T10 carbon steel blade, hardened for maximum edge retention
FULL DESCRIPTION
Block Planes
Manufactured to British Standards, Rutlands® hand planes are recommended by discerning cabinetmakers and carpentry instructors for their superb construction, finish and performance. Using world leading manufacturing techniques, each precision ground plane represents a serious alternative to the premium brands produced in North America. The renowned design has a screw mechanism that easily allows the blade to be varied in depth relative to the sole to change the depth of cut.

Standard Angle Block Plane

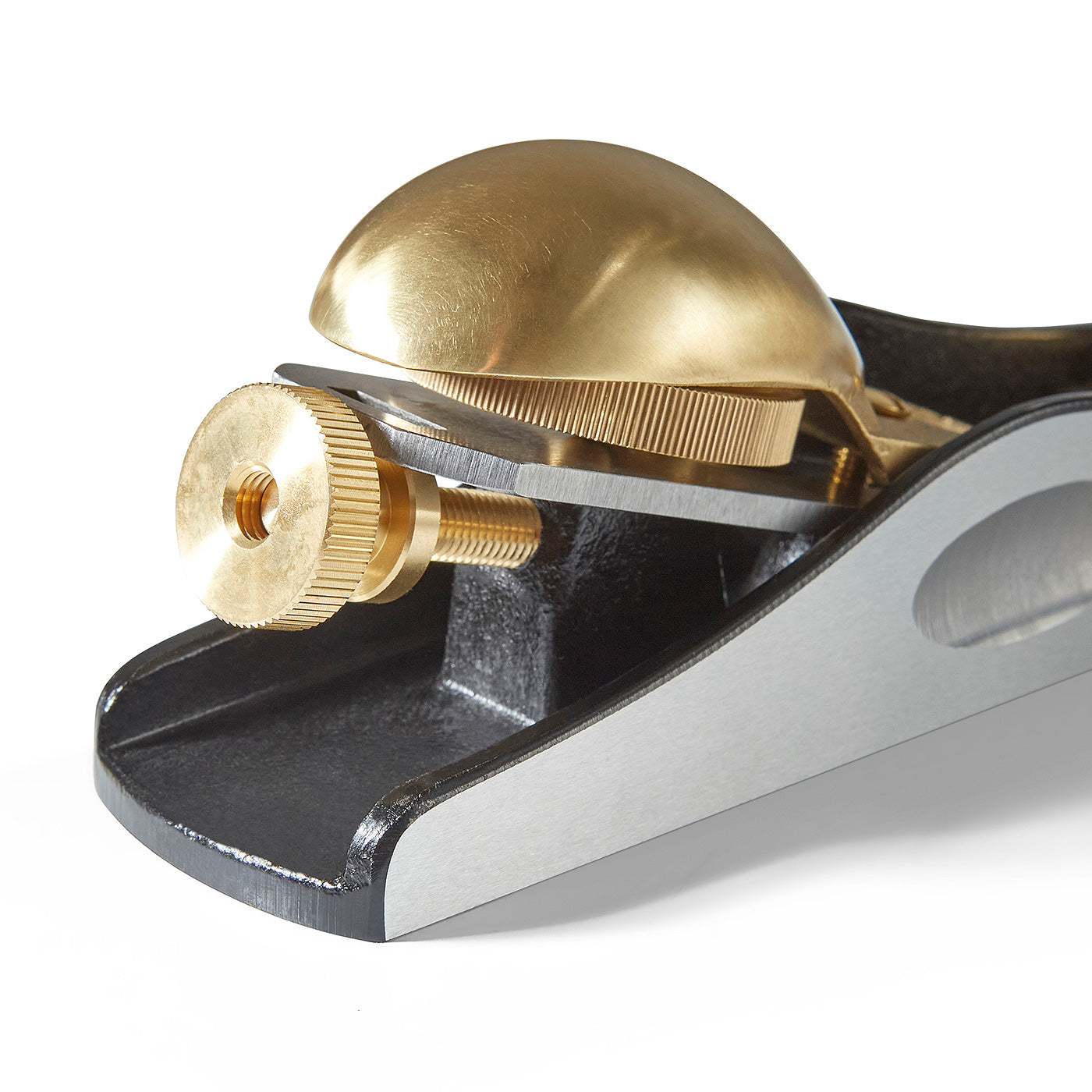

A block plane is small enough to be used in one hand and is designed for cutting end grain and making trimming or fine adjustment cuts. This block plane has a modified body casting to make it more responsive in use and a finer pitch blade adjustment thread for improved blade setting accuracy. An adjustable nosepiece allows the mouth to be opened or closed to accommodate coarse or ultra-fine shavings, this nosepiece is secured in place with a knurled brass knob. A 35mm wide, 25° bevelled blade is seated at 20° within the plane, giving an effective angle of 45° for general purpose work. The plane has an overall length of 165mm and weighs 850g.

Materials & Manufacturing
The plane body features heavy, stress relieved ductile iron castings which are precision machined to ensure the soles are flat and square to the sides. The plane is fitted with a T10 high carbon steel tool blade which can take a keen edge, and that has been hardened to RC60-64 for maximum edge retention. The blade is held in position by a large bronze cap iron with an integrated palm rest which allows the plane to nestle snugly in the hand. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR1700
  • Plane Length165mm
  • Plane Width44mm
  • Bed Angle20°
  • Blade Angle25°
  • Blade Thickness3mm
  • Blade Width35mm
  • Weight0.85kg
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 12 reviews
92%
(11)
8%
(1)
0%
(0)
0%
(0)
0%
(0)
R
Richard S.
All good things come in small Packages.

As all Tools it come with Positive & negative this one comes with more Positive than Negative, the body and the frog are mould as one casting of Cast Iron making chunky but well balanced,the sole and sides are finally ground not polished which one may what to do before using too cut down on friction also the surface of the frog making these Negative, the mouth is adjusted by the front part of the sole moving forward and back adjusted by a lever fix beneath the front handle, it's made of brass with a dish like indent on top to rest the thumb in it and figures comfortably around the handle, the fog has a large brass screwed into it which adjusters the blade in&out of the mouth of the plane and is well machined to operate with finger tips, the Cape Iron that retains the blade on the fog is well made in a oval shape at the top end of the Cape Iron fitting snuggle into the parm of the hand making it very comfortable for perlong use, the only other Negative thing is, there is no lever for lateral adjustment, but overall a well made Block Plane.

P
Patrick B.
Great plane...

Great plane. Nicely machine, good quality steel used for the blade. Overall, top quality

J
John
I purchased this block plane after reading the man...

I purchased this block plane after reading the many good reviews on Rutlands website and also a few other review sites The plane has a really nice weight and feel to it, it cuts comfortably in the hand.Upon opening up the box I found that the bottom needed flattening an m along with the iron. The flattening of both items took a fair bit of time, but once flattened and sharpened it was brilliant. It's such a nice plane to use once properly sharpened, I'm so glad that I opted for this as it's a bit to use.

J
John G.
A completely different animal to my old record blo...

A completely different animal to my old record block plane. Heavy casting beautifully finished. The brass hold down has a smooth rounded finish which sits well in the palm of the hand. The blade is a thick piece of high grade steel which only required minimum fettling to get a razor sharp edge. Very impressed with the quality and the price. These Chinese planes are really on a par with the more expensive North American makes. Ideal for trimming especially end grain with no break out

C
Cliff C.
I PURCHASED THIS PLANE PART ON REVIEWS AND PART ON...

I PURCHASED THIS PLANE PART ON REVIEWS AND PART ON GUT FEELING AS I HAVE A STANLEY SWEETHEART BUT DO NOT LIKE IT .THIS BLOCK PLANE IS NICE TO HOLD IN THE HAND, HEAVY TO USE , THIS I LIKE GOOD VALUE WOLD RECOMMEND

No 9 1/2 Block Plane

Pitch perfect

The fine pitch blade adjustment thread provides superior blade setting accuracy, for the thinnest of shavings.

No 9 1/2 Block Plane
