Phenolic Router Table - R15 Lift and Motor with Speed Control NVR Switch

Regular price £1,095.00
Regular price £0.00Sale price £1,095.00
In Stock for delivery by
Order within
The solid phenolic table top provides a smooth, low friction work surface, resistant to warping or distortion, whilst two adjustable sub-fences ensure maximum support and an effortlessly smooth surface on which to guide the workpiece. The precision engineered router lift will dial in the router bit height from above the table, to a resolution of 0.025mm. The variable speed control NVR switch provides full, external control of the router motor and features both a speed control knob for fine speed adjustment and a built-in NVR switch, providing a safe, convenient way to control power to the motor.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 30,011 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Phenolic Router Table - R15 Lift and Motor with Speed Control NVR Switch
Regular price £1,095.00
Regular price £0.00Sale price £1,095.00
KEY FEATURES
  • 3 Year Warranty
  • Dial in router bit height from above the table, to a resolution of 0.025mm
  • Large 800 x 600mm work surface to route all sizes of workpiece with ease
  • Low friction, solid phenolic is hard wearing and waterproof, to prevent warping or distortion
  • 19mm and 6.3mm T tracks for the mounting of mitre gauges, feather boards and more
  • Powerful 2400W motor tackles the most demanding hardwoods and end grain with ease
  • Variable speed control NVR switch for full, external control of the router motor
FULL DESCRIPTION

This premium performance Rutlands® router table features the R5008 router table stand, R5134 phenolic router table top, R5137 phenolic router table fence, R5075 router lift, R5269 router motor with variable speed control NVR switch and two R5015 double feather boards..

Router Table Stand
The legs and braces on this router table stand are made from 38mm wide x 2mm thick box-section steel for guaranteed strength and rigidity. The stand has been specifically designed to ensure that the legs and braces fit perfectly square to each other, via a series of pre-welded locking nuts and stainless-steel fixings.

Phenolic Router Table Top
This table top is made from a 19mm premium-grade, low friction, solid phenolic that is extremely strong, hard wearing, scratch resistant and waterproof, eliminating the risk of warping or distortion when working in cold or damp workshops. Phenolic is produced under extreme high pressure and heat resulting in a table top that is exceptionally accurate, flat and level. The 800mm wide by 600mm deep table ensures excellent support and stability when routing large and long workpieces. Set flush in the top is an extruded aluminium, double T track which includes a standard 19mm track for use with mitre gauges and feather boards, and a 6.3mm T slot for use with stops and home made jigs.

Phenolic Router Table Fence
This router table fence is precision CNC machined from aircraft-grade aluminium with a black anodized finish and features two solid phenolic sub-fences . Made from a 19mm premium-grade, low friction, solid phenolic the sub-fences are extremely strong, hard wearing, scratch resistant and waterproof, eliminating the risk of warping or distortion when working in cold or damp workshops. Phenolic is produced under extreme high pressure and heat, resulting in fences that are exceptionally accurate, flat and level. The fences can be adjusted, tool free, to accommodate any router bit from 10mm to 115mm in diameter and the outfeed sub-fence can be off-set to allow for edge planning.

Router Lift - R15
Built with premium quality materials to an exacting standard, the lift has been meticulously engineered to ensure precise, ultra smooth raising and lowering of the router bit. The height adjustment is controlled from above the table by inserting and rotating the removable crank handle, making adjustment fast, simple and extremely precise. The lift positions the router collet above the table surface when fully raised to allow for easy access and quick bit changes. The main drive spindle is precision CNC machined and features a fine pitch thread that allows you to tune-in the height of the router bit to a resolution of 0.025mm. Once the router bit is set to the cutting height, a special spindle-locking mechanism prevents the height setting from changing due to vibration.

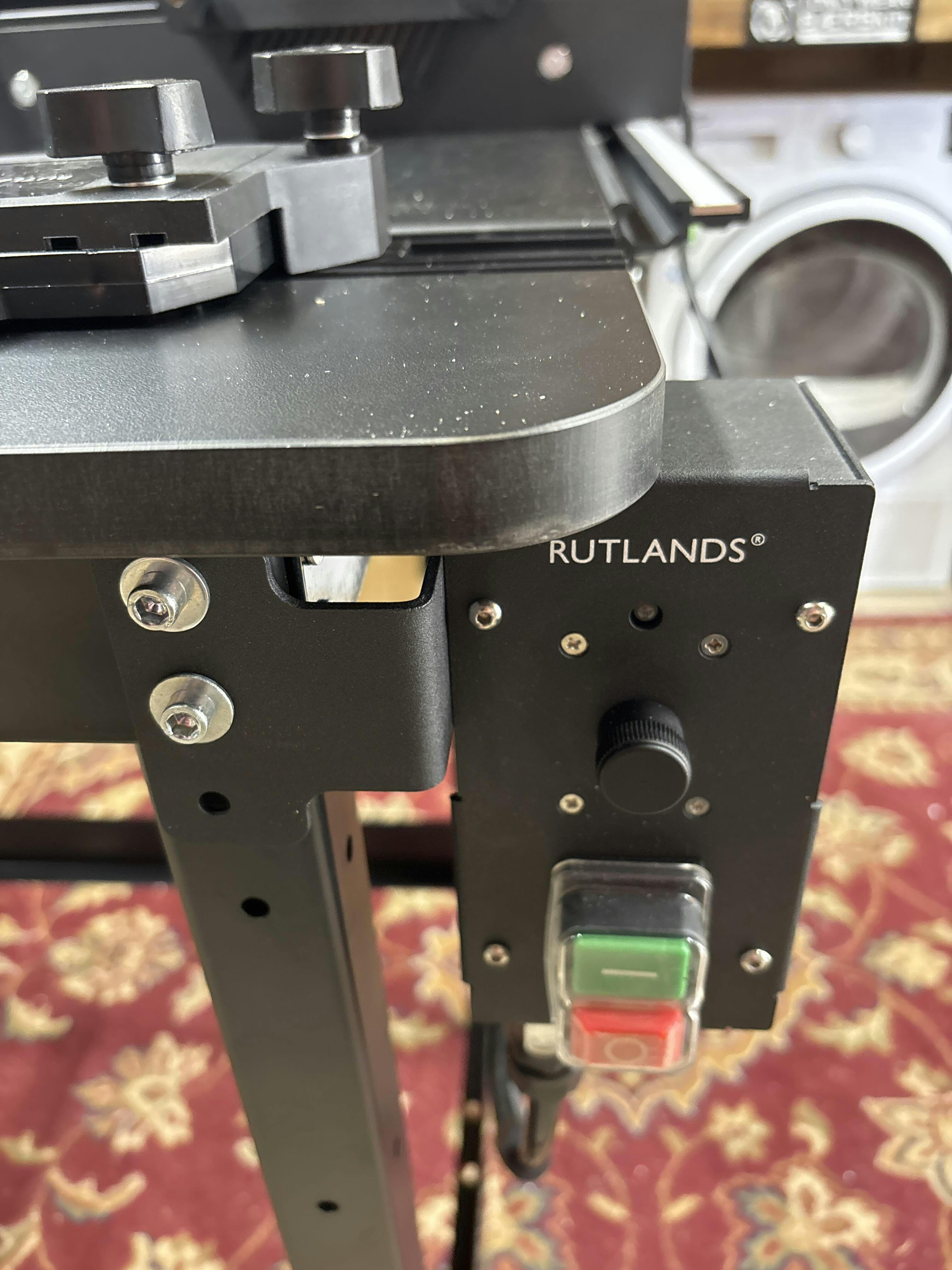

Router Motor with Variable Speed Control NVR Switch
The powerful, 2400W variable speed router motor features an intelligent torque control system, ensuring that the rotational speed remains constant and preventing the motor from slowing under load, no matter what diameter of router bit you are using or how hard the wood, resulting in a superior workpiece finish. The integrated air cool system delivers a constant flow of fresh air, preventing the motor from overheating when installed within the Rutlands® dust box or dust cabinet. The variable speed control NVR switch provides full, external control of the router motor and features both a speed control knob for fine speed adjustment between 10,000 to 21,000rpm, and a built-in NVR switch, providing a safe, convenient way to control power to the motor. For added piece of mind, in the event of a power cut the power will remain off and the router motor will not restart until you press the green 'On' button once again. With soft start technology, the router motor gradually increases the speed from zero to the desired level for a safer, more enjoyable routing experience.

Double Feather Board
These feather boards are an essential tool and provide even, consistent pressure on your workpiece up against the fence. They allow you to apply pressure closer to the router bit, at the most critical point, without risking injury to your fingers. ©

SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR5225
  • Phenolic Router Table Top
  • Top MaterialSolid phenolic
  • Top Weight14kg
  • Dimensions800mm x 600mm x 30mm
  • Insert Plate Opening298mm x 235mm
  • T Track Widths19mm and 6.3mm
  • T Track MaterialExtruded aluminium
  • Router Table Stand
  • MaterialBox section steel
  • Stand Weight14kg
  • Dimensions870mm x 660mm x 560mm
  • Phenolic Router Table Fence
  • Fence MaterialExtruded aluminium
  • Fence Weight8kg
  • Sub-Fence MaterialSolid phenolic
  • Overall Height90mm
  • Sub-Fence Height65mm
  • LengthAdjustable from 910mm to 1150mm
  • Fence OpeningAdjustable from 15mm to 115mm
  • T Track MaterialExtruded aluminium
  • T Track Widths19mm and 8.3mm
  • Dust Port Diameter63mm
  • Double Feather Board
  • MaterialHigh impact moulded plastic
  • Feather Board Width130mm
  • Feather Board LengthUp to 210mm
  • Feather Board Face Height13mm
  • Stacked Face Height37mm
  • Track HardwareHex bolts for 6.35mm or 8.3mm T track and slot bar for 19mm T track
  • Router Motor
  • Voltage230V
  • Power2400W
  • Dimensions205mm x 106mm
  • Weight3.87kg
  • Variable Speed Range10,000 - 21,000 rpm
  • Collet Diameter1/2" and 1/4"
  • Motor Diameter106mm
  • Cylindrical Length130mm
  • Overall Length215mm
  • Motor Cable Length1.2m
  • Switch Cable Length2.4m
  • Router Lift R15
  • Insert Plate Size298mm x 235mm
  • Insert Plate MaterialAluminium
  • Insert Plate Thickness10mm
  • Overall Lift Height300mm
  • Insert Plate Aperture90mm
  • Insert Rings50mm, 32mm, 10mm
  • Height Resolution0.025mm
  • Height Change After One Revolution1.59mm
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 11 reviews
100%
(11)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
V
Vince R.

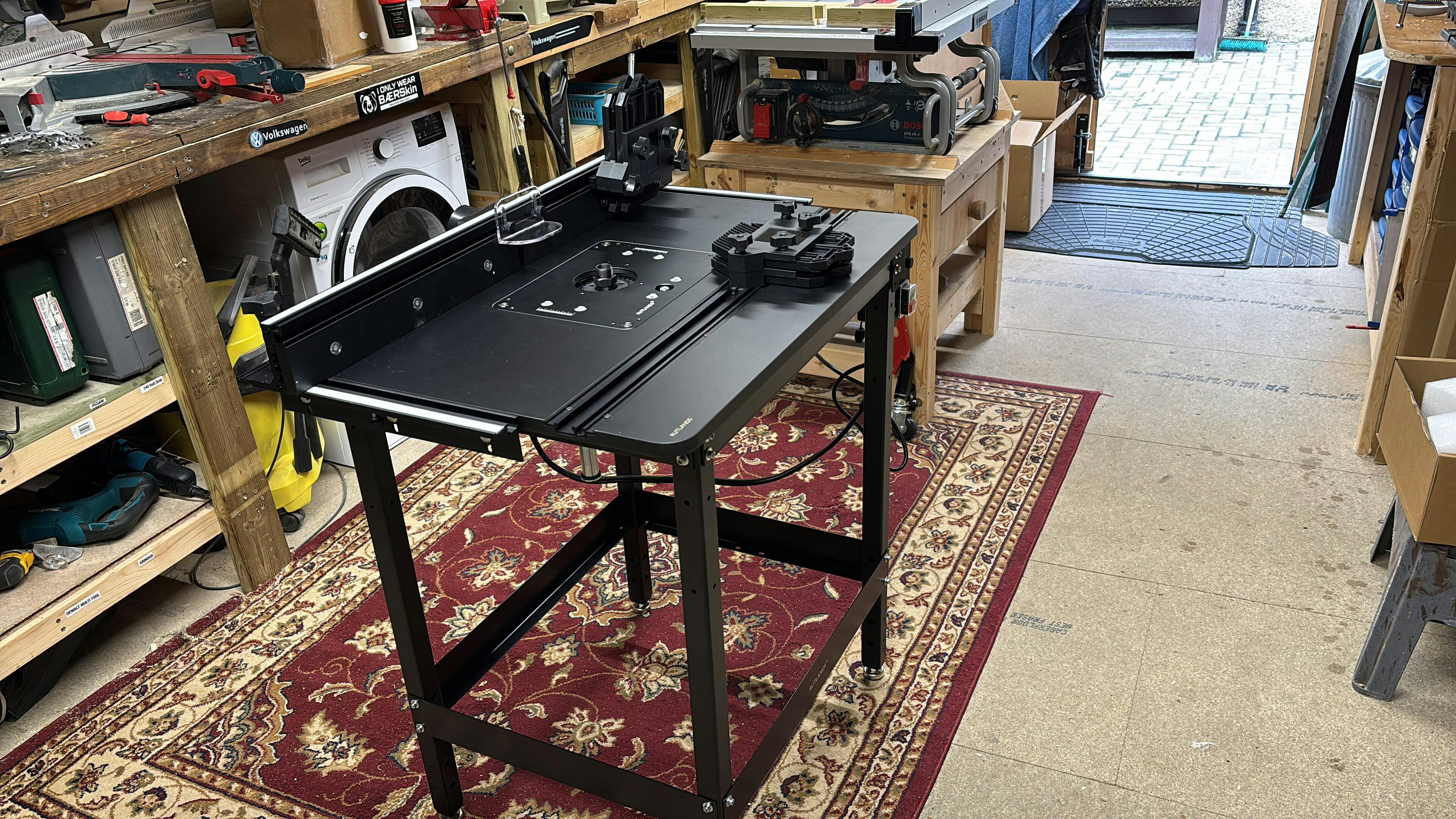

This router table replaced my old 'all in one' budget benchtop table
