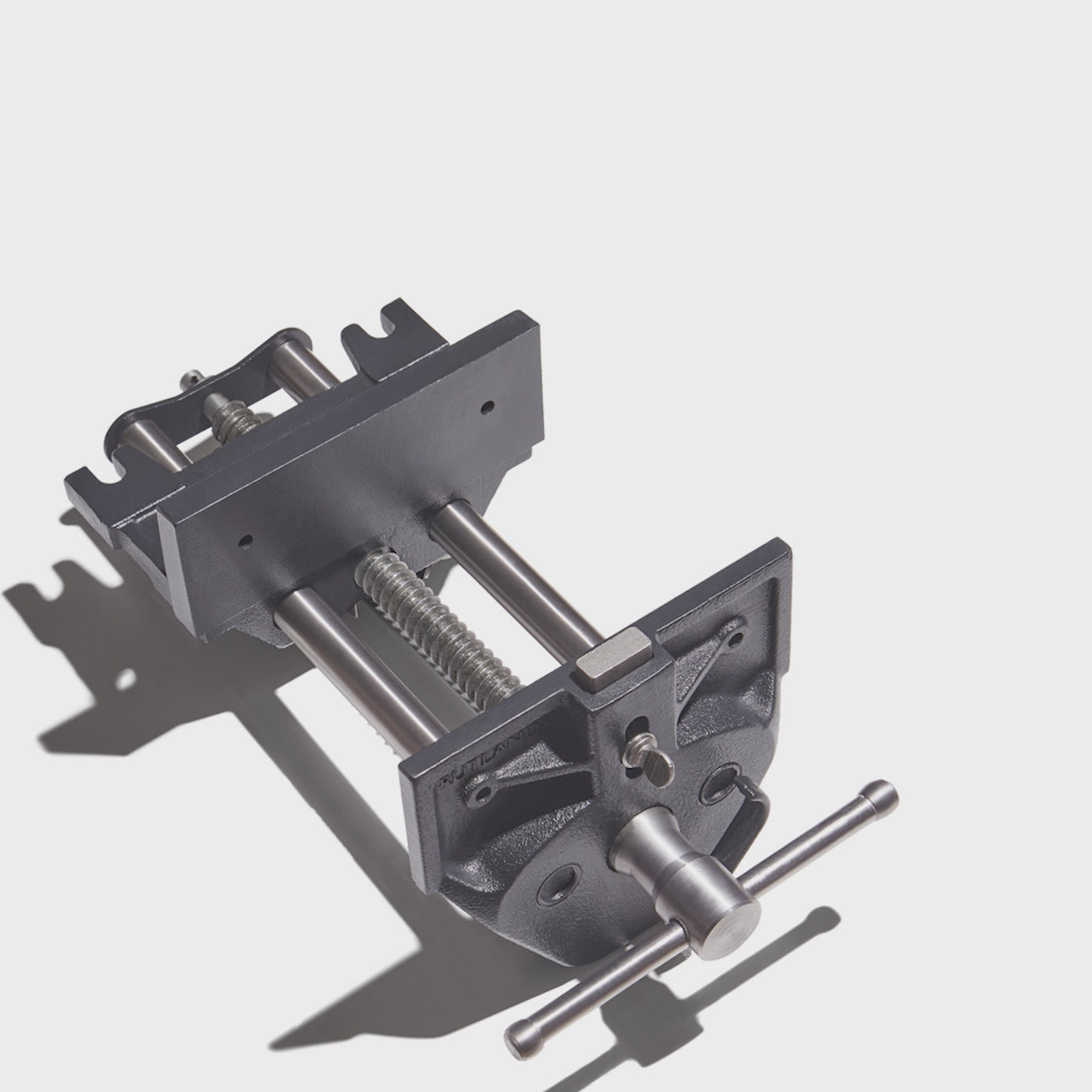

Quick Release Vice - 175mm
- Shop with confidence with our 3 Year Warranty
- Rated excellent by Trustpilot based on 30,281 reviews
- Over 2.5 million Rutlands® premium woodworking tools sold worldwide
- 3 Year Warranty
- Class leading clamping force of 19000N, for rock solid work holding
- Precision machined, grey iron castings ensure high compressive strength
- Quick release mechanism for super-fast, one-handed workpiece positioning
- Hardened steel buttress thread allows easy exertion of maximum clamping force
- Epoxy powder coated finish for wear and corrosion resistance

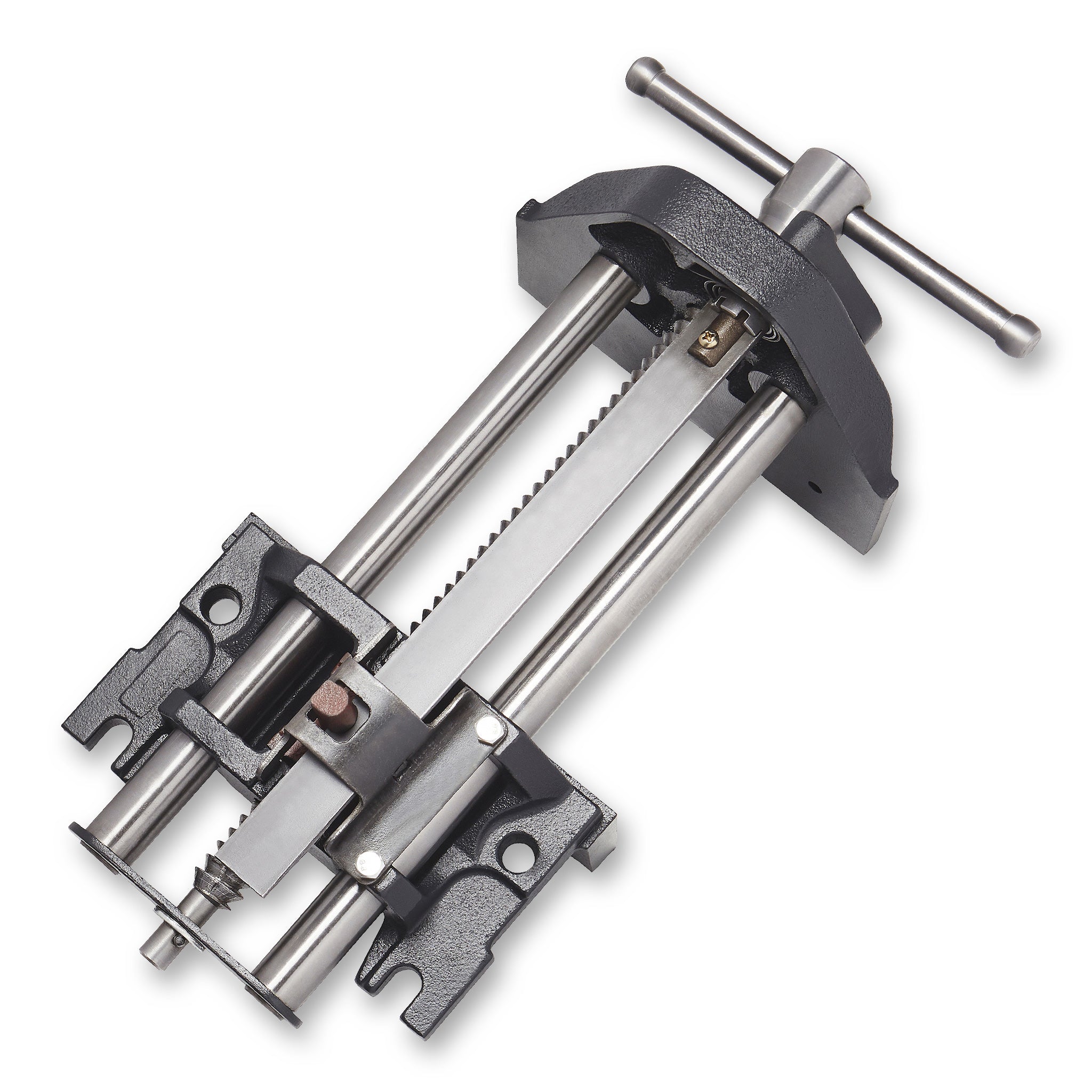

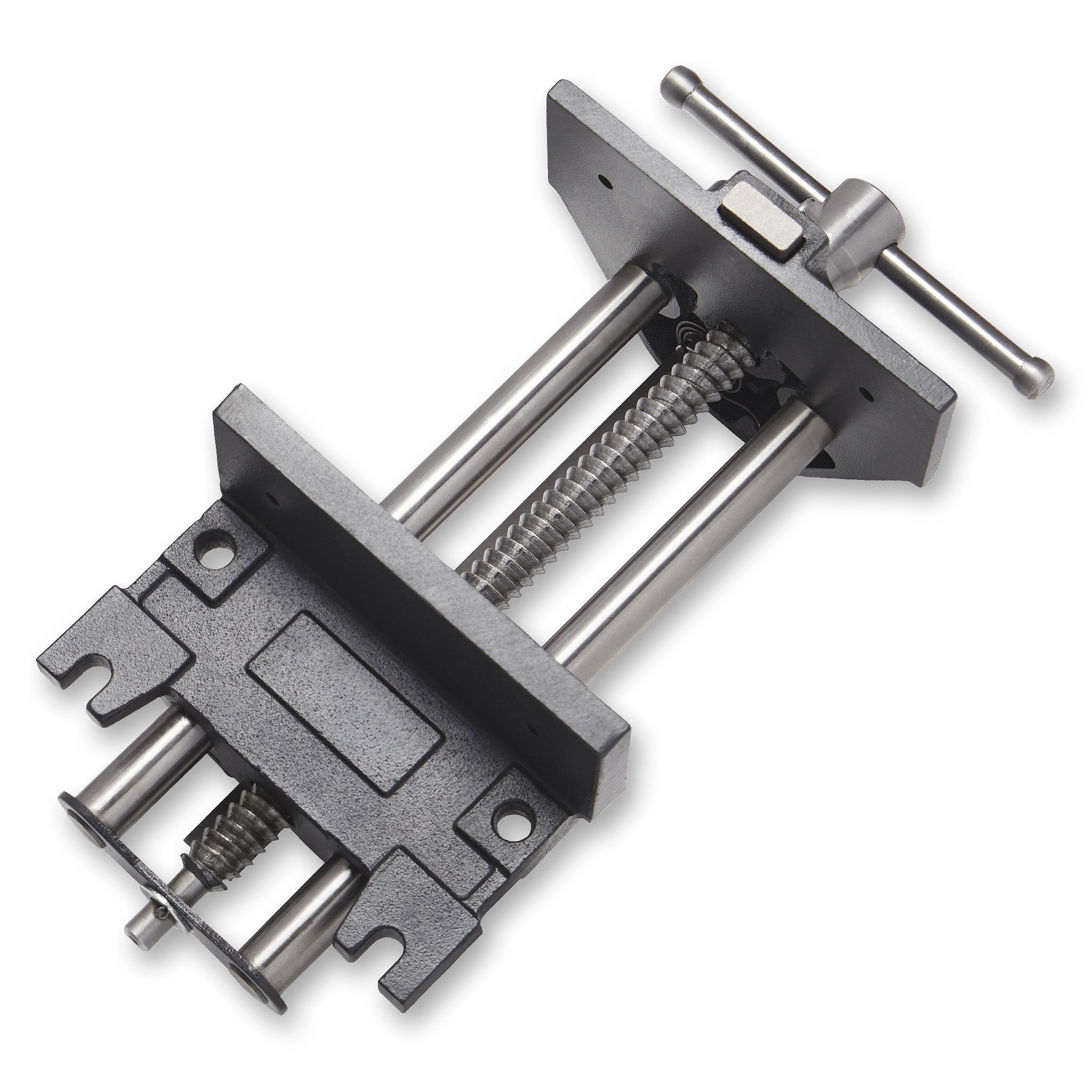

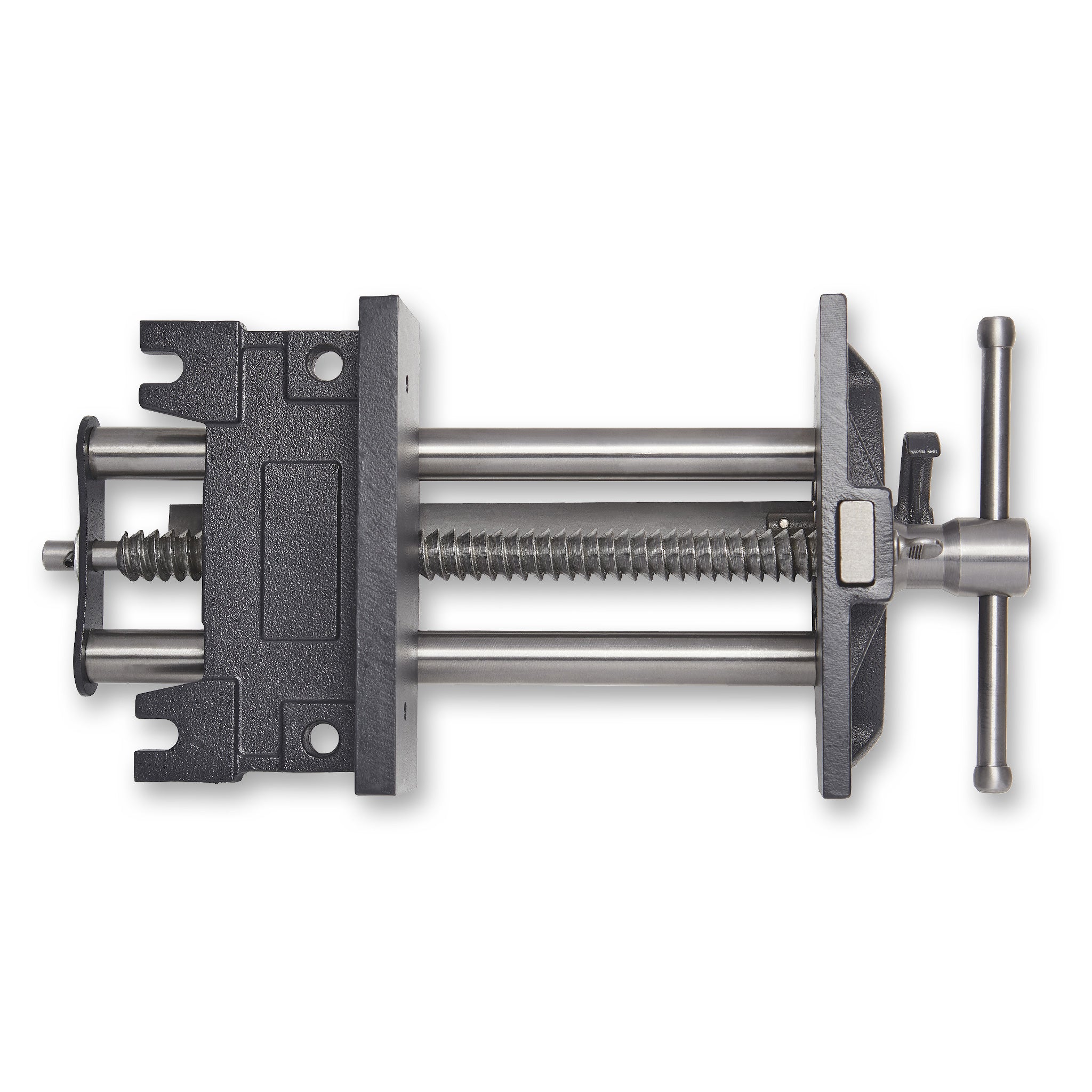

The 175mm wide front jaw is fractionally tapered toward the rear jaw, so that when under clamping pressure the jaws become parallel for positive non slip clamping. The lead screw is made from hardened and tempered steel and features a buttress thread that ensures fast, smooth and controlled movement. Buttress threads are stronger in shear than any other power thread, combining the high efficiency of a square thread with the high strength of a V thread.

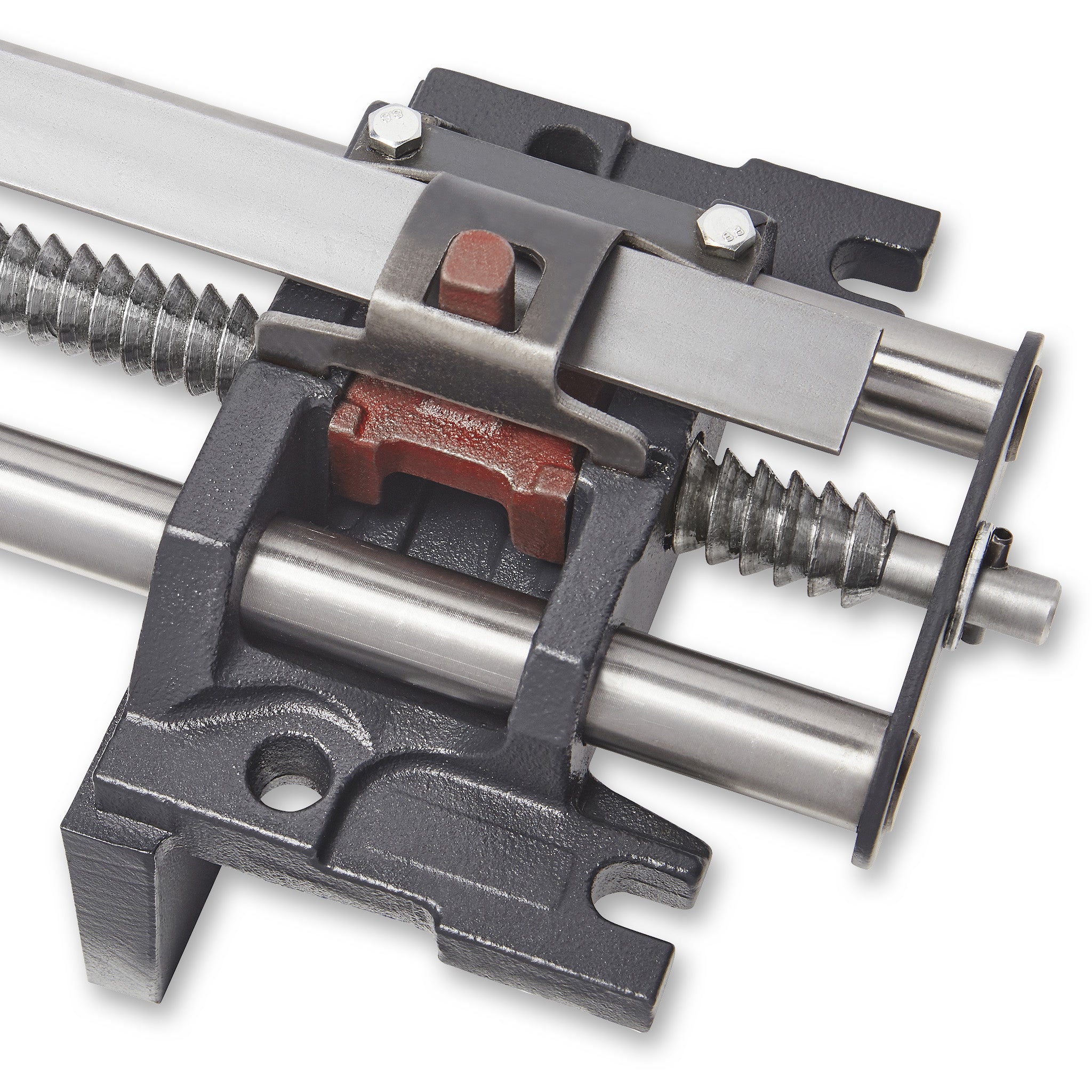

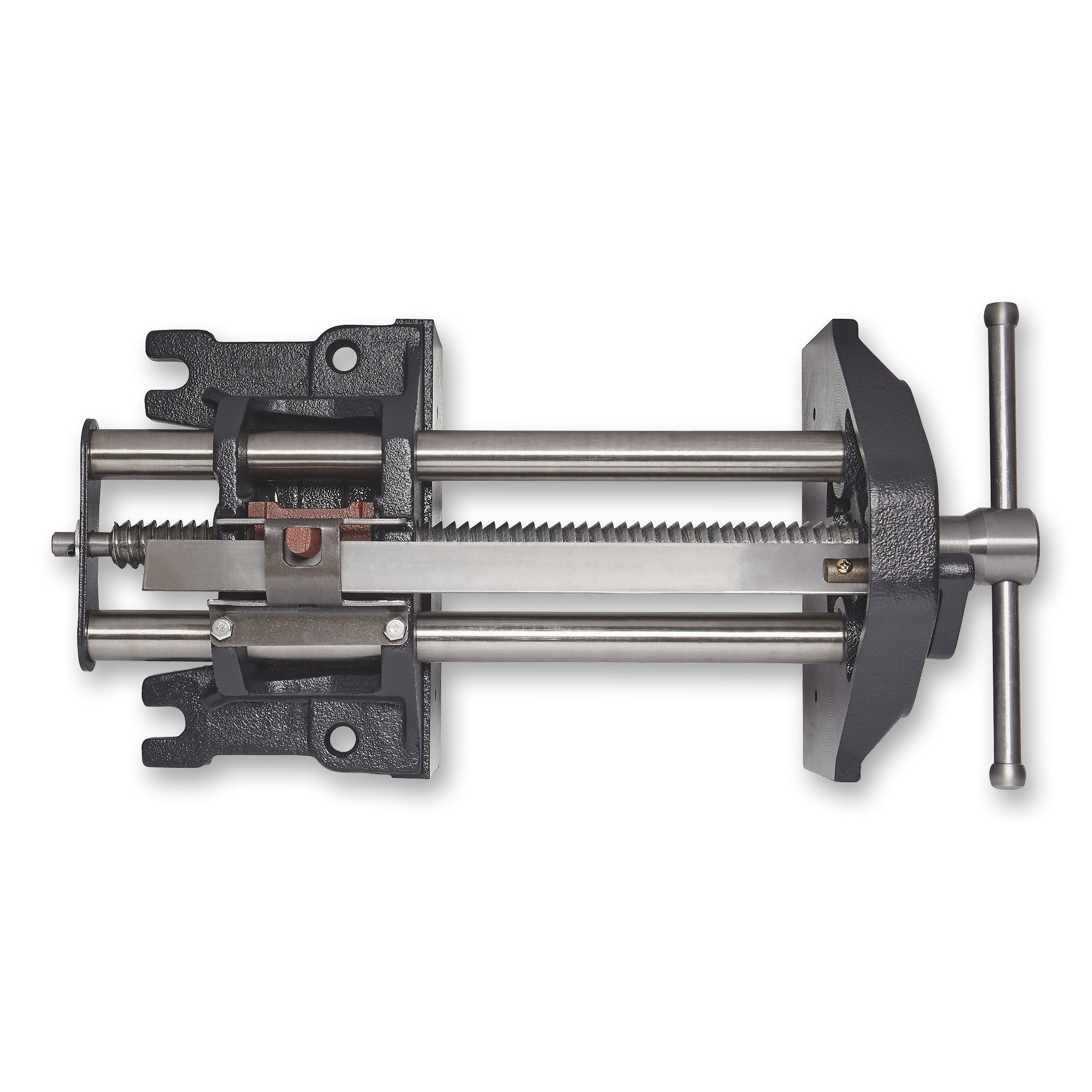

The advantage of this quick release vice is that by depressing the front trigger, the lead screw disengages from the cast nut allowing you to slide the jaw back and forth with one hand. Once you workpiece is position, release the trigger and clamp up using the tommy bar.
Both front and rear jaws are pre-drilled to accept wood sub fences to protect the surface of the workpiece and the front jaw features a height adjustable dog for clamping against a bench dog on your workbench. The castings of the vice are finished in an epoxy powder paint that is extremely hard wearing, chip and corrosion resistant. This is a premium quality, premium performance quick release vice that can be found in professional workshops worldwide. ©
- BrandRutlands®
- Product CodeR3080
- Clamping Force19000N
- Jaw Width175mm
- Clamping Capacity203mm
- Jaw Depth77mm
- Overall Length400mm
- Weight11kg
UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.
Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.
Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.
Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.
Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.
Customer Reviews
Arrived really quickly and quality was really good. The site looks like its got some good products so I’m getting my Christmas list together
A very well made heavyweight bench vice. Delivery was very fast (Next Day).
The vice was easy to fit and the quick release worked very smoothly. The vice dog is also well made and is very smooth in use.

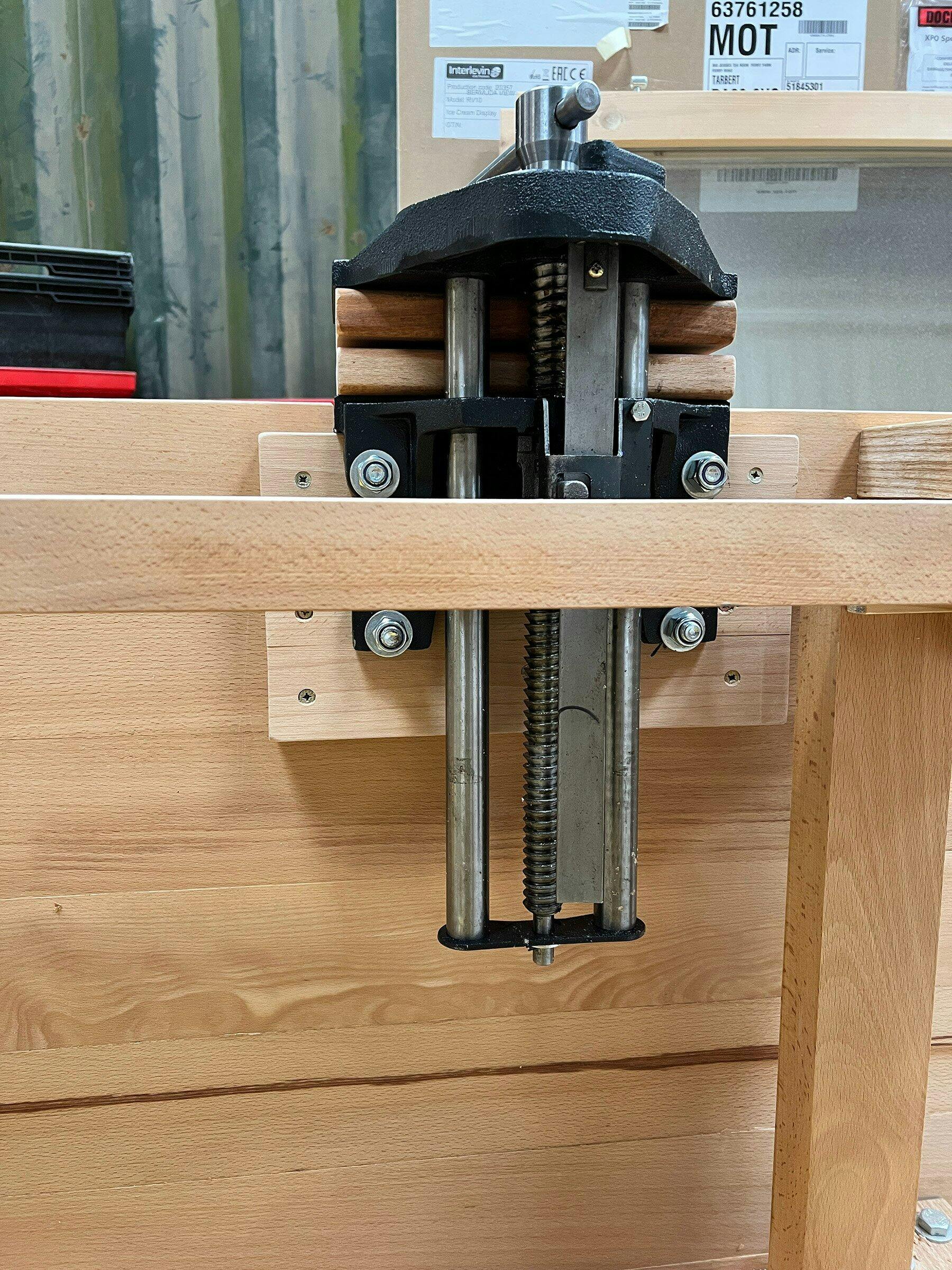

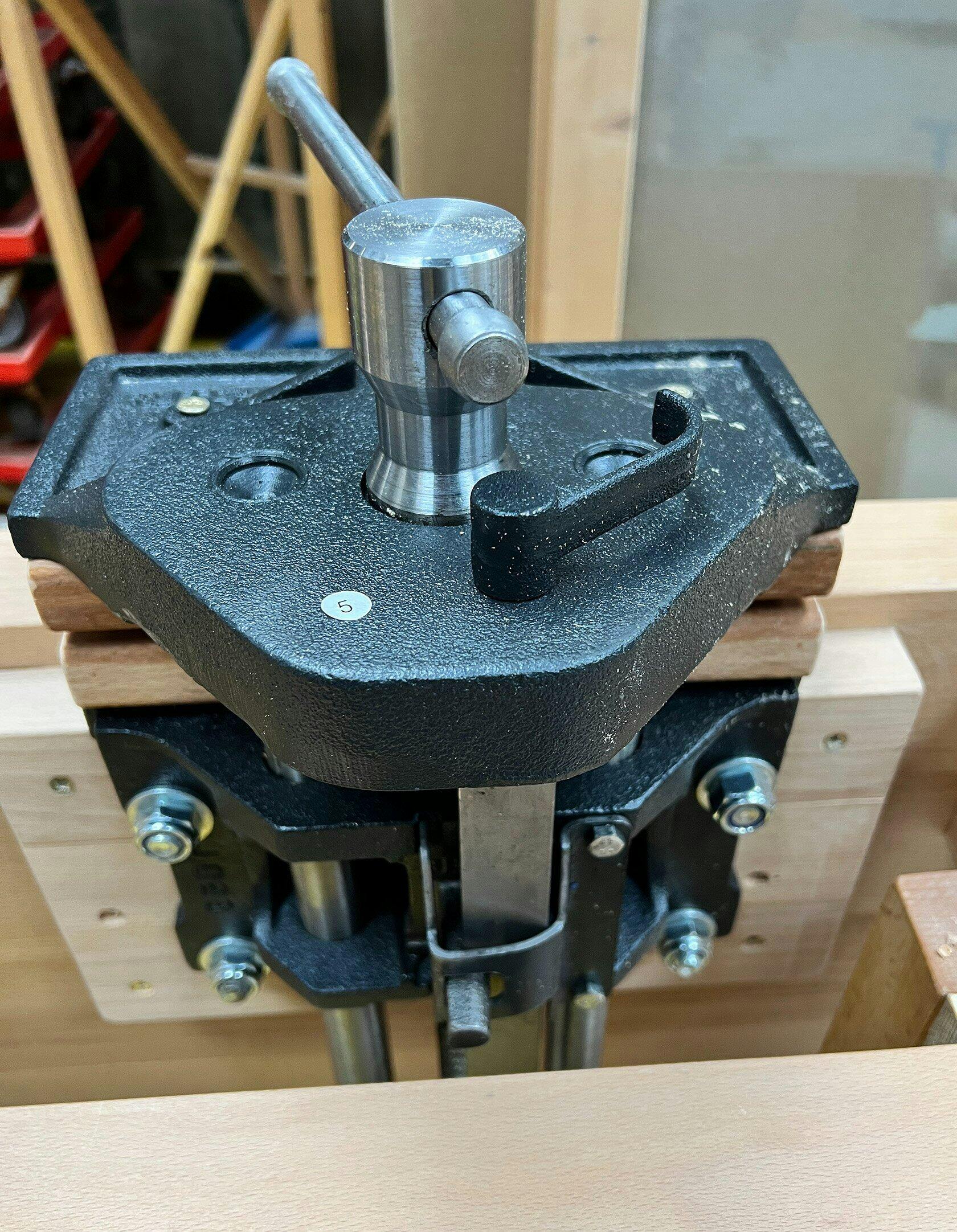

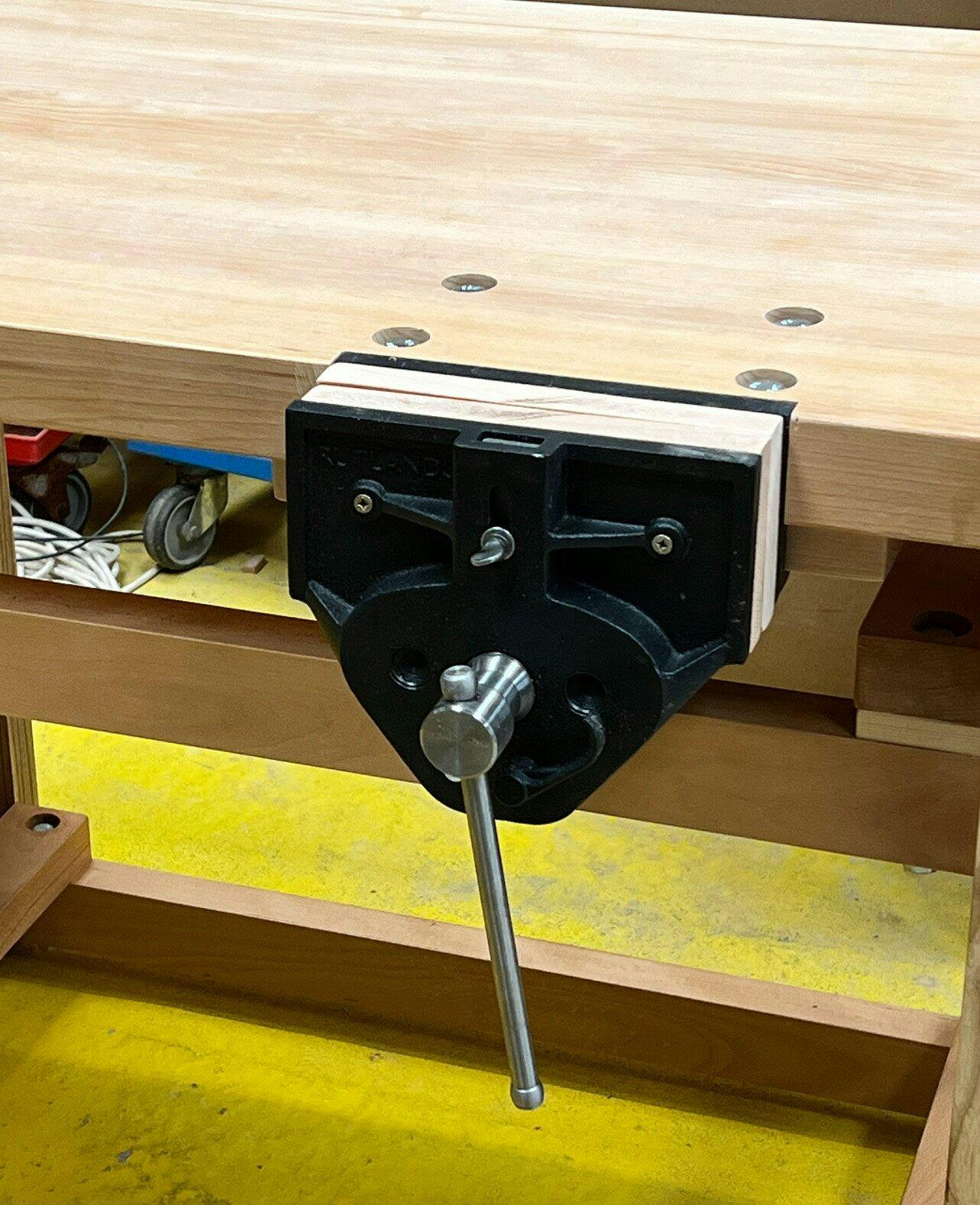

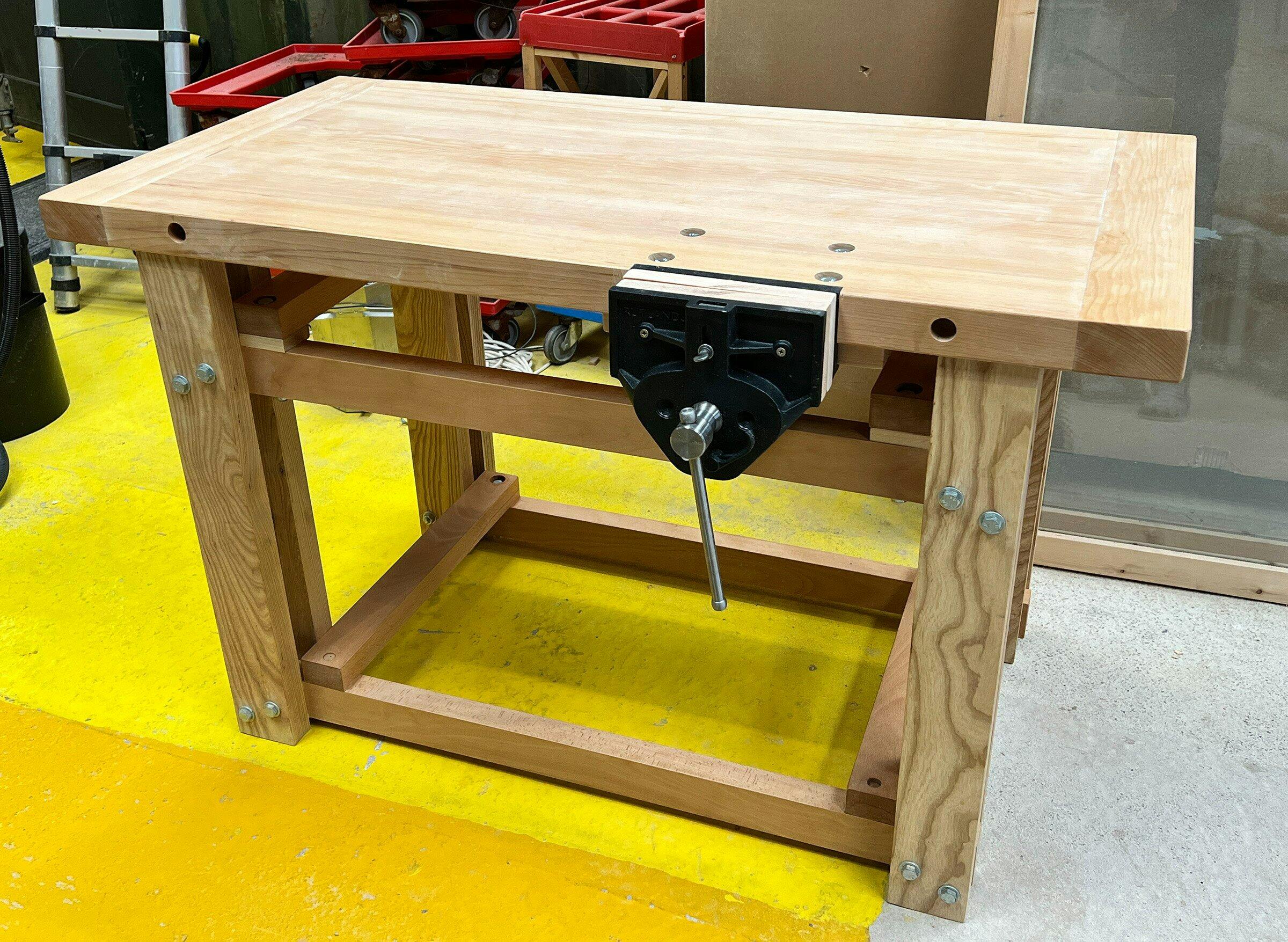

Picture shows the vice fitted on the underside of my new made bench top.
In the middle of making some new gates for the drive and decided on this vice to help me out with some work holding.
It's my first grown up vice and i couldn't be more pleased. It's working out great and don't a great job, the quick release is a godsend when trying to juggle numerous things at once.
Manahed to fit it perfectly to my work bench, with only a bit of extra support. The thing is big and heavy yet doesn't look out of place. Can't beat Rutlands at the moment, all my new stuff is coming directly from them lately. THANKS!
I managed to purchase this vice when discounted to £65. What a bargain I’ve managed to get as it’s not listed for £115.
In any case this is a quality bit of kit for the workshop and easy to install. I’ve faced both faces of the vice with oak and it looked and feels great. I can’t recommend this highly enough even at the non discounted price this vice fits the bill for all your workshop projects 👍
Very solid and very little play.
Class leading clamping force
Exerts up to 19000N of clamping force, to deliver best in class workholding.
