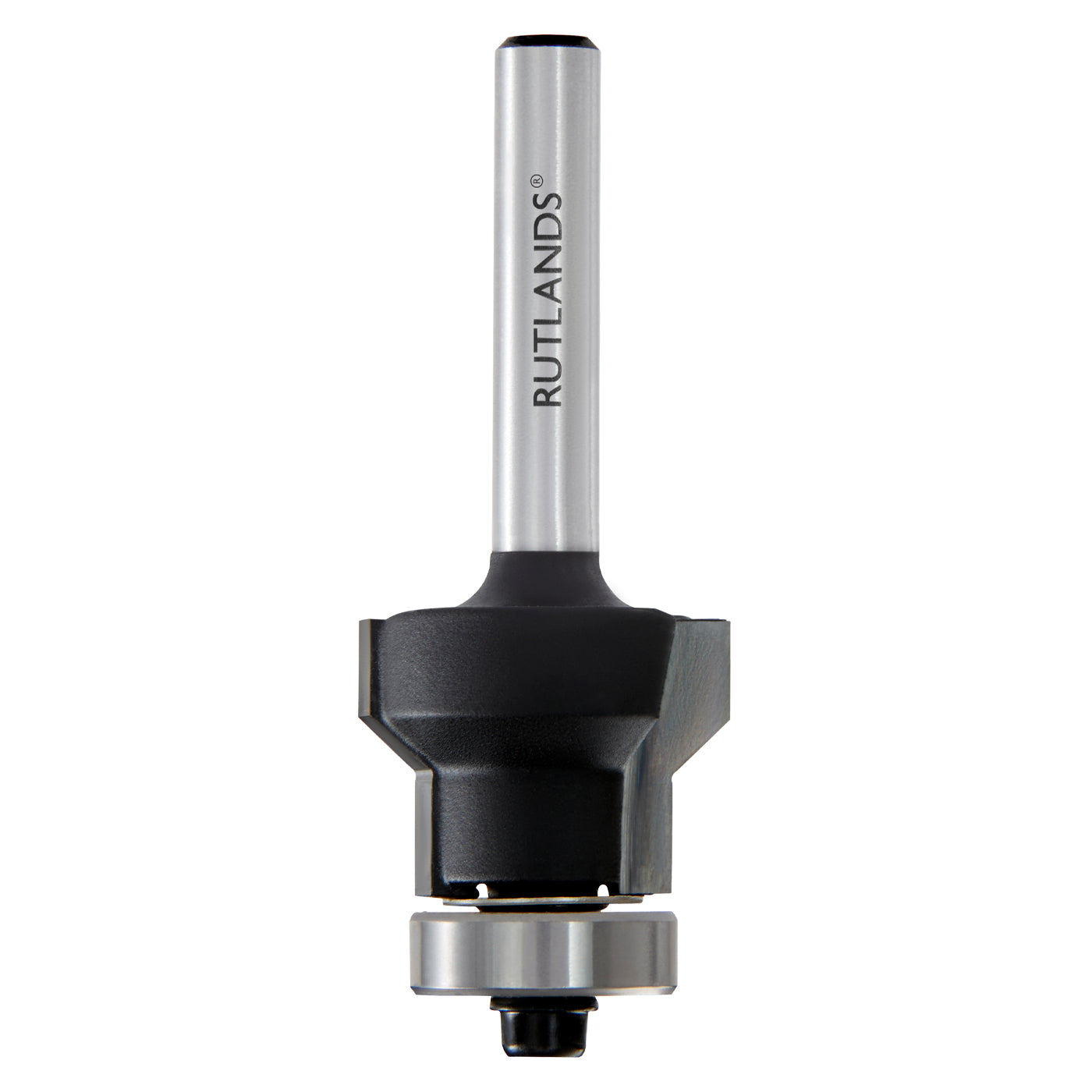

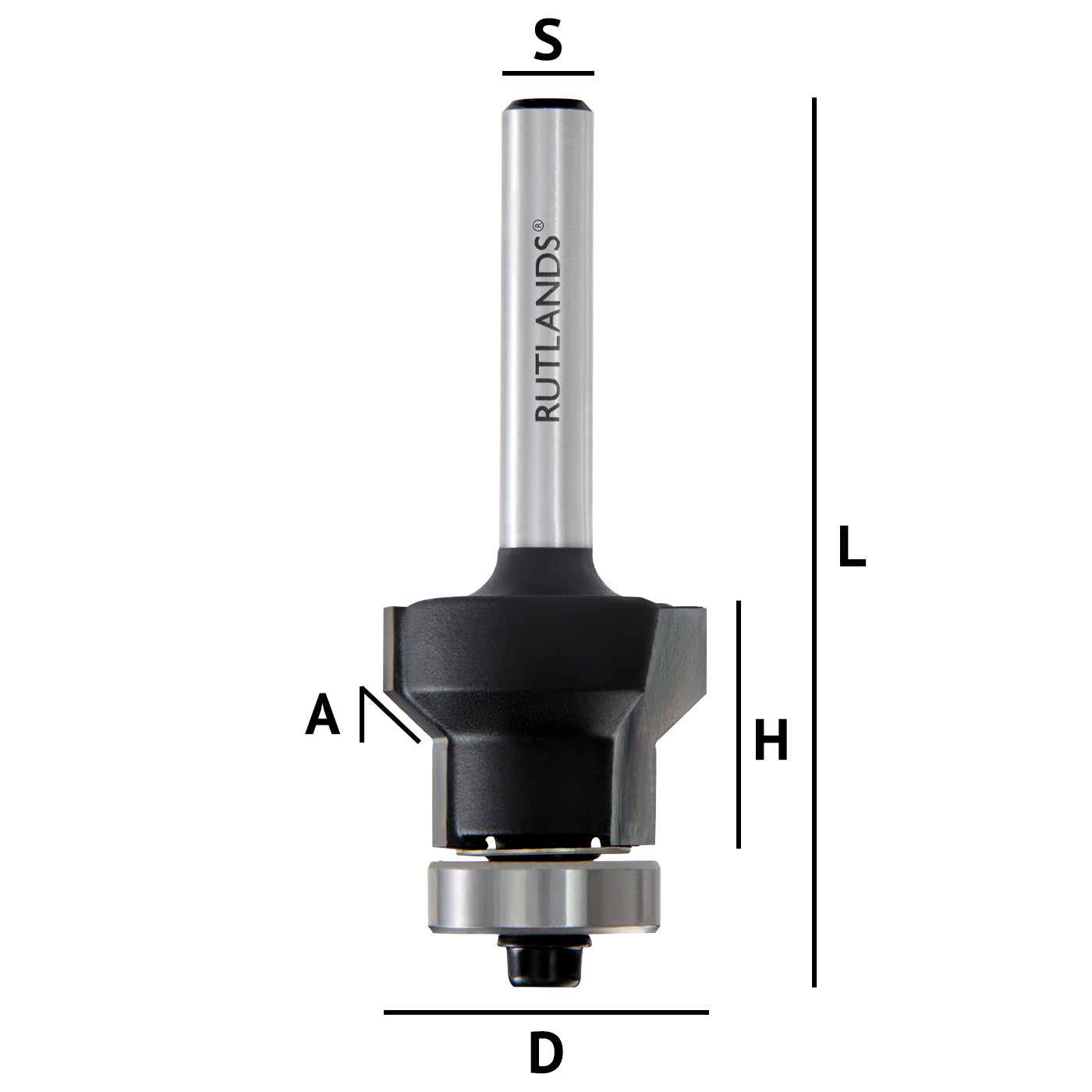

Router Bit - Combination Flush & Bevel Trim with Bearing - D=22mm H=16mm A=45° L=61mm S=1/4"

TCT Router Bits
Each router bit features diamond ground, micro-grain tungsten carbide tipped blades. This tighter micro-grain structure means the blades offer long lasting hardness and superior edge retention. The body of each bit has been turned and then milled with uncompromising precision from a single piece of 4140 high tensile steel to give perfect balance for reduced vibration and therefore smoother cuts. 4140 steel has been chosen because of its toughness, high fatigue strength, and abrasion and impact resistance. The tungsten carbide tips are then brazed onto the bodies using induction to create an extremely strong joint that safely holds under the high stresses that occur when routing. The router bits are suitable for use on softwoods, hardwoods, veneers, laminates and composite materials.

Combination Flush & Bevel Trim with Bearing Bits
Combination flush & bevel trim with bearing bits are used to produce both a flush trim or 45° bevel with a single bit. These bits feature a bearing guide, and a flush trim is achieved by utilising the bottom half of the bit. To produce a 45 degree bevel trim, simply lower the cutting height. Economical and time saving, these bits are used to trim and bevel laminate and solid wood overlays on worktops, bench tops, cupboards and shelving.

Superior Finish and Performance
The shearing angle of the cutting edges ensure they remain in constant contact with the workpiece to allow a smoother, slicing cut which eliminates tear-out and gives a mirror finish. The bits feature right hook angles which further enhances the cut due to the fast removal of chips. These bits feature an anti-kickback design which limits the feed rate of the material being cut to decrease the likelihood of a kickback, meaning each bit conforms to strict German DIN standards to ensure maximum operator safety. ©
