< TCT Router Bits

Router Bit - Hinge Recess

Regular price From £33.00
Regular price £0.00Sale price From £33.00
In Stock for delivery by
Order within

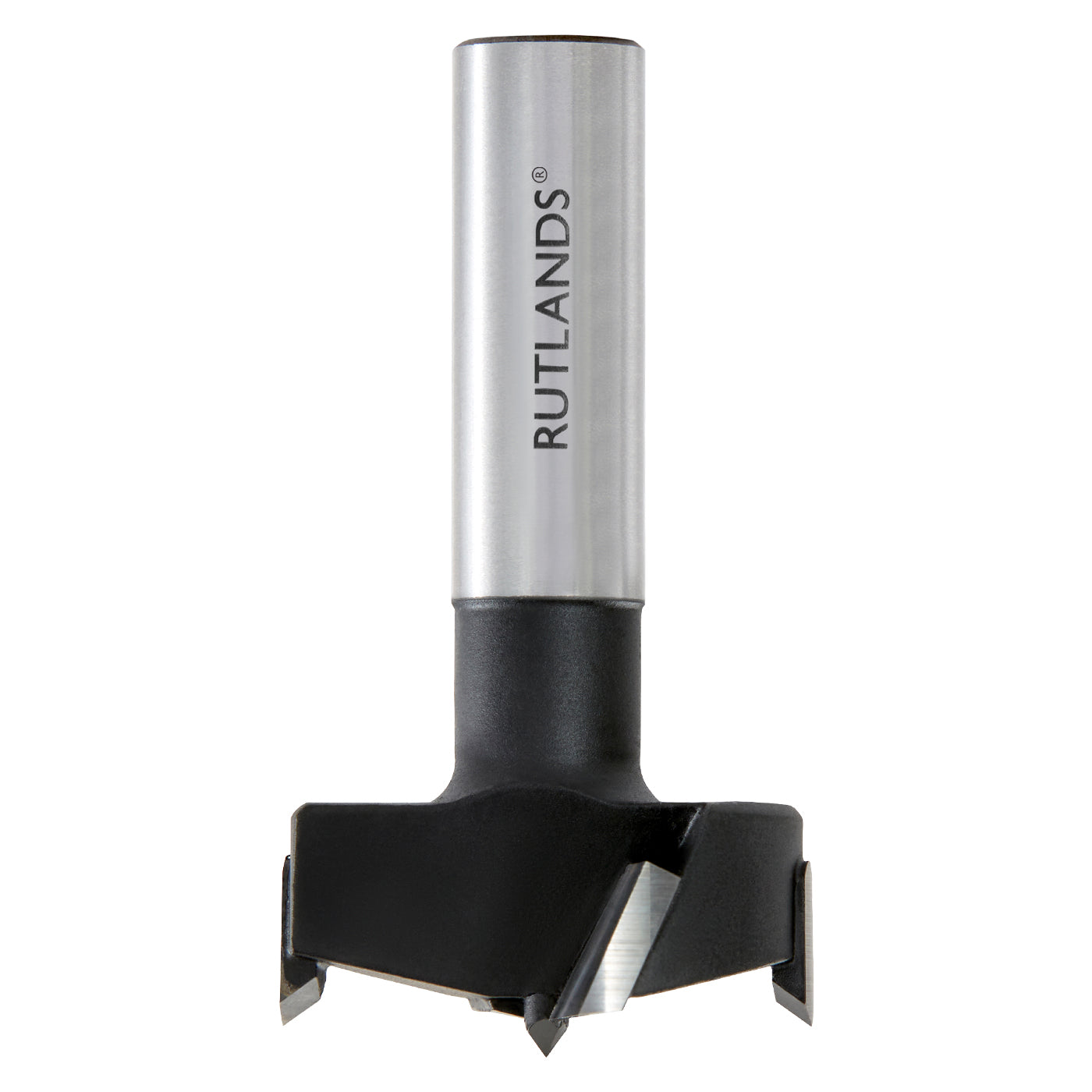

These hinge recess router bits are used for the fast and accurate production of industry standard sized hinge cups, for recessing circular hinges. Each bit features diamond ground, micro-grain tungsten carbide tipped blades for long lasting hardness and superior edge retention.
Select Option

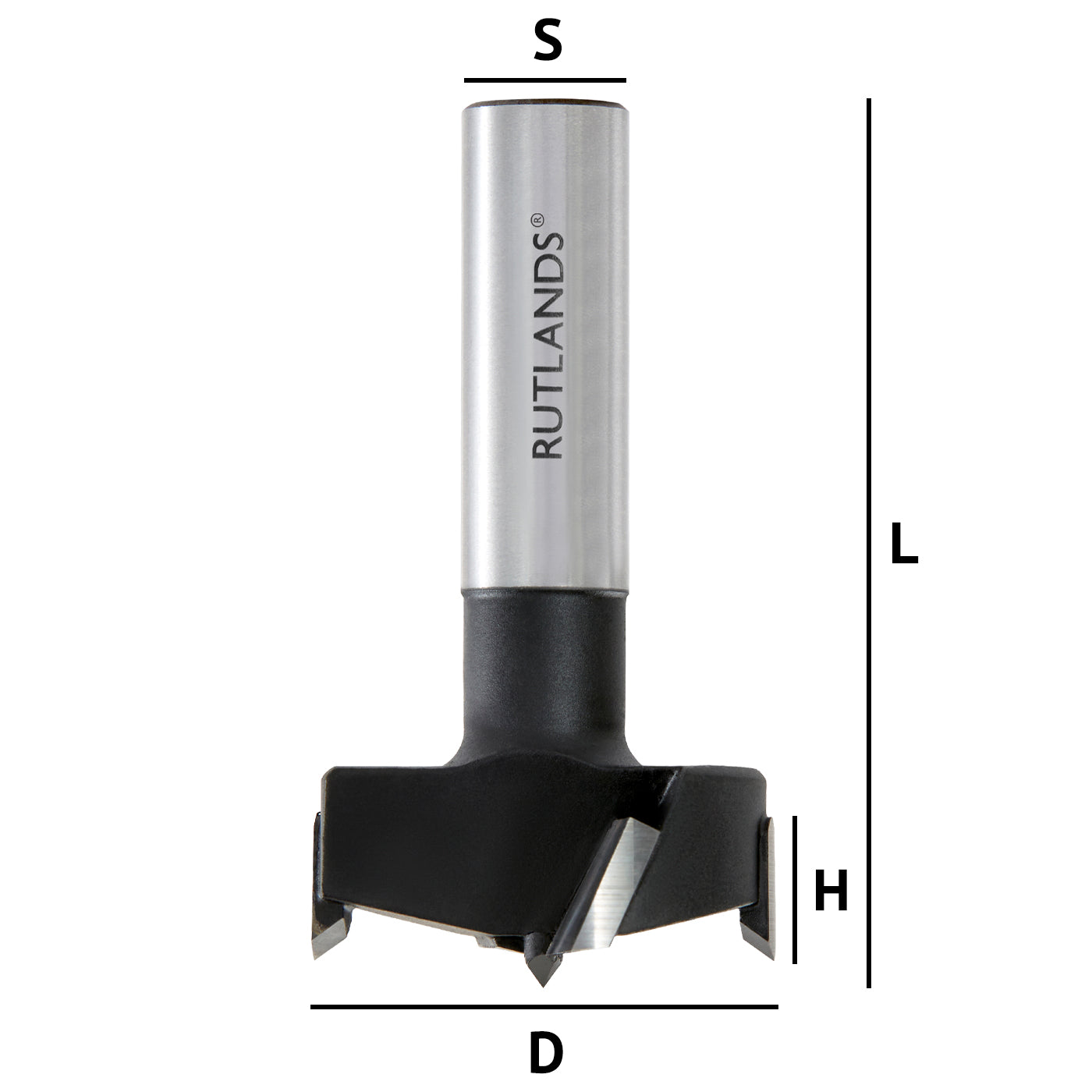

  • D=35mm H=10mm L=66.5mm S=1/2" £33.00
  • D=40mm H=10mm L=66.5mm S=1/2" £40.00
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 29,700 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Router Bit - Hinge Recess
Regular price From £33.00
Regular price £0.00Sale price From £33.00
KEY FEATURES
  • 3 Year Warranty
  • Used for the fast and accurate production of industry standard sized hinge cups
  • Micro-grain tungsten carbide ensures long lasting hardness and superior edge retention
  • Perfectly balanced, vibration free bodies for a smoother cut
  • Shear angle blades slice the wood for a feather free finish
  • Anti kick back design for maximum operator safety
FULL DESCRIPTION
TCT Router Bits
Each router bit features diamond ground, micro-grain tungsten carbide tipped blades. This tighter micro-grain structure means the blades offer long lasting hardness and superior edge retention. The body of each bit has been turned and then milled with uncompromising precision from a single piece of 4140 high tensile steel to give perfect balance for reduced vibration and therefore smoother cuts. 4140 steel has been chosen because of its toughness, high fatigue strength, and abrasion and impact resistance. The tungsten carbide tips are then brazed onto the bodies using induction to create an extremely strong joint that safely holds under the high stresses that occur when routing. The router bits are suitable for use on softwoods, hardwoods, veneers, laminates and composite materials.

Hinge Recess Bits
Hinge recess bits are used for the fast and accurate production of industry standard sized hinge cups, for recessing circular hinges. Router plunge depth can be preset to allow repetitive routing, and a template and guide bush are recommended for accuracy. Part number R5767 will produce the most commonly used 35mm diameter hinge cup, whereas part number R5768 will produce a 40mm cup, typically found on extra thick or large doors.

Superior Finish and Performance
The shearing angle of the cutting edges ensure they remain in constant contact with the workpiece to allow a smoother, slicing cut which eliminates tear-out and gives a mirror finish. The bits feature right hook angles which further enhances the cut due to the fast removal of chips. These bits feature an anti-kickback design which limits the feed rate of the material being cut to decrease the likelihood of a kickback, meaning each bit conforms to strict German DIN standards to ensure maximum operator safety. ©
SPECIFICATIONS

    Please select an option above

SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.
