Router Table

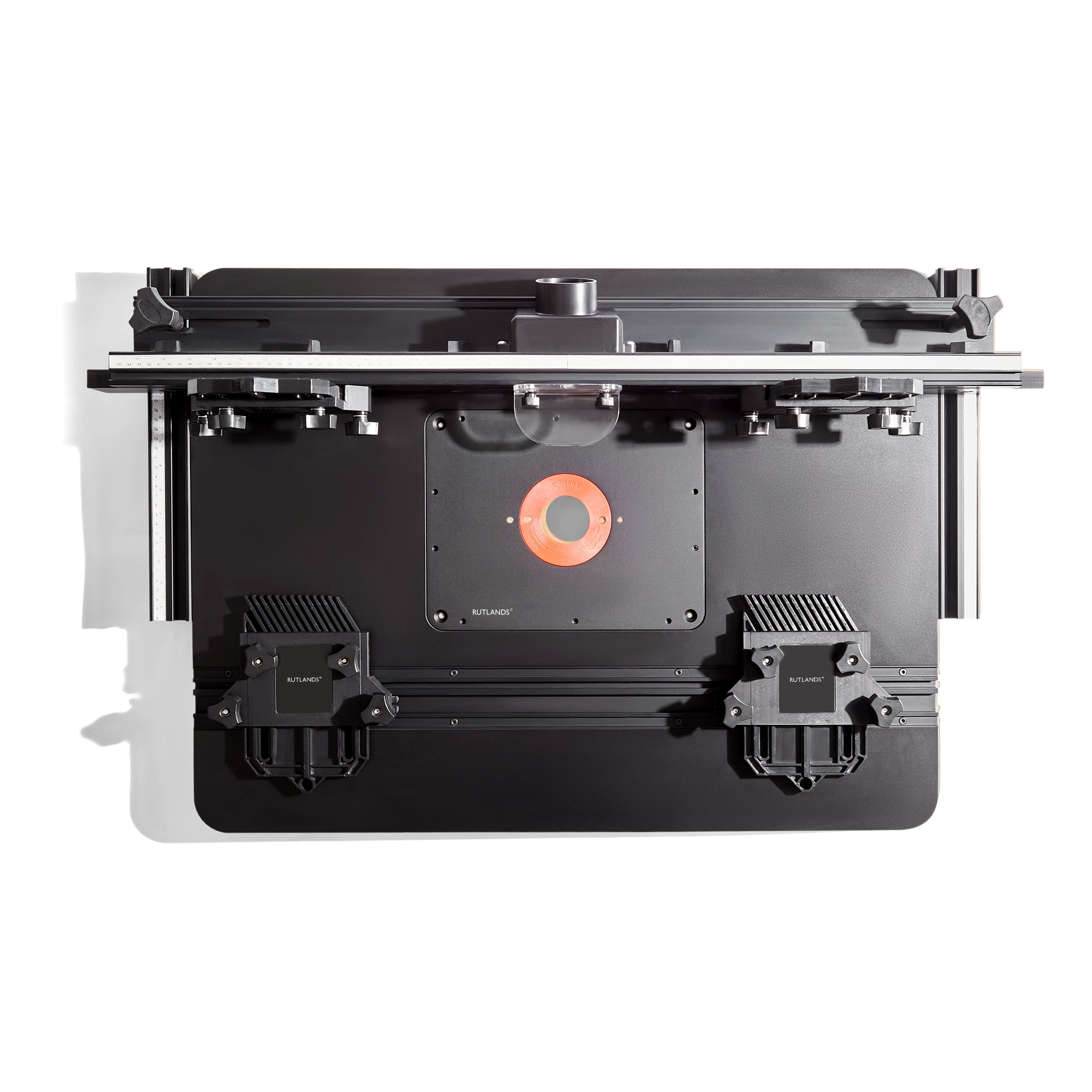

This premium performance Rutlands® router table features the R5008 router table stand, R5007 router table top, R5009 router table fence, R5010 insert plate and two R5015 double feather boards.

Router Table Stand

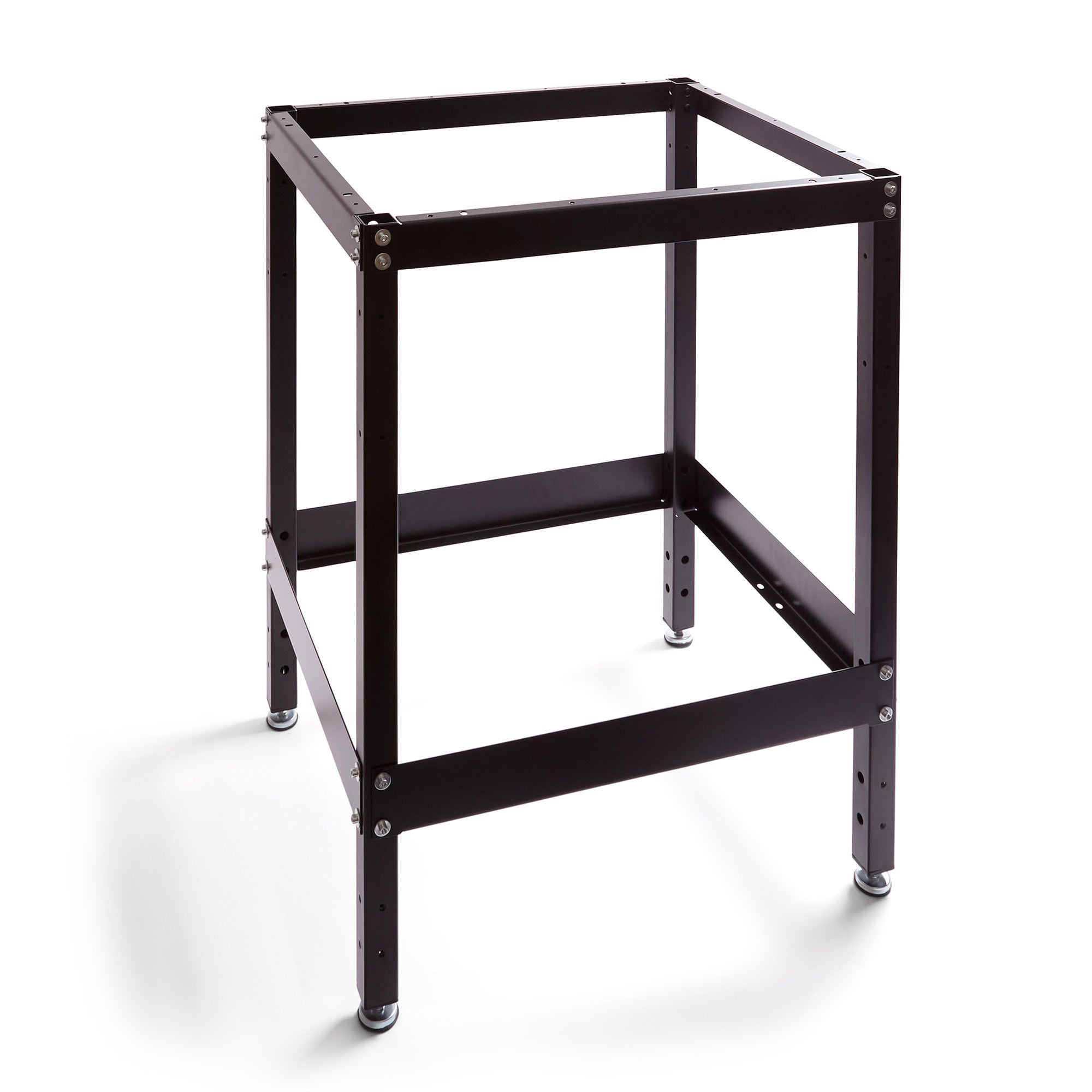

The legs and braces on this router table stand are made from 38mm wide x 2mm thick box-section steel for guaranteed strength and rigidity. The stand has been specifically designed to ensure that the legs and braces fit perfectly square to each other, via a series of pre-welded locking nuts and stainless-steel fixings. The feet have a large 45mm diameter footprint for optimum stability and have fine height adjustment when levelling on uneven workshop floors. Each foot is fitted with a heavy-duty rubber pad to offer excellent vibration dampening.

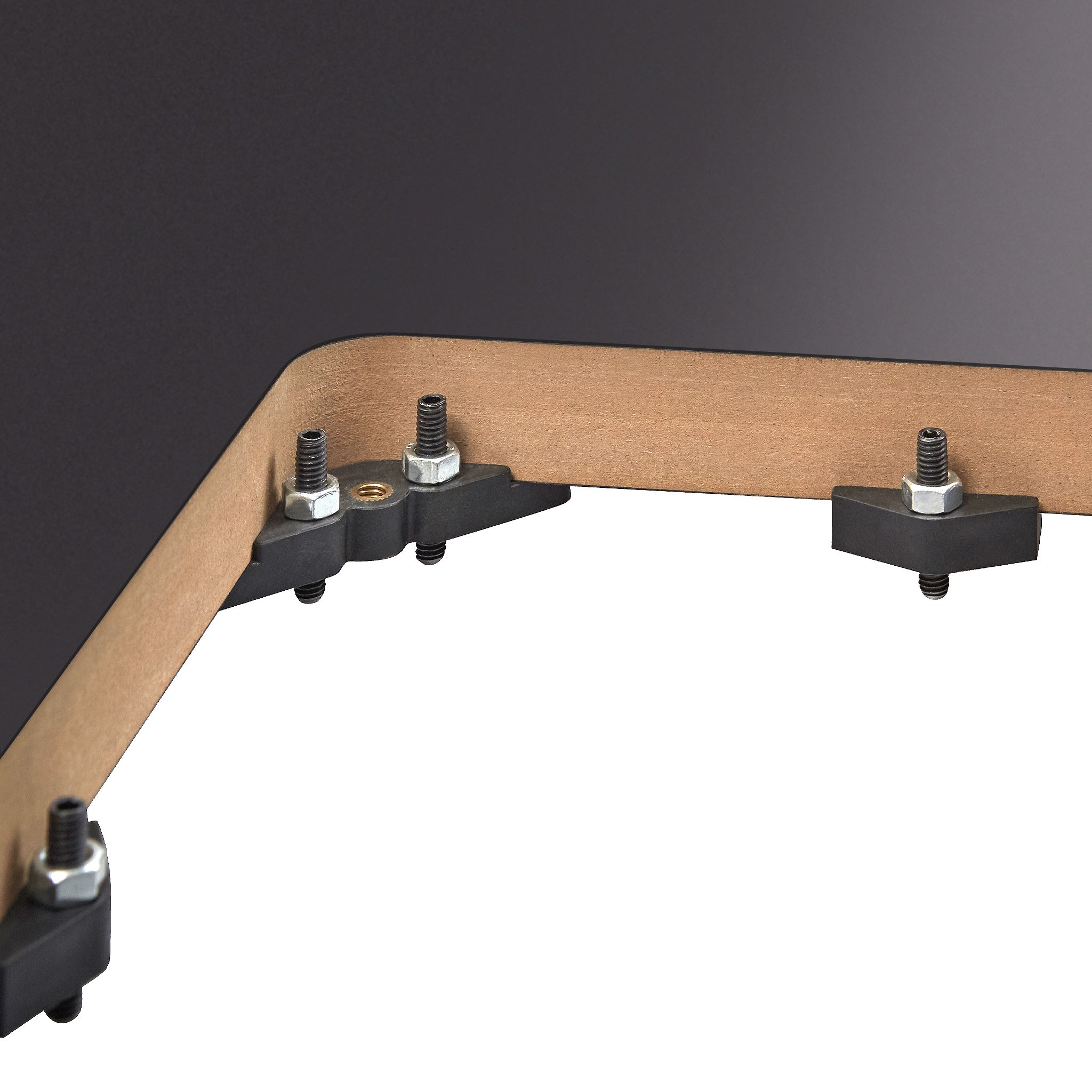

Router Table Top

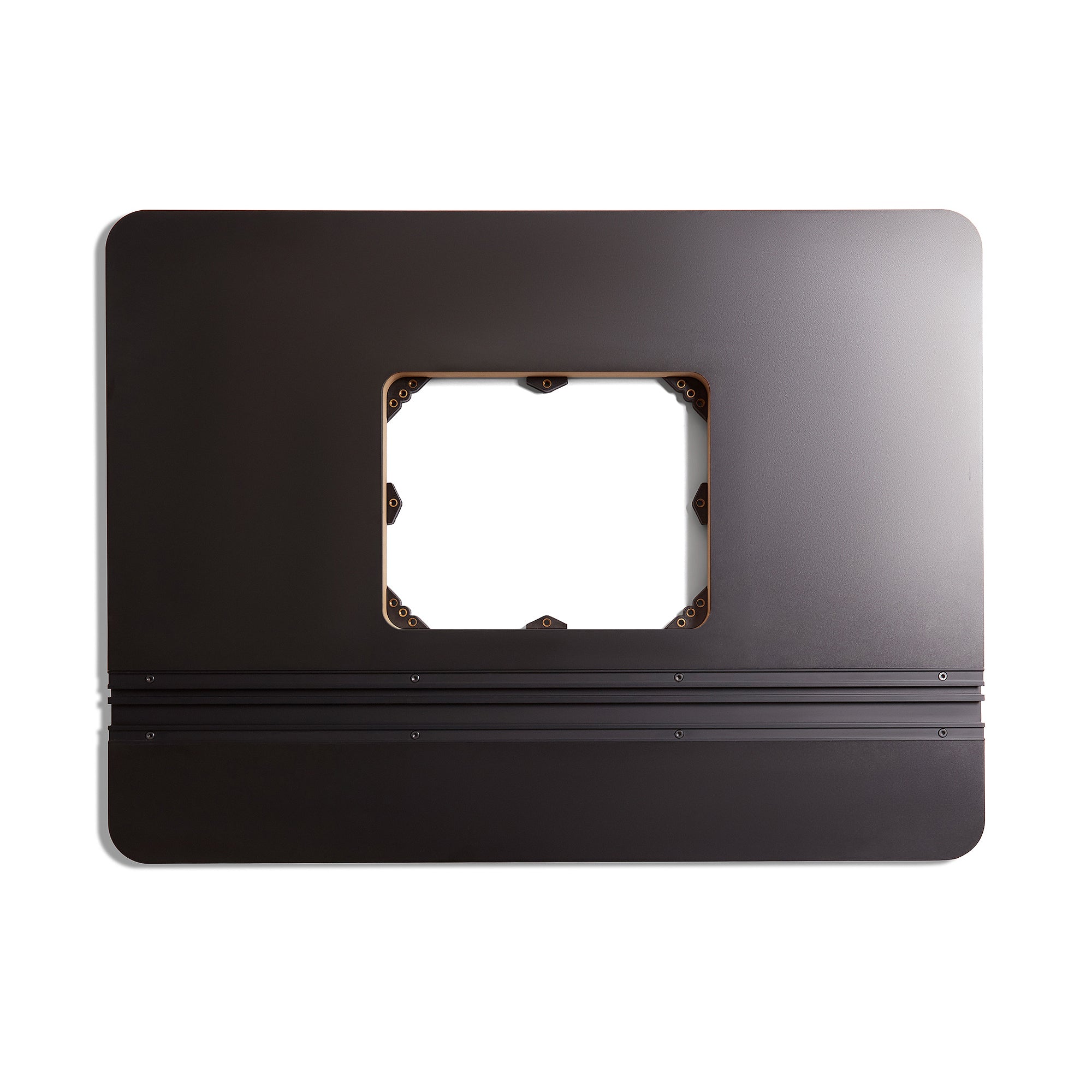

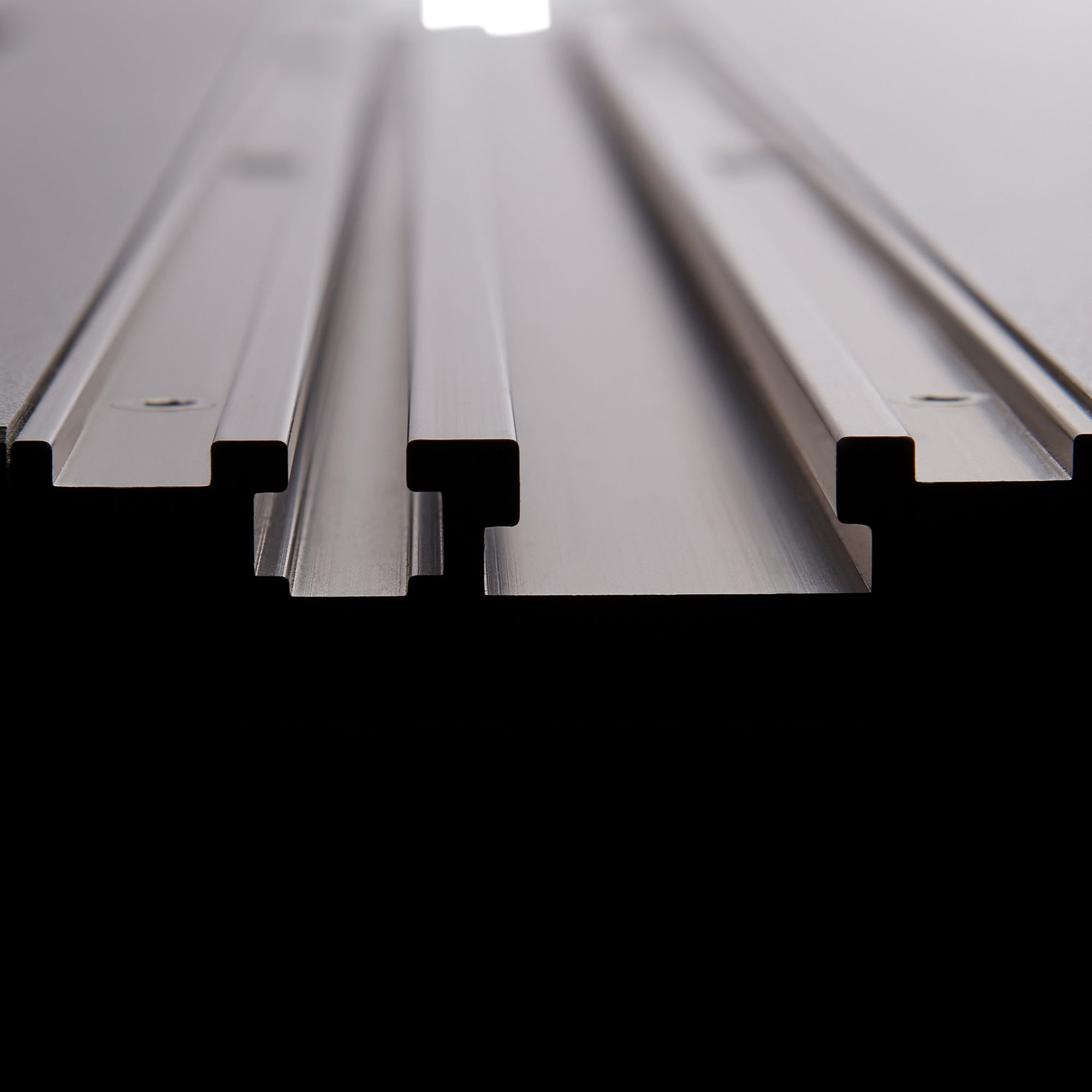

This table top is laminated on both faces with a low friction, premium-grade, phenolic which is highly wear resistant and allows the workpiece to glide smoothly through the router bit. The phenolic laminate is sandwiched around a 27mm solid moisture-resistant composite core which prevents the absorption of atmospheric moisture, eliminating the risk of warping or distortion of the table surface when working in cold or damp workshops. Set into the top is an extruded aluminium, double T track which includes a standard 19mm track for use with mitre gauges and feather boards, and a 6.3mm T slot for use with stops and homemade jigs.

Router Table Fence

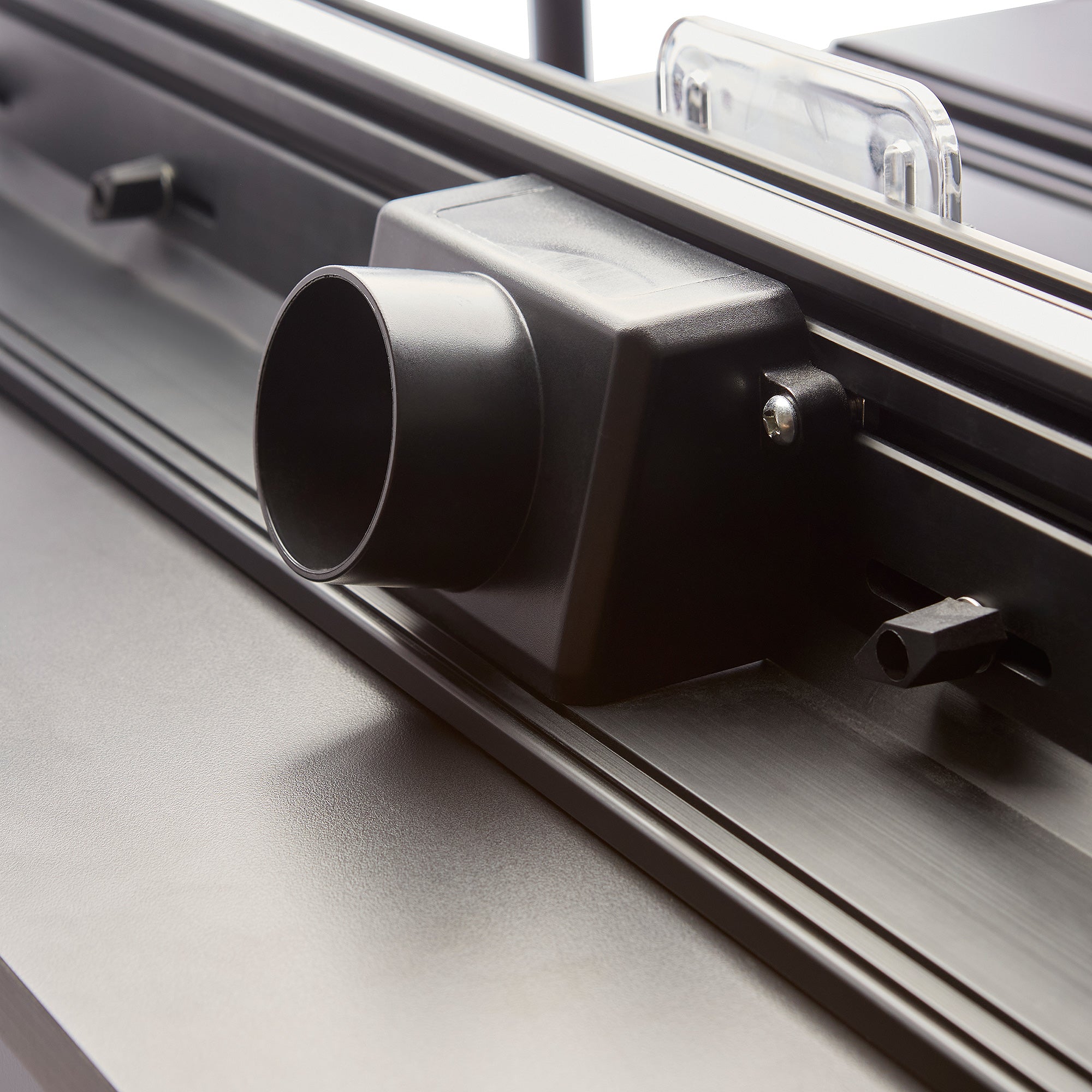

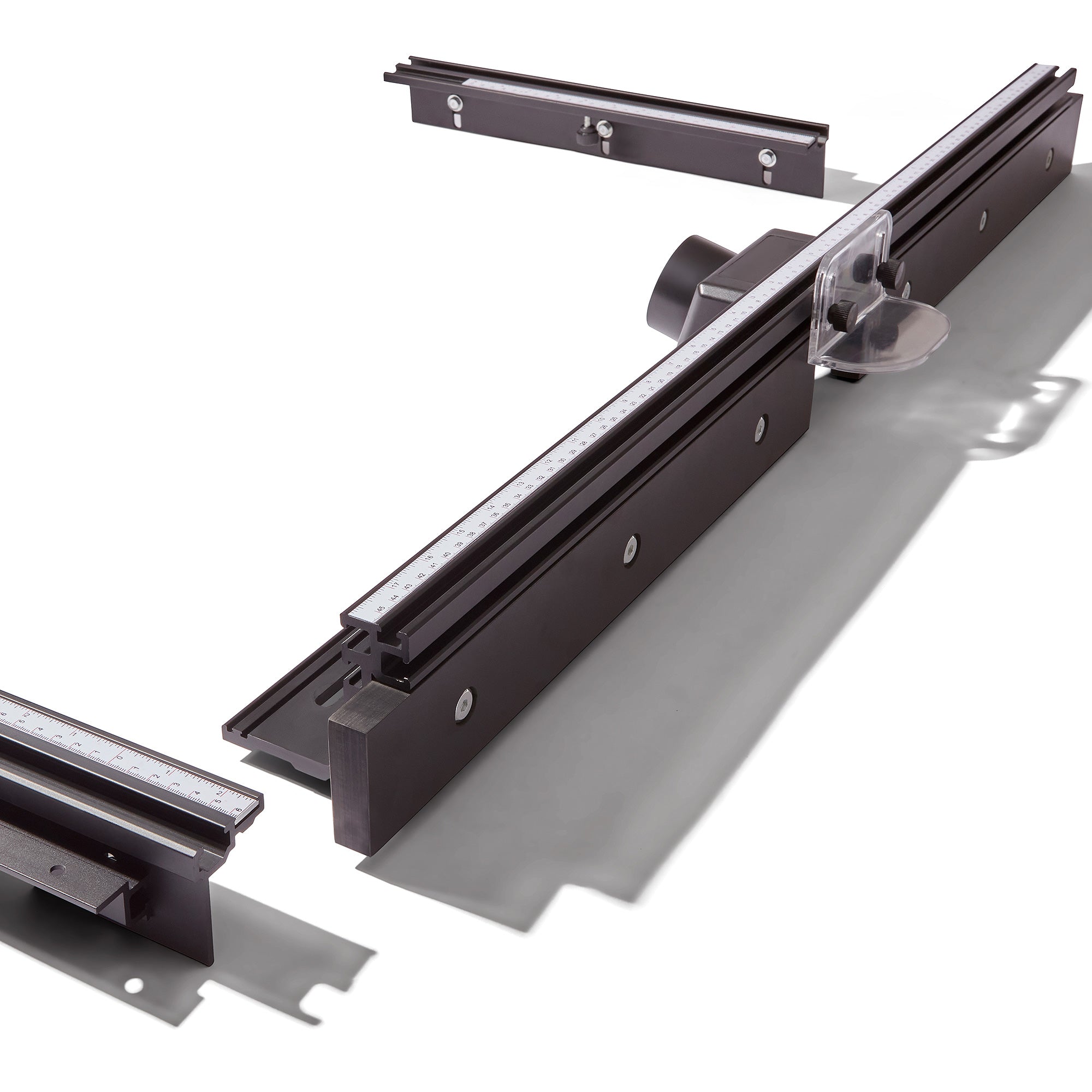

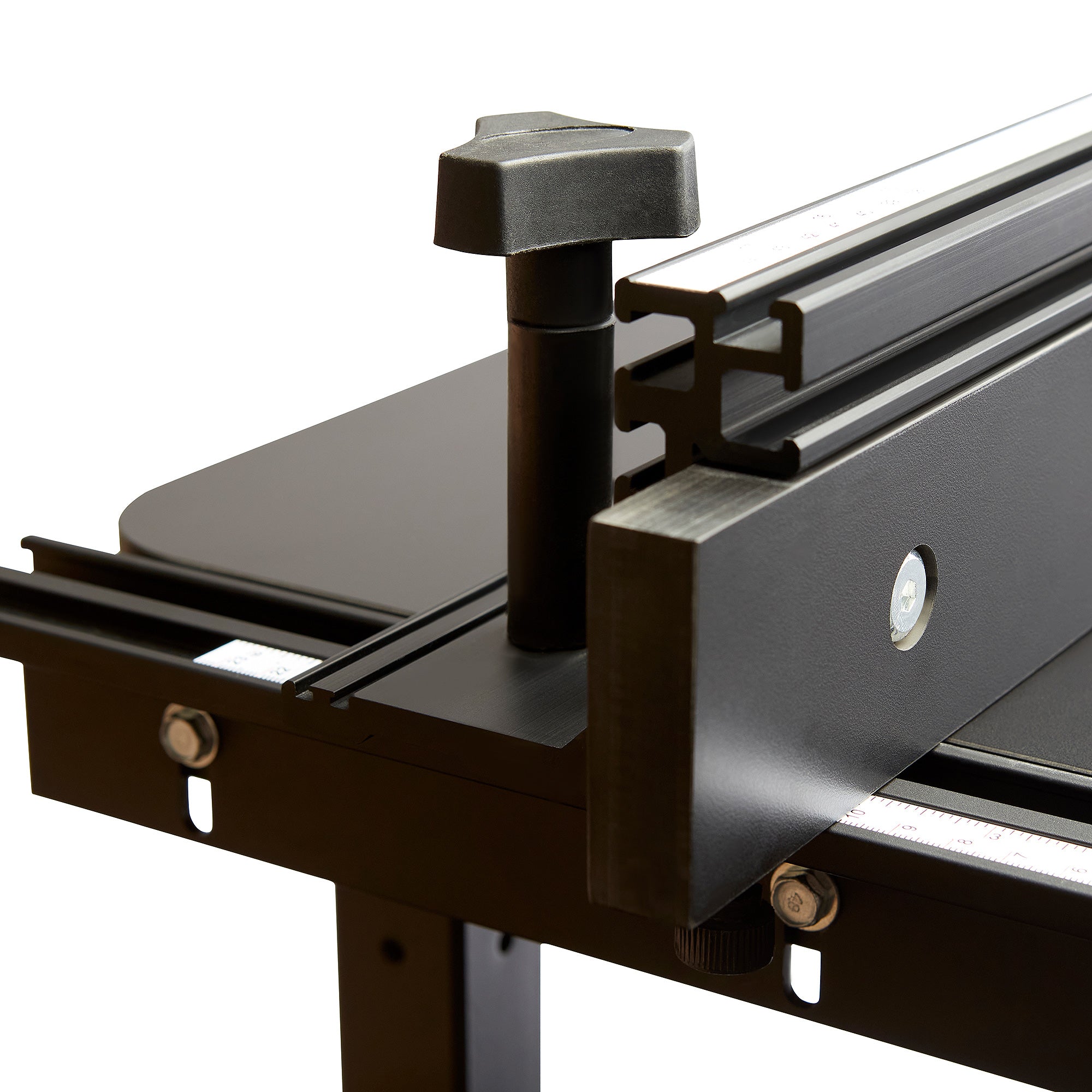

This router table fence is precision CNC machined from aircraft-grade aluminium with a black anodized finish. On the top face of the fence is a metric scale and an 8.3mm T Track for use with Rutlands® flip stops and on the front face there is another 8.3mm T Track for mounting Rutlands® feather boards and the height adjustable router bit guard. The two sub-fences are made from a solid composite with a low friction, phenolic laminate surface to ensure smooth movement of the workpiece. The fences can be adjusted, tool free, to accommodate any router bit from 10mm to 115mm in diameter and the outfeed sub-fence can be off-set to allow for edge planing. The two fence support brackets are mounted to each side of router table top, allowing the fence to be moved back and forth. An adjustable metric scale on the fence brackets allows you to precisely align, zero and set the position of the fence to the router bit.

Router Table Insert Plate

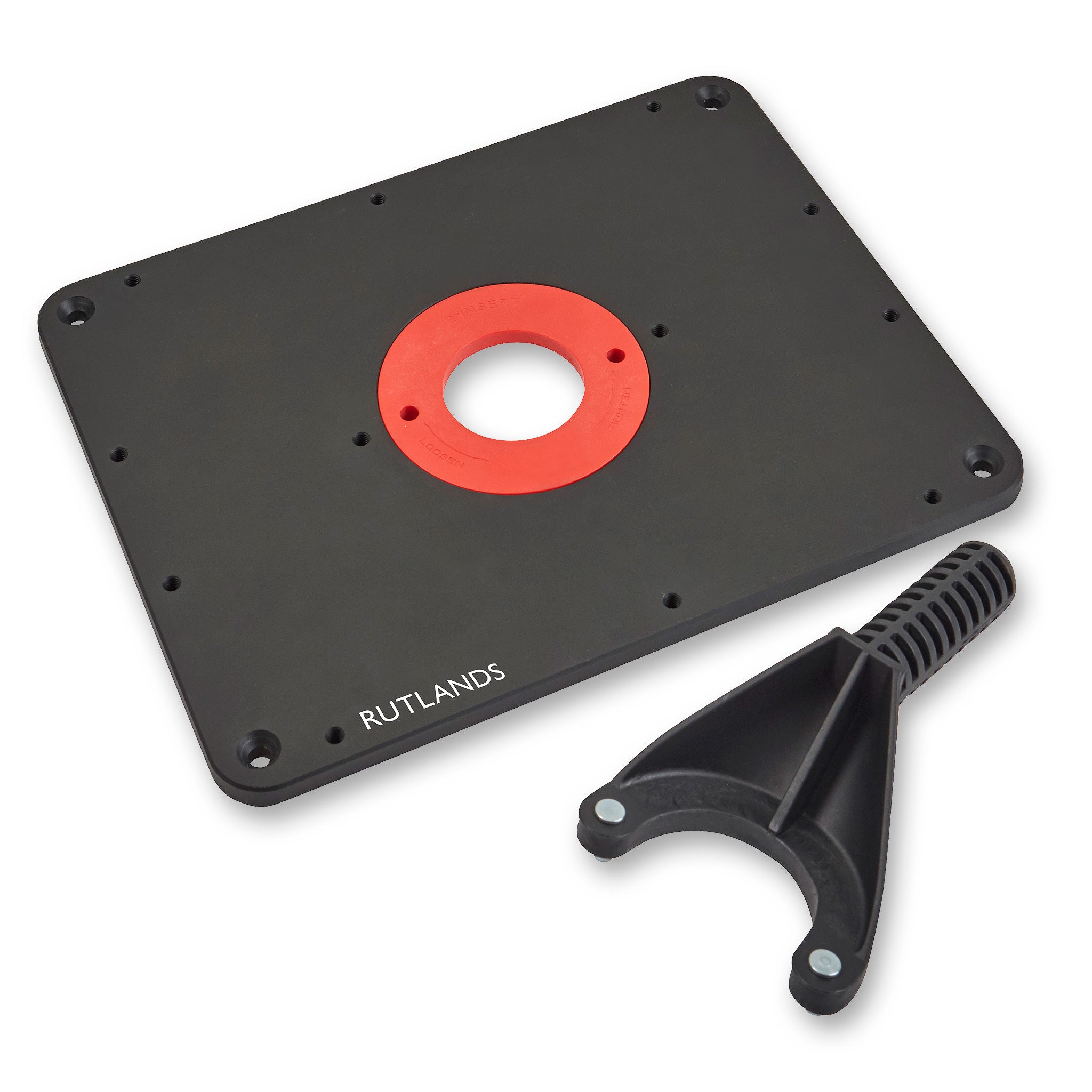

This router table insert plate is made from 10mm anodized aluminium and is extremely strong, perfectly flat and features an abrasion resistant finish. The plate is compatible with all plunge routers with a maximum base diameter of 200mm. An 90mm aperture accommodates large router bits, whilst the two polycarbonate click-fit insert rings of 50mm and 35mm are used with smaller diameter bits. To mount a router, you use the router's sub-base as a template to drill the plate, having positioned the set-up ring and centering pin to ensure your router is centrally mounted. A series of fine-thread adjustment screws allow you to level the plate perfectly flush with the table. The insert plate is supplied with a top mounted guide pin, featuring a free-spinning plastic barrel to enables free hand and pattern shape routing.

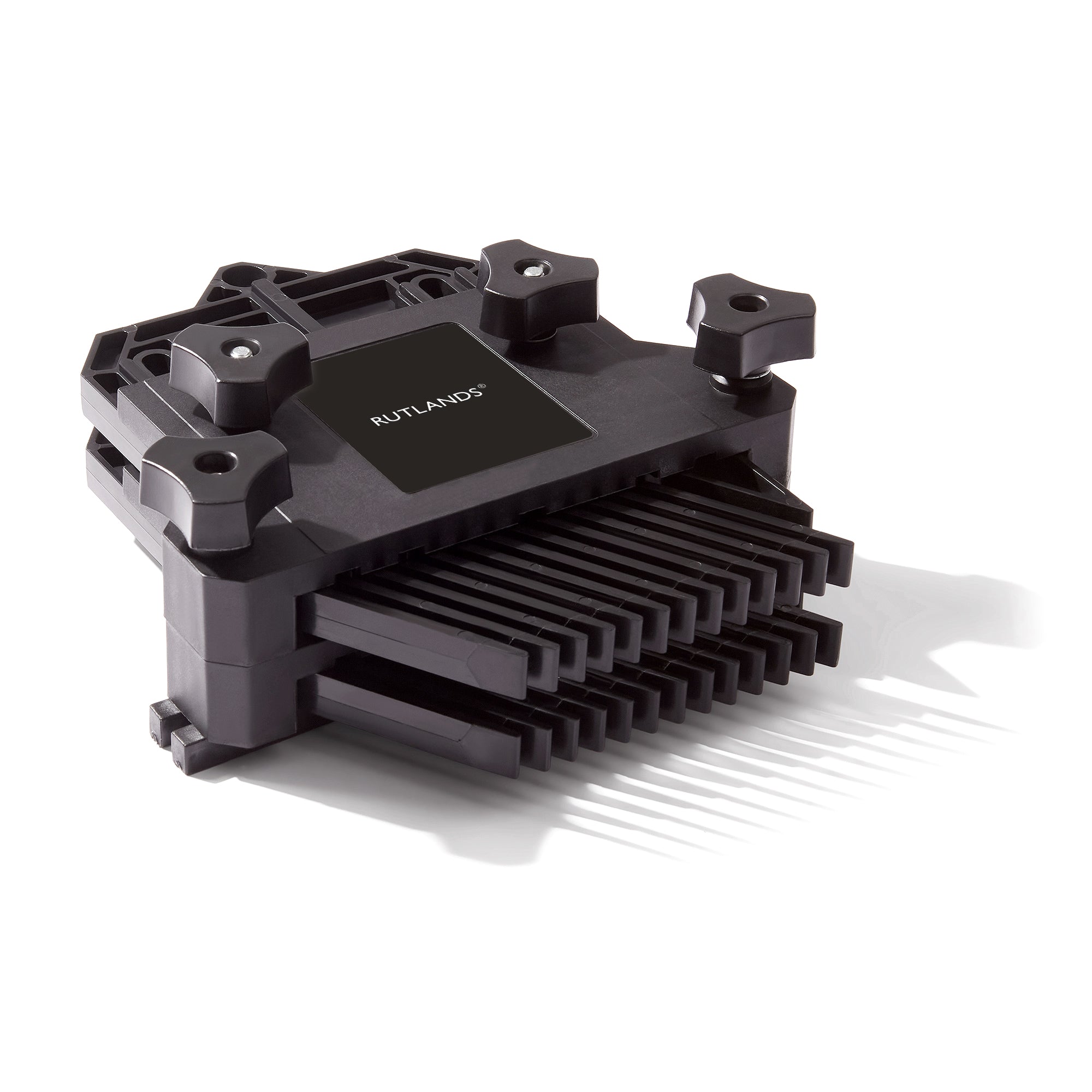

Double Feather Board
These feather boards are an essential tool and provide even, consistent pressure on your workpiece up against the fence. They allow you to apply pressure closer to the router bit, at the most critical point, without risking injury to your fingers.©
