Cast Router Table - R20 Electronic Lift and Motor with Speed Control NVR Switch
- Shop with confidence with our 3 Year Warranty
- Rated excellent by Trustpilot based on 30,011 reviews
- Over 2.5 million Rutlands® premium woodworking tools sold worldwide
- 3 Year Warranty
- Digital control box sets the router bit height to an accuracy of 0.1mm
- Solid, single piece cast iron top is precision surface ground and polished for flatness
- Large 800 x 600mm work surface to route all sizes of workpiece with ease
- Powerful 2400W motor tackles the most demanding hardwoods and end grain with ease
- Variable speed control NVR switch for full, external control of the router motor
- 19mm and 6.3mm T tracks for the mounting of mitre gauges, feather boards and more

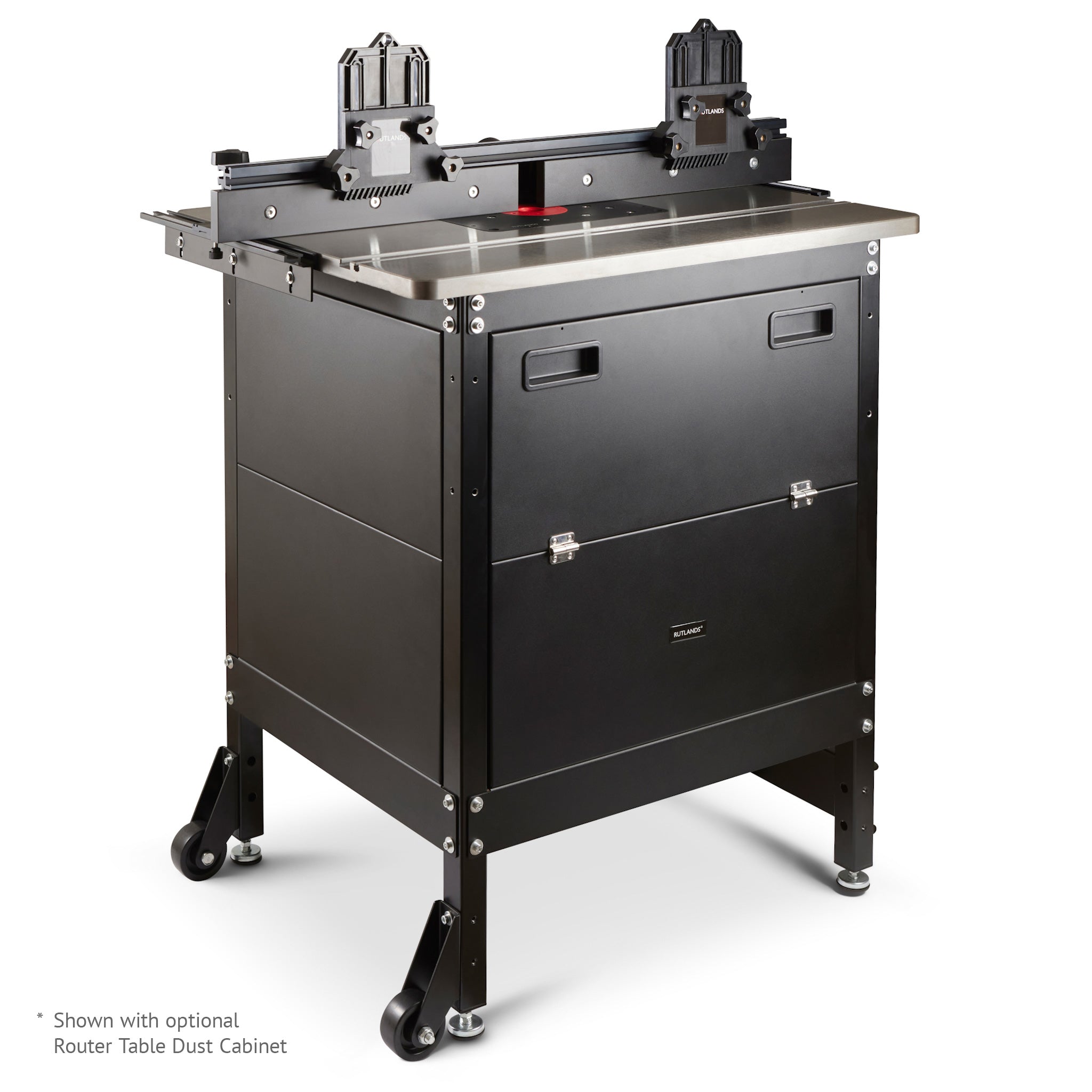

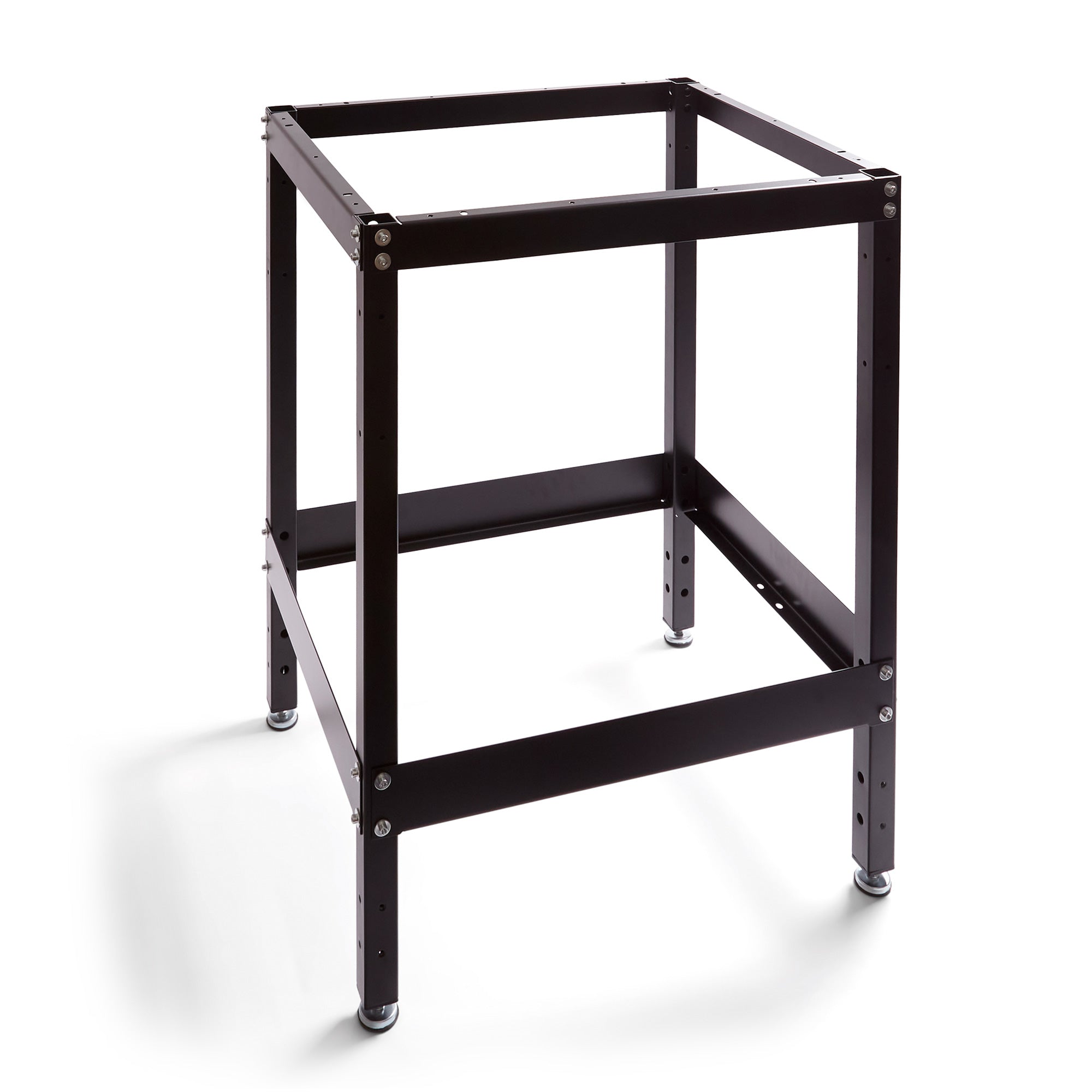

Router Table Stand
The legs and braces on this router table stand are made from 38mm wide x 2mm thick box-section steel for guaranteed strength and rigidity. The stand has been specifically designed to ensure that the legs and braces fit perfectly square to each other, via a series of pre-welded locking nuts and stainless-steel fixings.

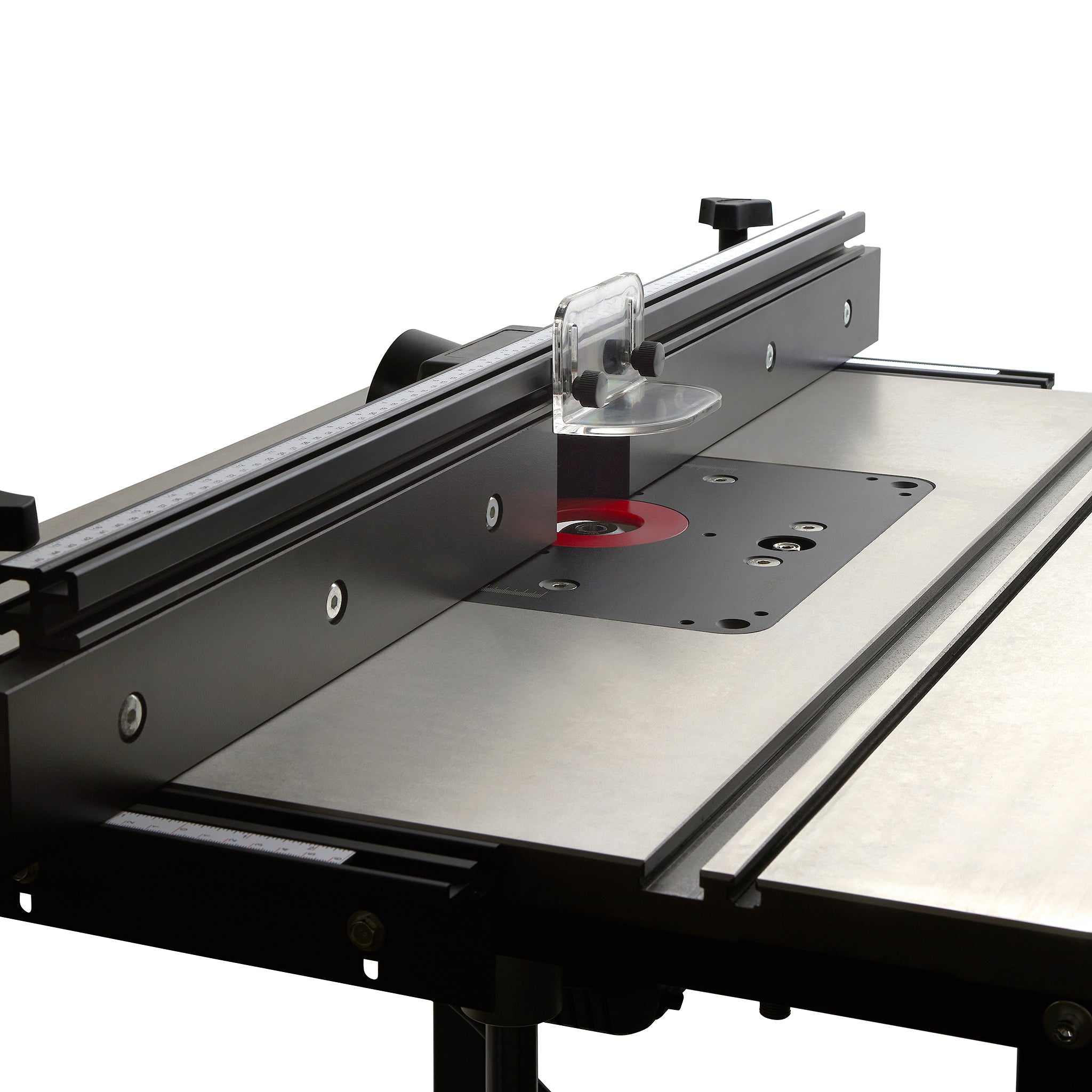

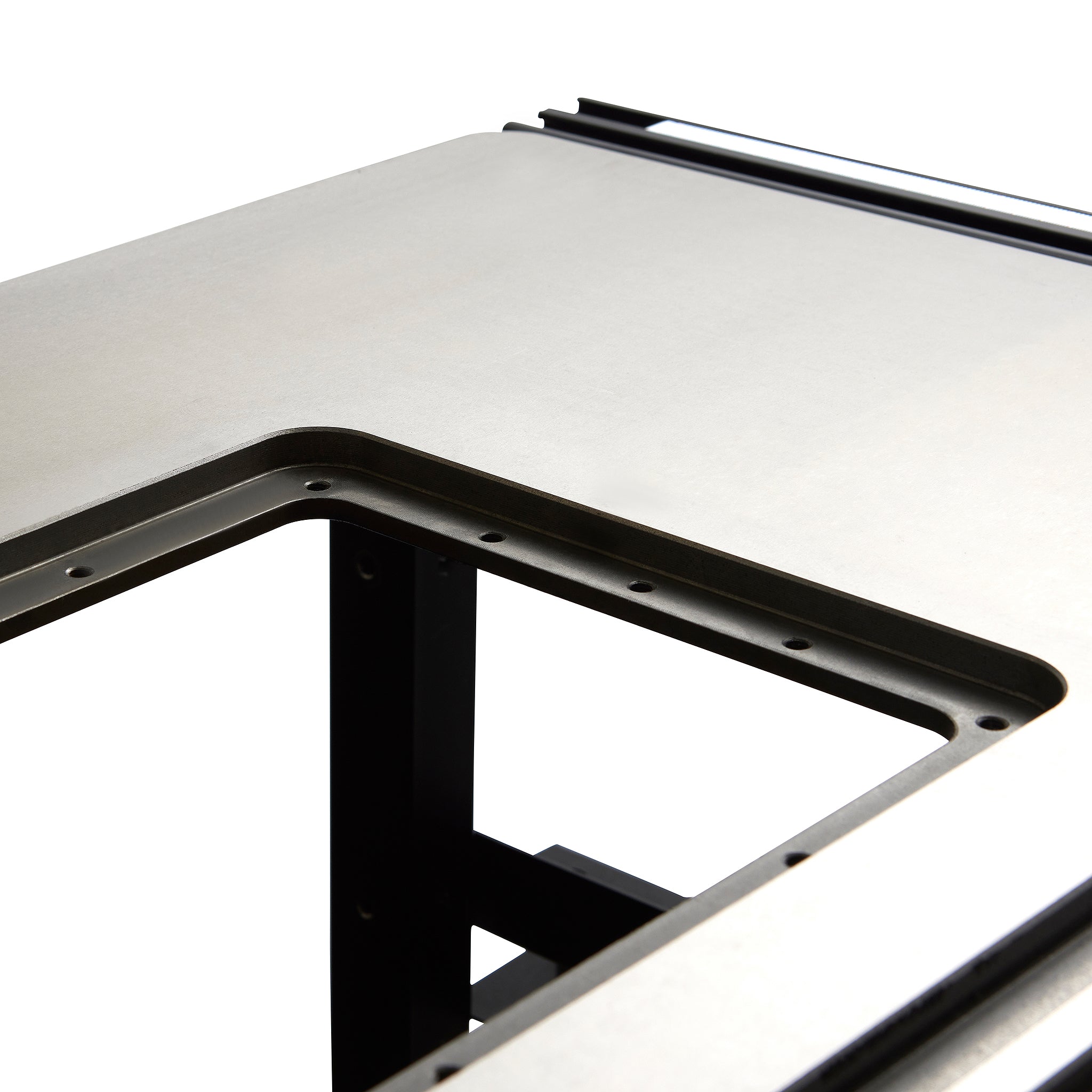

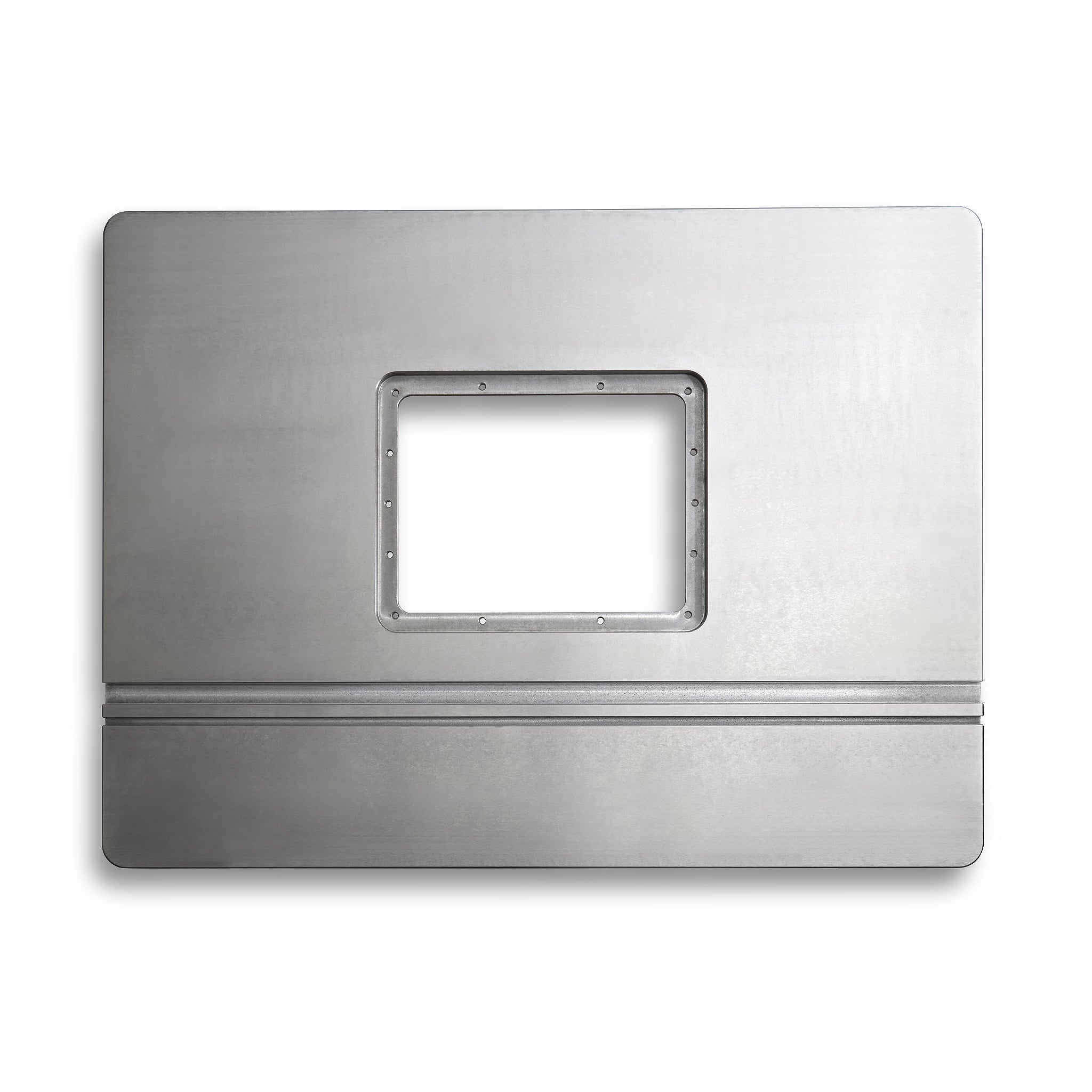

Cast Router Table Top

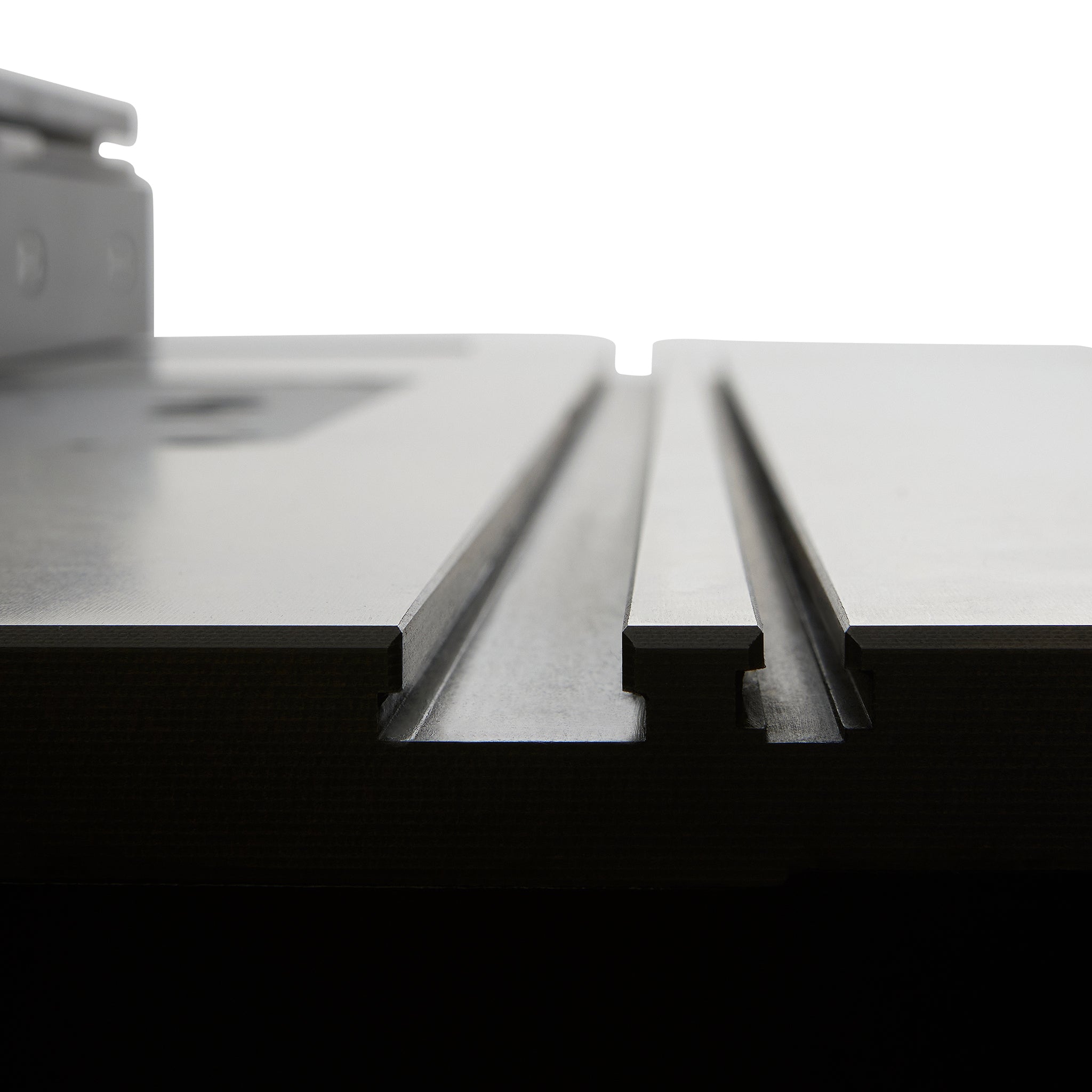

This substantial cast iron router table top has been designed to provide the most stable, exacting routing experience possible. Its solid, single piece design provides the mass to absorb and eliminate vibration whilst routing, ensuring the cleanest possible cuts and superior finish quality. The 800mm wide by 600mm deep table ensures excellent support when routing large and long workpieces. Constructed from a solid piece of cast iron, each table top is left to settle and stabilise before undergoing a precision surface grinding process for flatness. Once machined, the top receives a final polish, leaving the smoothest possible friction-free work surface to pass material across. The underside of the table top has been carefully engineered with a network of ribbing and support points, designed to maximise strength and stress resistance. Machined into the surface is a double T track, including a standard 19mm track for use with mitre gauges and feather boards, and a 6.3mm T slot for use with stops and home-made jigs.

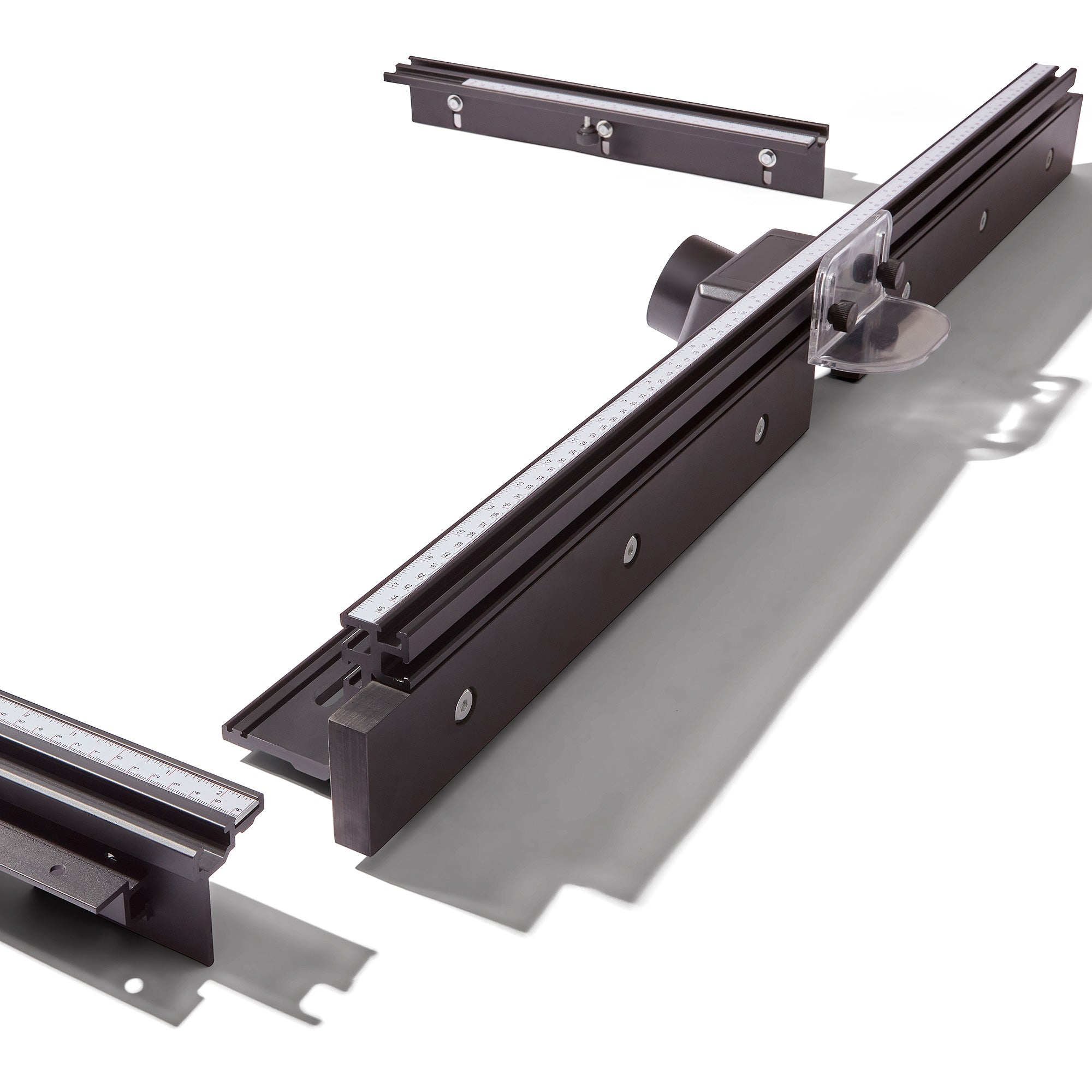

Phenolic Router Table Fence

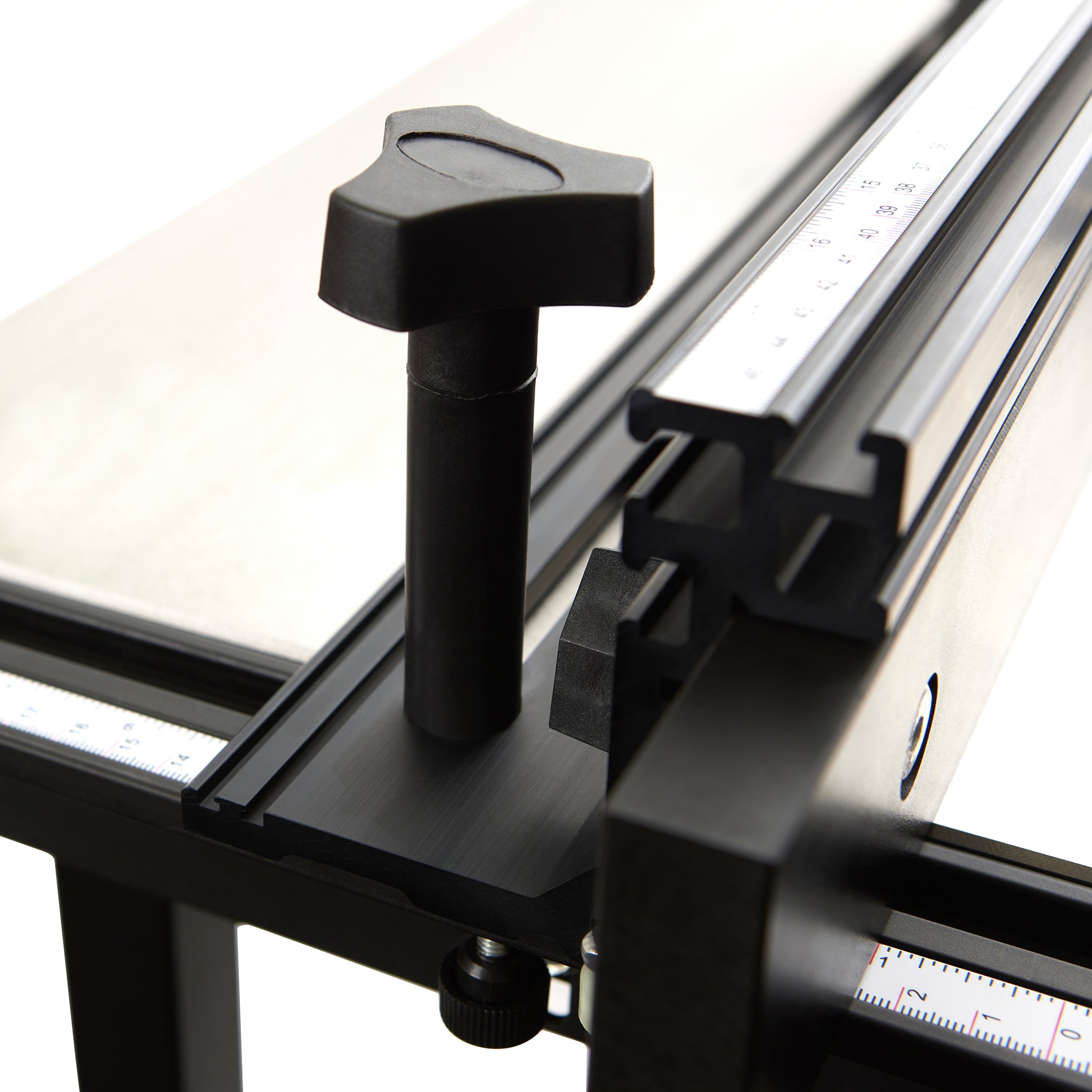

This router table fence is precision CNC machined from aircraft-grade aluminium with a black anodized finish and features two solid phenolic sub-fences . Made from a 19mm premium-grade, low friction, solid phenolic the sub-fences are extremely strong, hard wearing, scratch resistant and waterproof, eliminating the risk of warping or distortion when working in cold or damp workshops. Phenolic is produced under extreme high pressure and heat, resulting in fences that are exceptionally accurate, flat and level. The fences can be adjusted, tool free, to accommodate any router bit from 10mm to 115mm in diameter and the outfeed sub-fence can be off-set to allow for edge planning.

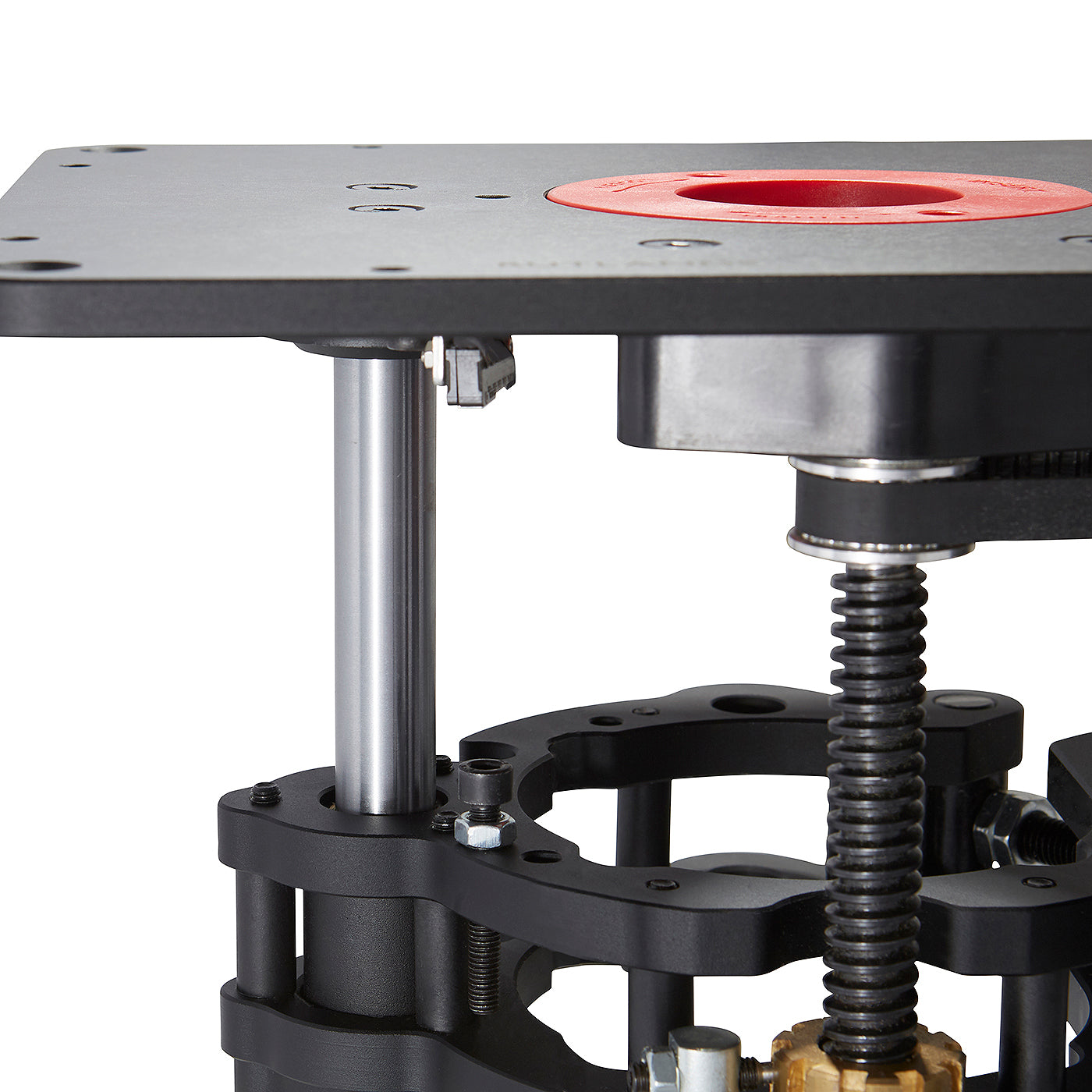

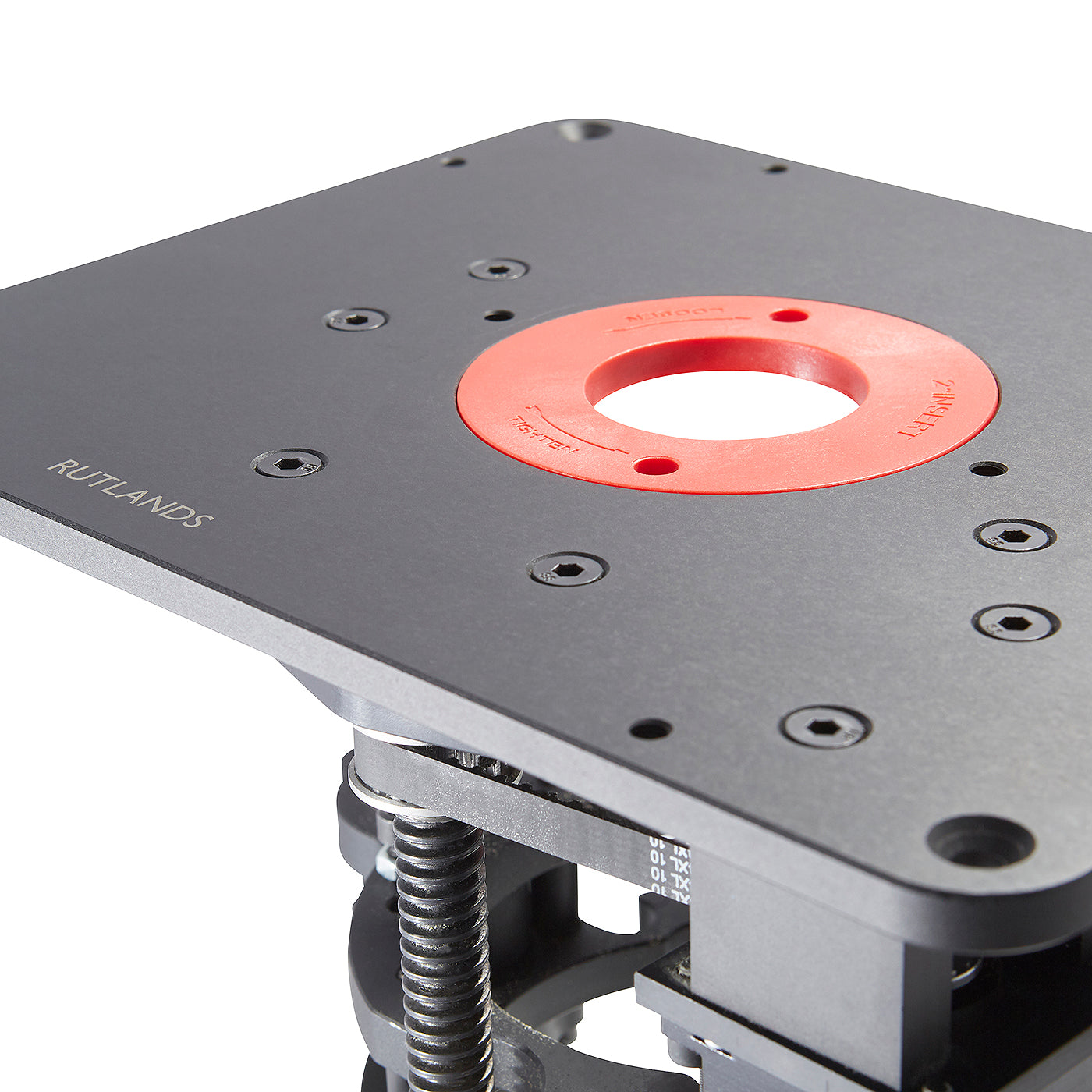

Electronic Router Lift - R20
This electronic router lift significantly reduces set up time and ensures pin point accuracy when table routing. The rise and fall is operated by the digital control box which features an LED display. You simply press the start button on the control box and then select either metric or imperial graduations. Metric settings are displayed in 0.1mm increments and imperial settings in 0.001" increments. There are two operating modes, the first method is by pressing and holding the up or down button on the key pad until you reach your desired height. The second method is to raise or lower the lift by a specific increment by entering into the keypad the amount of height adjustment required. You can re-set to zero at any height. The lift will automatically lock in position after setting the cutting height, eliminating the risk of unwanted travel during routing. The carriage and threaded arms of the lift are CNC machined and feature sealed-for-life bearings to allow for smooth movement of the router motor.

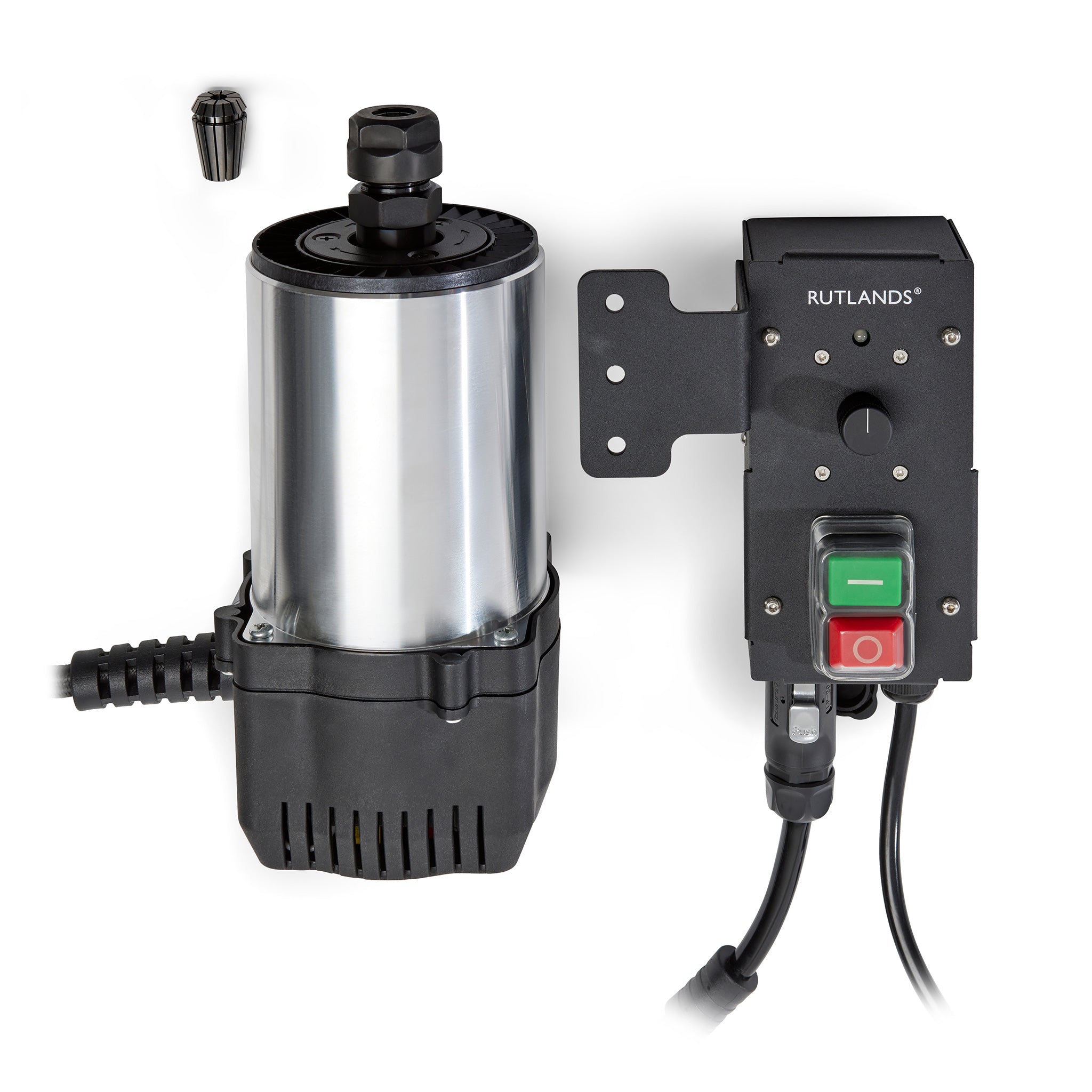

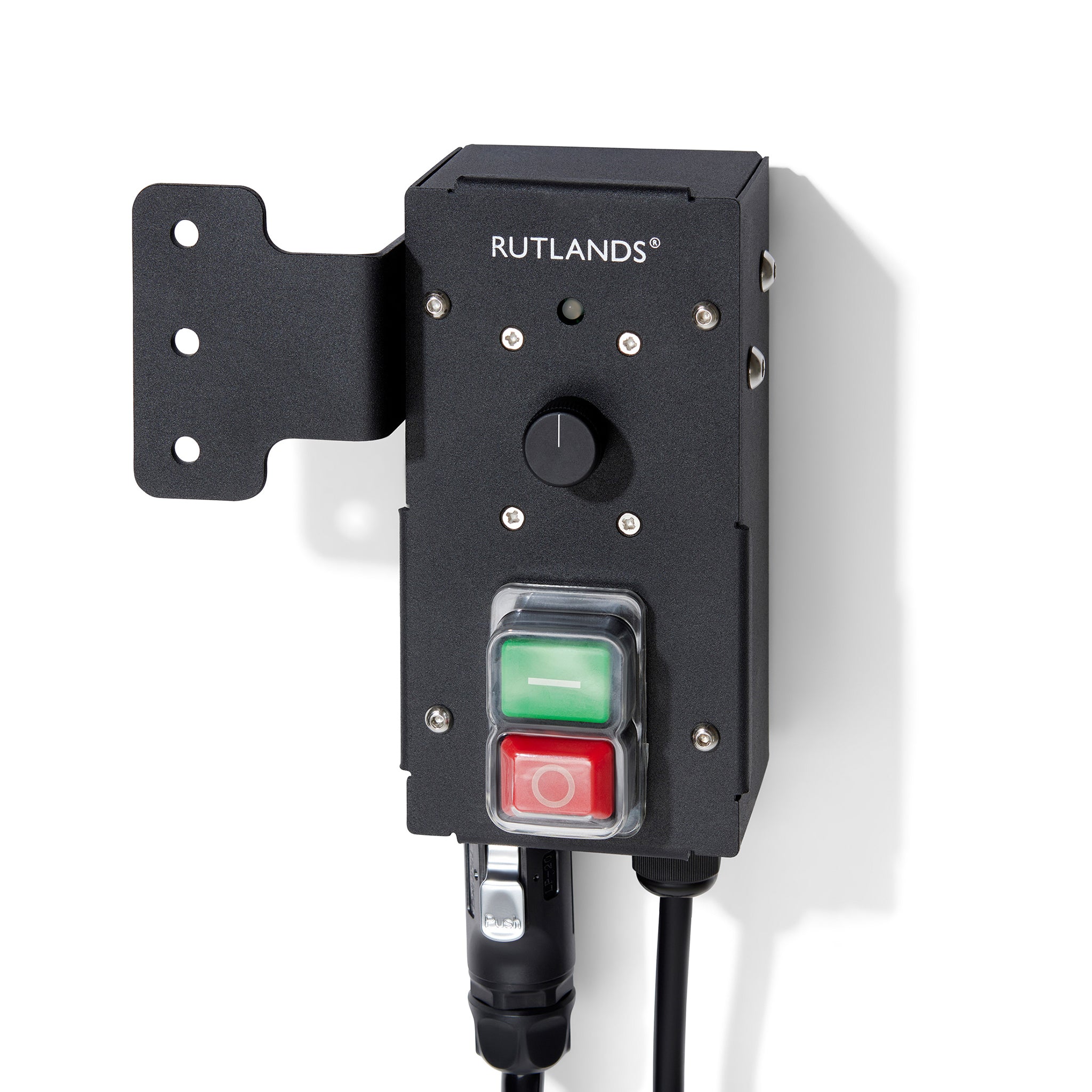

Router Motor with Variable Speed Control NVR Switch

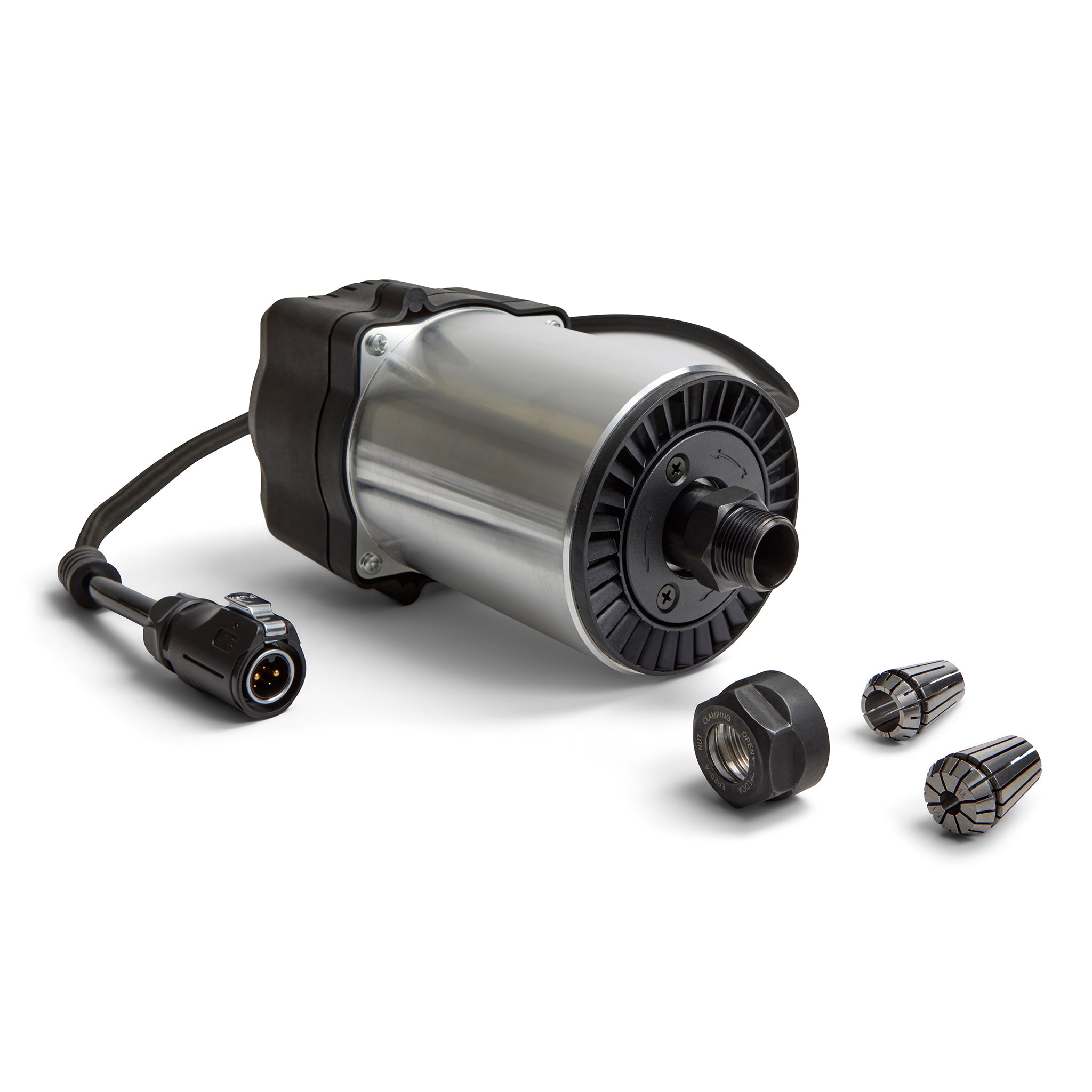

The powerful, 2400W variable speed router motor features an intelligent torque control system, ensuring that the rotational speed remains constant and preventing the motor from slowing under load, no matter what diameter of router bit you are using or how hard the wood, resulting in a superior workpiece finish. The integrated air cool system delivers a constant flow of fresh air, preventing the motor from overheating when installed within the Rutlands® dust box or dust cabinet. The variable speed control NVR switch provides full, external control of the router motor and features both a speed control knob for fine speed adjustment between 10,000 to 21,000rpm, and a built-in NVR switch, providing a safe, convenient way to control power to the motor. For added piece of mind, in the event of a power cut the power will remain off and the router motor will not restart until you press the green 'On' button once again. With soft start technology, the router motor gradually increases the speed from zero to the desired level for a safer, more enjoyable routing experience.

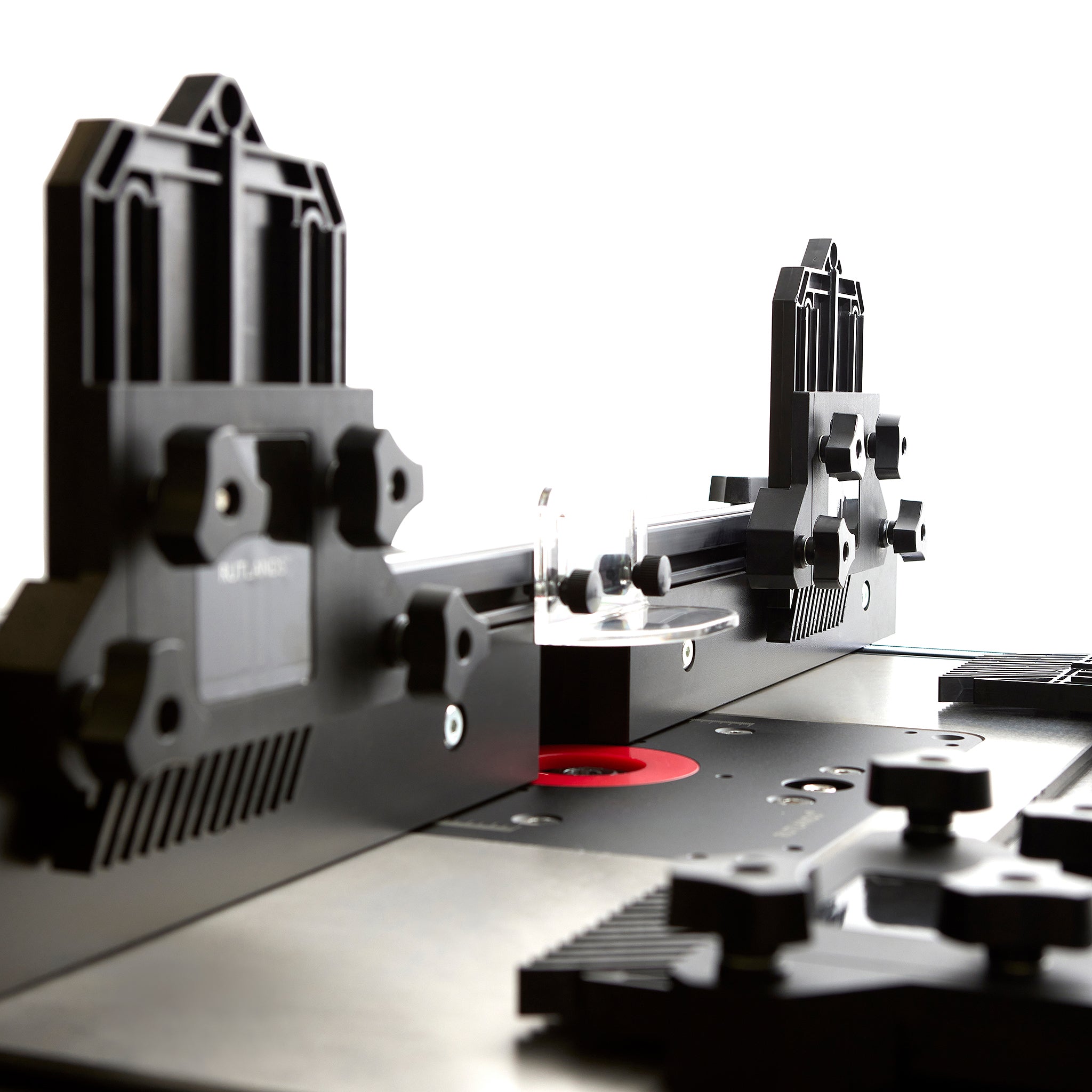

Double Feather Board
These feather boards are an essential tool and provide even, consistent pressure on your workpiece up against the fence. They allow you to apply pressure closer to the router bit, at the most critical point, without risking injury to your fingers.©
- BrandRutlands®
- Product CodeR5234
- Cast Router Table Top
- Top MaterialCast iron
- Top Weight30kg
- Dimensions800mm x 600mm x 27mm
- Insert Plate Opening298mm x 235mm
- T Track Widths19mm and 6.3mm
- Router Table Stand
- MaterialBox section steel
- Stand Weight14kg
- Dimensions870mm x 660mm x 560mm
- Phenolic Router Table Fence
- Fence MaterialExtruded aluminium
- Fence Weight8kg
- Sub-Fence MaterialSolid phenolic
- Overall Height90mm
- Sub-Fence Height65mm
- LengthAdjustable from 910mm to 1150mm
- Fence OpeningAdjustable from 15mm to 115mm
- T Track MaterialExtruded aluminium
- T Track Widths19mm and 8.3mm

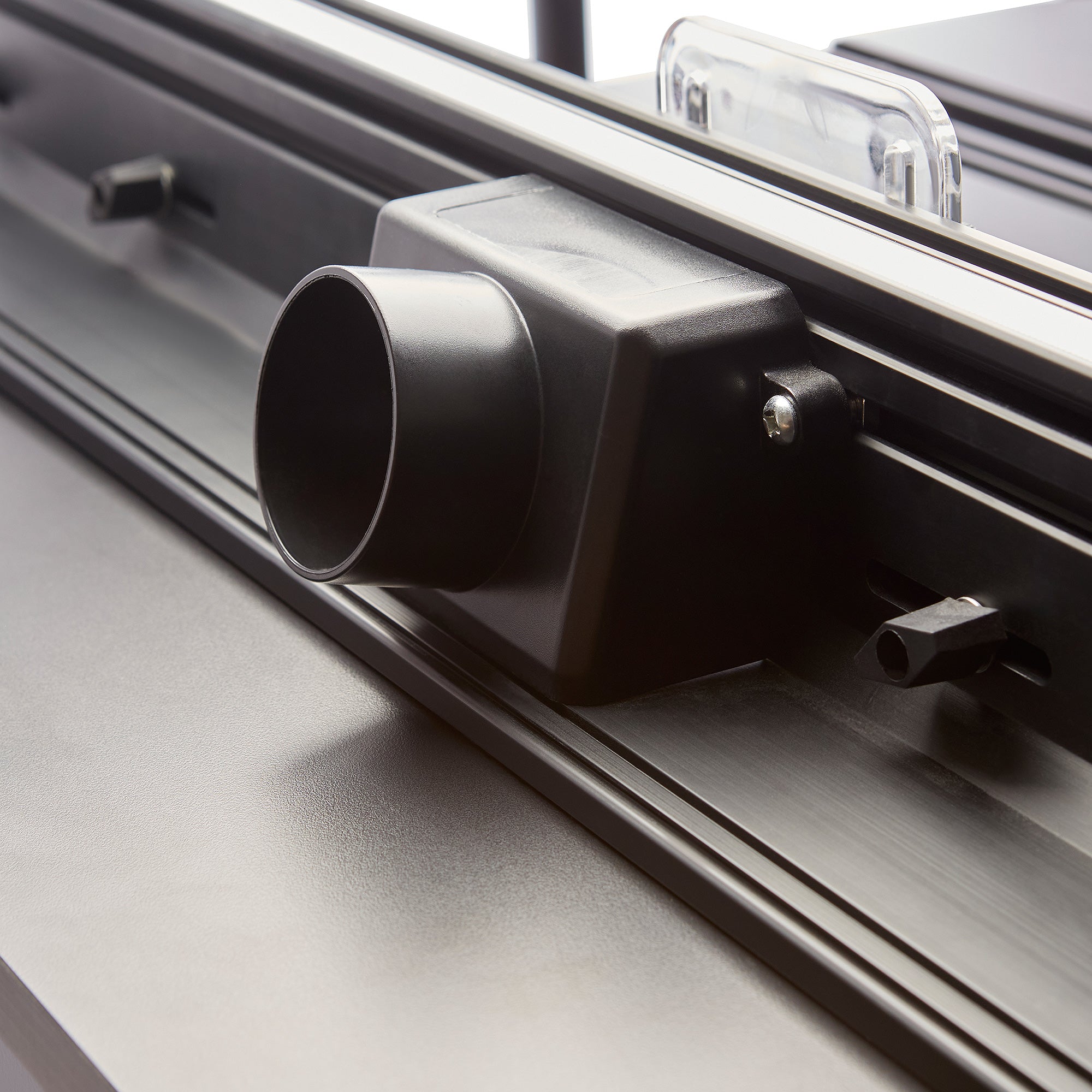

- Dust Port Diameter63mm
- Double Feather Board
- MaterialHigh impact moulded plastic
- Feather Board Width130mm
- Feather Board LengthUp to 210mm
- Feather Board Face Height13mm
- Stacked Face Height37mm
- Track HardwareHex bolts for 6.35mm or 8.3mm T track and slot bar for 19mm T track
- Router Motor
- Voltage230V
- Power2400W
- Dimensions205mm x 106mm
- Weight3.87kg
- Variable Speed Range10,000 - 21,000 rpm
- Collet Diameter1/2" and 1/4"
- Motor Diameter106mm
- Cylindrical Length130mm
- Overall Length215mm
- Motor Cable Length1.2m
- Switch Cable Length2.4m
- Electronic Router Lift R20
- Insert Plate Size298mm x 235mm
- Insert Plate MaterialAluminium
- Insert Plate Thickness10mm
- Overall Lift Height330mm
- Insert Plate Aperture90mm
- Insert Ring Aperture50mm
- Digital Increments0.1mm or 0.001"
- Digital DisplayMetric and Imperial
