< Drill Guides

Drill Guide

Regular price £60.00
Regular price £0.00Sale price £60.00
In Stock for delivery by
Order within

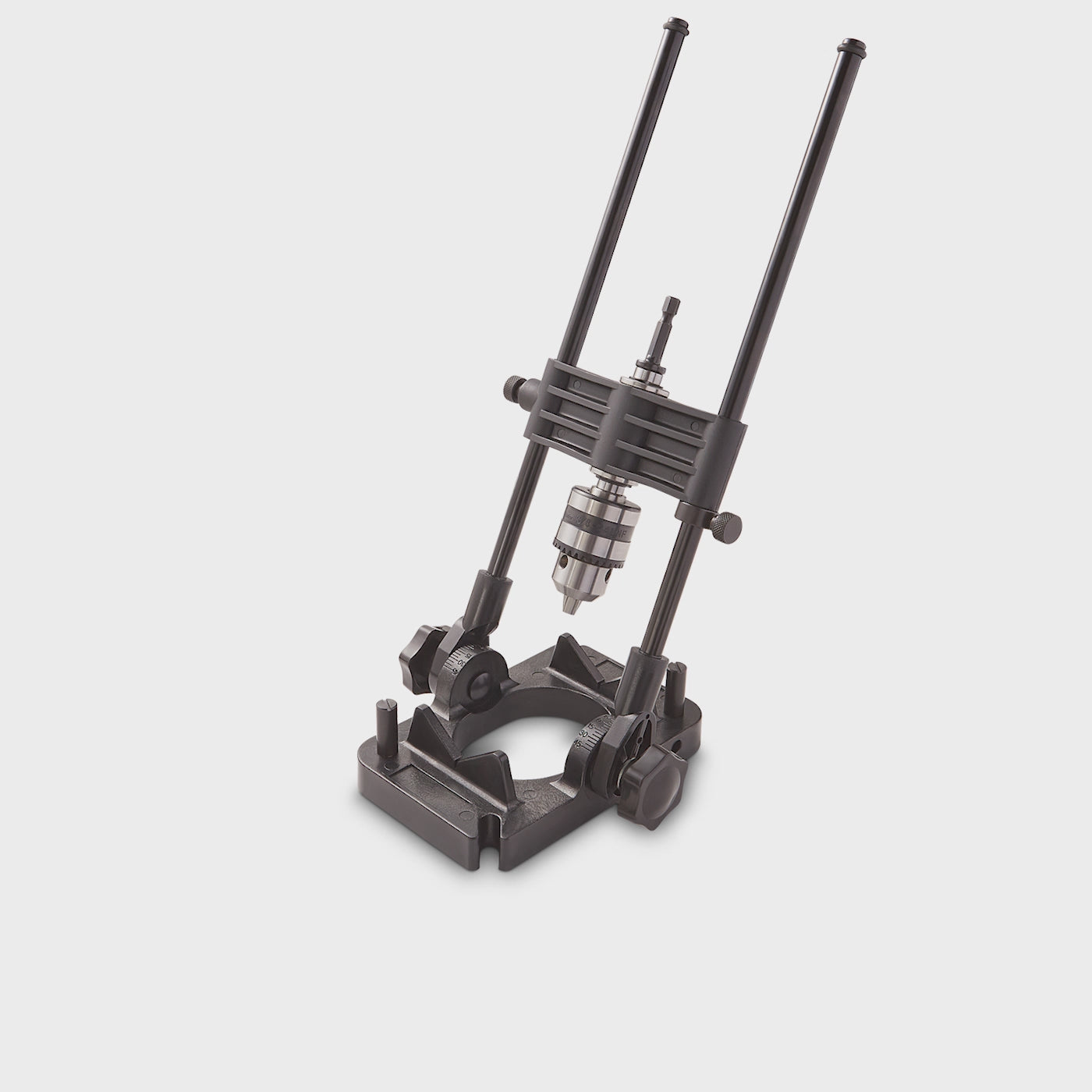

Drill precise, accurate holes anywhere, and at any angle, between +/- 45°. Constructed from a strong, durable ABS thermoplastic, the guide features V grooves for drilling round stock and a depth stop for repetitive boring.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 29,221 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Drill Guide
Regular price £60.00
Regular price £0.00Sale price £60.00
KEY FEATURES
  • 3 Year Warranty
  • Drill accurate holes anywhere and at any angle between +/- 45°
  • Adjustable depth stop ensures consistent drilling depths
  • Anchoring pins hold the guide securely on flat surfaces and centre the tool for drilling
  • V groove design allows the drilling of round stock
  • Takes larger diameter drill bits, such as sawtooth and forstner bits, up to 60mm
FULL DESCRIPTION
This drill guide is manufactured from ABS thermoplastic, a material commonly used for injection moulding applications where structural strength and stiffness are required. The drill guide is truly portable and offers the accuracy and control achieved with a drill press combined with the added benefit of being able to drill at any angle between -45° and 45°. The guide can easily be set up to drill perfectly true perpendicular holes. You can alter the drilling angle by releasing the two star knobs and then positioning accordingly using the calibrated scale, the angle is then securely locked off to ensure it will not change during use.

As all the main components are manufactured from ABS the unit is durable and hardwearing as well as being very stable during use. The head slides up and down on two steel bars and features a depth stop for repetitive boring. The base has anchor pins which can be used to stop the guide sliding on your workpiece during use. It also features a V groove for drilling round stock to stop it from rolling away from the bit.

The guide contains a 10mm capacity chuck and is supplied with a chuck key, the chuck is smooth to operate and provides a secure hold. The base aperture will accept drill bits and hole cutters up to 60mm in diameter. It will allow you to drill highly accurate holes at varying depths and angles without the need for a drill press. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR4135
  • Chuck Capacity1.5mm to 10mm
  • Drilling Angles0 to 45°
  • Drill Chuck Travel150mm
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 26 reviews
92%
(24)
4%
(1)
4%
(1)
0%
(0)
0%
(0)
D
Dorian W.
Why didn't I get one of these earlier?

For the last 20 years I have had no sight in my one eye. Correspondingly for 20 years I've never drilled a hole that was perpendicular to the workpiece. I've made quite a few purchases of Rutlands tools over the past year and am really very impressed with the quality and value for money of everything thus far. Despite this being the cheaper of the 2 guides available, once again the quality is top notch. It easily attaches to my cordless drill on site and I can now drill at whatever angle I choose, especially 90°. I would agree with Bobs review about the angle stops and the writing being hard to see, but all in all I'm a very happy man.

B
Bob
No more non-vertical holes!

Brilliant bit of kit. I often drill pilot holes through fairly thick timber, and getting the exit hole aligned with the entry point is a bit tricky. This guide eliminates any errors. The only (small) improvement I'd suggest would be the addition of positive stops at each angle. The black pointer against the black markers isn't that easy to line up. But maybe it's just my aging eyesight!

A
Adam S.
Recommend Good Build Quality

Assisted with my project with great results. Some reviews mentioned no storage for the chuck key well myself when finished using it just remove the drill bit from clamp and place the handle of the chuck key inside clamp and tighten up by hand.

M
Mick
Drill Guide

Been after one these for some time, for £35.00 discounted decided to buy, quality piece of equipment worth every penny

A
Adrian C.
This is a great peice of kit, I've

This is a great peice of kit, I've been wanting one for quite some time and it was on sale, so the wife couldn't complain. It came in very handy when I was building the new "playroom" (workshop), this really is a great idea and tool, but it does have some drawbacks. You need to work it in, to loosen the bearings which doesn't take long and after setting the angle it sticks, so you have to give a bit of a twist which is not always successful. I have also found it would work better with 2 depth stops, it helps stop over twisting as you plunge I just used a zip tie on the one side without its stop and it works much better.Overall it's a great tool well worth the money and I would buy it again but it could do with some tweaking to make it an awesome tool. As usual Rutlands has brought a useful bit of kit to its end user, thankyou very much.
