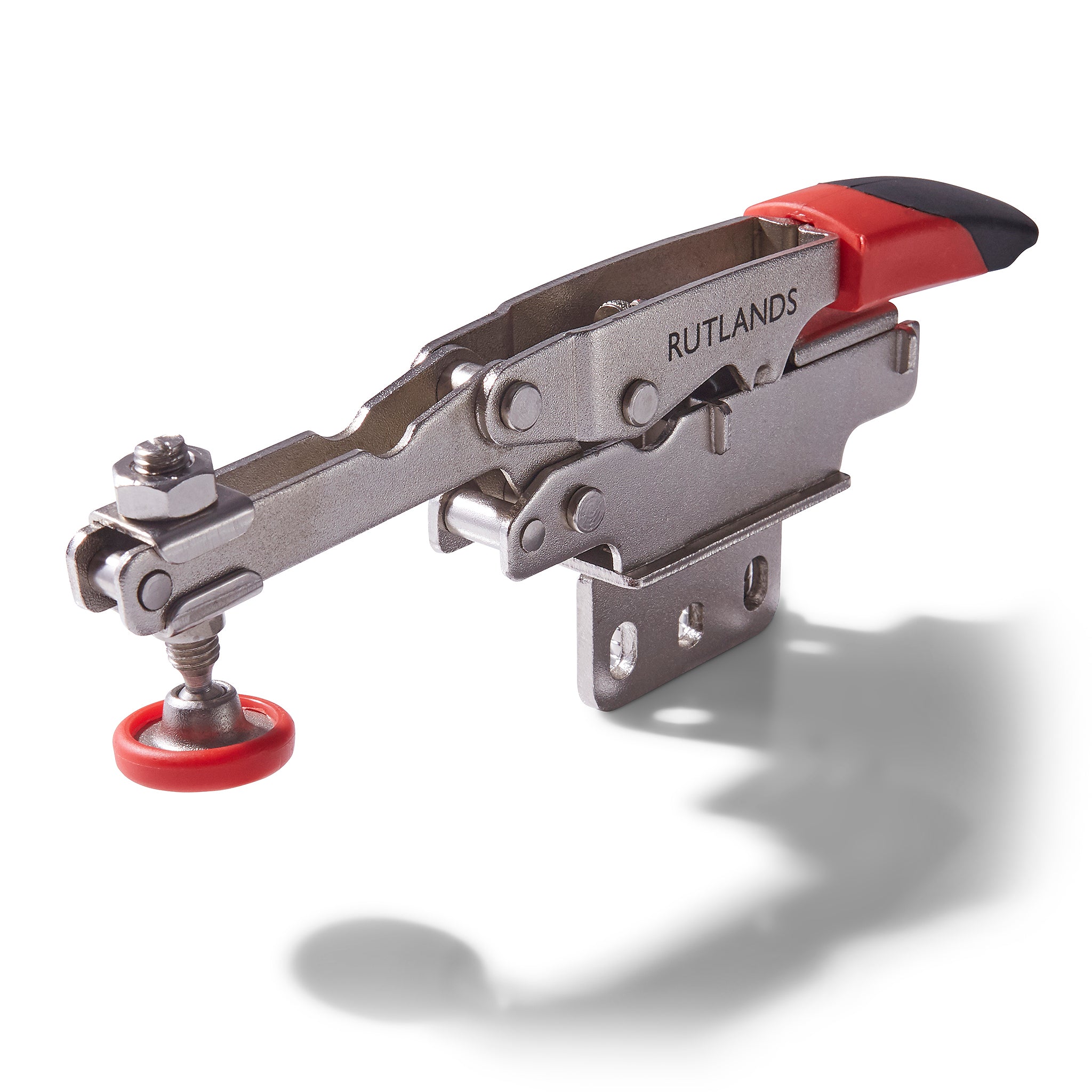

Horizontal Toggle Clamp - 40mm
Horizontal Toggle Clamp - 40mm
Horizontal Toggle Clamp - 40mm
Horizontal Toggle Clamp - 40mm
Horizontal Toggle Clamp - 40mm
Horizontal Toggle Clamp - 40mm
Horizontal Toggle Clamp - 40mm
< Toggle Clamps

Horizontal Toggle Clamp - 40mm

Regular price £20.00
Regular price £0.00Sale price £20.00
In Stock for delivery by
Order within
Requiring no setup, these clamps feature a horizontal base plate for mounting to jigs or workbenches, automatically adjusting to suit the workpiece width whilst maintaining a constant clamping pressure. Pressure can be set between 100N and 3000N, depending on the application, easily adjusted with the turn of a screw.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 30,193 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Horizontal Toggle Clamp - 40mm
Regular price £20.00
Regular price £0.00Sale price £20.00
KEY FEATURES
  • 3 Year Warranty
  • Class leading clamping force of up to 3000N, for rock solid work holding
  • Automatically adjusts to suit the workpiece height, from 0mm to 40mm
  • Variable clamping force for a delicate or firm hold
  • Horizontal base plate with standard mounting holes to fix toggle clamp plates
  • Nickel-coated, forged steel construction prevents corrosion, for a long working life
FULL DESCRIPTION
With traditional toggle clamps considerable time is taken setting up the clamp to suit the workpiece height, there is no setup required with these auto adjusting clamps as they automatically adjust to suit the workpiece height while maintaining a constant clamping pressure. The clamping pressure can be set between 100N and 3000N depending on the application of the clamp and this can be adjusted easily with the simple turn of a screw. Toggle clamps are perfect for custom made jigs for your router tables or they are equally useful mounted to workbenches.

These clamps feature a horizontal base plate with standard toggle mounting holes to fix accessories to such as toggle clamp plates. Constructed from nickel coated steel forgings for strength and durability each clamp features an ergonomically designed handle to allow you to easily transfer the clamping force. The clamp can be disengaged very quickly and smoothly. Each clamp features a swivelling clamping shoe which is non-marring that can accommodate irregular shaped work.

The maximum workpiece thickness the clamps can accommodate is 40mm and they have a maximum reach of 60mm. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR3113
  • Maximum Clamping Force3000N
  • Clamping Capacity40mm
  • Maximum Reach60mm
  • Weight0.5kg
  • Height When Closed55mm
  • Height When Open170mm
  • Length When Closed220mm
  • Length When Open120mm
  • Mounting Plate Size64mm x 55mm
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 10 reviews
90%
(9)
10%
(1)
0%
(0)
0%
(0)
0%
(0)
R
Richard S.
Just the job

I was very pleasantly surprised when opening these. They are very well made and robust and will have no trouble firmly holding down material. At first I didn't understand why 2 posts were supplied but, typically of Rutlands, they cater for imperial and metric. Recommended as long as you have a worktop with holes in it or don't mind drilling a few! :)

M
Martin A.
Lovely piece of kit

Very well made. For me the post was rather too long, but that was easily fixed with a hacksaw and a friendly machinist who turned the end down for me (the last part was more for show than go!). Recommended.

T
Tim A.
Really well made easy to use solid construction an...

Really well made easy to use solid construction and good price too.

C
Chris C.
The build quality of these clamps are absolutely t...

The build quality of these clamps are absolutely top notch. The adjustable push down pressure is very easy to set and use. They are the perfect size to hold your stock in sturdy positions. These guys do not put their name on cheap tools.

K
Keith I.
Well made and sturdy...

Well made and sturdy. Already a useful asset in my workshop.

Horizontal Toggle Clamp - 40mm

Automatic adjustment

Automatically adjusts to accommodate different workpiece thicknesses whilst maintaining constant clamping pressure.
