Horizontal Toggle Clamp - 60mm

Regular price £20.00
Regular price £0.00Sale price £20.00
In Stock for delivery by
Order within
Requiring no setup, these clamps feature a horizontal base plate for mounting to jigs or workbenches, automatically adjusting to suit the workpiece height whilst maintaining a constant clamping pressure. Pressure can be set between 100N and 3000N, depending on the application, easily adjusted with the turn of a screw.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 30,026 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Horizontal Toggle Clamp - 60mm
Regular price £20.00
Regular price £0.00Sale price £20.00
KEY FEATURES
  • 3 Year Warranty
  • Class leading clamping force of up to 3000N, for rock solid work holding
  • Automatically adjusts to suit the workpiece height, from 0mm to 60mm
  • Variable clamping force for a delicate or firm hold
  • Horizontal base plate with standard mounting holes to fix toggle clamp plates
  • Nickel-coated, forged steel construction prevents corrosion, for a long working life
FULL DESCRIPTION

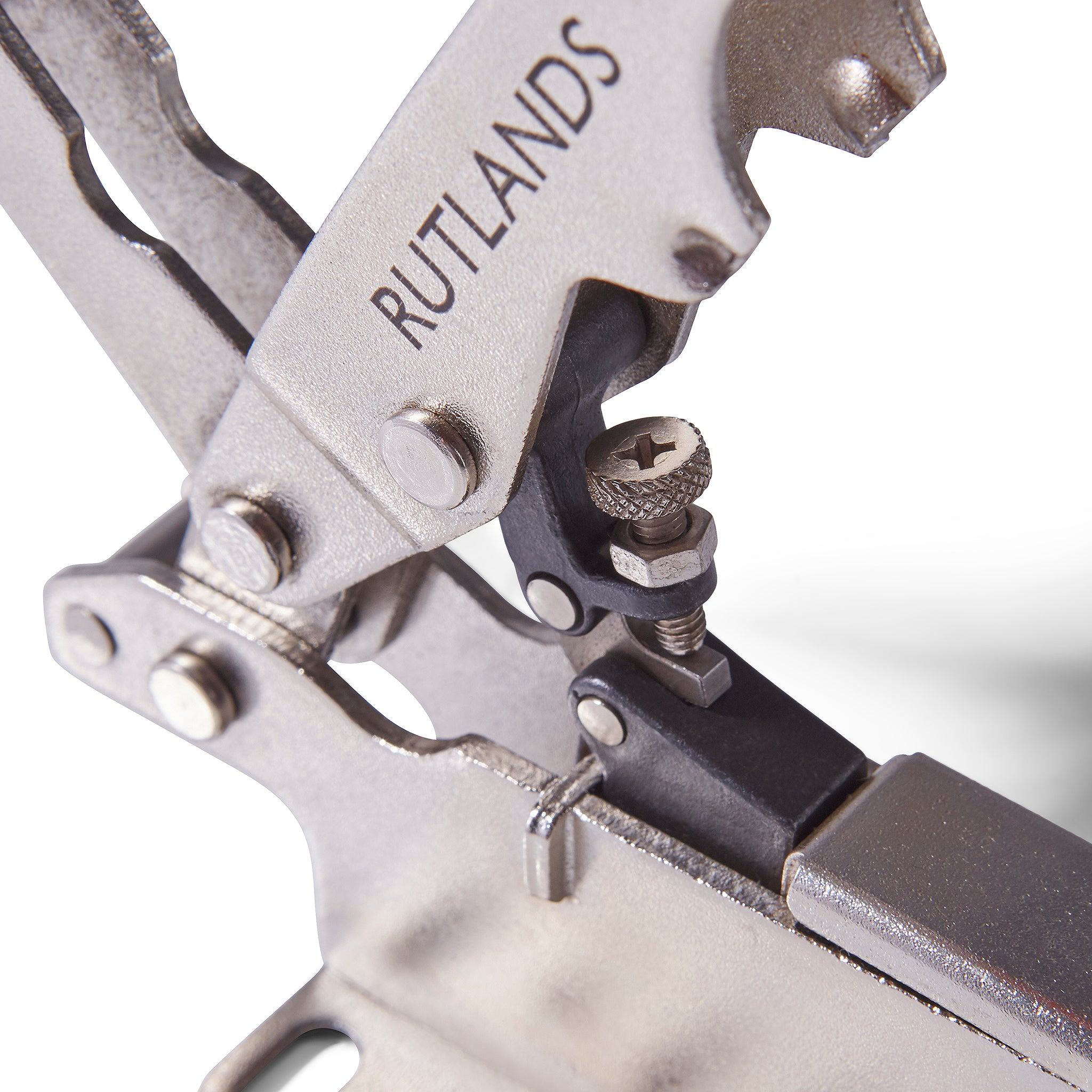

With traditional toggle clamps considerable time is taken setting up the clamp to suit the workpiece height, there is no setup required with these auto adjusting clamps as they automatically adjust to suit the workpiece height while maintaining a constant clamping pressure. The clamping pressure can be set between 100N and 3000N depending on the application of the clamp and this can be adjusted easily with the simple turn of a screw. Toggle clamps are perfect for custom made jigs for your router tables or they are equally useful mounted to workbenches.

These clamps feature a horizontal base plate with standard toggle mounting holes to fix accessories to such as toggle clamp plates. Constructed from nickel coated steel forgings for strength and durability each clamp features an ergonomically designed handle to allow you to easily transfer the clamping force. The clamp can be disengaged very quickly and smoothly. Each clamp features a swivelling clamping shoe which is non-marring that can accommodate irregular shaped work.

The maximum workpiece thickness the clamps can accommodate is 60mm and they have a maximum reach of 60mm. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR3114
  • Maximum Clamping Force3000N
  • Clamping Capacity60mm
  • Maximum Reach60mm
  • Weight0.54kg

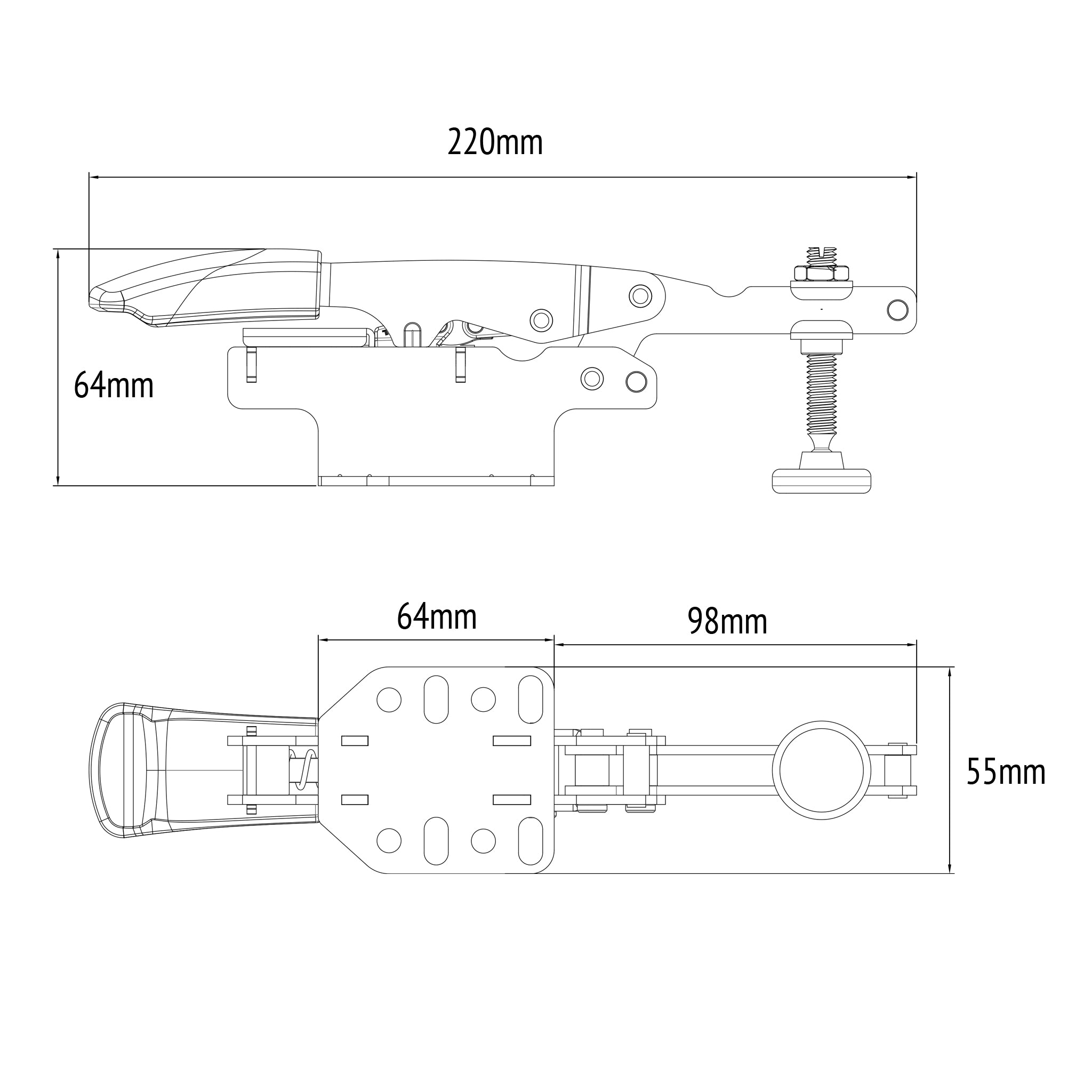

  • Height When Closed64mm
  • Height When Open190mm
  • Length When Closed220mm
  • Length When Open120mm
  • Mounting Plate Size64mm x 55mm
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 12 reviews
100%
(12)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
K
Kyle B.
Time saver

I've used toggle clamps over the years and they've always required setting up to the materials thickness the joy of course here is this automatically does it for you so time saved and less faff.

C
Chris B.
Excellent quality toggle clamps.

I ordered these clamps not knowing what the quality was going to be like for the price. They arrived individually boxed with foam packaging surrounding them. Taking them out of the boxes, I could see and feel the quality of them (as someone has already stated in the reviews, '...at least as good as Bessy'). I can second that, adding that they are on a par with AMF clamps as well and at quite a cost saving to both. If you're looking for auto adjust toggle clamps, you can't go wrong with these. Very impressed!

I
Ian C.
I was very pleased to receive these clamps

I was very pleased to receive these clamps and find they are at least as good as the Bessy equivalents that I have been using for many years (but considerably cheaper).I wanted these larger clamps specifically to use on my sliding table saw, where the wide 'auto-adjust' clamping range is particularly useful. The simple clamping force adjustment is also impressive, from really strong down to feather light (for 'soft/delicate woods).I will definitely be buying more from the Rutland range for several router jigs I have in mind, where the speed of clamping and unclamping is such an advantage over 'screw' type clamps.

O
Oliver C.
Fantastic quality, really professional design...

Fantastic quality, really professional design. The auto adjust is very useful.

F
Findlay D.
Absolute game changer these things save no end of ...

Absolute game changer these things save no end of time not having to readjust clamps every time you swap over boards, couldn't do without them now!

Horizontal Toggle Clamp - 60mm

Automatic adjustment

Automatically adjusts to accommodate different workpiece thicknesses whilst maintaining constant clamping pressure.
