R3 Lathe Variable Speed - 355mm x 510mm

Regular price £695.00
Regular price £0.00Sale price £695.00
In Stock for delivery by
Order within
With class-leading spindle concentricity, this lathe features exceptionally low levels of vibration and noise, even at maximum speed and under full load. Powered by a reversible, high torque motor, you can turn bowls up to 355mm and spindles up to 510mm. The three step pulley and variable speed control allow you to fine tune the speed to suit small, medium and large turnings.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 30,011 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
R3 Lathe Variable Speed - 355mm x 510mm
Regular price £695.00
Regular price £0.00Sale price £695.00
KEY FEATURES
  • 3 Year Warranty
  • Larger turning capacity, for spindles up to 510mm and bowls up to 355mm
  • Powered by an ultra-quiet 750w high torque, DC brush motor
  • Electronic variable speed control to suit small, medium and large turnings
  • Class leading spindle concentricity, running on extra wide, sealed for life roller bearings
  • Precision CNC machined castings ensure vibration-free turning
FULL DESCRIPTION

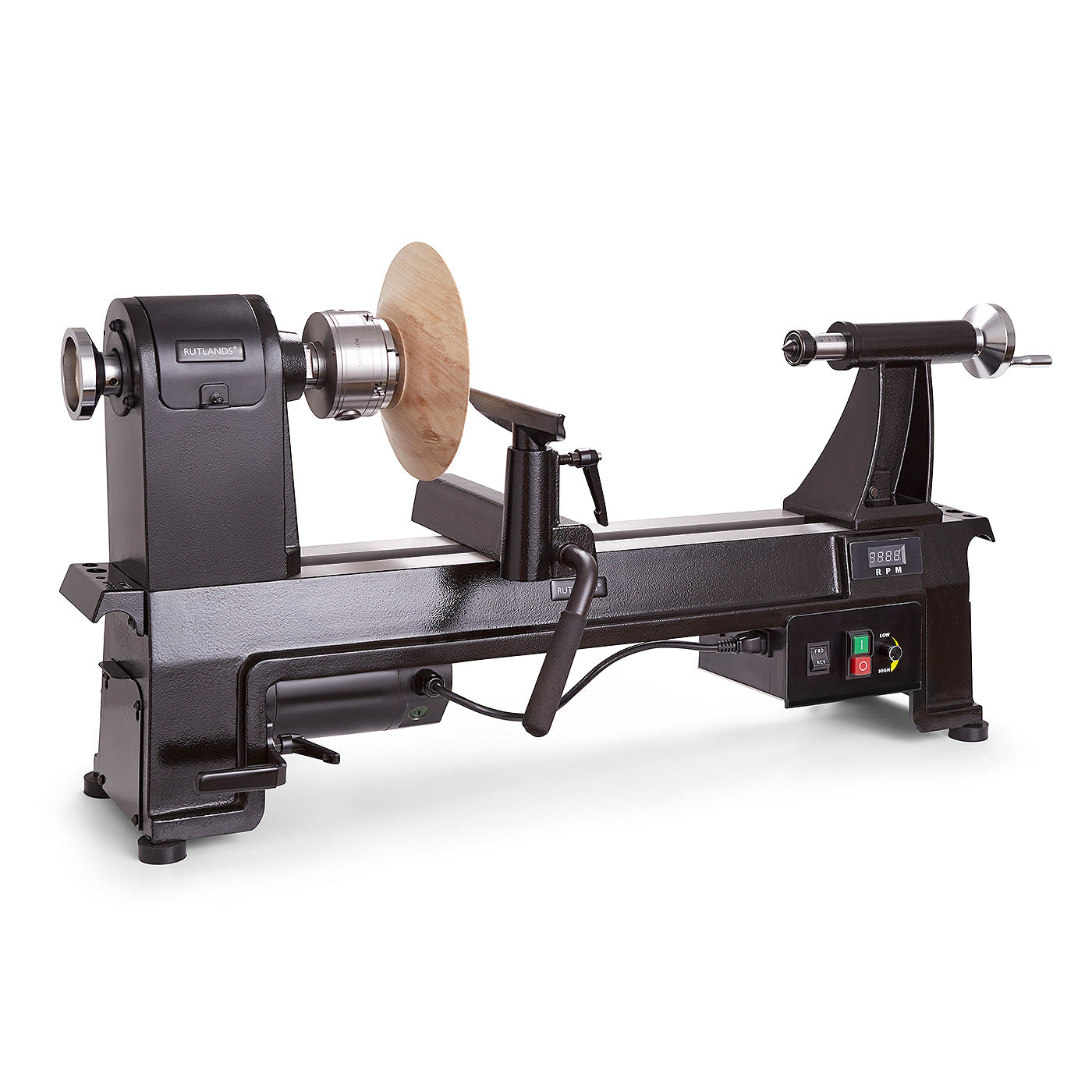

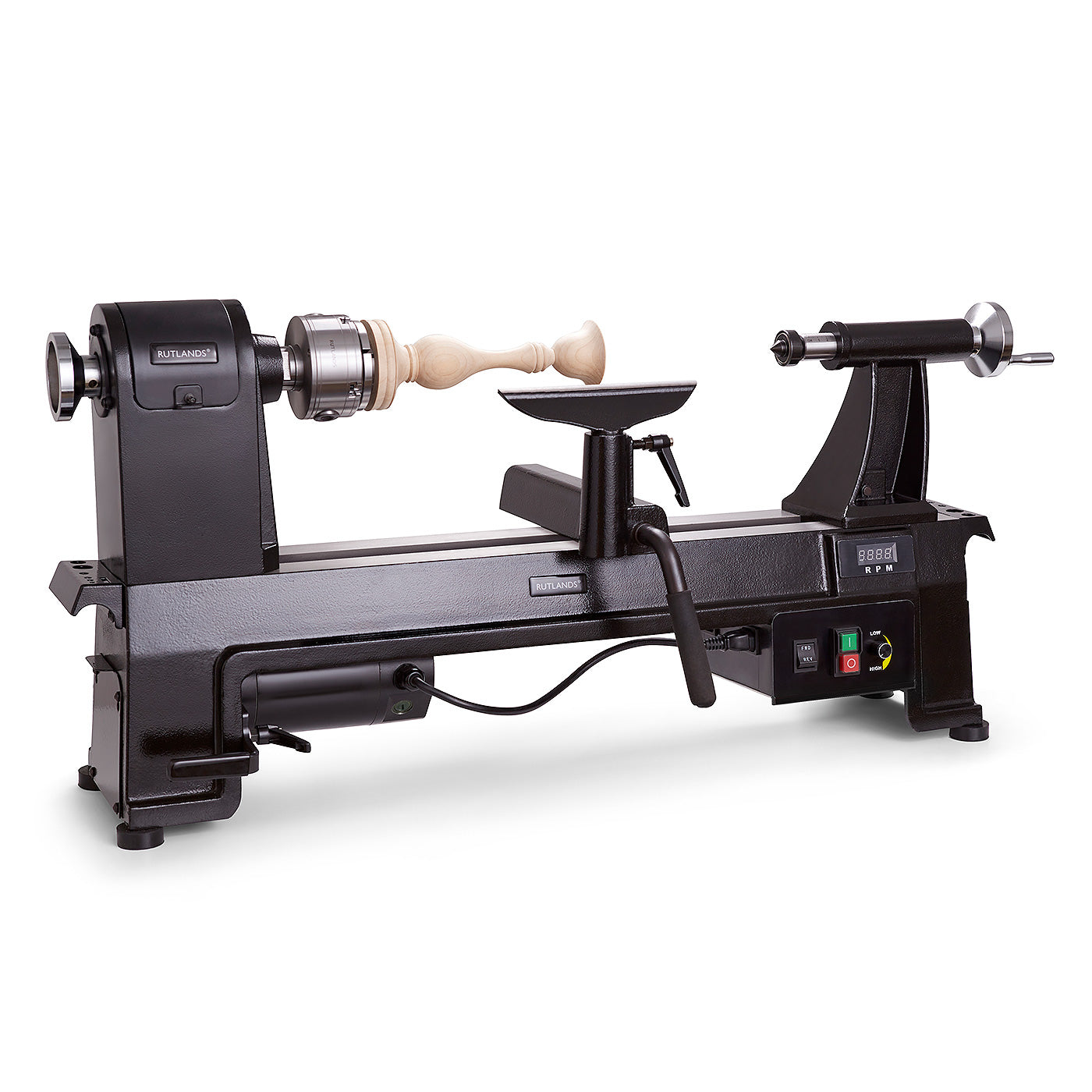

This premium performance lathe is favoured by both professional and discerning home woodturners, as it features class-leading levels of concentricity, electronic variable speed control, reverse action, an ultra quiet DC motor and a vibration dampening system. Weighing in at 57kg, the vibration level on this lathe is exceptionally low, due to the heavy duty grey iron castings which have the mass needed to dampen and absorb vibration. The castings are CNC machined to exacting tolerances to ensure perfect alignment of the headstock and tailstock and the bed is CNC machined and brush finished to allow for smooth movement of the banjo and tailstock.

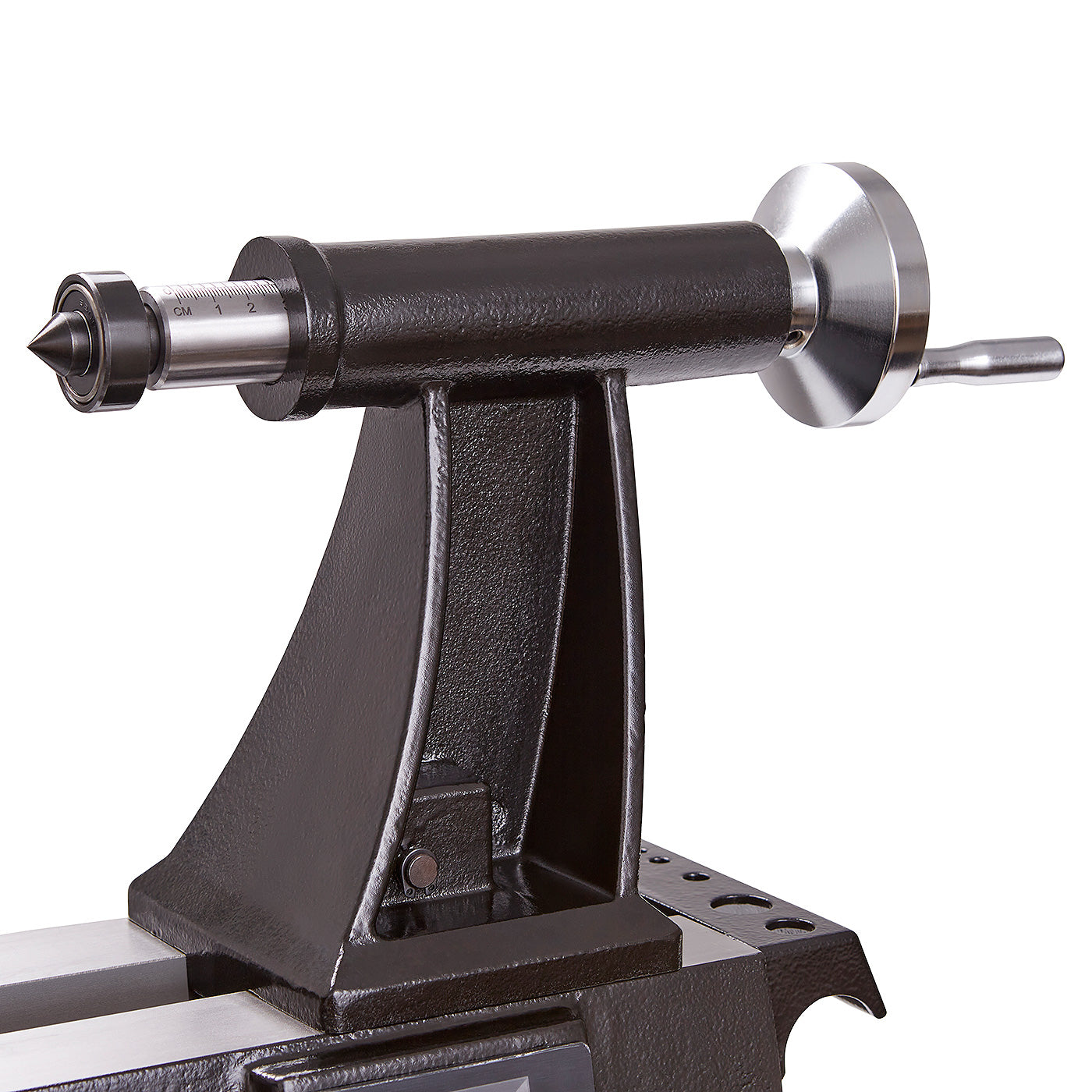

The drive spindle is precisely aligned and runs in large roller bearings to ensure class-leading concentricity. The drive spindle has a M33 x 3.5mm thread with a No 2 morse taper to accept industry standard chucks and fitments. The tailstock has No 2 morse taper which is hollowed out to accept drill bits when turning lampstands that require electric cable to be passed through. You can turn bowls up to 355mm and spindles up to 510mm , which can be extended to 1120mm with the optional bed extension. The lathe is powered by a high torque, DC brush motor which is whisper quiet in use, even at maximum speed and under full load.

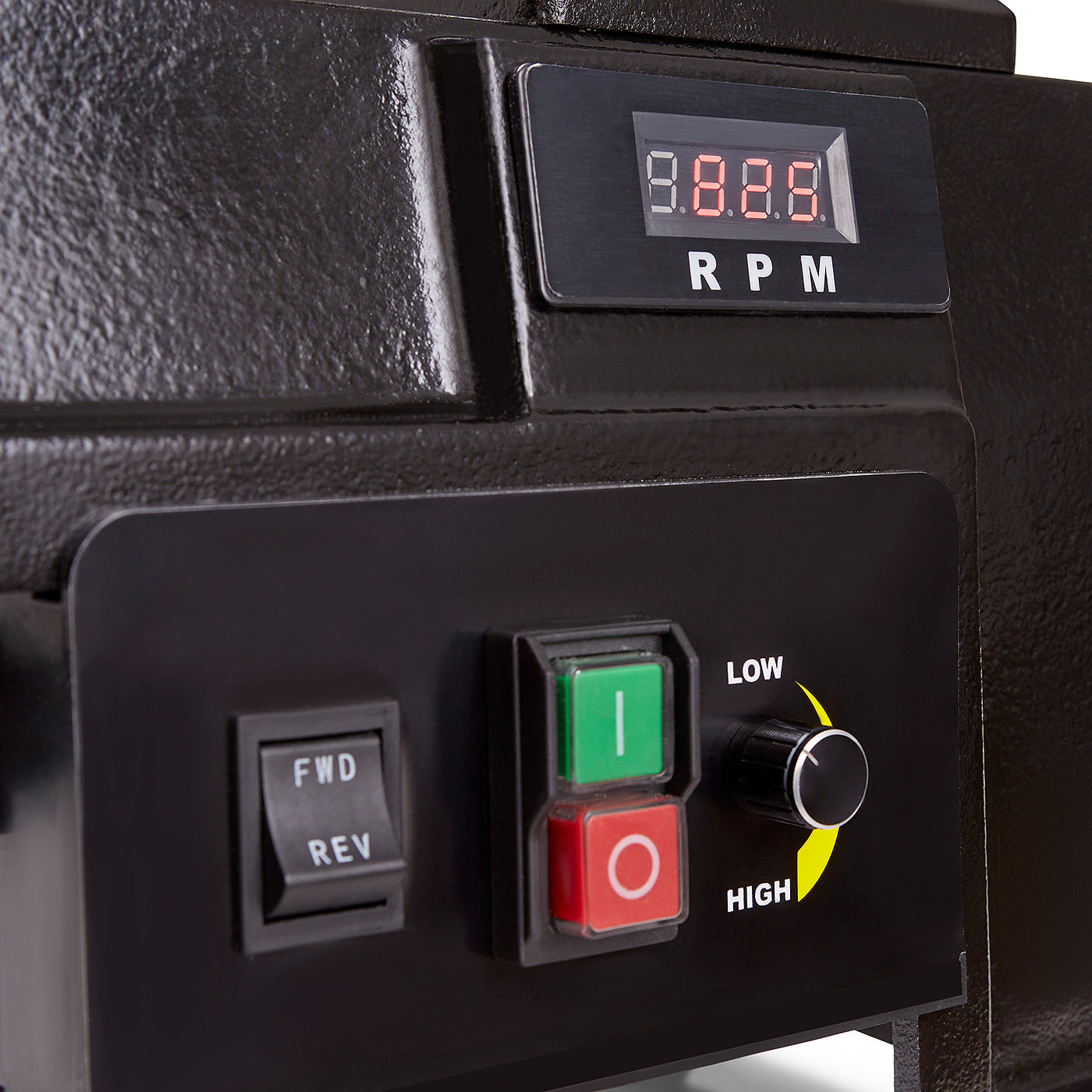

A non-slip poly V belt efficiently transmits power from the motor whilst the motor controller automatically increases the level of torque to maintain the speed, as load on the workpiece is increased. The step pulleys, in conjunction with the variable speed control results in three speed ranges of 250 to 720rpm, 600 to 1700rpm and 1200 to 3550rpm, enabling fine tuning of speed to suit delicate work, larger diameters and out of balance work pieces. The LED digital read-out of the spindle speed helps control your work and is positioned on the tailstock to offer perfect visibility. The reverse rotation is ideal for sanding and polishing when final finishing. The 24 stop indexing facility, features a spring loaded indent pin to securely lock the spindle into position which is an invaluable aid in laying out equally-spaced lines on a turning. All of the adjustment handles are ergonomic and can be locked off to prevent obstruction with the turning tool.

The lathe comes complete with a revolving centre, four prong centre, face plate, tool holder knock out rod and spindle locking wrenches . This lathe is ideal for turning bowls, platters, goblets, vases, egg cups, pens, lamp stands. This is a premium build lathe, which will give years of vibration free, quiet, powerful and controlled turning. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR2106
  • Voltage230V
  • Power750W
  • Dimensions1050mm x 400mm x 480mm
  • Weight57kg
  • Variable Speed Ranges3
  • Variable Speed Range250 to 720rpm, 600 to 1,700rpm and 1,200 to 3,550rpm
  • Diameter Over Bed355mm
  • Distance Between Centres510mm
  • Distance Between Centres with Optional Bed Extension1120mm
  • Spindle ThreadM33 x 3.5mm
  • Taper HeadstockNo. 2 MT
  • Taper TailstockNo. 2 MT
  • Tailstock Barrel Travel70mm
  • Tool Rest Stem Diameter25.4mm
  • Tool Rest Length203mm
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 15 reviews
100%
(15)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
G
Graham C.
R3 variable speed lathe

This is an excellent bench top lathe. A very sturdy well built machine with every component as good as the next. It runs extremely smoothly with very little vibration. It is a little expensive but is heads and shoulders above its competitors and worth every penny. I was surprised that the headstock needed assembling to the bed after removing the motor and then reassembling it back. However the manual was quite easy to follow and as I have an engineering background I found it quite easy. I would recommend this machine to anyone for either a hobbyist or professional woodturner.

C
Chris R.
Great Lathe

Well built solid lathe, smooth rotation, whisper quiet and vibration free. The extension adds a lot of flexibility for holding larger workpieces. Extremely happy.

V
Viv R.
Quality Lathe

What an absolutely fantastic piece of kit. So much better than my old lathe. So quiet yet so powerful. The variable speed and reverse action are invaluable. For this price you’ll struggle to find such a quality package which includes a top class chuck and razor sharp chisels. Smashed it out of the park Rutlands!!

B
Bob W.
What I Expected

This particular lathe was recommended to me by a veteran woodturner at our local men's shed. He has one himself and has over 50 years experience so I took the plunge and ordered from Rutlands. I am just starting my turning hobby and I am more than happy with the lathe, it has done everything I have asked for it and I am surprising myself with the results I am getting, I guess the quality of the lathe is making a difference to my finished products.

I
Iain G.
Super

Very easy to setup with clear instructions, I have turned a range of items, small to large, and I am surprised at how quiet it is. The digital readout is useful and saves heaps of time adjusting belts and stop/starting work. It has sufficient power for the larger items I have turned. A very solid machine that I would definitely recommend.

R3 Lathe Variable Speed - 355mm x 510mm

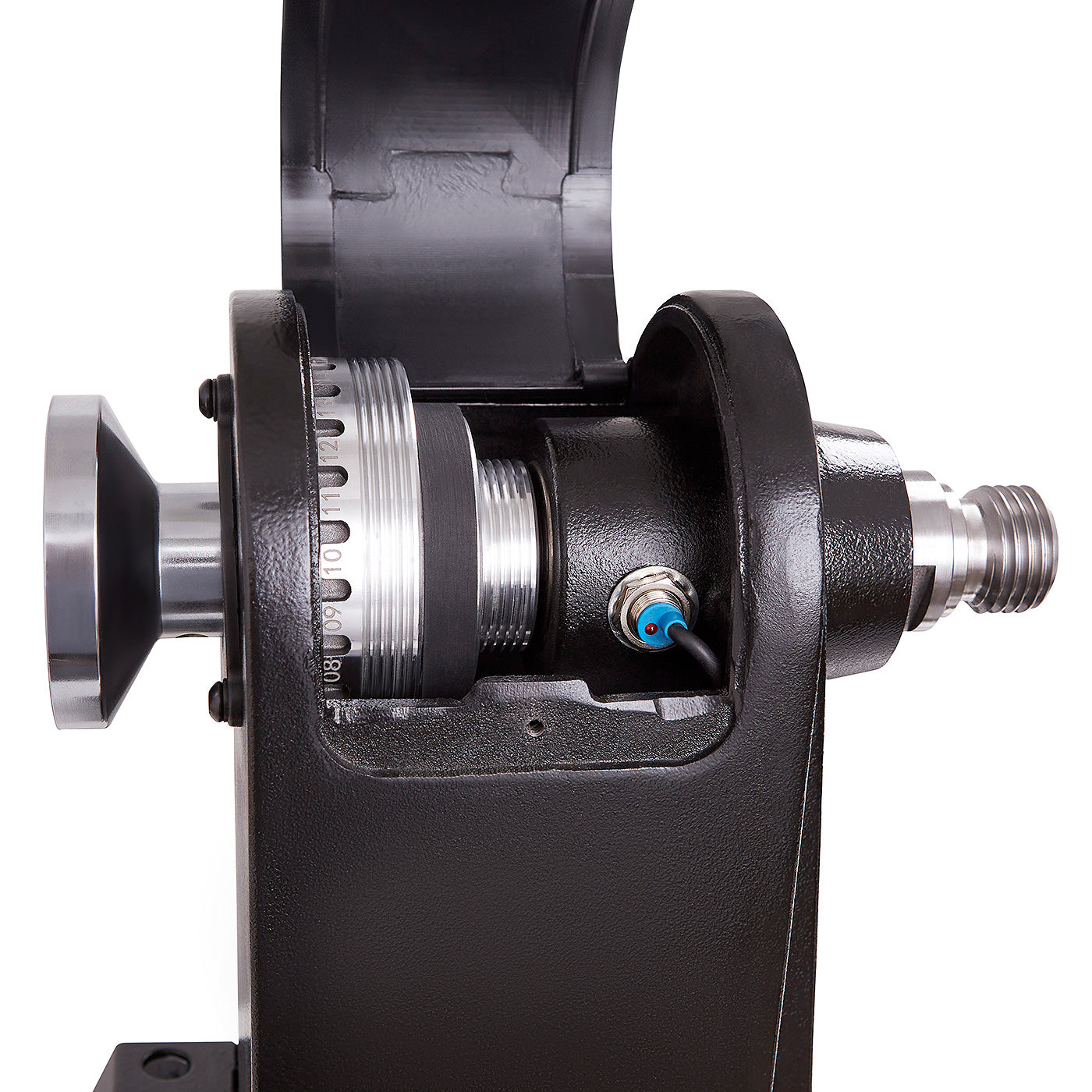

Class leading concentricity
