Mitre Gauge with Box Joint Jig, Fence and Flip Stop

Regular price $240.00
Regular price Sale price $240.00

22 total reviews

In Stock ready for shipping
Shipping details shown at checkout
Beautifully engineered, the steel plate of this mitre gauge features 27 precision machined stops at 5° increments, laser etched in 1° increments throughout its 120° range. The sturdy aluminium fence with flip stop and scale pointer ensures precise, repetitive cuts every single time, whilst the jig will produce perfectly adjoining, attractive box joints with ease.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,250 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Mitre Gauge with Box Joint Jig, Fence and Flip Stop
Regular price $240.00
Regular price Sale price $240.00
KEY FEATURES
  • 3 Year Warranty
  • For all industry standard mitre gauge channels ranging from 18.5 to 19.9mm in width
  • Expansion discs on the mitre bar ensure zero side play and friction-free travel
  • Steel plate has 27 precision machined V stops at 5° increments
  • Jig produces perfect, consistent box joints with ease
  • Fence and flip stop achieve precise repetitive cuts on table saws or router tables
FULL DESCRIPTION

View demonstration video.

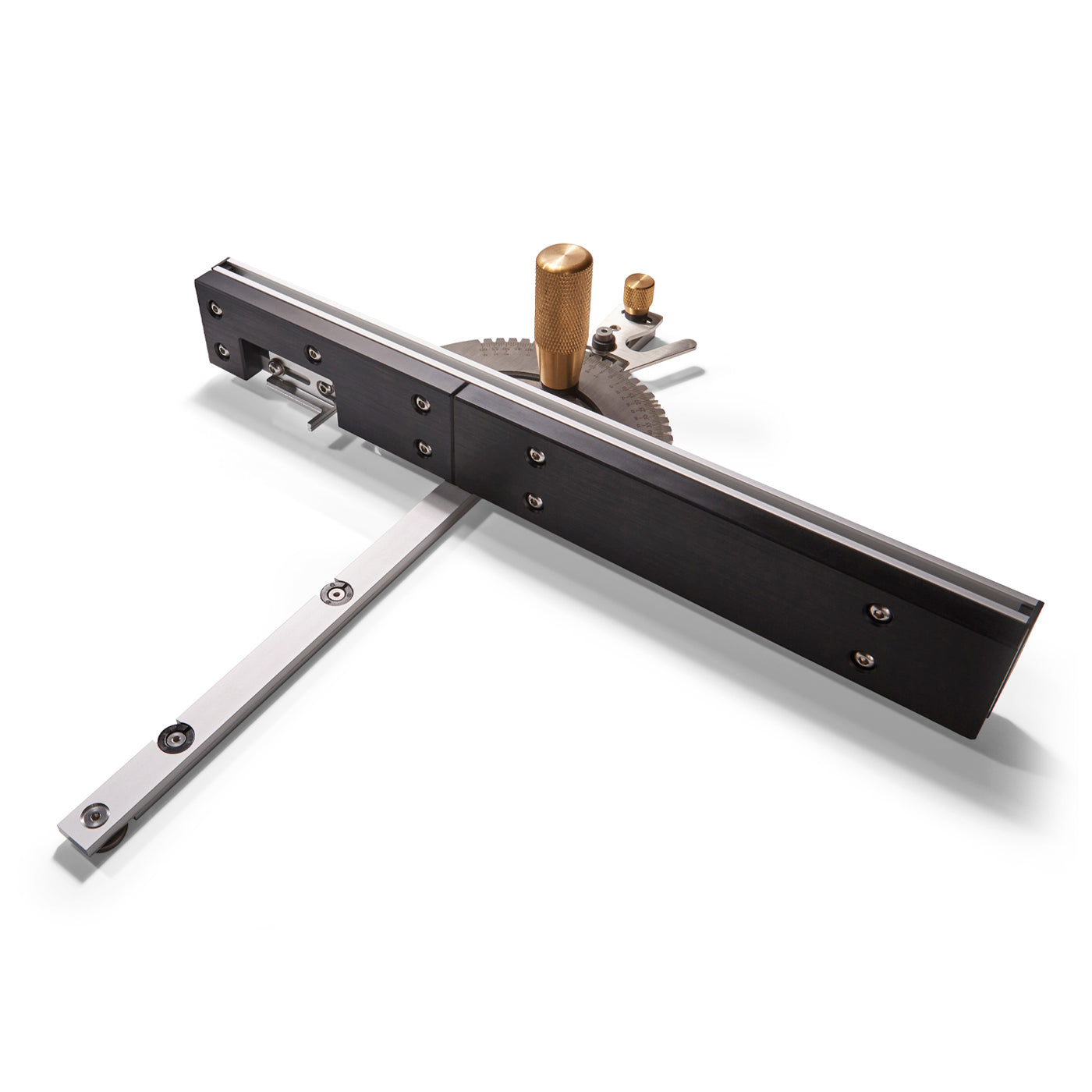

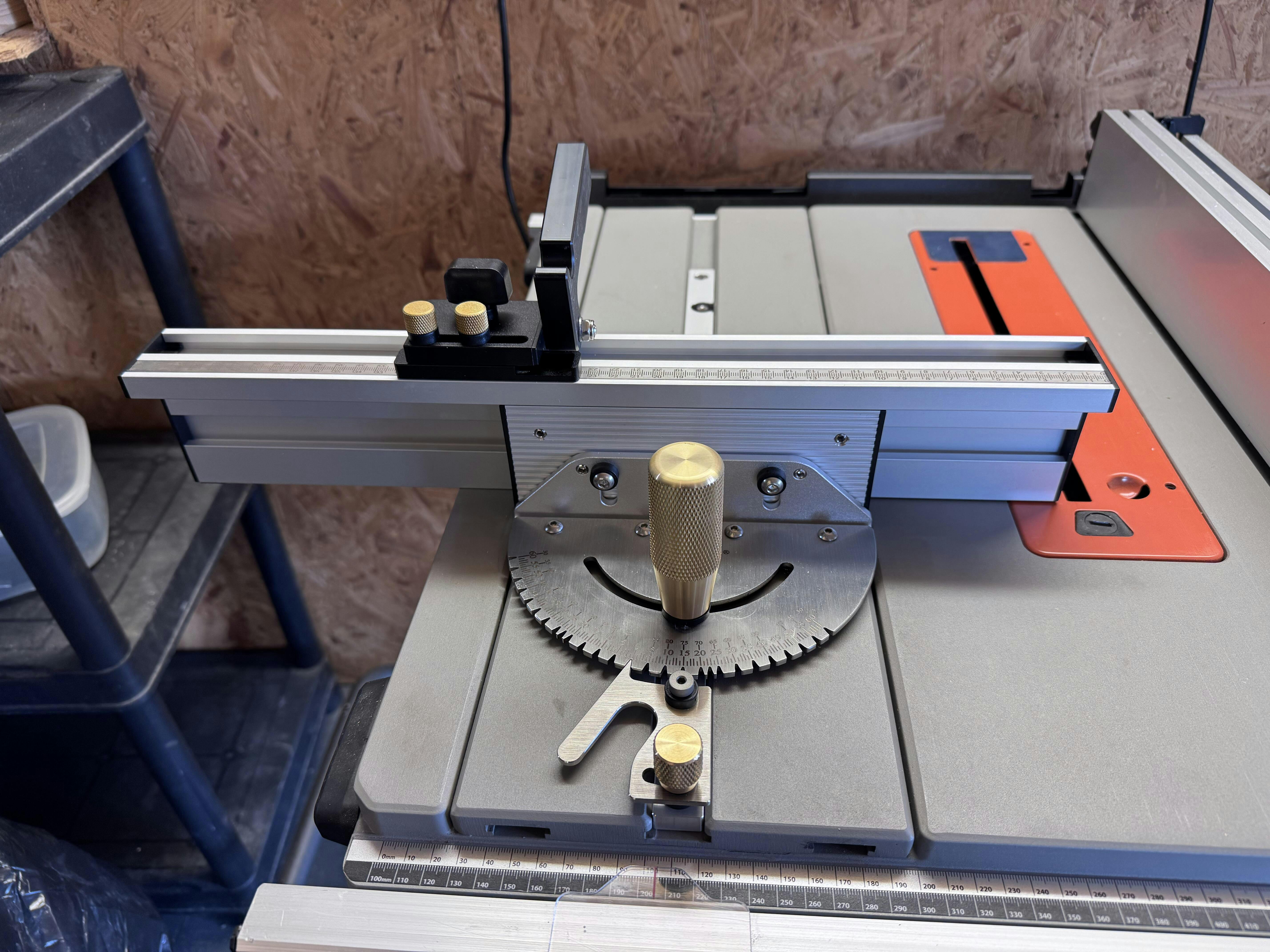

This is an exceptional mitre gauge, complete with a precision mitre fence, flip stop and box joint jig. The mitre gauge has become recognised by leading woodworkers worldwide as the go to mitre gauge for saw benches and router tables. The mitre bar is manufactured from hardened anodised aluminium, measuring 18.5mm wide x 9.5mm deep x 450mm long and features a series of 4 expansion discs to ensure zero side play and friction-free travel. By adjusting the expansion discs with the simple turn of an Allen key the bar will give a no-play fit in table saw and router table mitre gauge channels ranging from 18.5 to 19.9mm in width. In addition, a 23.5mm removable steel disc at the end of the bar allows for a no-play fit in industry standard 19mm T track.

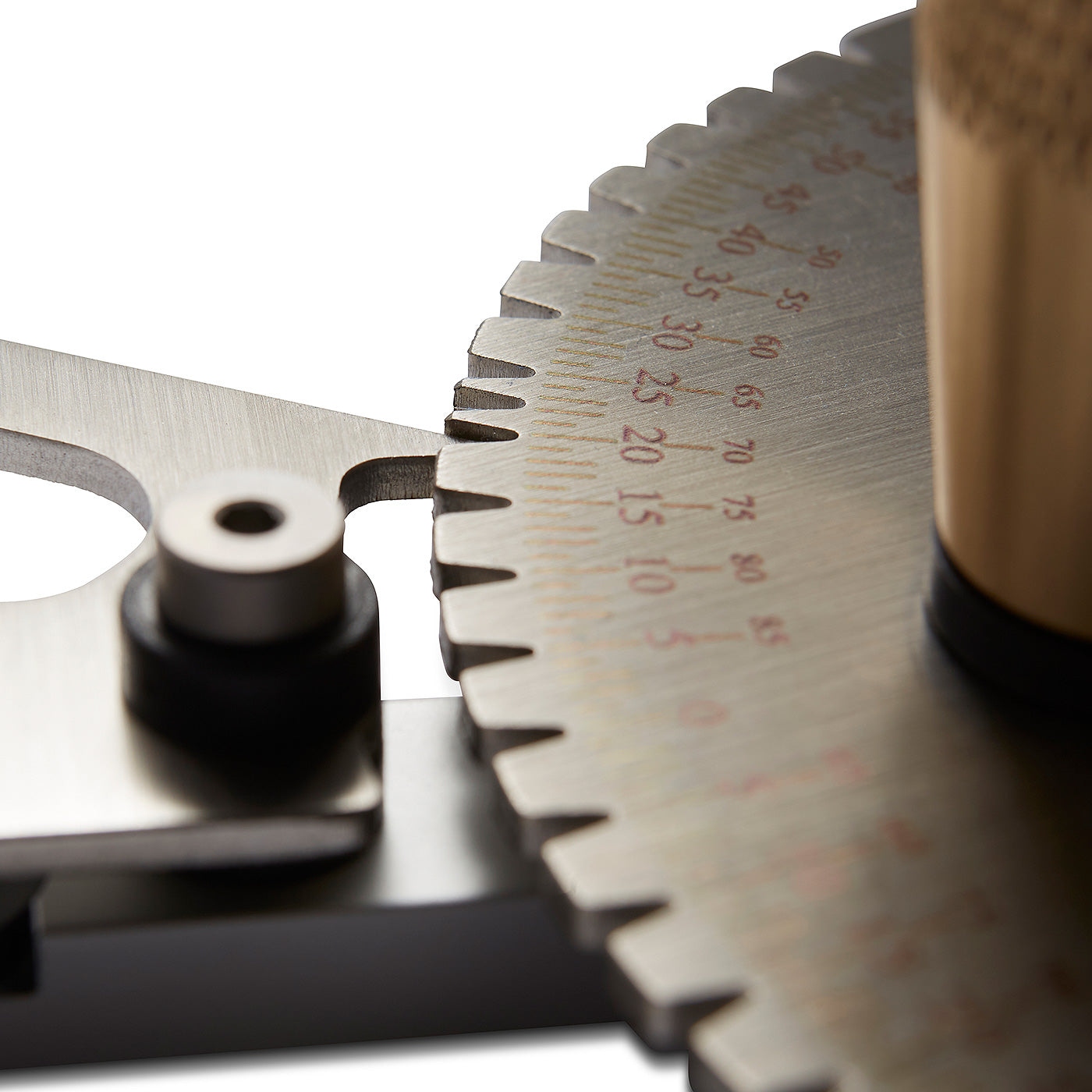

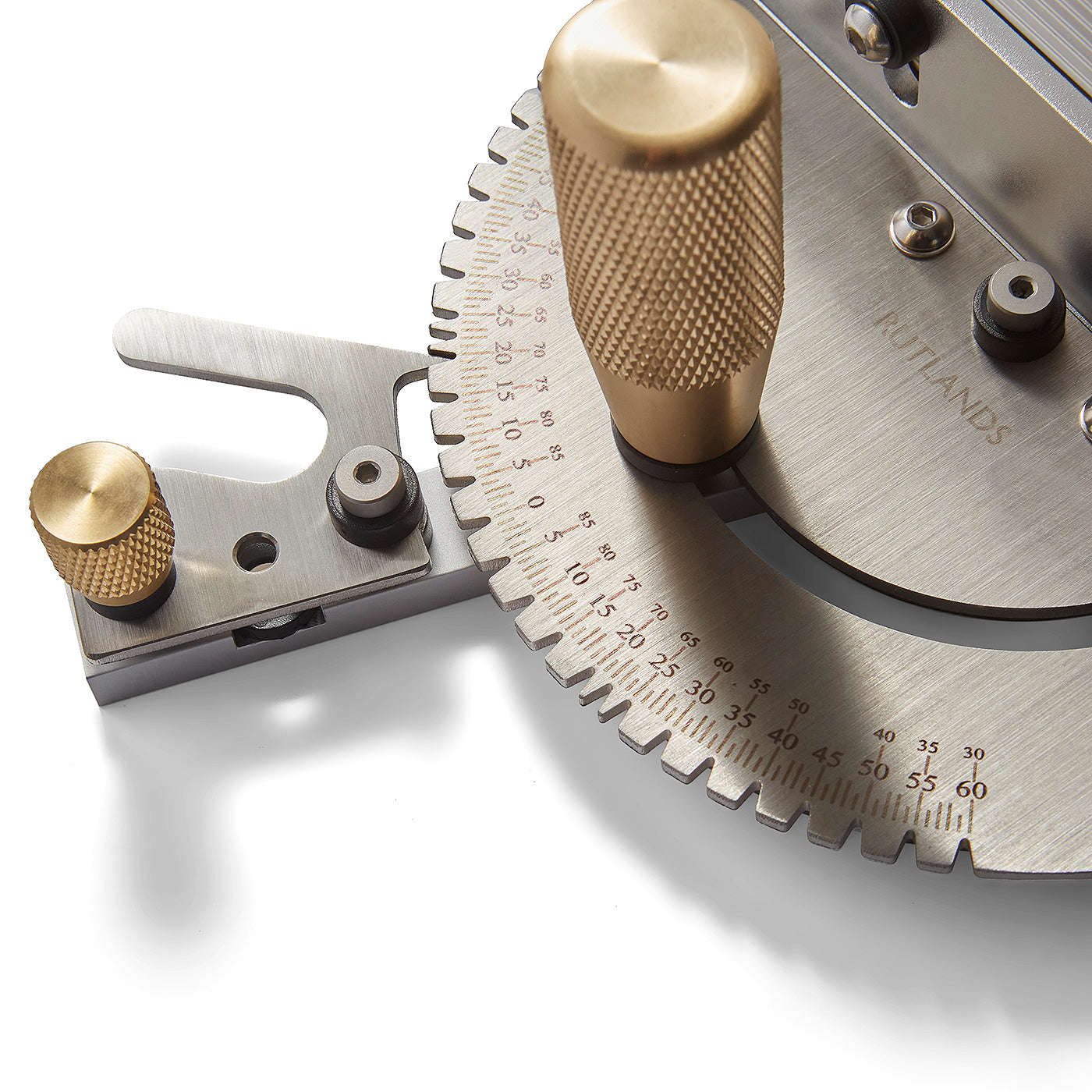

The mitre gauge is made from 4mm thick steel plate that is attached to the fence with a 5mm thick machined aluminium casting. The aluminium casting features two micro adjustment screws to further calibrate the gauge if required to ensure the fence is true. Underneath the plate is a phenolic sub plate designed to prevent the scratching or marking of the machine bed. The steel plate has 27 precision machined V stops at 5° increments and features special stops at plus or minus 22.5°. The plate is laser graduated in 1° increments through the range of plus or minus 60°. The V shaped steel cursor seats perfectly in the mitre gauge V grooves and locks off with a brass knurled knob eliminating any play.

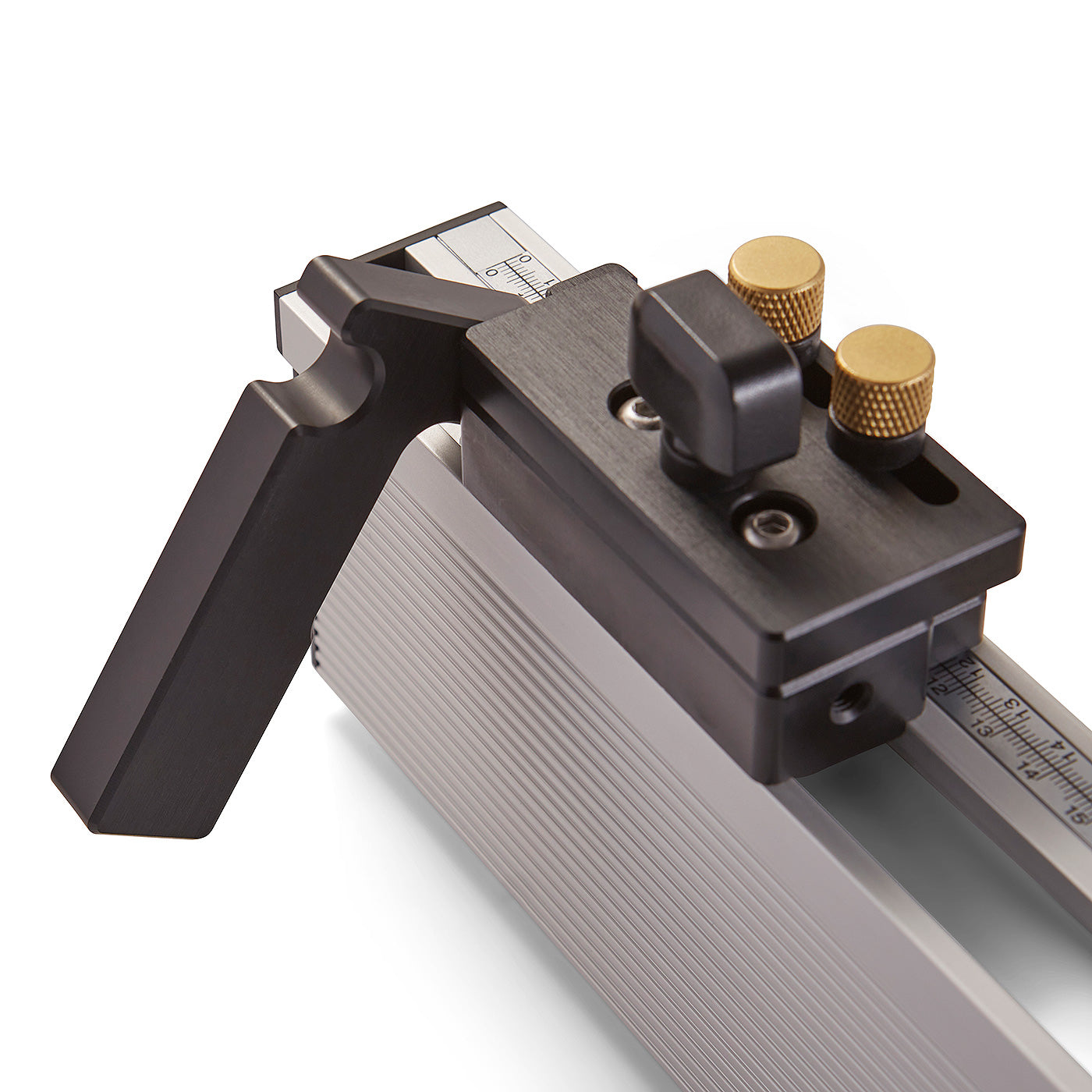

The fence is manufactured from an aluminium extrusion that is ribbed on the face to prevent any slipping and measures 450mm x 80mm deep. On top of the fence is a steel scale with permanently etched 1mm graduations running from 0 to 440mm. The flip stop glides back and forth in the industry standard 19mm T track slot and has a clearly visible pointer which can be adjusted using the two brass knurl screws. The flip stop arm is 100mm in length and there is no play even when heavy load is exerted, ensuring for precise, repetitive cuts every time.

A box joint is both strong and attractive, making them perfect for all kinds of wooden boxes including jewellery, presentation, and storage boxes. Used in conjunction with the mitre gauge this box joint jig can produce precise, repeatably consistent joints with ease. From novice woodworker to experienced professional this jig will save countless hours and it will also mean that you do not have to waste time fashioning your own jig to create substandard joints.

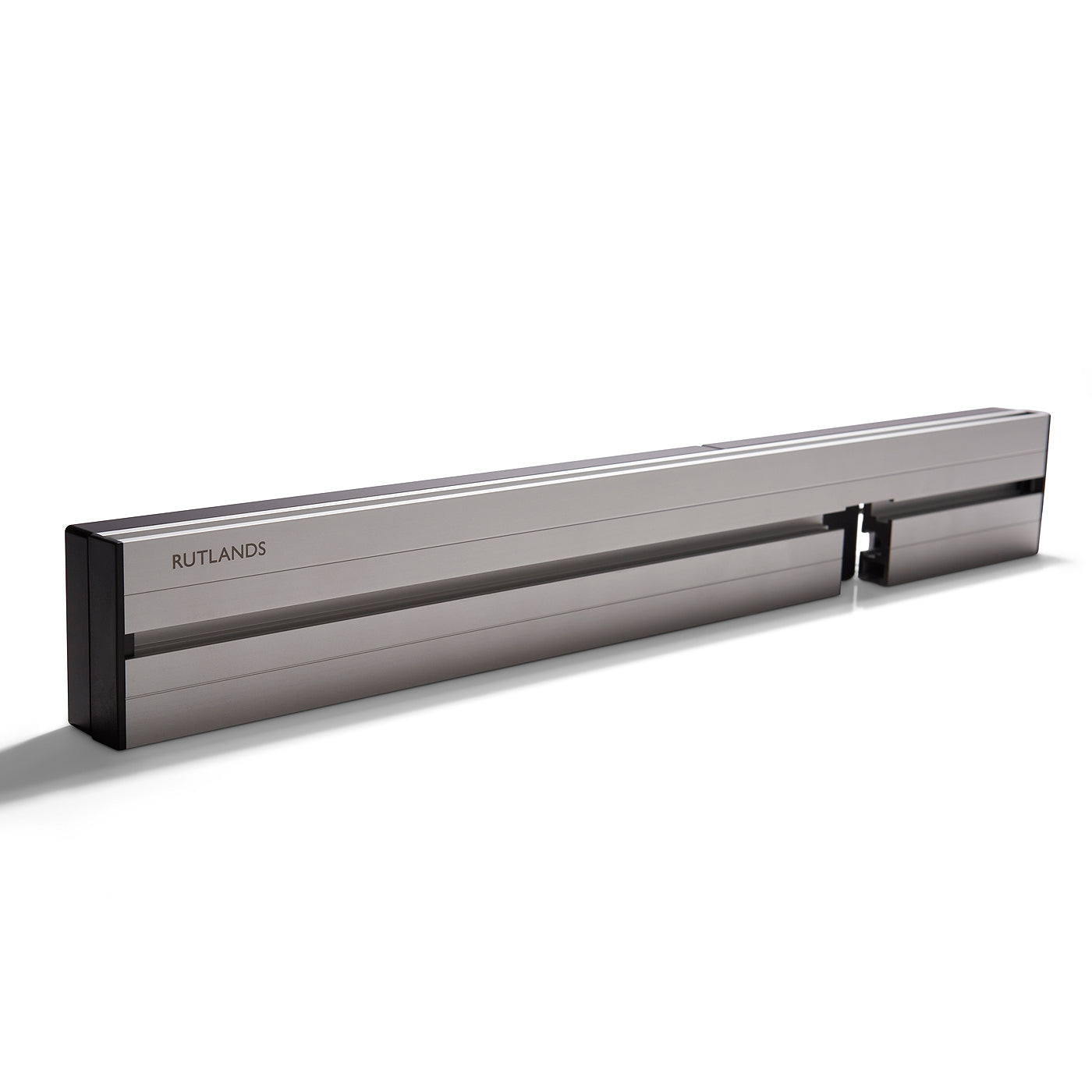

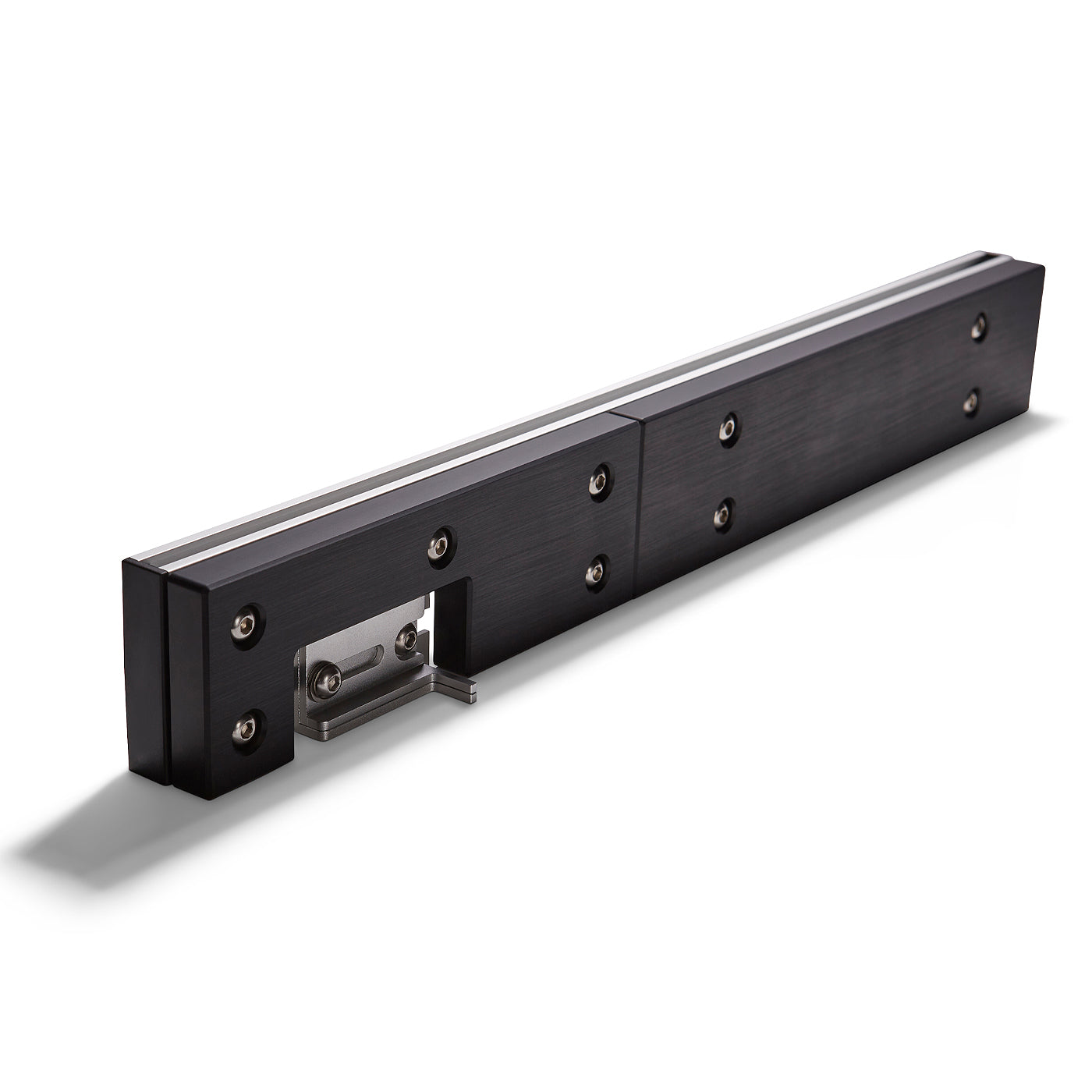

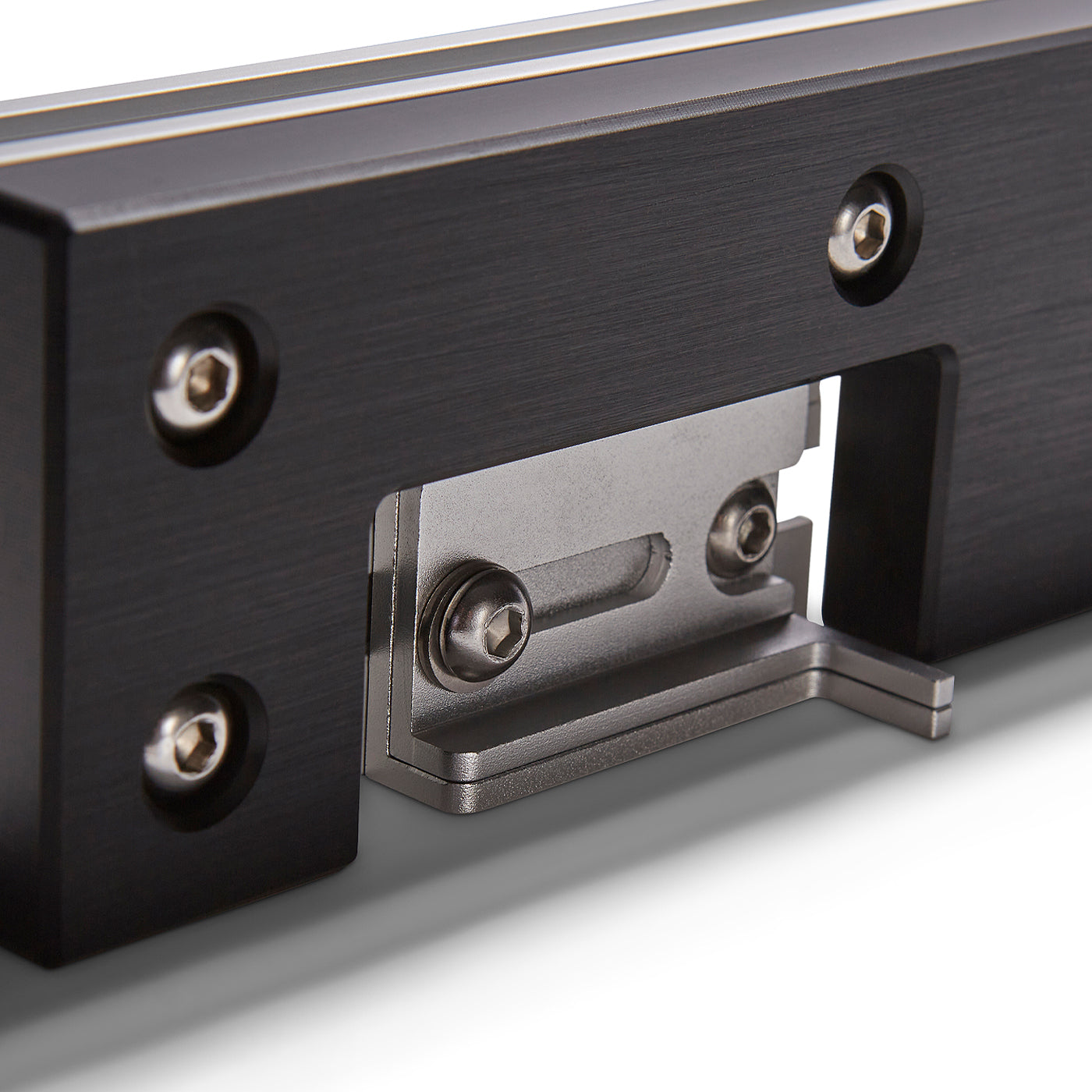

To create your perfect box joint all you need is a straight cutting router bit that is up to 12.7mm wide, the mitre gauge and a router table that accepts the mitre gauge. Detailed instructions are provided with the jig for initial set up, which are very easy to follow. The jig makes use of a sacrificial fence to eliminate blowout and ensures an extremely clean cut to create perfect adjoining workpieces. The fence is manufactured from an aluminium extrusion that is ribbed on the face to prevent wood from slipping and measures 450mm x 60mm deep. It is backed by two sections of 15mm thick high grade phenolic, one of these sections is the sacrificial fence.

This is an extremely precise and beautifully engineered mitre gauge combined with a precision fence, flip stop and box joint jig. ©

SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR5110
  • Mitre Gauge Bar18.5mm wide x 9.5mm deep x 450mm long
  • Mitre Gauge Channel Size18.5 to 19.9mm
  • T Track Channel Size19mm
  • Mitre Graduations1° increments
  • Mitre Stops5° increments
  • Mitre Range+/- 60°
  • Fence Dimensions455mm x 80mm x 44mm
  • Box Joint Jig Dimensions455mm x 60mm x 30mm
