Parallel Jaw Clamps - 300mm x 95mm - Pack of 4

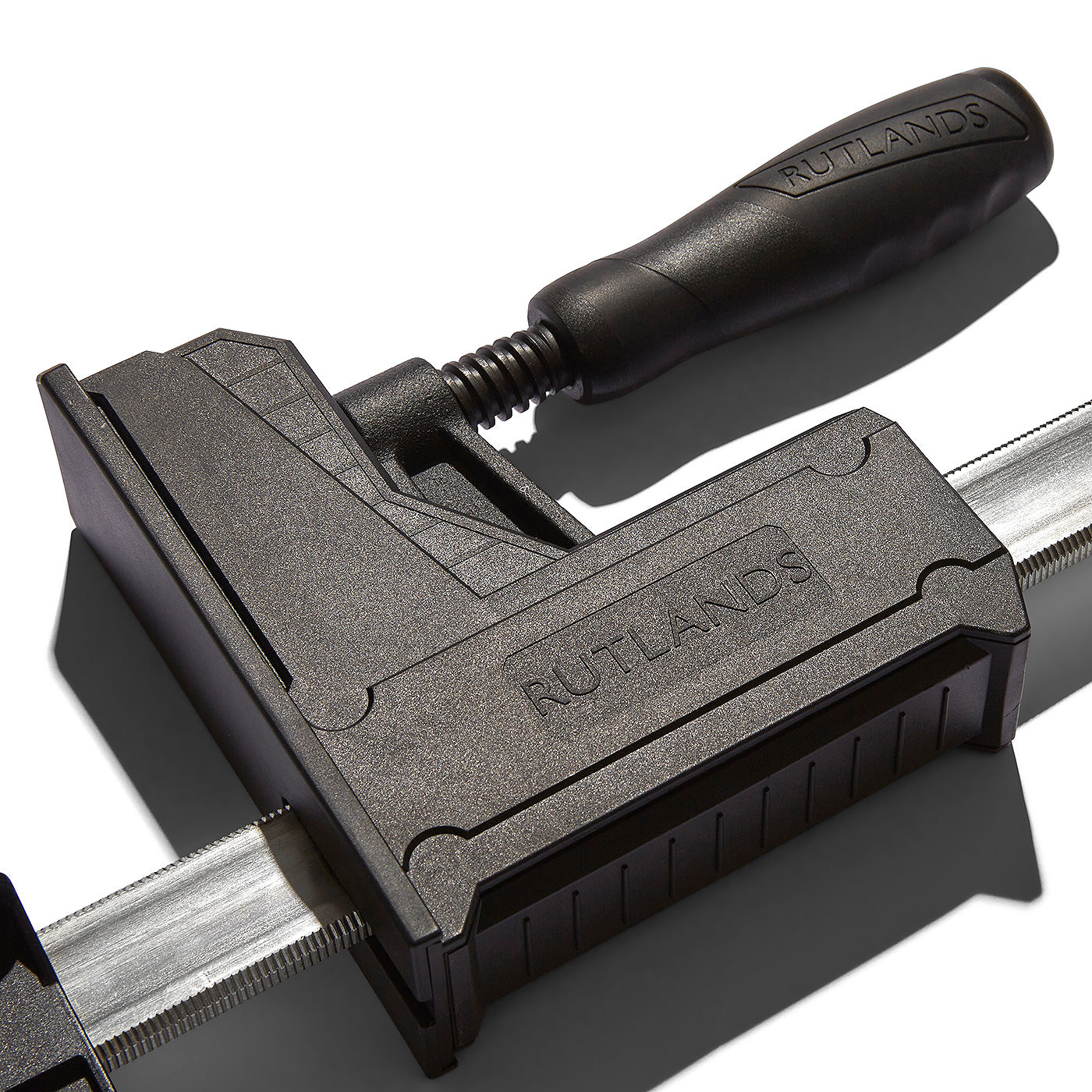

These exceptional parallel jaw clamps are the best we have ever tested. The jaws are guaranteed parallel and will always be at a constant 90° angle with the bar during use to maintain the squareness of the object being clamped. The large surface area of the jaws allow the clamps to be used in different ways to F clamps, such as clamping along the length of the jaw or behind the rail. Clamping force is equally distributed by the jaws which eliminates the crushing of timber fibres.

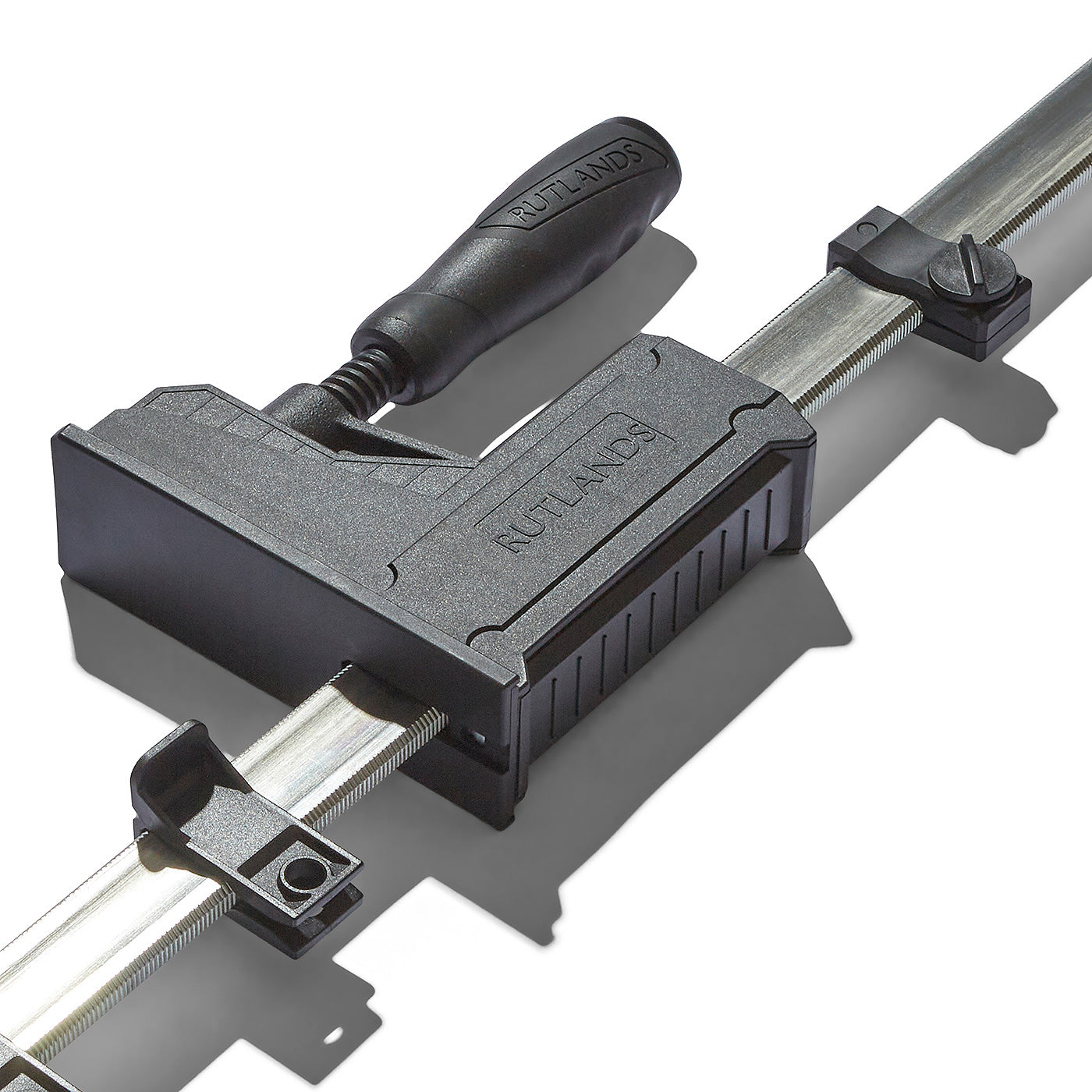

The clamps have an anti slip system which means that no matter how much pressure is exerted, the jaws will not slip on the bar and slide backward. A foot at the non working end of the bar allows for the clamp to stand upright un-aided making it ideal for clamping flat panels. The large acme screw thread ensures maximum clamping pressure is achieved with the minimum number of turns of the handle.

The extra large jaws allow for the use of fewer clamps and are extremely beneficial when clamping large, flat workpieces. The jaws are made from ductile cast iron and are encased in glue resistant polypropylene, the no mar protection pads can be removed to aid the removal of dried glue. The 29mm wide rail is made from I section C45 hardened steel to prevent the clamp from bending or flexing under load.

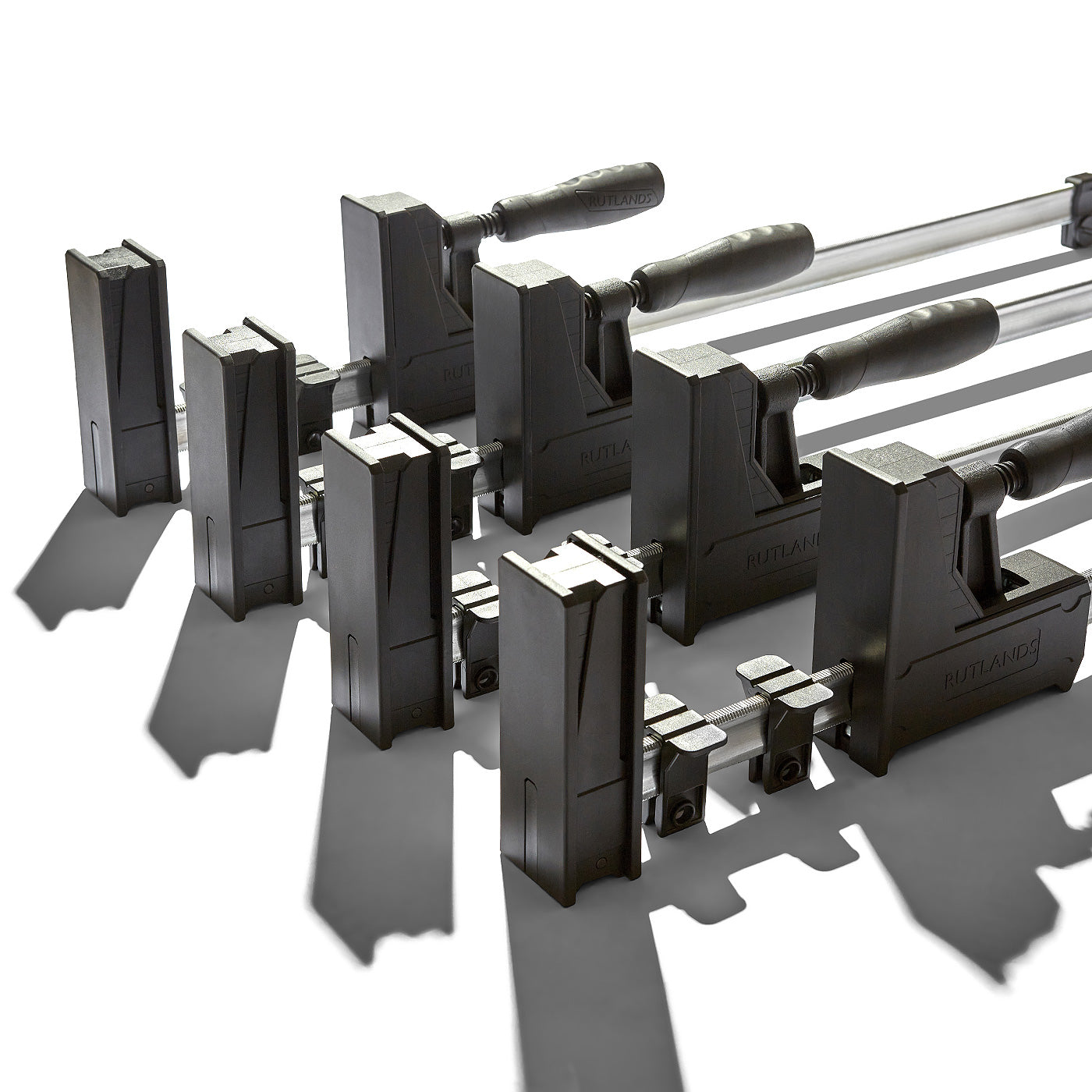

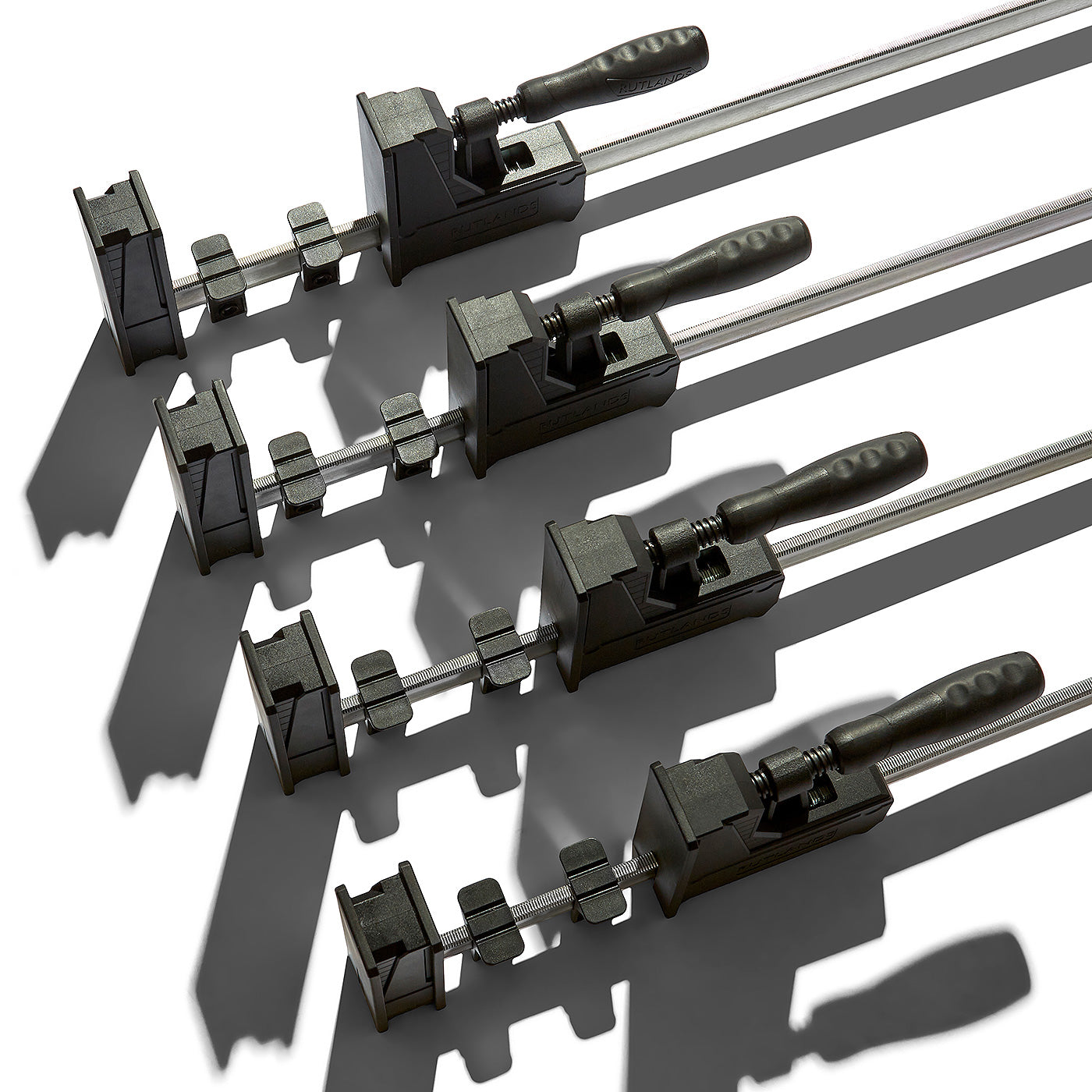

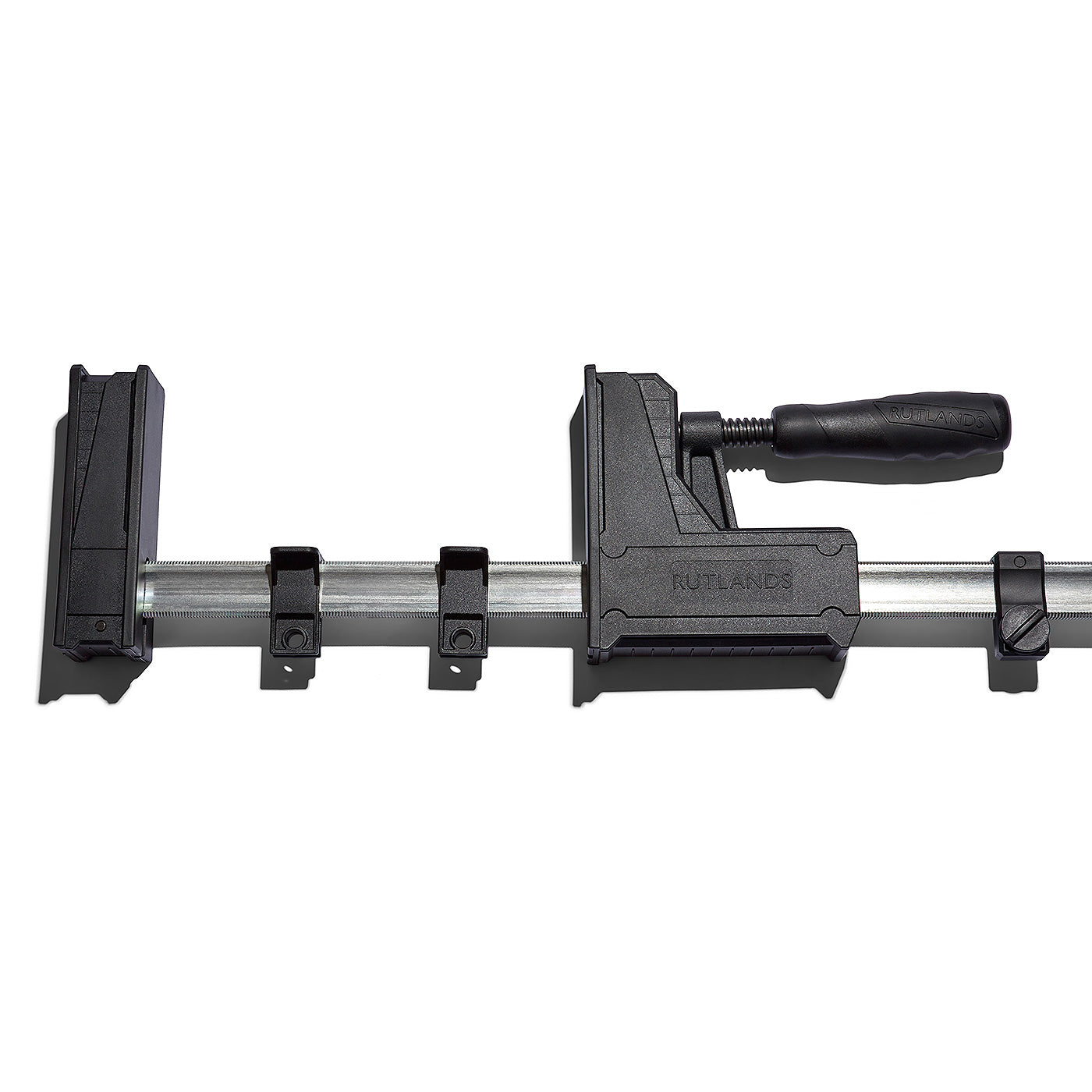

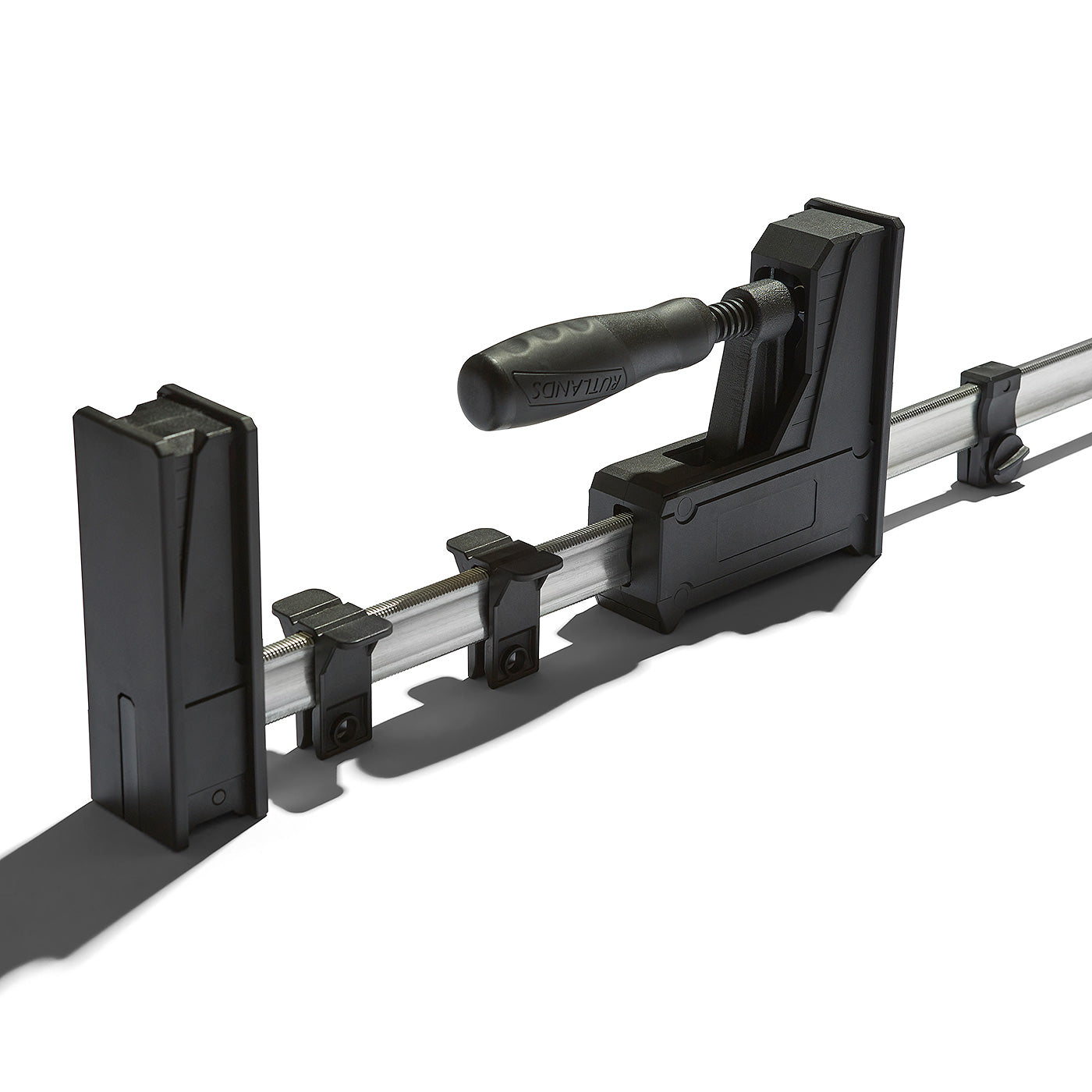

These are parallel jaw clamps that can evenly exert up to 6000N of clamping force. They have maximum clamping capacity of 300mm, a jaw width of 45mm with a throat depth of 95mm. The clamp can easily be converted into a spreader with spreading capacity of 260mm to 470mm. Each clamp is also supplied with 2 protective bar pads to ensure the workpiece does not meet the bar and become marked. Supplied in packs of 4. ©
