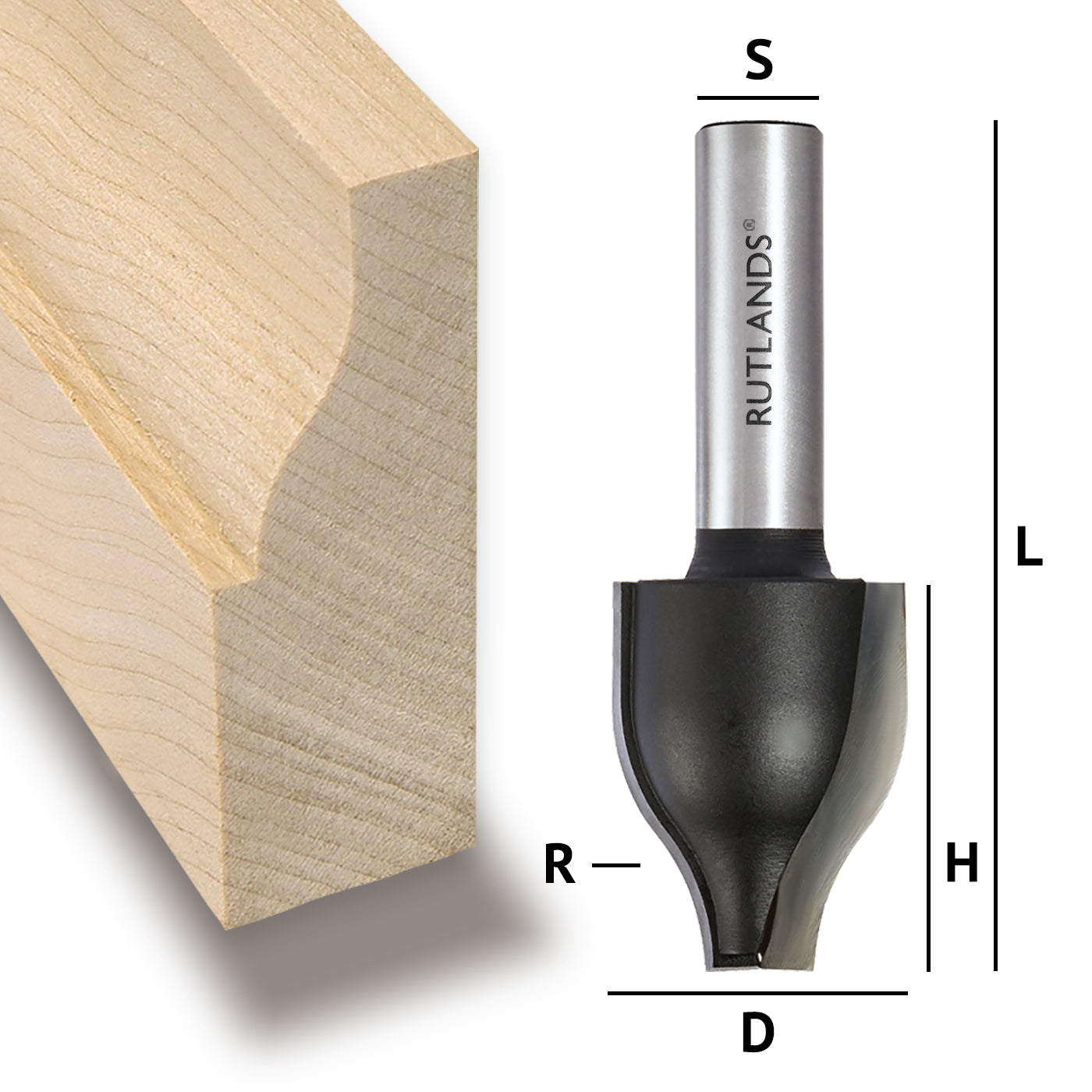

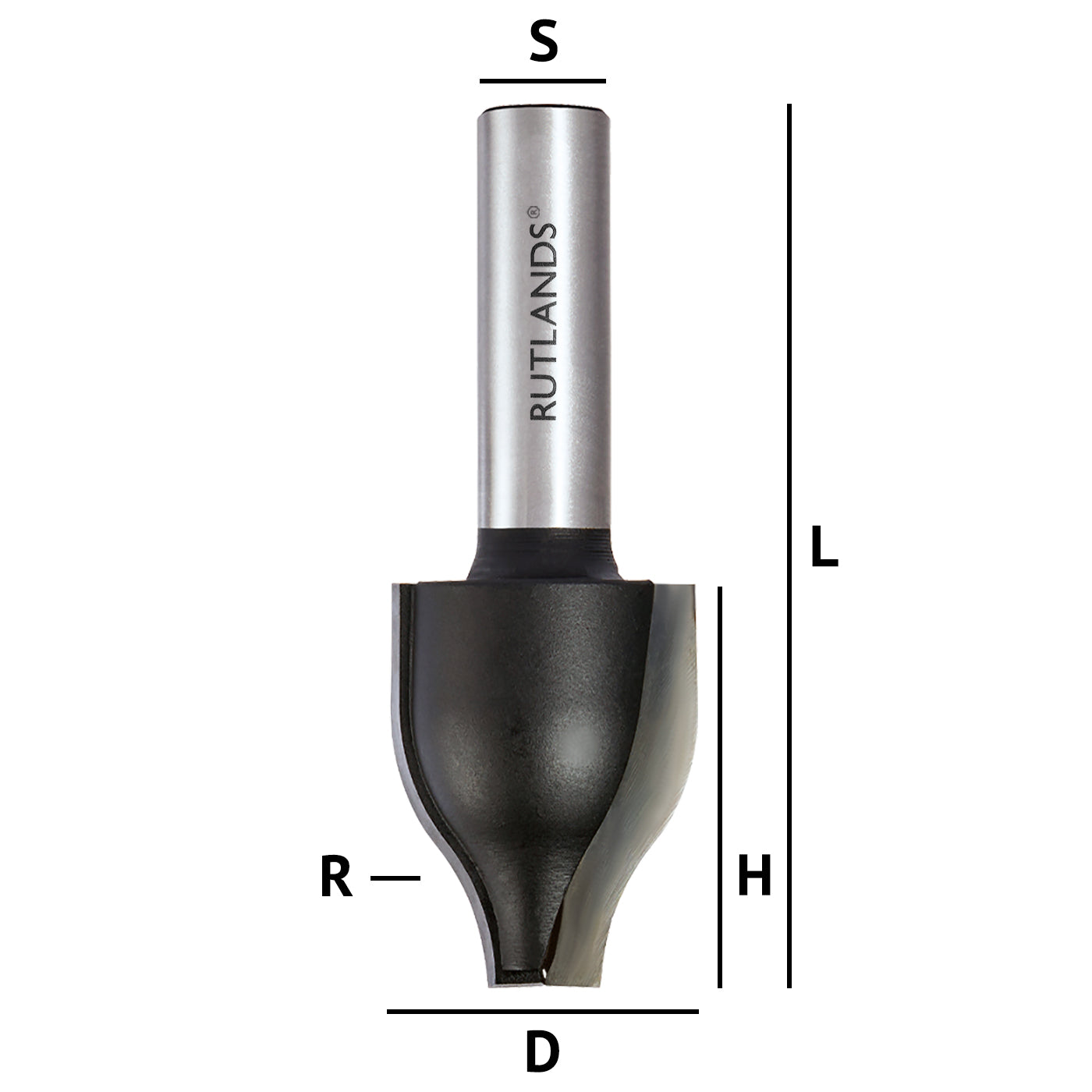

Router Bit - Raised Panel Vertical - Ogee - D=28.6mm H=38.1mm R=22.2mm L=82.5mm S=1/2"

Name: Router Bit - Raised Panel Vertical - Ogee - D=28.6mm H=38.1mm R=22.2mm L=82.5mm S=1/2"
Brand: Rutlands®
SKU: R5633
Price: 40.00 GBP
Availability: InStock

£40.00

~~£0.00~~ £40.00

In Stock for delivery by

Order within

These vertical raised panel router bits are used to produce ogee profiled raised panels for traditional style panel and frame doors and drawers, smaller than horizontal raised panel router bits and therefore more manageable for lower horsepower routers. Each bit features diamond ground, micro-grain tungsten carbide tipped blades for long lasting hardness and superior edge retention.

Product variants

Shop with confidence with our 3 Year Warranty
Rated excellent by Trustpilot based on 30,289 reviews
Over 2.5 million Rutlands® premium woodworking tools sold worldwide

Router Bit - Raised Panel Vertical - Ogee - D=28.6mm H=38.1mm R=22.2mm L=82.5mm S=1/2"

£40.00

~~£0.00~~ £40.00

3 Year Warranty
Used to produce raised panels for traditional panel and frame doors and drawers
Micro-grain tungsten carbide ensures long lasting hardness and superior edge retention
Perfectly balanced, vibration free bodies for a smoother cut
Shear angle blades slice the wood for a feather free finish
Anti kick back design for maximum operator safety

TCT Router Bits
Each router bit features diamond ground, micro-grain tungsten carbide tipped blades. This tighter micro-grain structure means the blades offer long lasting hardness and superior edge retention. The body of each bit has been turned and then milled with uncompromising precision from a single piece of 4140 high tensile steel to give perfect balance for reduced vibration and therefore smoother cuts. 4140 steel has been chosen because of its toughness, high fatigue strength, and abrasion and impact resistance. The tungsten carbide tips are then brazed onto the bodies using induction to create an extremely strong joint that safely holds under the high stresses that occur when routing. The router bits are suitable for use on softwoods, hardwoods, veneers, laminates and composite materials.

Vertical Raised Panel Bits
Vertical raised panel bits are used to produce raised panels for doors and drawers, as well as decorative mouldings, skirting and architrave. With a smaller radius than horizontal raised panel bits, they are more manageable and ideal for lower horsepower and single speed routers. These bits create a standard sized 6.35mm tongue for fitting into rail & stile grooves. The material is fed vertically over the router bit to cut the resulting profile. With a straight bevelled profile, this vertical raised panel bit is well suited to creating modern style panel doors. For router table use only.

Superior Finish and Performance
The shearing angle of the cutting edges ensure they remain in constant contact with the workpiece to allow a smoother, slicing cut which eliminates tear-out and gives a mirror finish. The bits feature right hook angles which further enhances the cut due to the fast removal of chips. These bits feature an anti-kickback design which limits the feed rate of the material being cut to decrease the likelihood of a kickback, meaning each bit conforms to strict German DIN standards to ensure maximum operator safety. ©

BrandRutlands®
Product CodeR5633
D28.6mm
H38.1mm
R22.2mm
L82.5mm
n.max18,000
S1/2"
