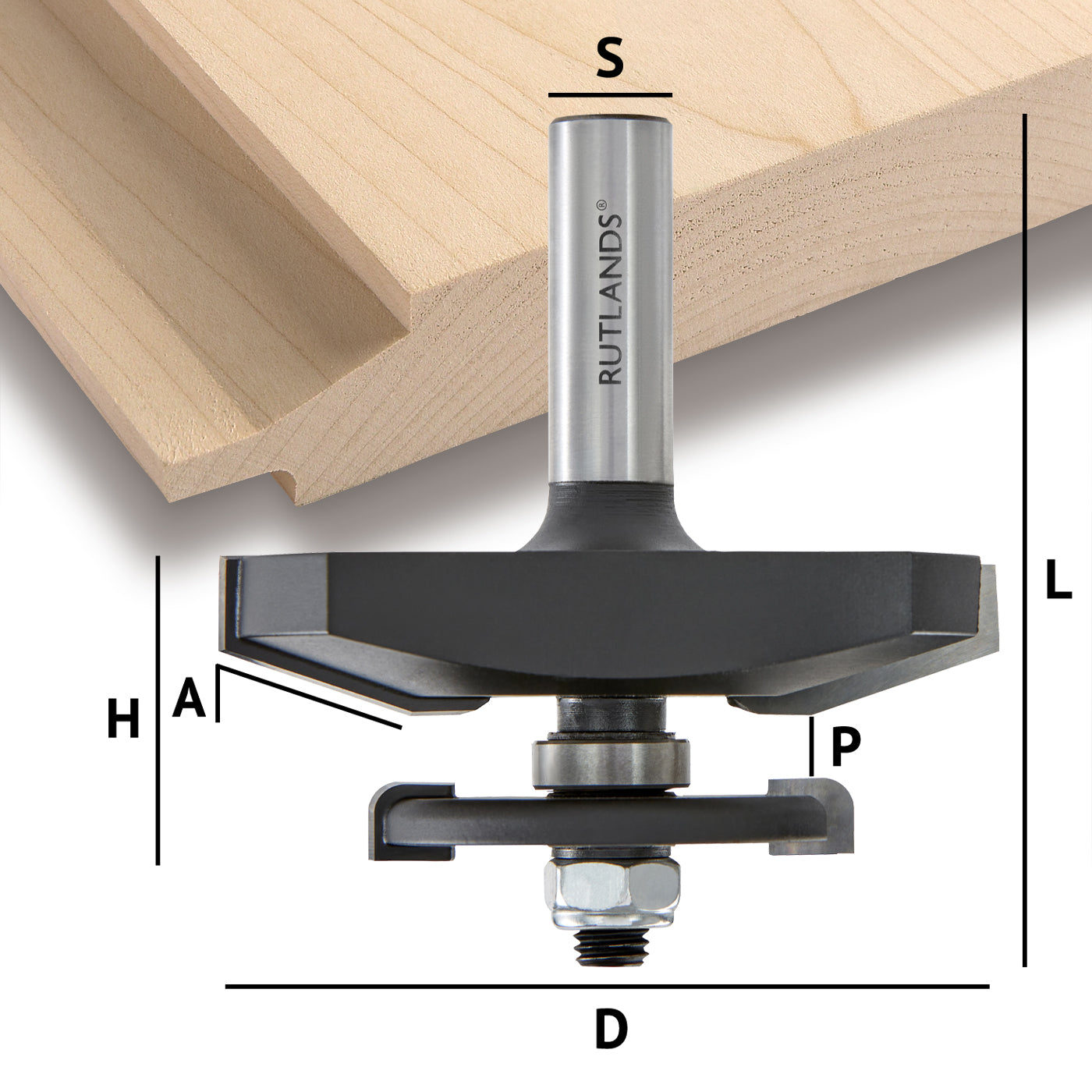

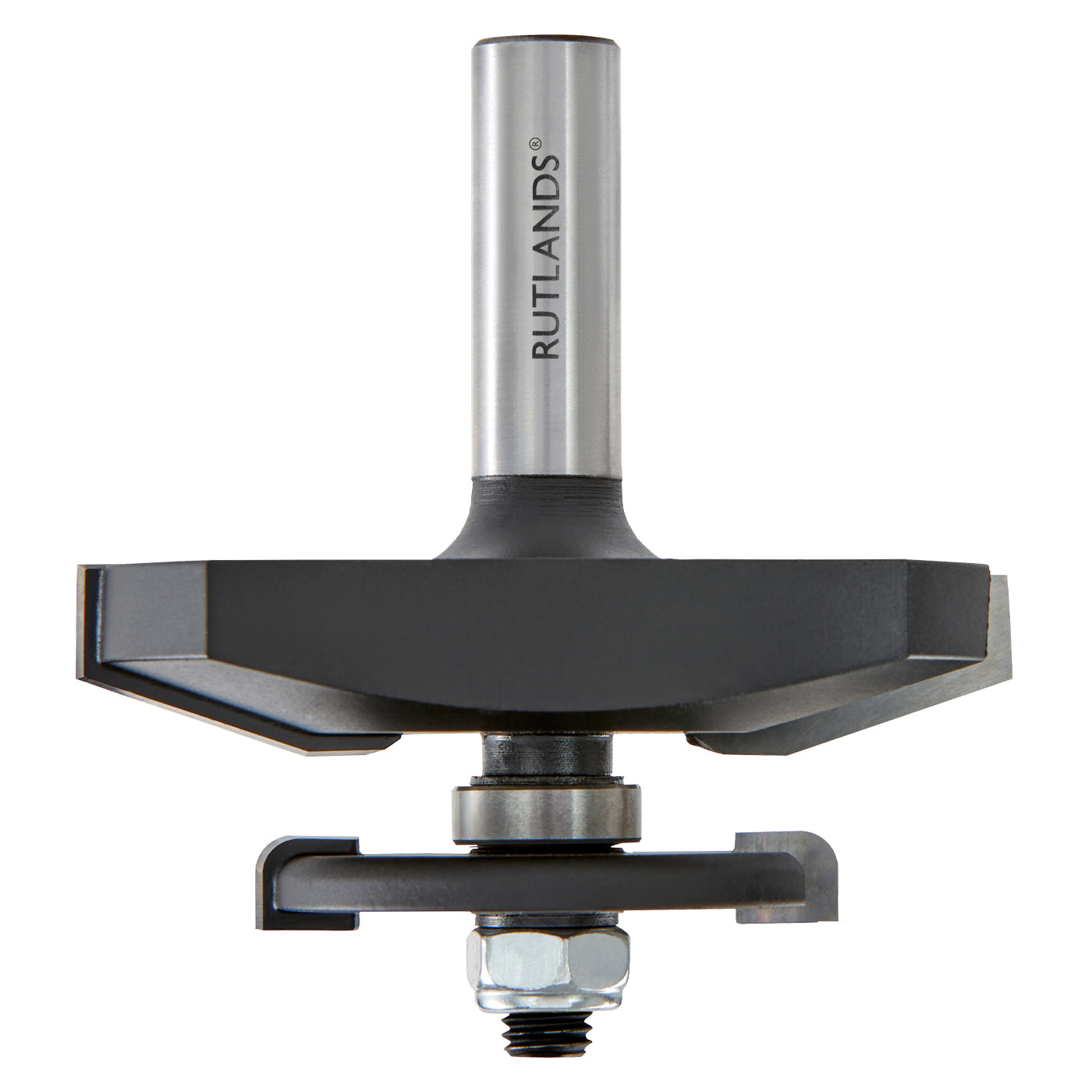

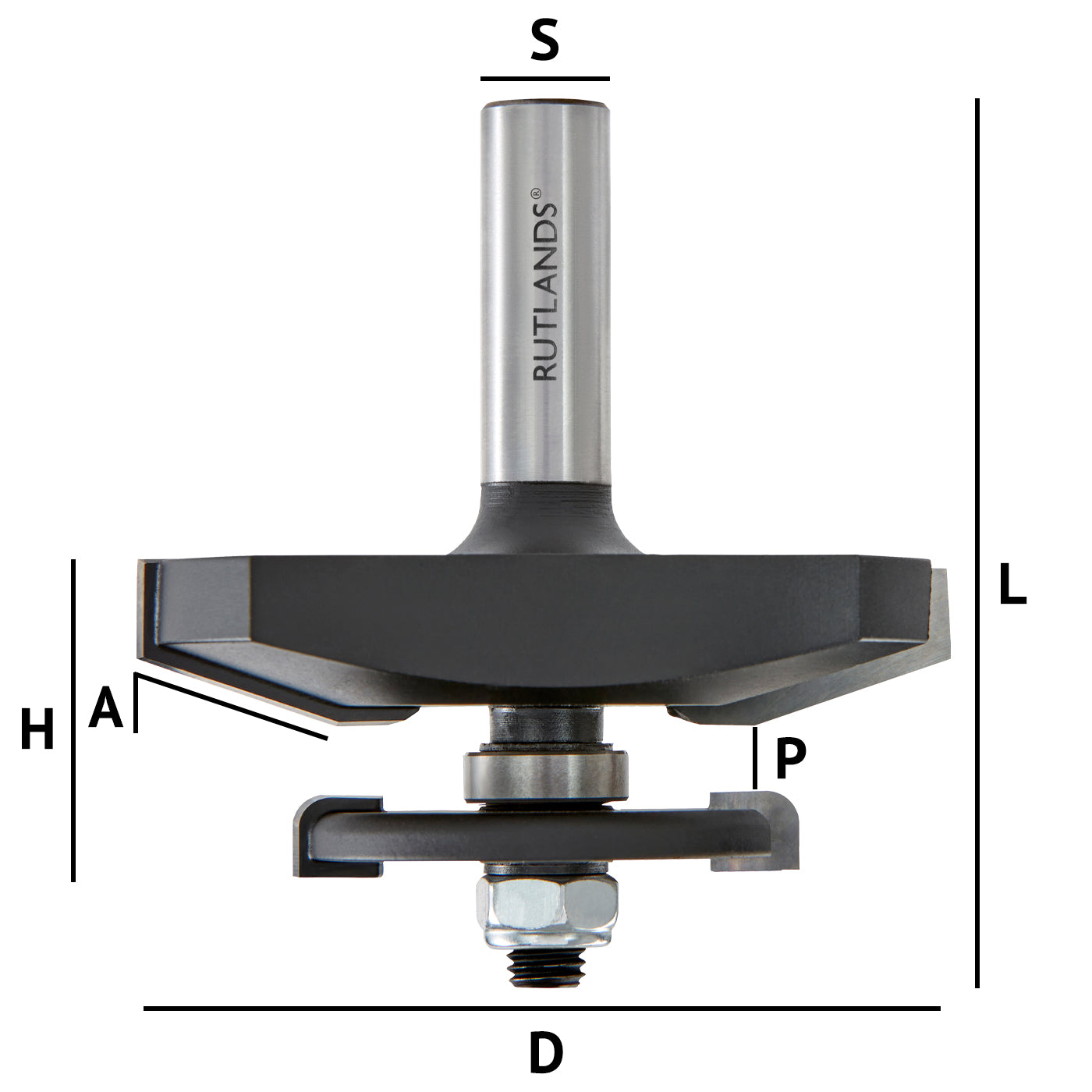

Router Bit - Raised Panel with Backcutter - Bevel - D=79.4mm H=30.2mm A=18° L=85.7mm S=1/2"
- Shop with confidence with our 3 Year Warranty
- Rated excellent by Trustpilot based on 27,089 reviews
- Over 2.5 million Rutlands® premium woodworking tools sold worldwide
- 3 Year Warranty
- Used to produce raised panels for traditional panel and frame doors and drawers
- Micro-grain tungsten carbide ensures long lasting hardness and superior edge retention
- Perfectly balanced, vibration free bodies for a smoother cut
- Shear angle blades slice the wood for a feather free finish
- Anti kick back design for maximum operator safety
Each router bit features diamond ground, micro-grain tungsten carbide tipped blades. This tighter micro-grain structure means the blades offer long lasting hardness and superior edge retention. The body of each bit has been turned and then milled with uncompromising precision from a single piece of 4140 high tensile steel to give perfect balance for reduced vibration and therefore smoother cuts. 4140 steel has been chosen because of its toughness, high fatigue strength, and abrasion and impact resistance. The tungsten carbide tips are then brazed onto the bodies using induction to create an extremely strong joint that safely holds under the high stresses that occur when routing. The router bits are suitable for use on softwoods, hardwoods, veneers, laminates and composite materials.
Raised Panel with Backcutter Bits

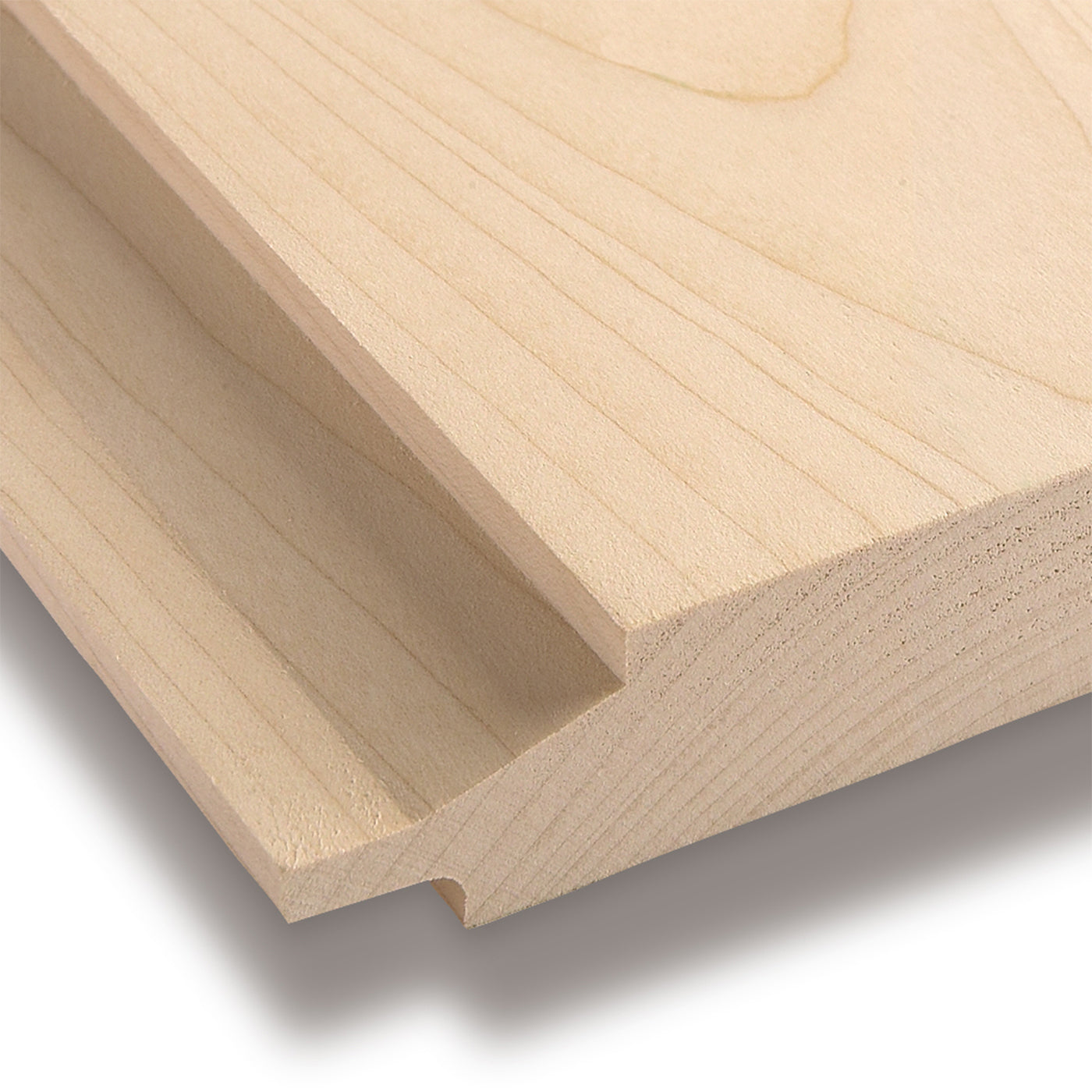

Raised panel with backcutter bits are used to produce raised panels for doors, drawers and other panelled furniture. The profile combines that of a panel raising bit with a rabbeting bit and cuts both the front and back of the panel in the same cut. This means the resulting tongue will always be a standard 6.35mm size for slotting into the rail & stile grooves. This saves time by removing the need to adjust the router bit height so that the finished edge matches the rail and stile grooves. With a straight bevelled profile, this undercutting raised panel bit is well suited to creating modern style panel doors. For router table use only.
Superior Finish and Performance
The shearing angle of the cutting edges ensure they remain in constant contact with the workpiece to allow a smoother, slicing cut which eliminates tear-out and gives a mirror finish. The bits feature right hook angles which further enhances the cut due to the fast removal of chips. These bits feature an anti-kickback design which limits the feed rate of the material being cut to decrease the likelihood of a kickback, meaning each bit conforms to strict German DIN standards to ensure maximum operator safety. ©
- Product CodeR5629
