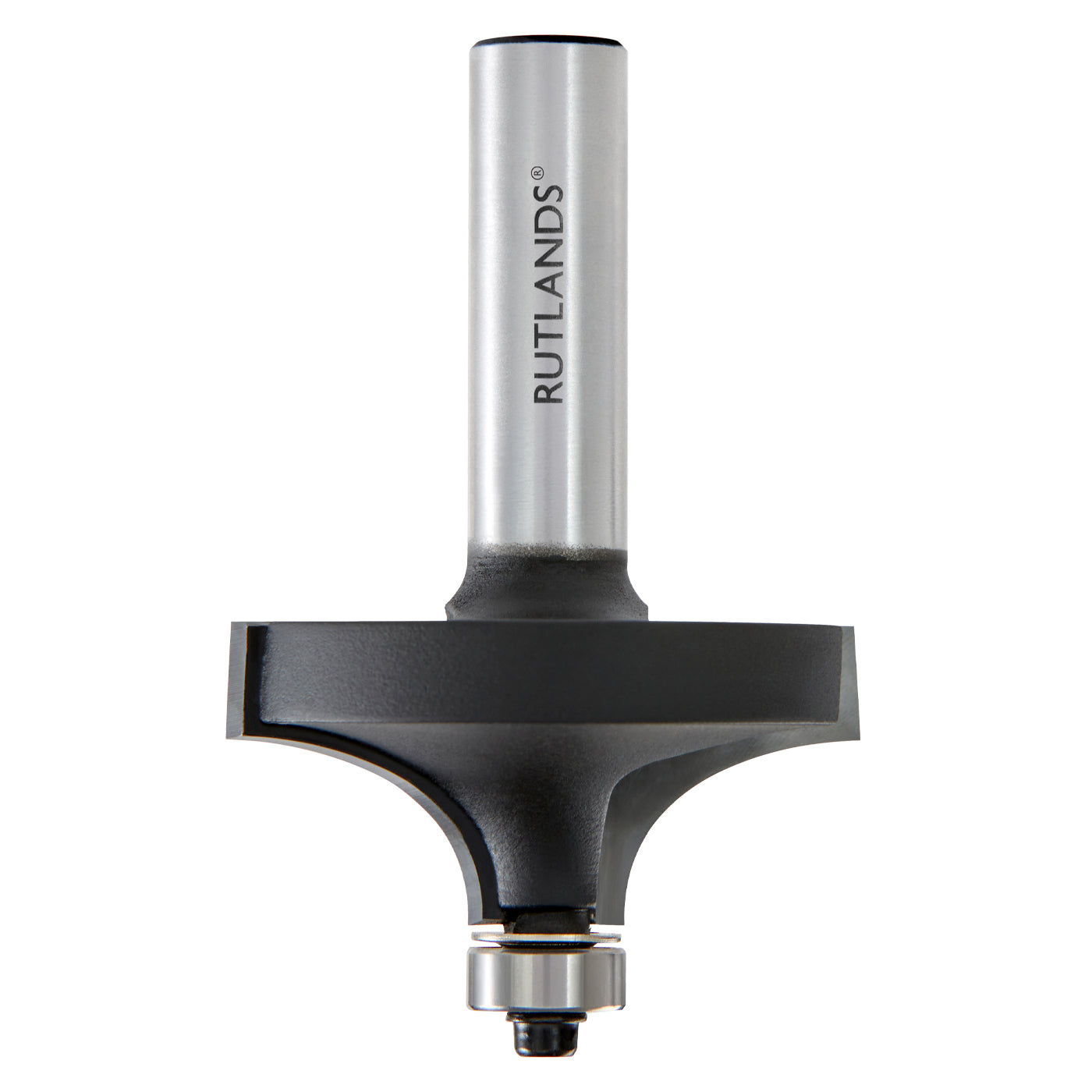

Router Bit - Table Edge - D=52mm H=24mm R=22mm L=80mm S=1/2"
- Shop with confidence with our 3 Year Warranty
- Rated excellent by Trustpilot based on 30,212 reviews
- Over 2.5 million Rutlands® premium woodworking tools sold worldwide
- 3 Year Warranty
- Used to produce a quarter ellipse profile, found on table edges, architraves and handrails
- Micro-grain tungsten carbide ensures long lasting hardness and superior edge retention
- Perfectly balanced, vibration free bodies for a smoother cut
- Shear angle blades slice the wood for a feather free finish
- Anti kick back design for maximum operator safety
Each router bit features diamond ground, micro-grain tungsten carbide tipped blades. This tighter micro-grain structure means the blades offer long lasting hardness and superior edge retention. The body of each bit has been turned and then milled with uncompromising precision from a single piece of 4140 high tensile steel to give perfect balance for reduced vibration and therefore smoother cuts. 4140 steel has been chosen because of its toughness, high fatigue strength, and abrasion and impact resistance. The tungsten carbide tips are then brazed onto the bodies using induction to create an extremely strong joint that safely holds under the high stresses that occur when routing. The router bits are suitable for use on softwoods, hardwoods, veneers, laminates and composite materials.
Table Edge Bits

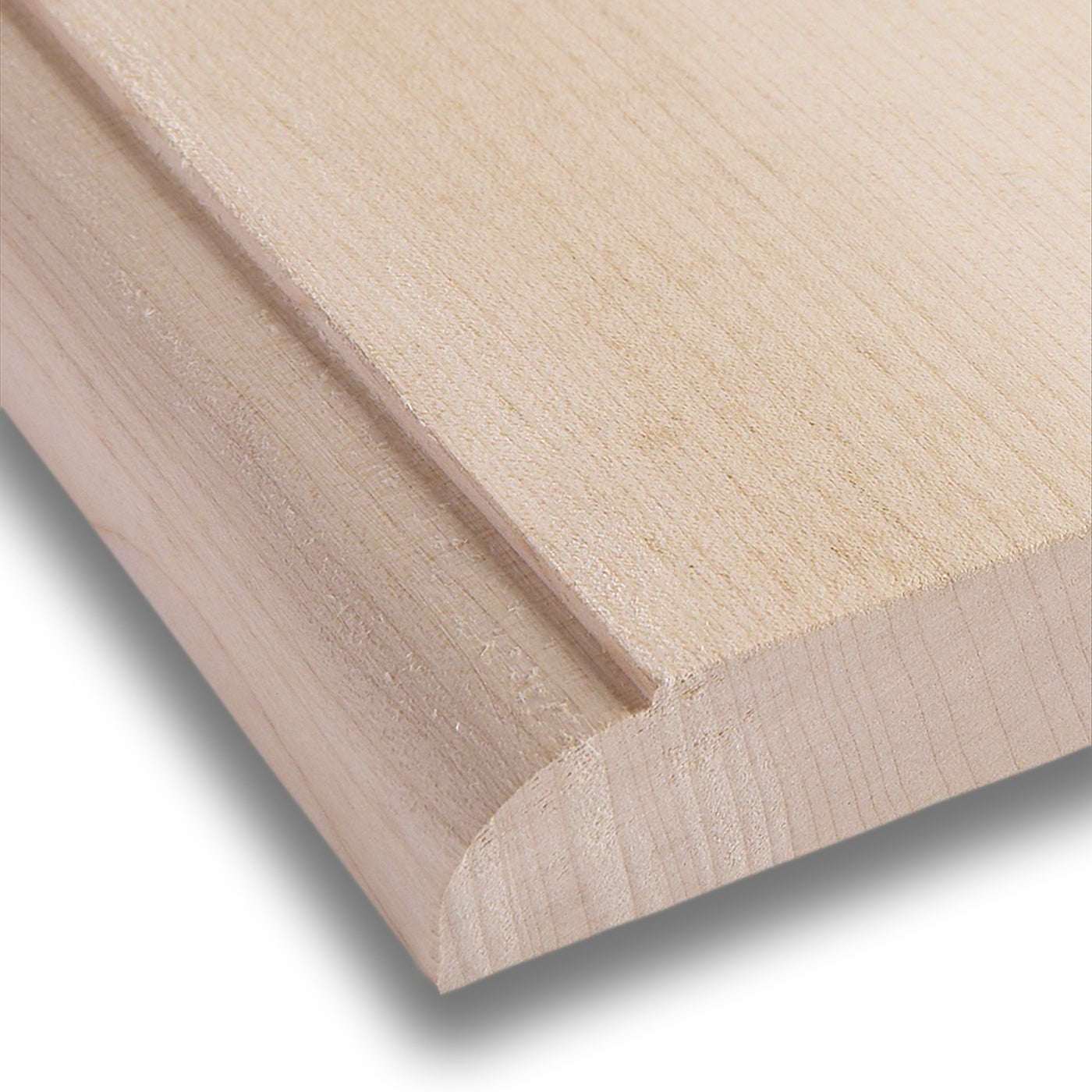

Table edge bits are used to produce a quarter ellipse profile, commonly used on table edges, architraves and handrails. Adjusting the cutting height will add or remove a stepped edge, or fillet, along the top edge.
Superior Finish and Performance
The shearing angle of the cutting edges ensure they remain in constant contact with the workpiece to allow a smoother, slicing cut which eliminates tear-out and gives a mirror finish. The bits feature right hook angles which further enhances the cut due to the fast removal of chips. These bits feature an anti-kickback design which limits the feed rate of the material being cut to decrease the likelihood of a kickback, meaning each bit conforms to strict German DIN standards to ensure maximum operator safety. ©

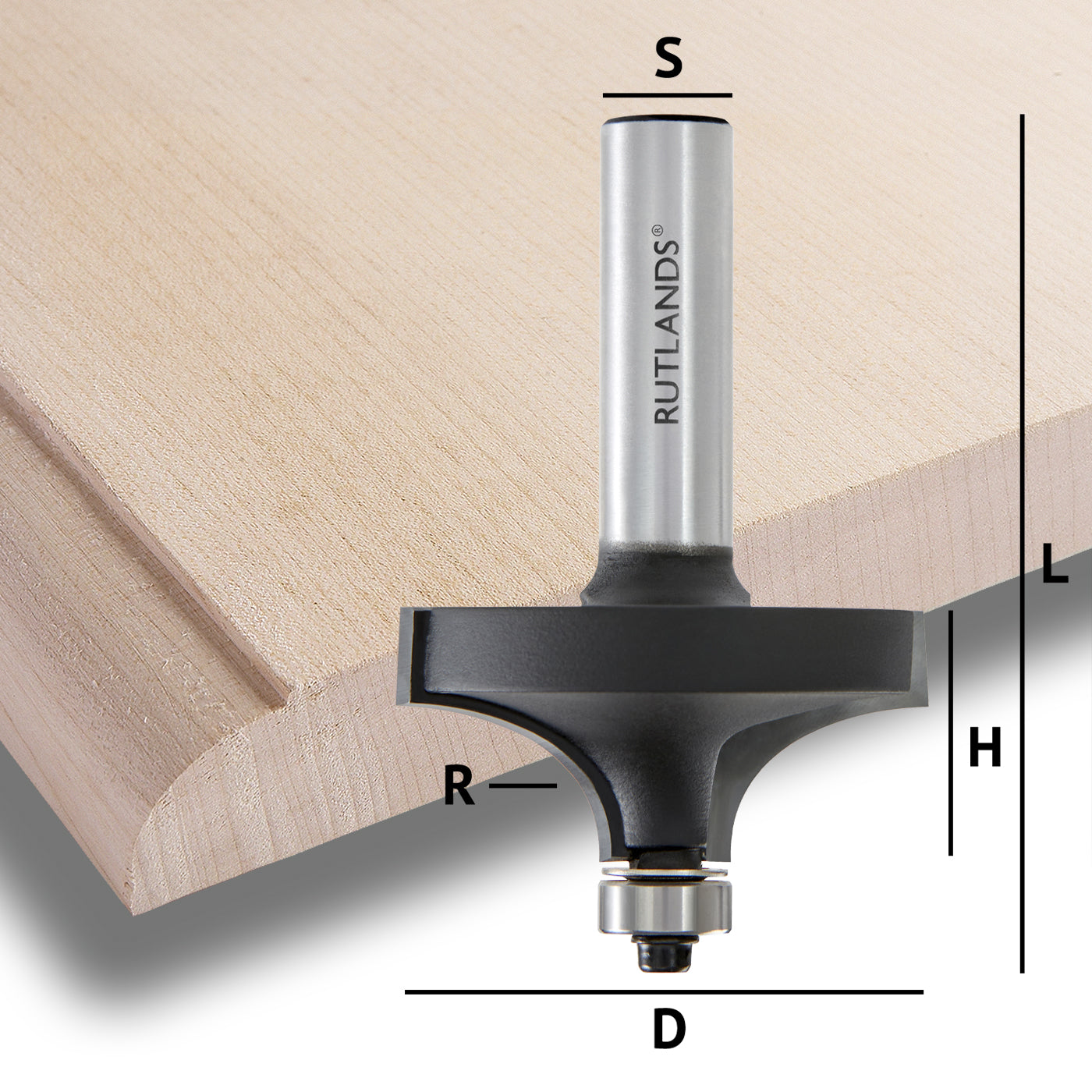

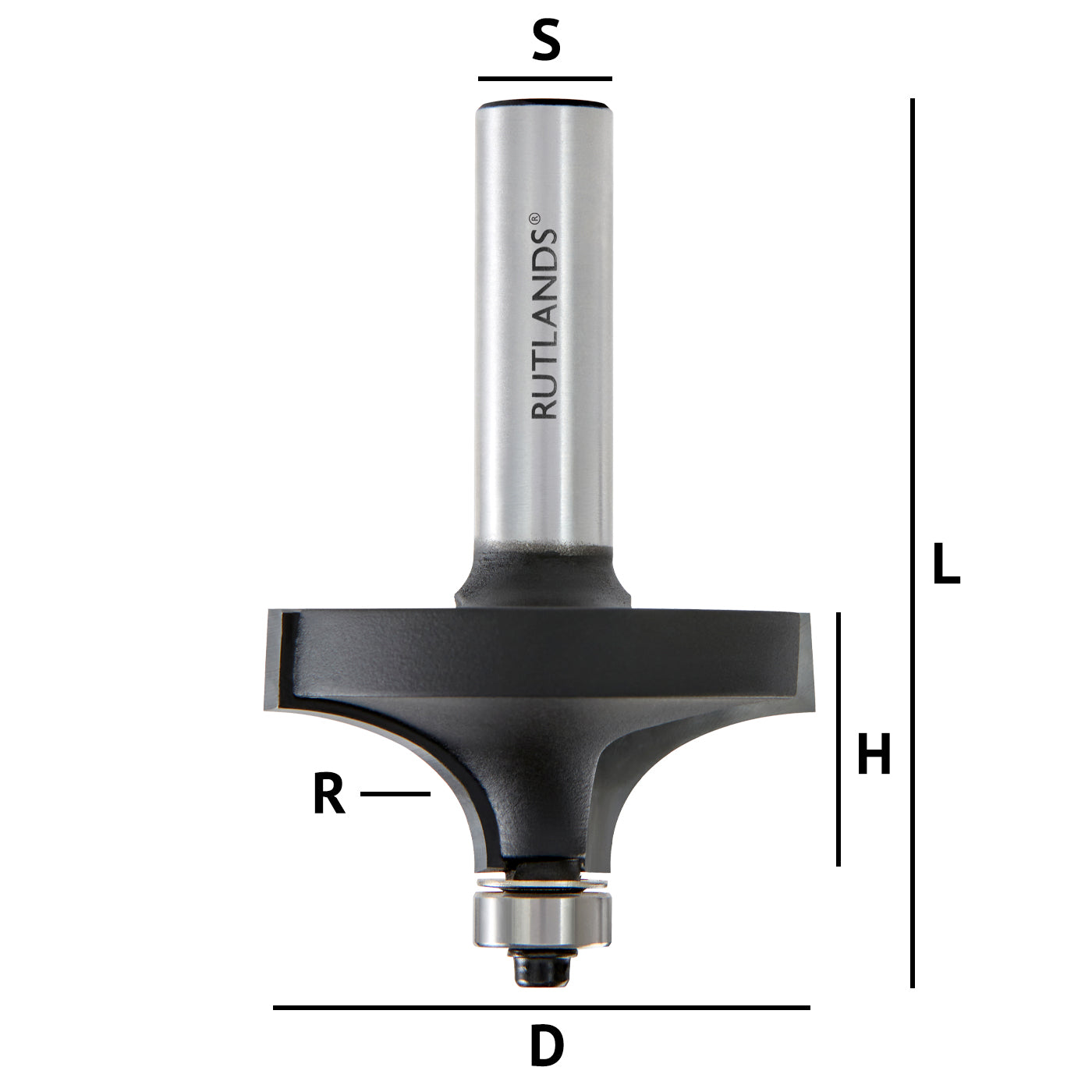

- BrandRutlands®
- Product CodeR5673
- D52mm
- H24mm
- R22mm
- L80mm
- n.max16,000
- S1/2"
