< Sign Making Jigs

Router Sign Making Kit with Router

Regular price £150.00
Regular price £0.00Sale price £150.00
A complete, professional quality sign routing package with a powerful, variable speed ¼” router. Produce horizontal, vertical and curved signs in a clean, modern font with no limitation to the length or depth of the sign.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,610 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Router Sign Making Kit with Router
Regular price £150.00
Regular price £0.00Sale price £150.00
KEY FEATURES
  • 3 Year Warranty
  • Make horizontal, vertical and curved signs with no limitation to the length or depth
  • Modern and clean looking Arial Rounded Bold font
  • Thick, impact resistant templates absorb vibration and will not flex or bow during use
  • High torque 710 watt motor maintains consistent speed under load
  • Includes everything you need to produce professional looking signs
FULL DESCRIPTION

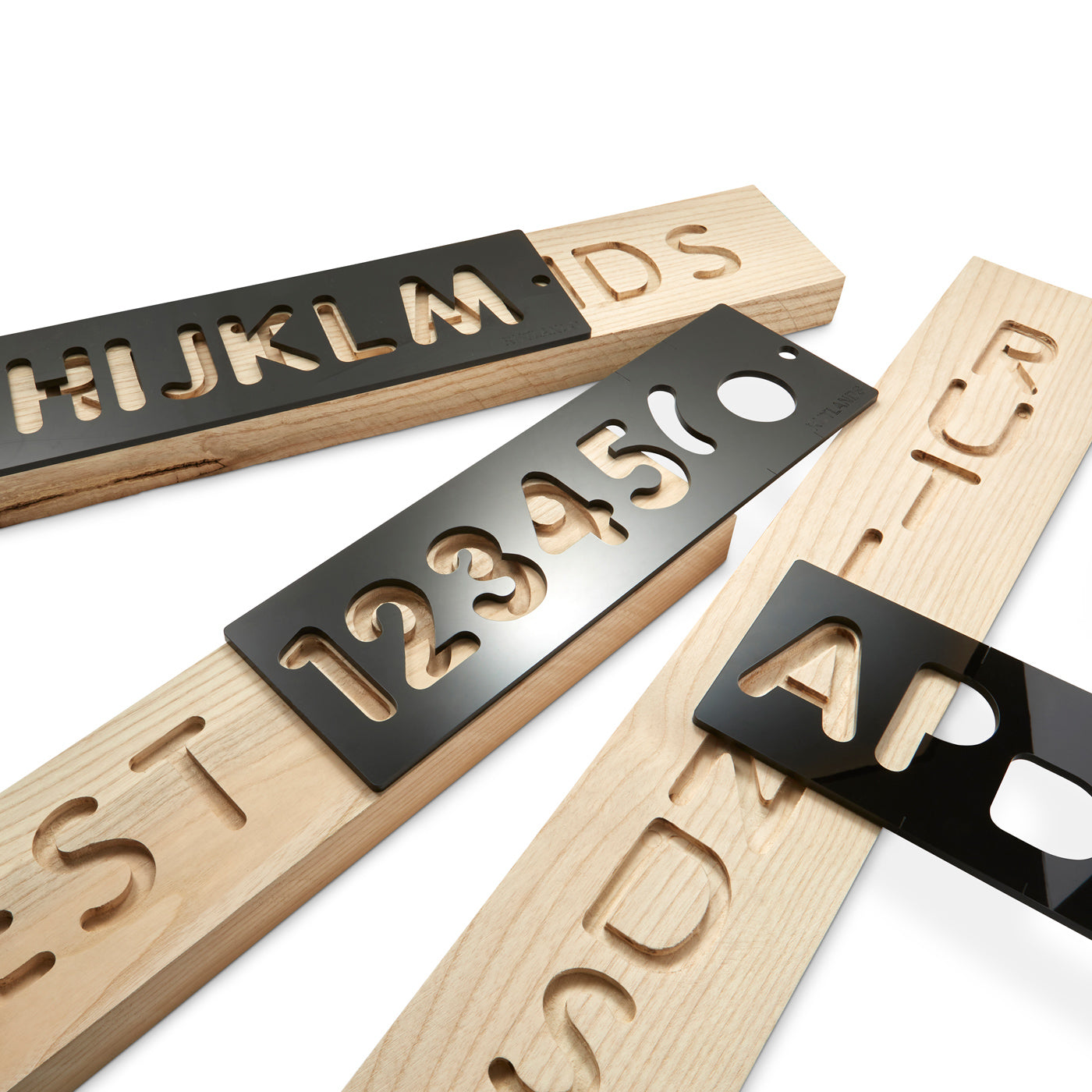

This router sign making kit with 1/4" router includes everything that you need to make beautiful signs. You can make horizontal, vertical and curved signs using either letters or numbers, or you can use a combination of both, with no limitation to the length or depth of the sign. The kit comes with six templates, four with letters (A - Z) and two with numbers (1 - 9), a phenolic router base plate with self-centering tool, 13mm solid brass guide bush and an 8.5mm TCT router bit with 1/4" shank. The templates are made from 6mm deep impact resistant polycarbonate that absorbs vibration and will not flex or bow during use. The letters and numbers measure 57mm in height and are in the clean, modern Arial Rounded bold font which features rounded corners to allow the guide bush to move smoothly around the inner edges.

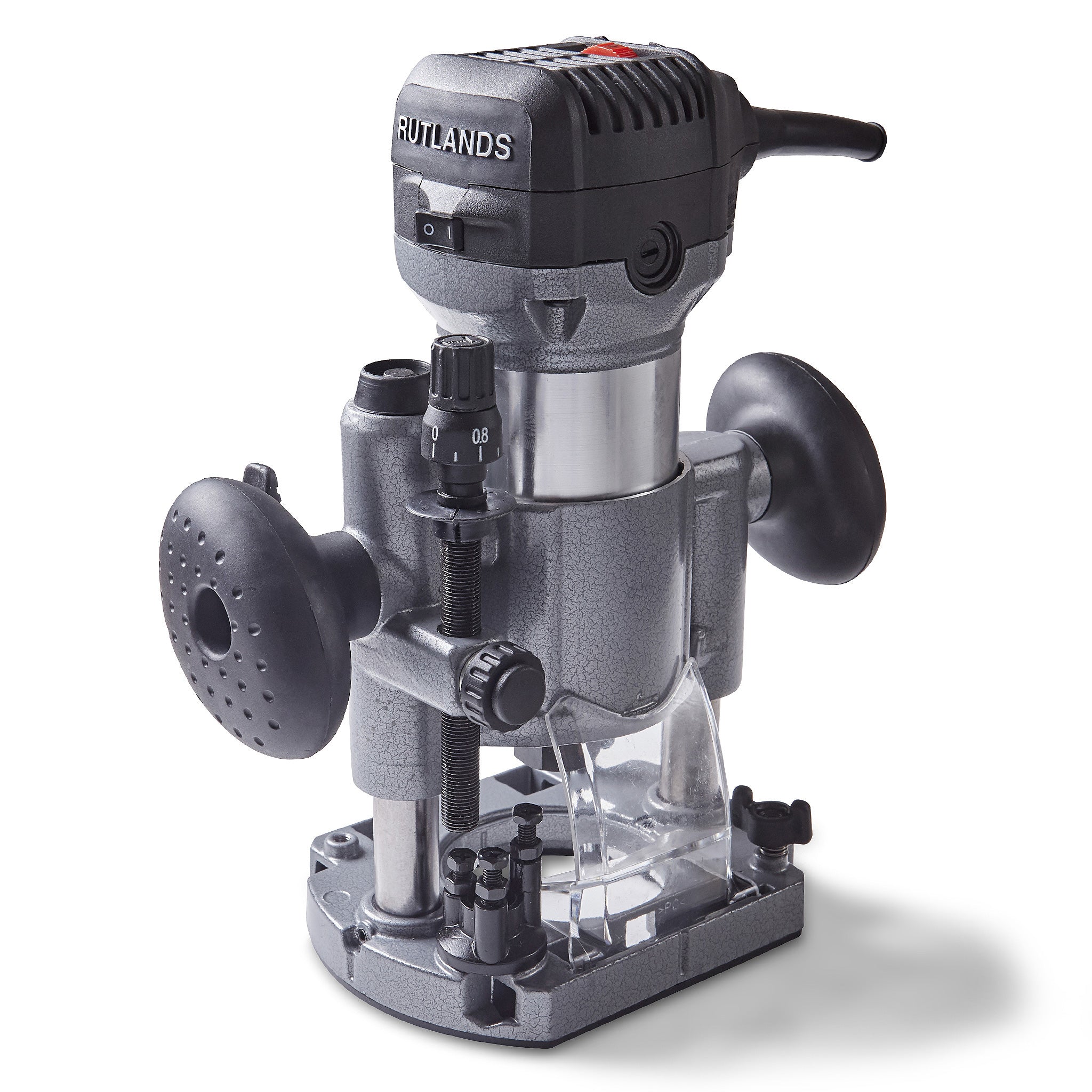

The precision router has been carefully engineered to provide a high quality and enjoyable routing experience. The powerful 710W high torque motor generates an impressive output of 580W allowing you to tackle the toughest of hardwoods with confidence. Featuring a variable speed control dial, the motor speed can be adjusted from 13,000 to 33,000 rpm. This precision router has also been designed for quiet and vibration free operation further enhancing the safety and comfort of the user. The router comes supplied with 1/4" and 3/8" collets, and dust collection is handled with the included dust nozzle which fastens securely to the base, collecting dust at the source, close to the router bit. This keeps the working area clean, maintaining the quality of your cuts for the best possible results. Also included is an adjustable side fence to guide the router parallel to the edge of the work and a spare set of motor brushes.

You will need to fit the phenolic base plate to the router which is simply a case of using the self-centering tool to centre the base to the router and then drilling the base to match the screw holes in the router. To make your sign, you mark out in pencil your wording, spacing the letters accordingly. Once you are happy with the pencil layout, set the plunge depth of your router to 2mm, securely clamp the template to your workpiece and rout out the first letter in a clockwise direction, making sure the guide bush remains in contact with the template for the duration of the pass. Once the first letter is complete, remove the clamps and place the required template over the next sketched letter.

The tungsten carbide tipped router bit is from our premium series and will allow you to rout hardwoods, softwoods and composite woods leaving a feather free, professional finish. This complete sign making kit comes highly recommended and will soon have you making beautiful house, name or number signs for family, friends or customers. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR5111
  • Router Sign Making Kit
  • Letter and Number Height57mm
  • FontArial Rounded bold
  • TCT Router Bit8.5mm diameter, 1/4" shank
  • Base Plate Size165mm x 10.5mm
  • Guide Bush13mm
  • Template Depth6mm
  • Self Centering Tool1/4" and 1/2"
  • 1/4" Router
  • Voltage230V
  • Power710W
  • Height235mm
  • Weight2.9kg
  • Collet Diameter3/8" and 1/4"
  • Dust Port Diameter35mm
  • Plunge Height40mm
  • Base Size145mm x 110mm
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.
