< Solid Carbide Coated Router Bits

Buy 2 Get 1 Free - Add 3 to bag

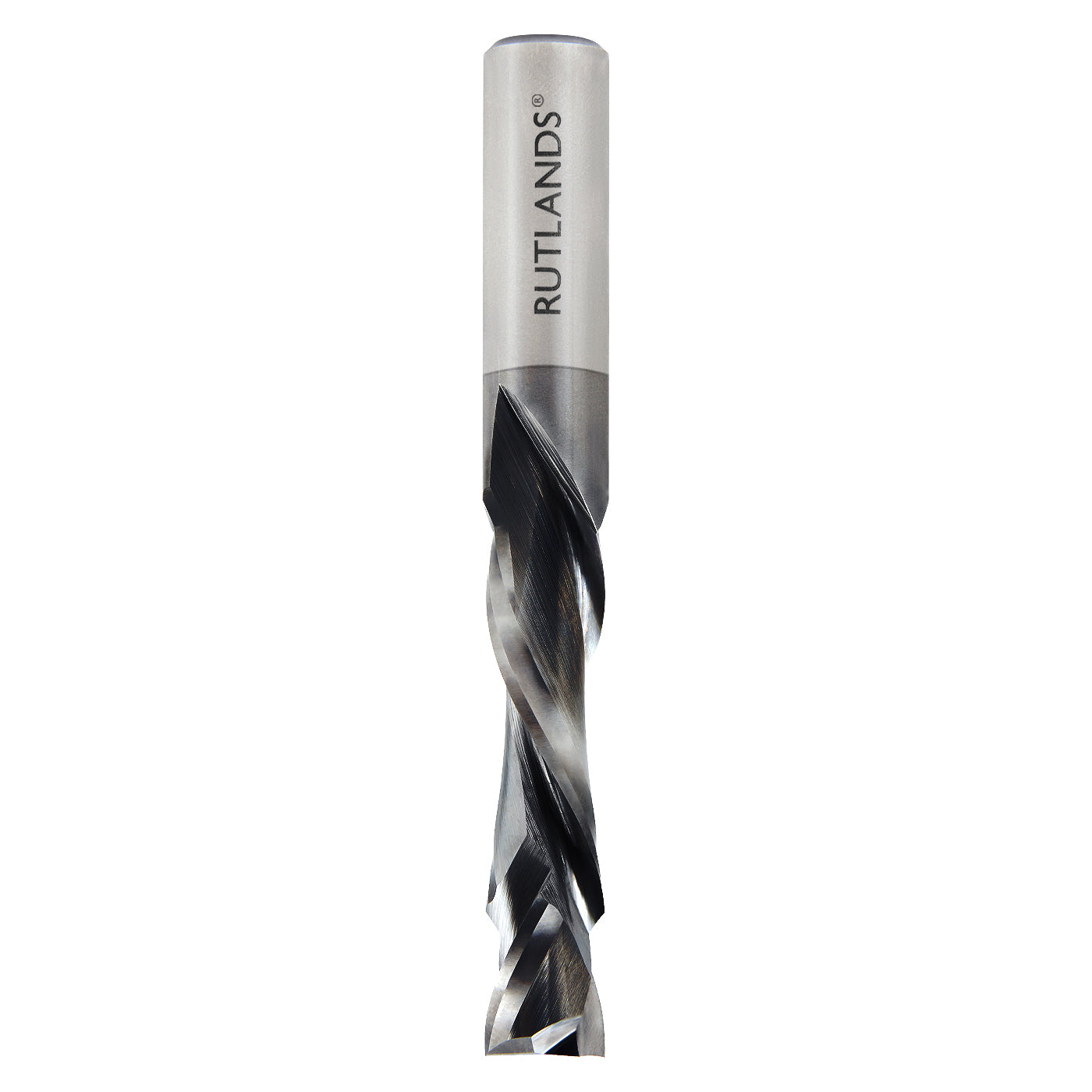

Solid Carbide Coated - Spiral Compression 2 Flute

Regular price From $67.00
Regular price Sale price From $67.00

3 total reviews

In Stock ready for shipping
Shipping details shown at checkout
With both up and down shear cutting edges, these spiral compression router bits down-cut on the top faces of material and up-cut on the bottom, pulling fibres towards the centre of the board, eliminating tearing and chipping. The hard and durable diamond like carbon coating ensures these router bits last 3 times longer than uncoated router bits.
Select Option

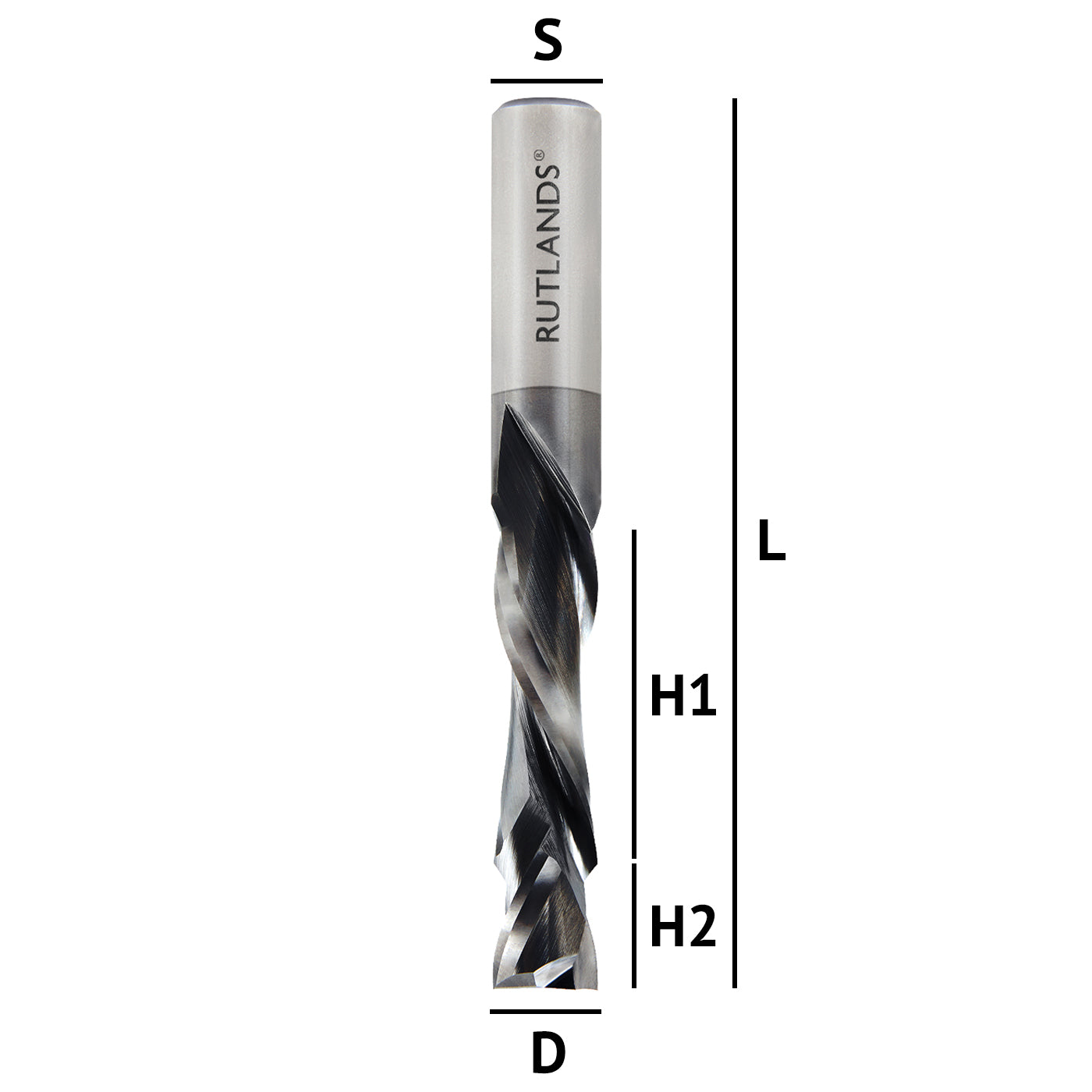

  • D=4mm H=16mm S=4mm $67.00
  • D=5mm H=20mm S=5mm $67.00
  • D=6mm H=25mm S=6mm $67.00
  • D=8mm H=32mm S=8mm $80.00
  • D=10mm H=32mm S=10mm $110.00
  • D=12mm H=42mm S=12mm $130.00
  • D=12.7mm H=35mm S=1/2" $135.00
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 27,692 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Solid Carbide Coated - Spiral Compression 2 Flute
Regular price From $67.00
Regular price Sale price From $67.00
KEY FEATURES
  • 3 Year Warranty
  • Up and down shear cutting edges on the same bit, ensuring an ultra fine finish on both faces
  • Diamond like carbon coating ensures bits last 3 times longer than uncoated
  • Precision ground, micro-grain solid tungsten carbide provides exceptional tool life
  • Solid carbide bits run cooler during use, retaining a sharper edge for longer
  • Superior edge retention ensures cleaner and more accurate cuts, for the ultimate finish
FULL DESCRIPTION
Solid Carbide Coated Router Bits
The diamond like carbon (DLC) coating is a hard and durable hybridized carbon, SP2 graphite and SP3 diamond surface finish that ensures the bits last 3 times longer than uncoated bits. The coating gives the lowest coefficient of friction which reduces sticking and makes the bits ideal for high speed nesting applications. The coating has minimal thickness of µ 1-3 which guarantees the edges of the bits are perfectly sharp and has a Vickers hardness of HV 2,500 which gives ultimate protection against wear and tear. The bits avoid excessive heat build up which would affect performance. Prior to being coated each router bit has been precision ground from a single piece of super micro-grain solid tungsten carbide. These STC DLC chrome coated router bits are suitable for use on softwoods, hardwoods, veneers, plastic materials, laminates, and composite materials.

Spiral Compression Two Flute Bits
Spiral compression two flute bits feature both up and down shear cutting edges on the same bit. This combination provides down-cutting on the top faces of material and up-cutting on the bottom. This action pulls fibres towards the centre of the board, eliminating tearing & chipping, whilst ensuring an ultra fine finish on both faces. These bits are ideal for double faced veneered, laminated & melamine boards and other abrasive material.

Superior Finish and Performance
Each spiral has been specifically designed to give the optimum cutting angle to ensure the wood is sheared cleanly as well as providing efficient chip ejection. This leads to the bits running cooler during use as solid carbide dissipates heat more uniformly, even at high speeds, meaning the edges remain as sharp as possible and are retained for longer. Each bit conforms to strict German DIN standards to ensure maximum operator safety. ©
