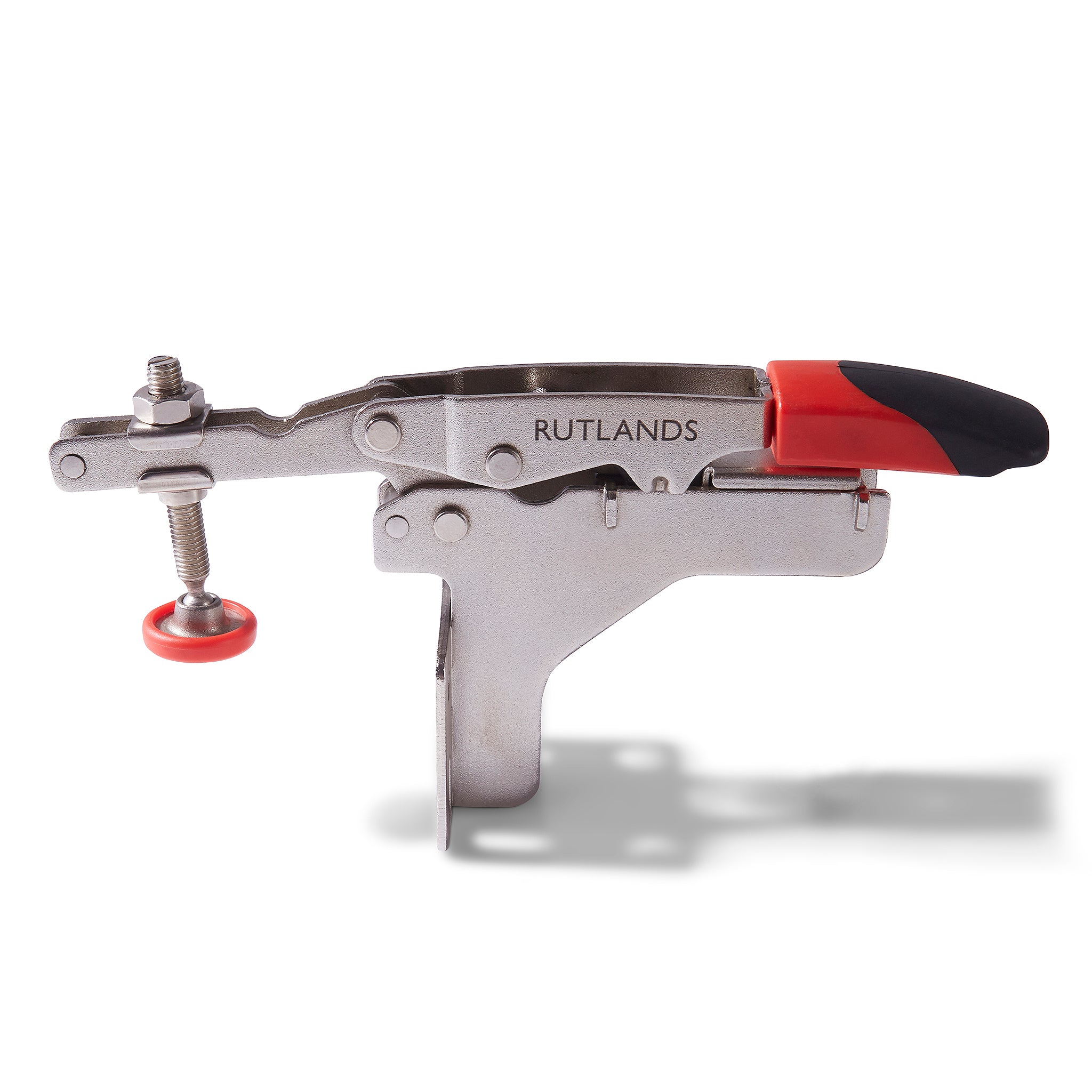

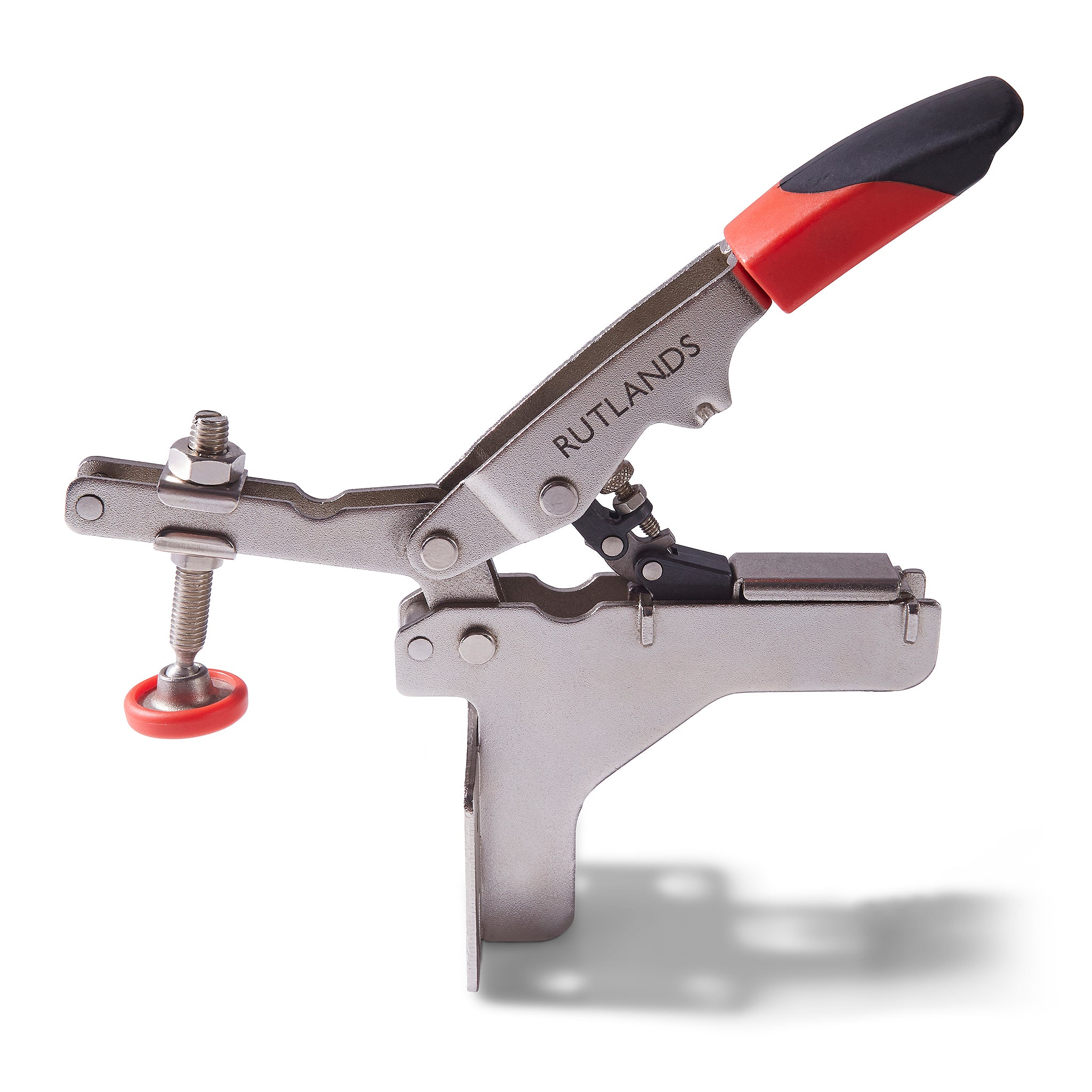

Horizontal Toggle Clamp with Angle Base Plate - 40mm

Regular price £10.00
Regular price £20.00Sale price £10.00
In Stock for delivery by
Order within

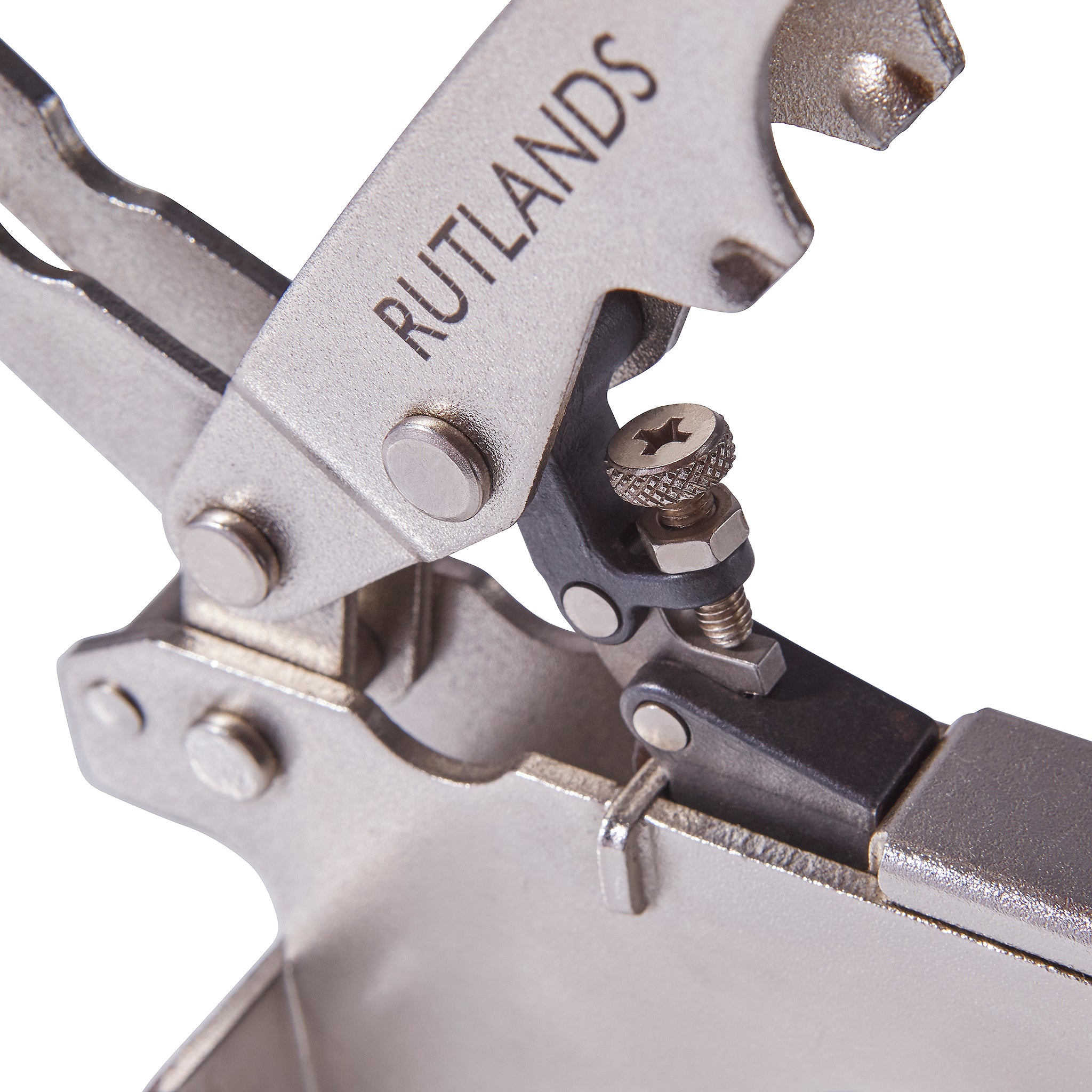

Requiring no setup, these clamps feature an angled base plate for mounting to the edge of a workbench, automatically adjusting to suit the workpiece width whilst maintaining a constant clamping pressure. Pressure can be set between 100N and 3000N, depending on the application, easily adjusted with the turn of a screw.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,581 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Horizontal Toggle Clamp with Angle Base Plate - 40mm
Regular price £10.00
Regular price £20.00Sale price £10.00
KEY FEATURES
  • 3 Year Warranty
  • Class leading clamping force of up to 3000N, for rock solid work holding
  • Automatically adjusts to suit the workpiece height, from 0mm to 40mm
  • Variable clamping force for a delicate or firm hold
  • Angle base plate with mounting holes for fixing to the edge of a workbench
  • Nickel-coated, forged steel construction prevents corrosion, for a long working life
FULL DESCRIPTION
With traditional toggle clamps considerable time is taken setting up the clamp to suit the workpiece height, there is no setup required with these auto adjusting clamps as they automatically adjust to suit the workpiece height while maintaining a constant clamping pressure. The clamping pressure can be set between 100N and 3000N depending on the application of the clamp and this can be adjusted easily with the simple turn of a screw. Toggle clamps are perfect for custom made jigs for your router tables or they are equally useful mounted to workbenches.

These clamps feature an angled base plate with standard toggle mounting holes to mount the clamp to the edge of your workbench. Constructed from nickel coated steel forgings for strength and durability each clamp features an ergonomically designed handle to allow you to easily transfer the clamping force. The clamp can be disengaged very quickly and smoothly. Each clamp features a swivelling clamping shoe which is non-marring that can accommodate irregular shaped work.

The maximum workpiece thickness the clamps can accommodate is 40mm and they have a maximum reach of 60mm. ©

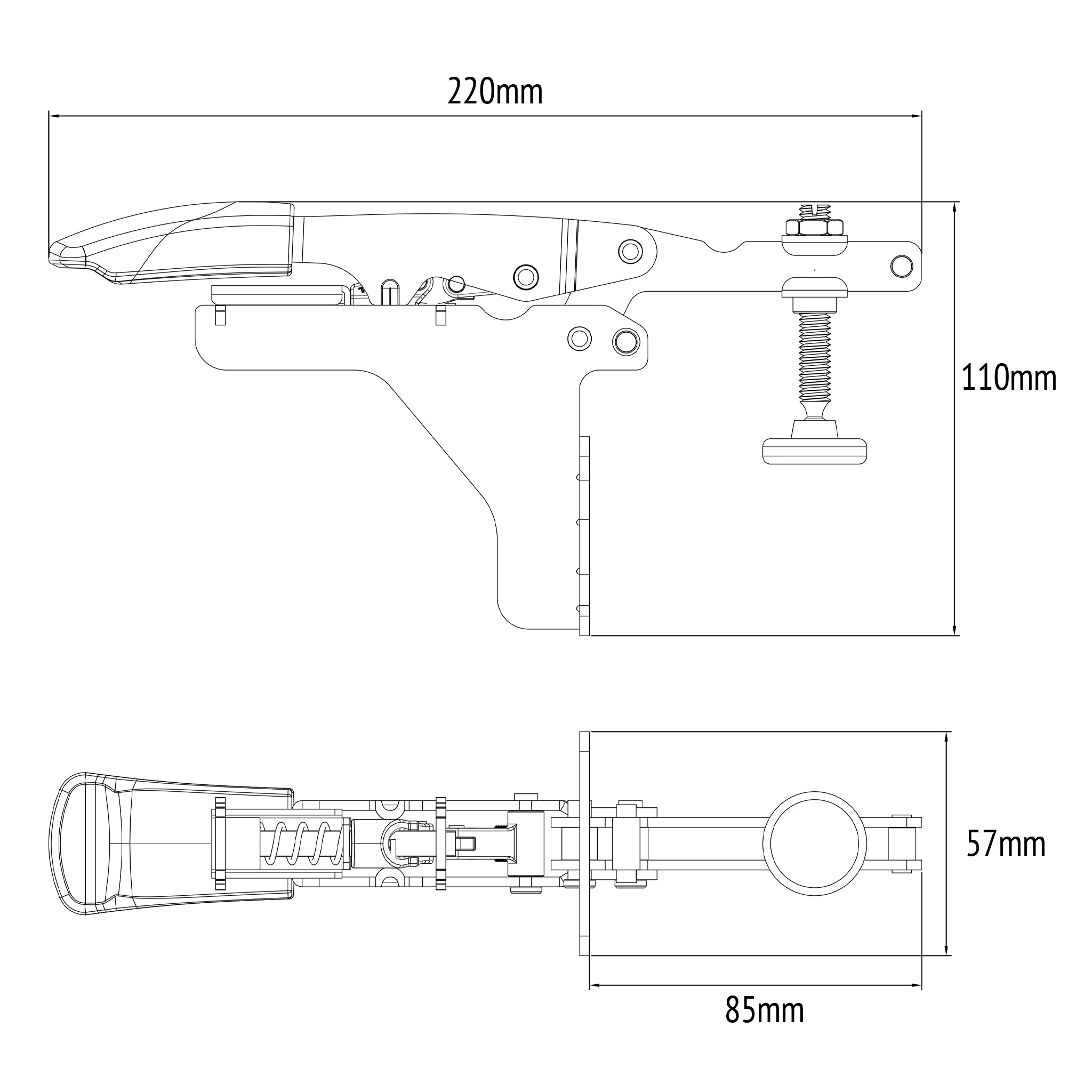

SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR3116
  • Maximum Clamping Force3000N
  • Clamping Capacity40mm
  • Maximum Reach60mm
  • Weight0.55kg
  • Height When Closed110mm
  • Height When Open220mm
  • Length When Closed220mm
  • Length When Open120mm
  • Mounting Plate Size57mm x 50mm
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.
