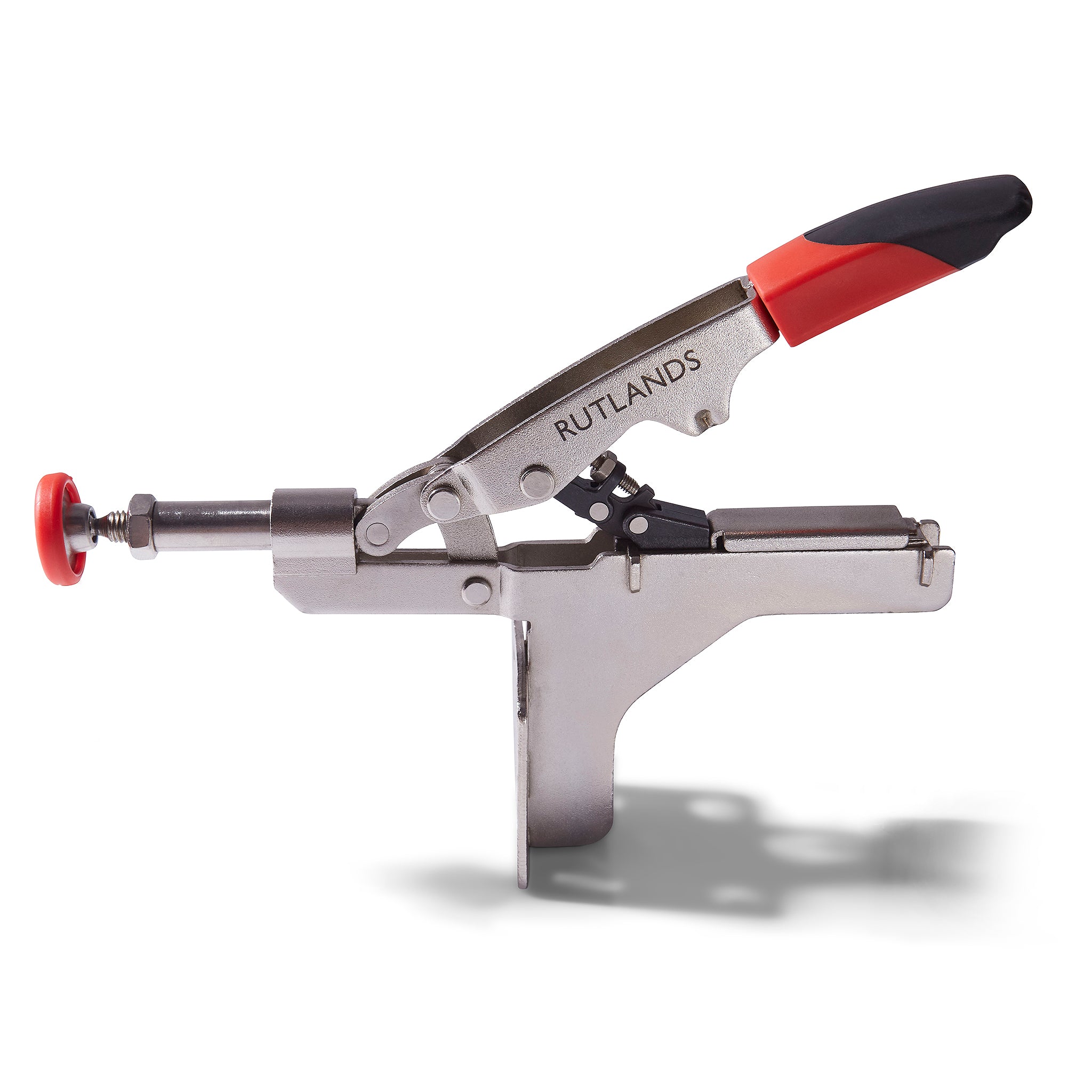

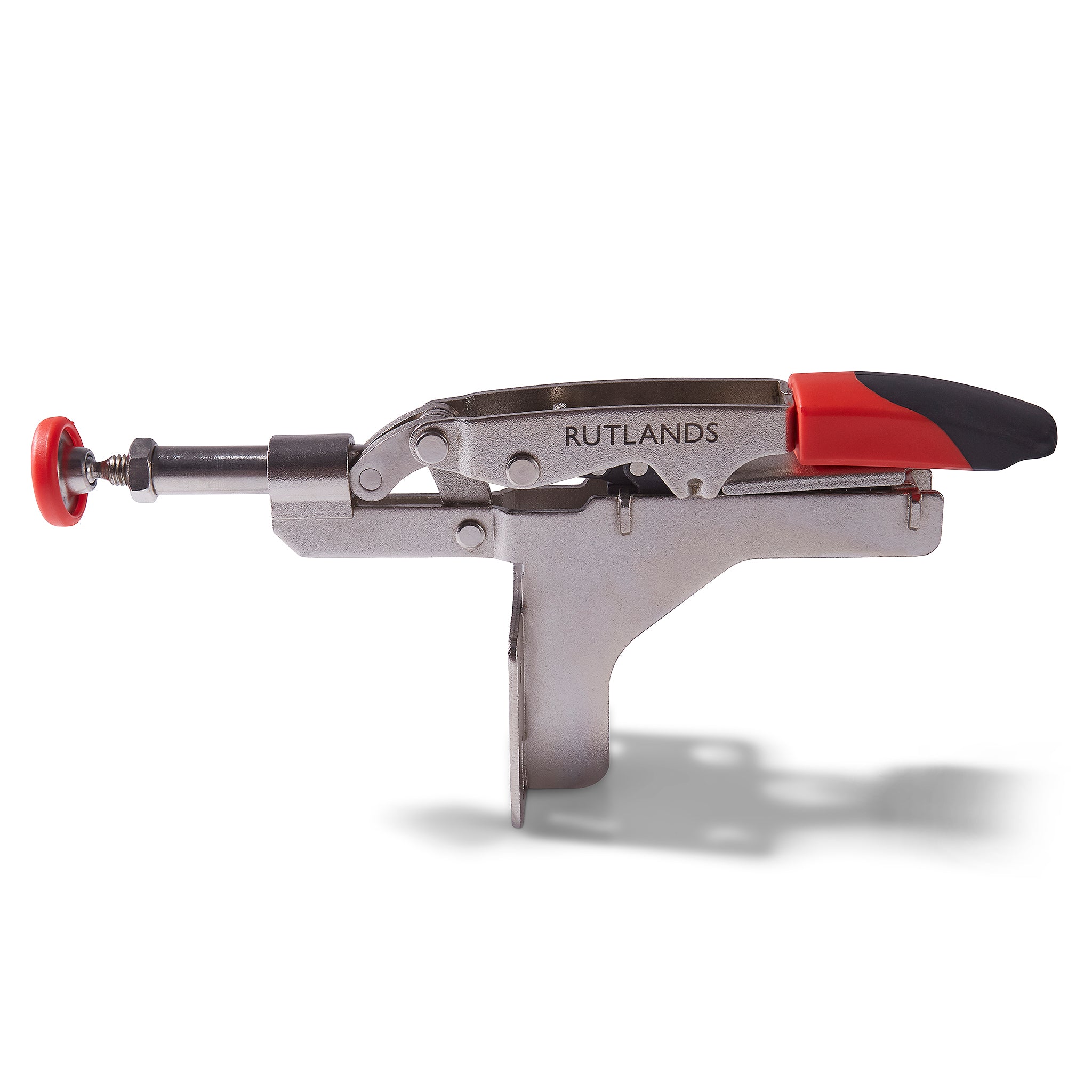

In Line Toggle Clamp with Angle Base Plate - 20mm

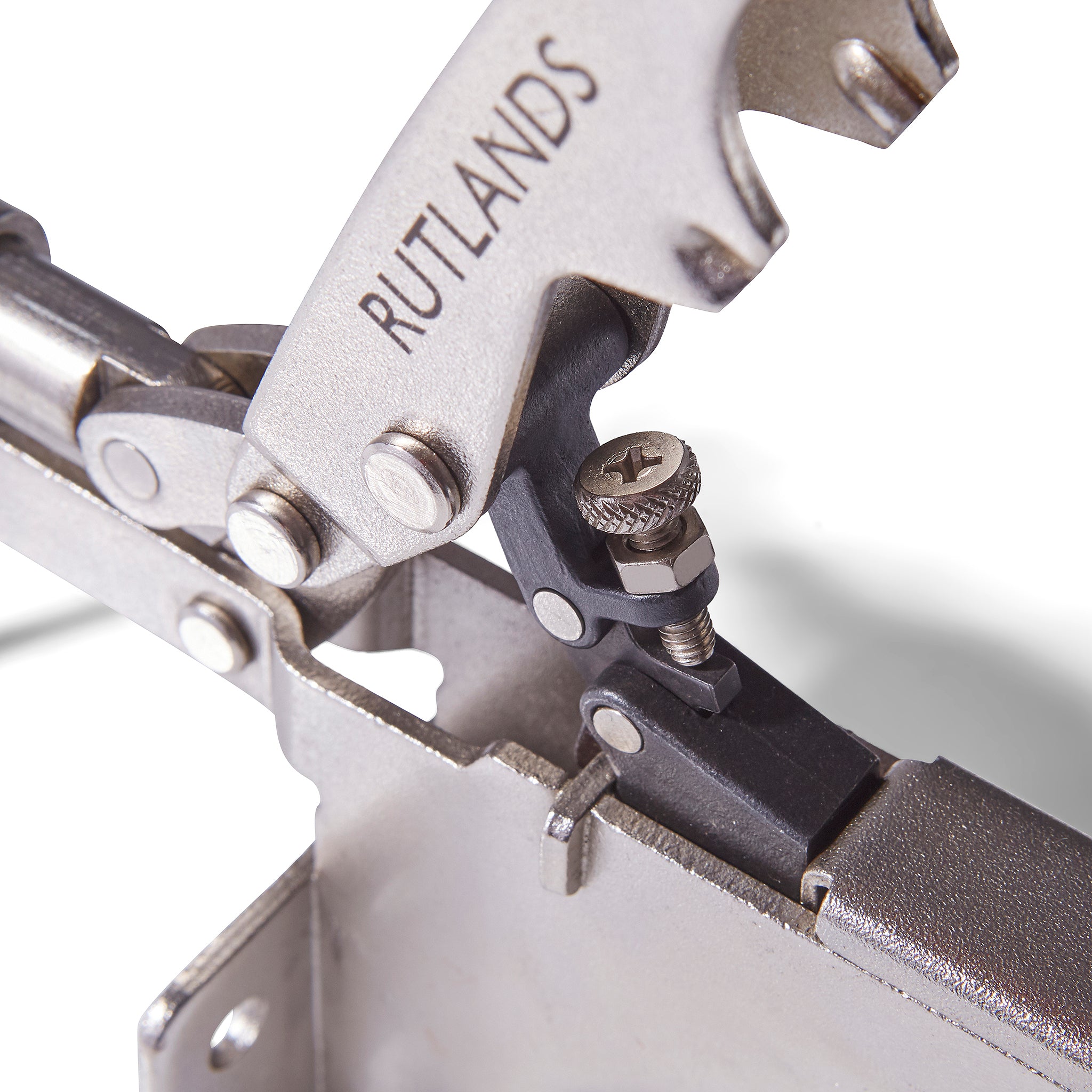

With traditional toggle clamps considerable time is taken setting up the clamp to suit the workpiece width, there is no setup required with these auto adjusting clamps as they automatically adjust to suit the workpiece width while maintaining a constant clamping pressure. The clamping pressure can be set between 100N and 3000N depending on the application of the clamp and this can be adjusted easily with the simple turn of a screw. Toggle clamps are perfect for custom made jigs for your router tables or they are equally useful mounted to workbenches.

This in line toggle clamp has a piston that can autoadjust to workpieces up to 25mm wide. There is also an internal thread for up to 30mm of manual length adjustment. These clamps feature an angled base plate with standard toggle mounting holes to mount the clamp to the edge of your workbench. Constructed from nickel coated steel forgings for strength and durability each clamp features an ergonomically designed handle to allow you to easily transfer the clamping force. The clamp can be disengaged very quickly and smoothly. Each clamp features a swivelling clamping shoe which is non-marring that can accommodate irregular shaped work. ©
