Mitre Gauge

Regular price £90.00
Regular price £0.00Sale price £90.00
In Stock for delivery by
Order within
Beautifully engineered, the steel plate of this mitre gauge features 27 precision machined stops at 5° increments, laser etched in 1° increments throughout its 120° range. Expansion discs ensure zero side play and friction-free travel in table saw and router table mitre channels, ranging from 18.5mm to 19.9mm in width.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,564 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Mitre Gauge
Regular price £90.00
Regular price £0.00Sale price £90.00
KEY FEATURES
  • 3 Year Warranty
  • For all industry standard mitre gauge channels ranging from 18.5 to 19.9mm in width
  • Removable steel disc allows for a no-play fit in industry standard 19mm T track
  • Expansion discs on the mitre bar ensure zero side play and friction-free travel
  • Steel plate has 27 precision machined V stops at 5° increments
  • Laser graduated in 1° increments with a range of plus or minus 60°
FULL DESCRIPTION

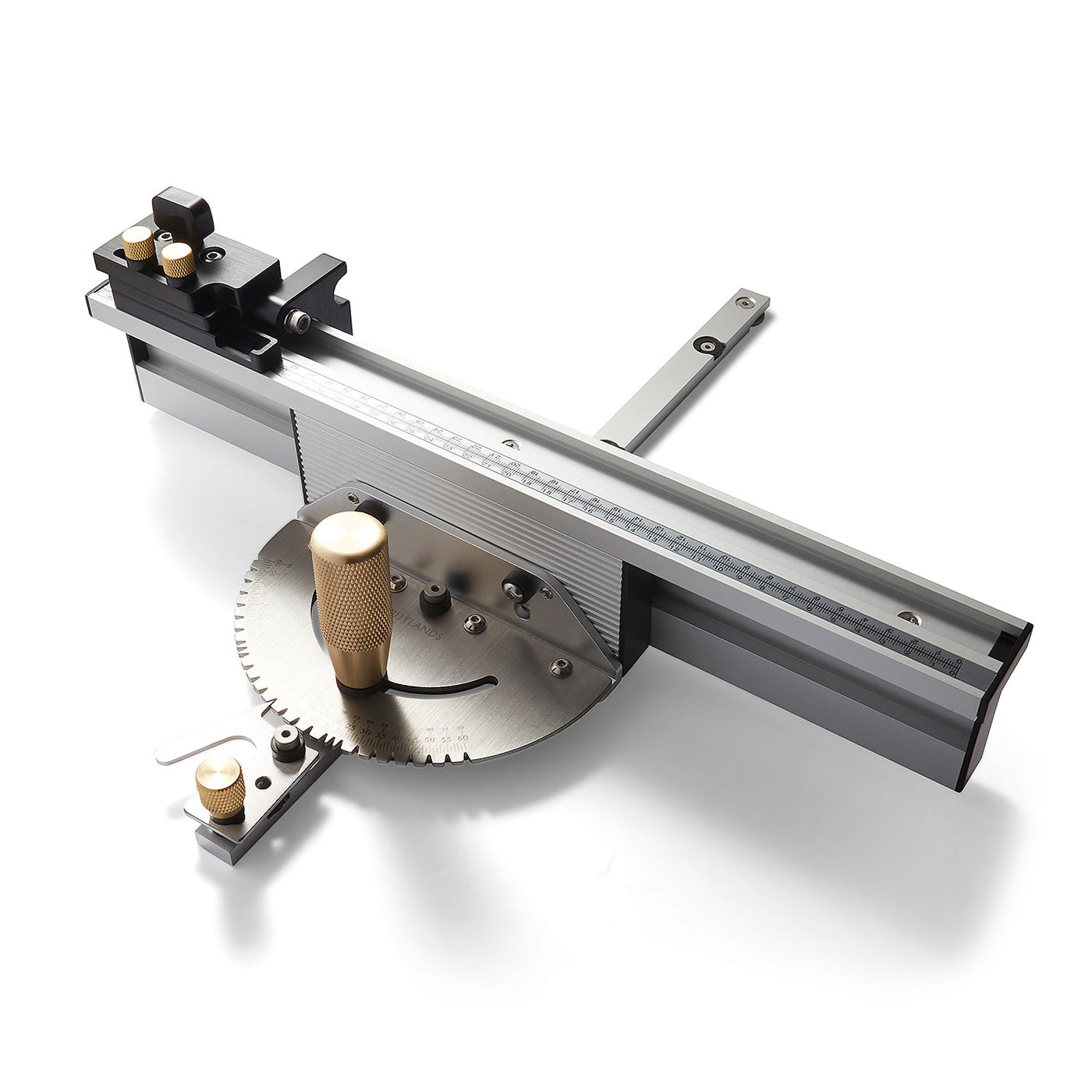

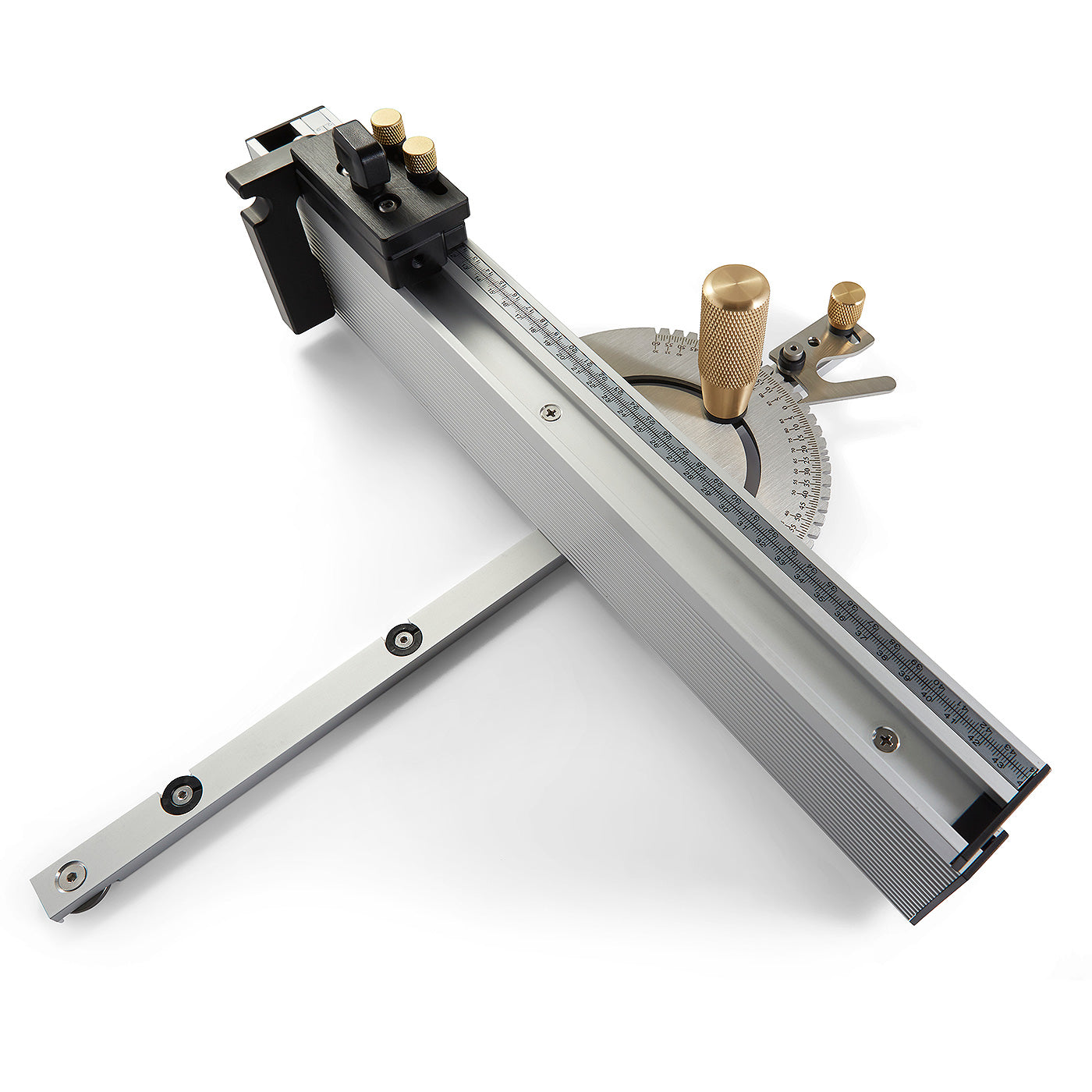

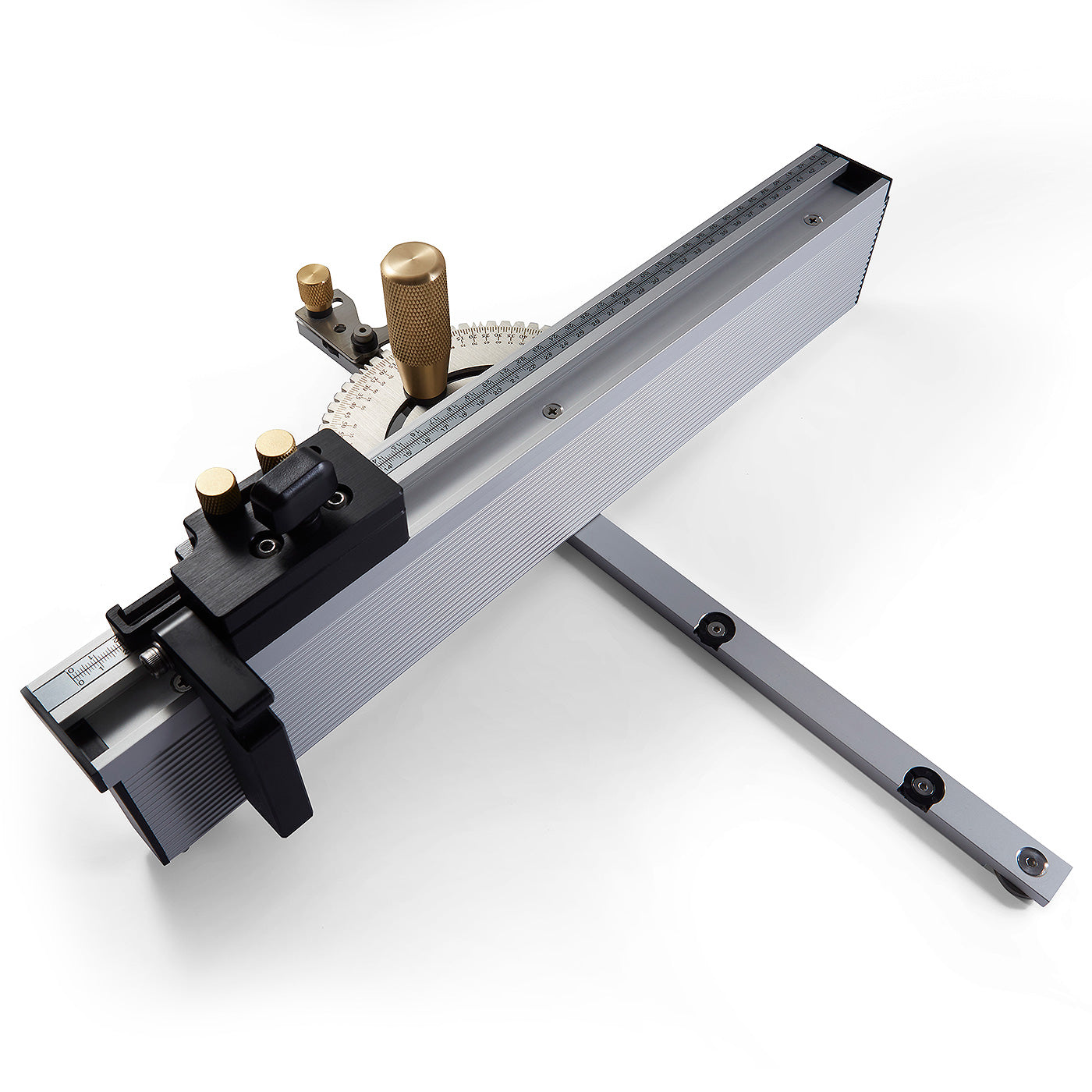

This is an exceptional mitre gauge recognised by leading woodworkers worldwide as the go to mitre gauge for saw benches and router tables. The mitre bar is manufactured from hardened anodised aluminium, measuring 18.5mm wide x 9.5mm deep x 450mm long and features a series of 4 expansion discs to ensure zero side play and friction-free travel. By adjusting the expansion discs with the simple turn of an Allen key the bar will give a no-play fit in table saw and router table mitre gauge channels ranging from 18.5mm to 19.9mm in width. In addition, a 23.5mm removable steel disc at the end of the bar allows for a no-play fit in industry standard 19mm T track.

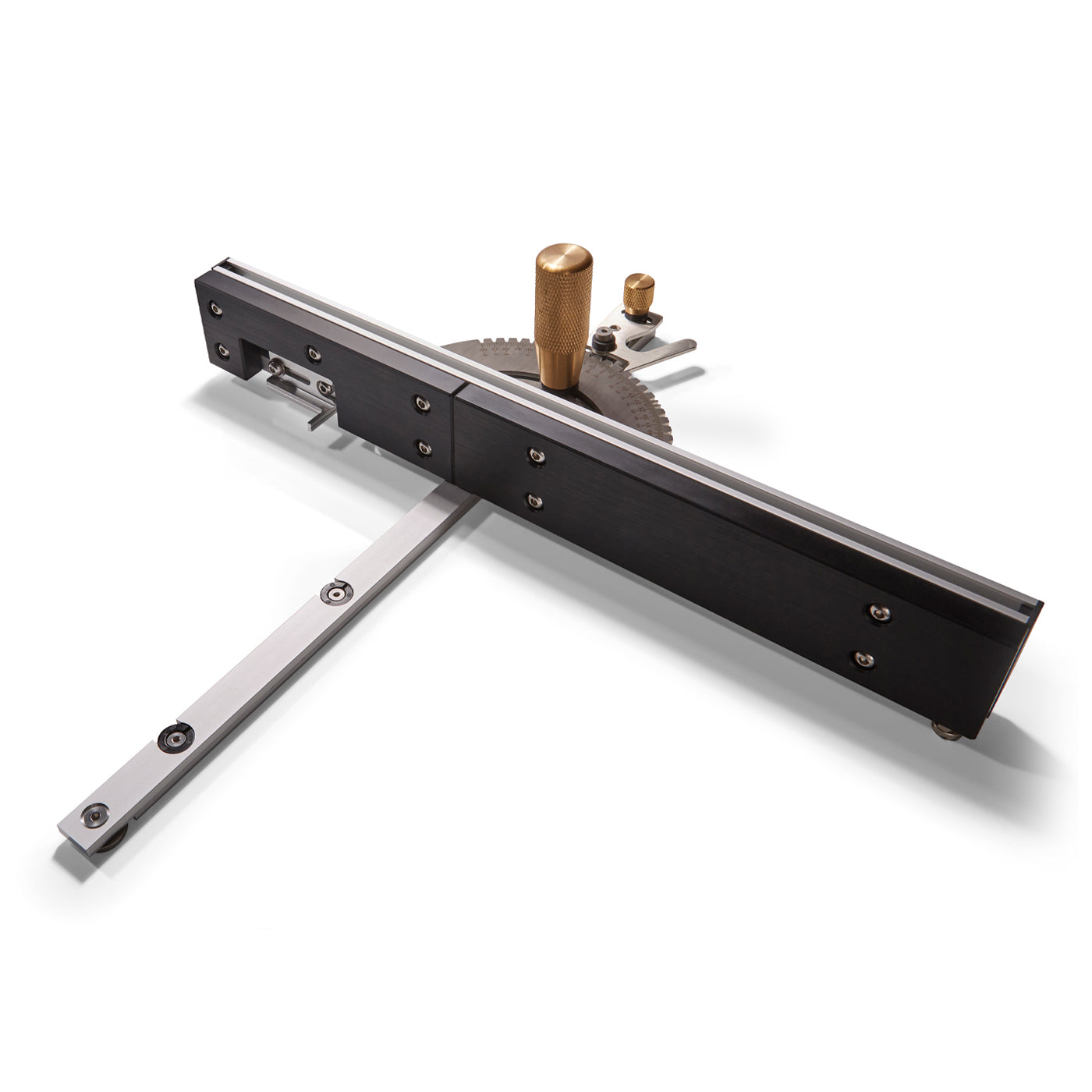

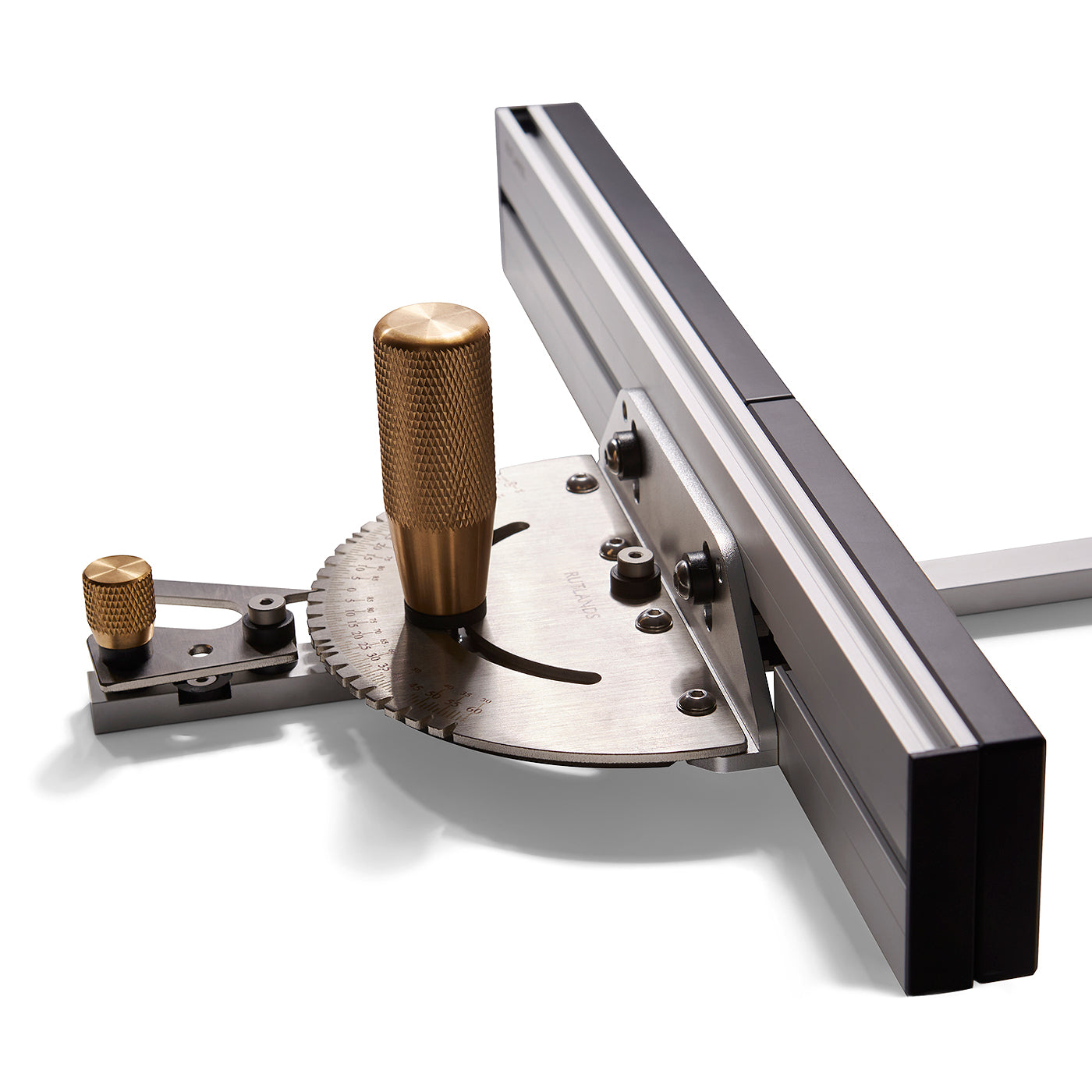

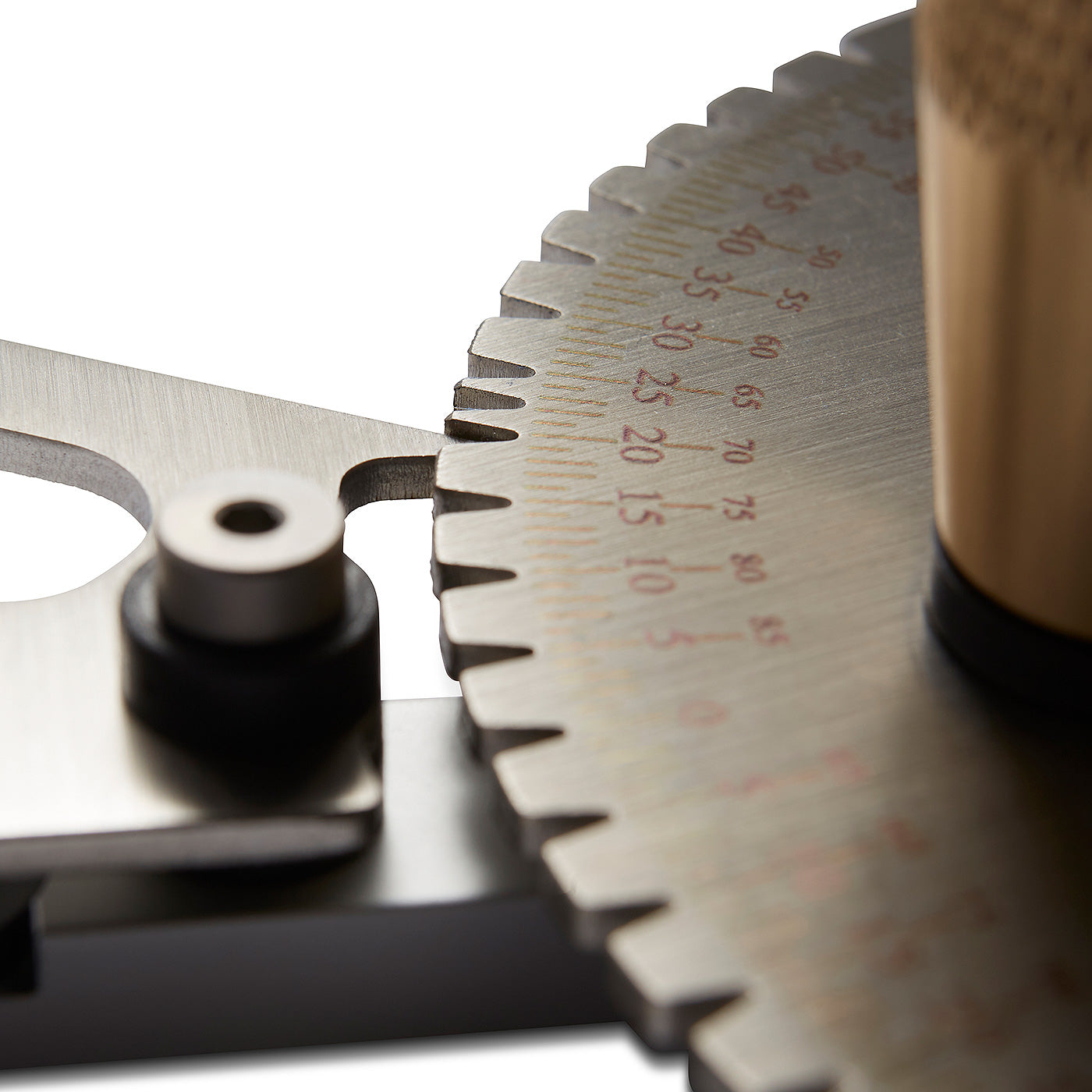

The mitre gauge is made from 4mm thick steel plate that attaches to fences or jigs with a 5mm thick machined aluminium casting. The aluminium casting features two micro adjustment screws to further calibrate the gauge if required to ensure the fence is true. Underneath the plate is a phenolic sub plate designed to prevent the scratching or marking of the machine bed. The steel plate has 27 precision machined V stops at 5° increments and features special stops at plus or minus 22.5°. The plate is laser graduated in 1° increments through the range of plus or minus 60°. The V shaped steel cursor seats perfectly in the mitre gauge V grooves and locks off with a brass knurled knob eliminating any play.

This is an extremely precise, beautifully engineered mitre gauge that would be either an excellent upgrade to any existing table saw or as a precision mitre gauge for use on a purpose made router table. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR5086
  • Mitre Gauge Bar18.5mm wide x 9.5mm deep x 450mm long
  • Mitre Gauge Channel Size18.5 to 19.9mm
  • T Track Channel Size19mm
  • Mitre Graduations1° increments
  • Mitre Stops5° increments
  • Mitre Range+/- 60°
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 11 reviews
100%
(11)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Christopher H.
A solid quality gauge which will be a

A solid quality gauge which will be a fantastic upgrade from the stock one for my saw. It was easy to set up and has no play whatsoever meaning accurate, repeatable cuts are easy to achieve.

R
Richard J.
I have been pleasantly surprised with this purchase.

I have been pleasantly surprised with this purchase. It is great build quality and was very accurate out of the box. This is for use on my DeWalt table saw and the difference between this and the stock mitre gauge is like night and day. Easy to set up and is a real pleasure to use. Would highly recommend this product and Rutlands!

J
John B.
The best mitre fence I have ever come across...

The best mitre fence I have ever come across. Beautifully made, easy to set up and a joy to use. My saw bench and band saw are both of European manufacture (Kitty and Hammer) and both have 15 x 5 mm mitre fence slots so I had to make a replacement bar using 15 x 5 mm aluminium bar. Well worth the effort.

M
Mike B.
An excellent piece of kit, well made and value for...

An excellent piece of kit, well made and value for money.

M
Mike H.
Bought as a replacement for the mitre gauge suppli...

Bought as a replacement for the mitre gauge supplied with the DeWalt DW745 table saw which was basic and a slack fit. The Rutlands Premium Mitre Gauge fits perfectly into the 19mm T track with no play. Once set up (there is some straightforward assembly required out of the box), it works perfectly and so far 90 and 45 degree cuts have been really accurate when tested with a Trend digital angle finder. It feels sturdy and well made in use and so much better than the basic mitre gauges you seem to get with most table saws.

Mitre Gauge

Friction-free, no play travel

Mitre bar expansion discs ensure zero side play and friction-free travel.
