Plunge Saw with 1.4m Guide Rail

Name: Plunge Saw with 1.4m Guide Rail
Brand: Rutlands®
SKU: R1647
Price: 150.00 GBP
Availability: InStock

£150.00

In Stock for delivery by

Order within

The Rutlands® corded plunge saw comes with a 1.4m guide rail and features a high torque, 1200W motor that maintains consistent speed and power under load. A three position blade mode dial allows quick switching between scoring cuts, free plunging and blade change modes. The supplied ultra-thin, 1.6mm kerf blade is specially designed to remove less material whilst cutting, reducing both cut time and the load on the motor. A bevel cutting range of -1° to 47° allows under/overcutting and the anti-tip baseplate ensures no lifting or tipping over.

Product variants

Shop with confidence with our 1 Year Warranty
Rated excellent by Trustpilot based on 33,010 reviews
Over 3 million Rutlands® premium woodworking tools sold worldwide

Plunge Saw with 1.4m Guide Rail

£150.00

1 Year Warranty
Powerful 1200W high torque motor ensures consistent rotational speed under load
Ultra-thin, 1.6mm kerf blade removes less material, drastically reducing cut time
Large bevel range of -1° to 47°, with anti-tip base plate to prevent lifting and tipping over
Scoring cut mode provides a shallow, 2.5mm preliminary cut to minimise chipping and tearout
Blade change mode locks the blade height for easy blade changes using the onboard hex key
Supplied with 1.4m guide rail with full length phenolic strips, for smooth, low friction travel

The Rutlands® corded plunge saw comes with a 1.4m guide rail and features a high torque, 1200W motor that maintains consistent speed and power under load. The saw features a bevel cutting range of -1° to 47° for under/overcutting, and the anti-tip lock within the baseplate locks the saw onto the guide rail, preventing the saw from lifting or tipping over. A 2-position depth stop shows the current depth of cut both with and without a guide rail. The maximum depth of cut with a guide rail is 54mm at 90° and 38mm at 45°.

A three position blade mode dial allows quick switching between scoring cuts, free plunging and blade change modes. The scoring cut setting locks the depth of cut to 2.5mm, providing a shallow, preliminary pass on melamine or veneer faced boards to minimise chipping and tear-out. The free plunge mode is selected for normal operation, whilst the blade change mode locks the blade height in position to perform quick and easy blade changes using the onboard hex key. The supplied ultra-thin, 1.6mm kerf blade is specially designed to remove less material whilst cutting, reducing the load on the motor whilst allowing you to work faster.

The 1.4m single piece guide rail features two full length rubber strips on the underside, protecting the workpiece from damage whilst increasing friction to prevent movement. A sacrificial rubber strip on the edge of the rail acts as a splinter guard, applying downward pressure onto the material to minimise tear-out. Once trimmed to the blade kerf on first use, the splinter guard indicates the exact cutting edge, allowing the guide rail to be positioned precisely at the scribe mark. The guide rail is compatible with other leading brands. Included is a 165mm, 48T thin kerf TCT blade, 1.4m guide rail, blade change key and dust port adaptor. ©

BrandRutlands®
Product CodeR1647
Voltage230V
Power1200W
Weight5.4kg
No Load Speed6,000rpm
Bevel Cutting Angles–1° to 47°
Maximum Cutting Capacity at 90°54mm
Maximum Cutting Capacity at 45°38mm
Saw Blade Diameter165mm
Saw Blade Tooth Count48T
Saw Blade Kerf1.6mm
Saw Blade Bore20mm
Dust Port Diameter34.5mm
Cable Length2.1m

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £8. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Gift Cards
Rutlands® gift cards are delivered instantly by email to the email address entered at checkout and contain a unique code for use at checkout. You can forward the email and code directly to the recipient. Visit our Gift Card page for more information.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

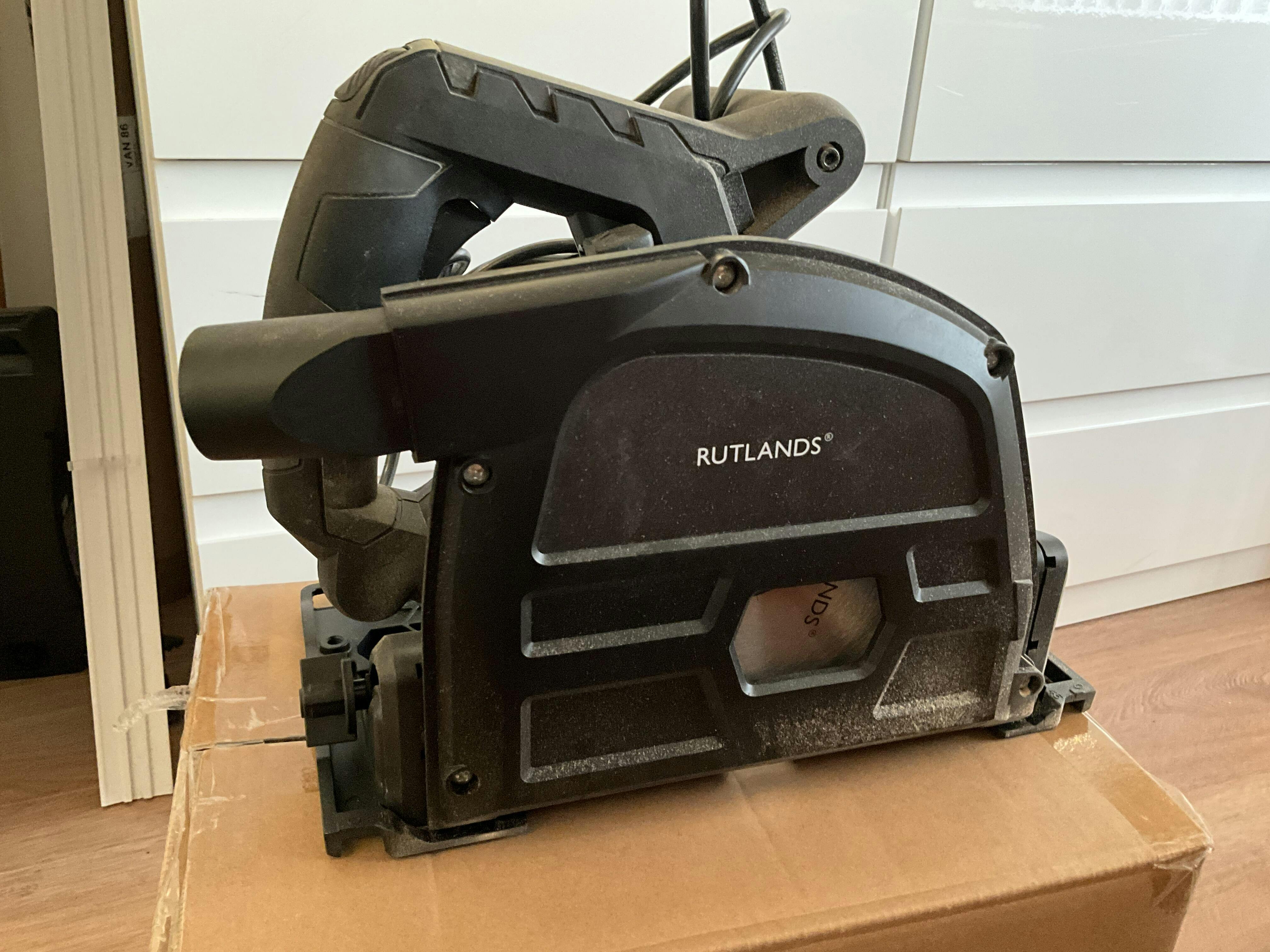

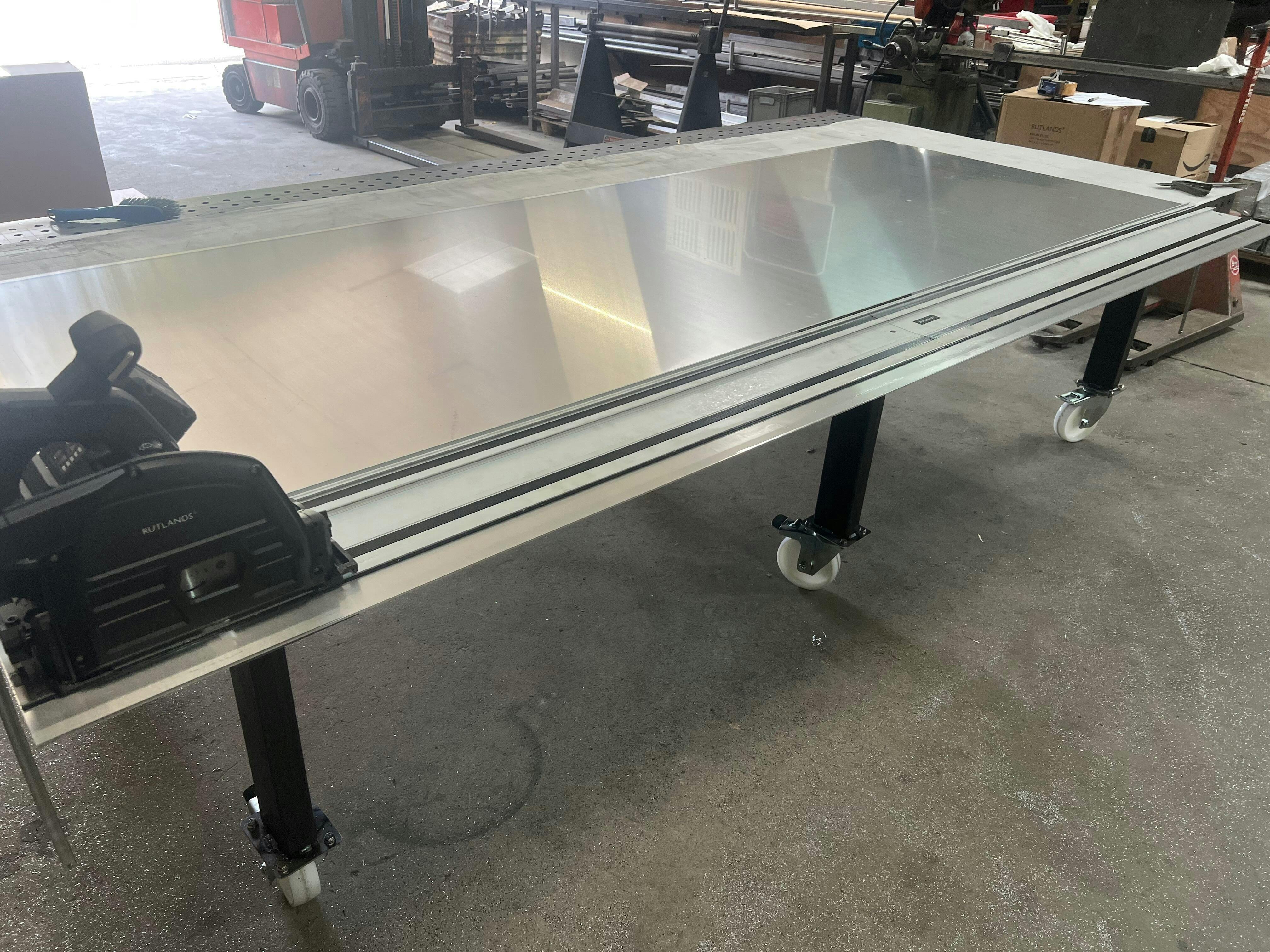

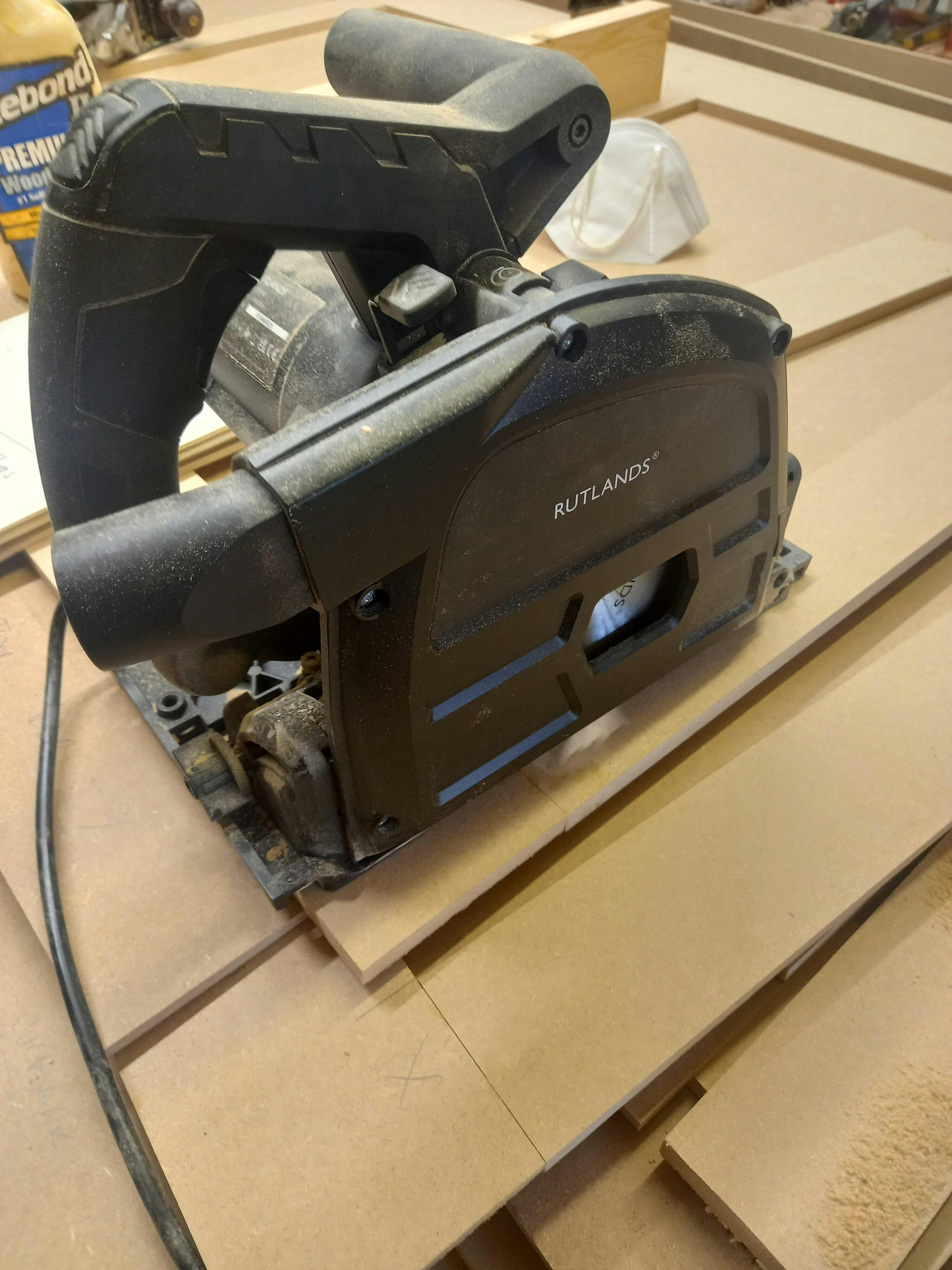

handy piece of kit

Very clean cut and not too noisy

Very pleased!

I am a complete novice to DIY and have decided to take a dive in to the deep end and build a media wall from scratch!
I had a DeWalt circular saw from the 18v XR battery range which id planned to rip down my MDF sheets with. I don't know if I was doing something wrong or if it was the saw but after first attempts the saw smoked, burnt the wood and the battery drained.
I ordered the saw from Rutlands and was very skeptical due to the price but was desperate and did not want to spend hundreds of pounds on a big name brand.
The saw is amazing. Cutting like a hot knife through butter. Set up is fast and the rail included is very good quality. Also bought another rail and the connection pack so have been able to rip up to 2.8m lengths!
Anyone on the fence, you needn't worry as this saw is perfect for home projects and hobbyists.
My very tiny criticism is that next day delivery was the only standard option for £7- this was perfect for me as was in a rush but it didn't come until the second day after ordering and the tracking was non-existant. Would have preferred it to come with DPD or a more reliable courier!

Great product

Great product. Fast delivery

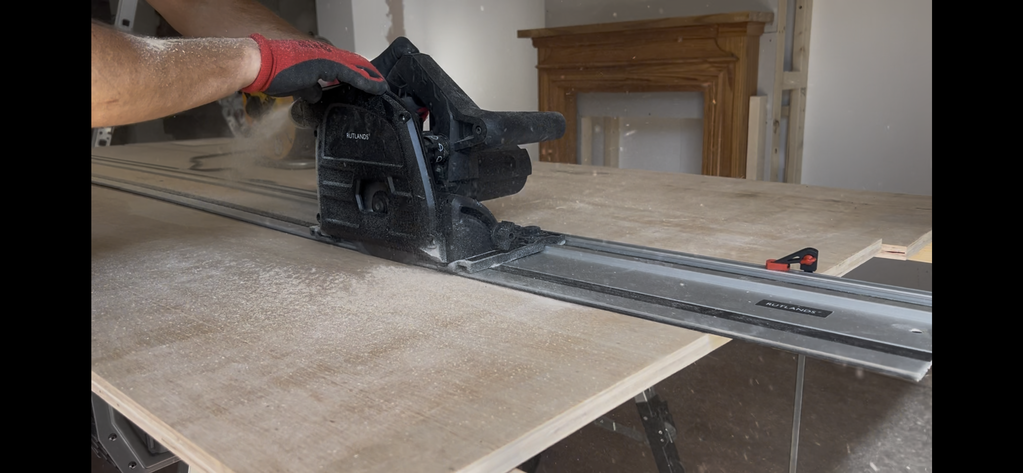

Really pleased with how this plunge saw and rail works

Really pleased with how this plunge saw and rail works. Used to use makita 36v one and this works just as well. Would recommend to anyone looking for a good alternative at a cheaper price
