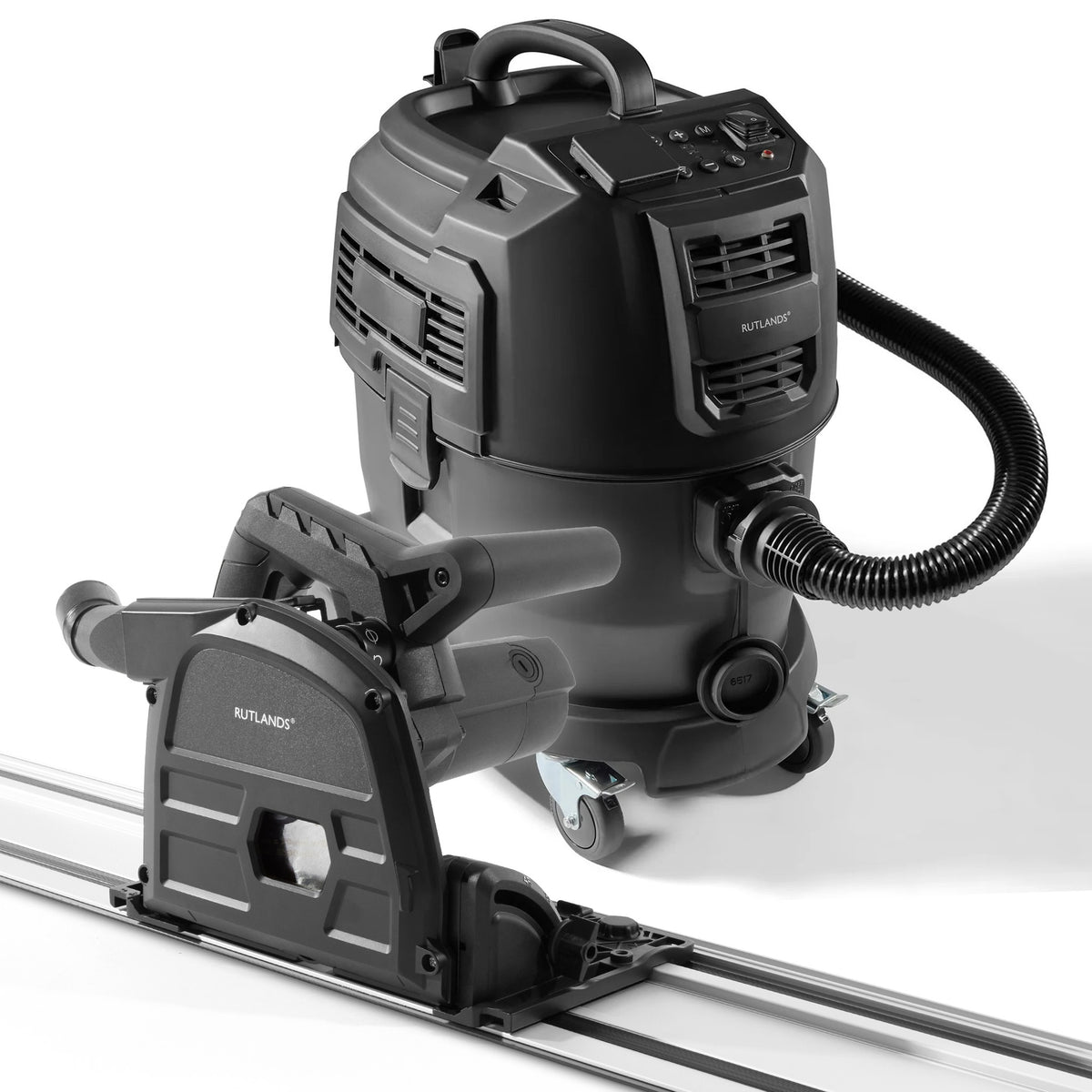

Plunge Saw with 1.4m Guide Rail and M Class Dust Extractor - 25 Litre

The Rutlands® Plunge Saw with 1.4m Guide Rail and M Class Dust Extractor – 25 Litre delivers precise, clean cutting of sheet materials and laminates with effective dust extraction. The saw’s high-torque motor maintains consistent power under load, whilst the -1° to 47° bevel range, anti-tip lock and two-position depth stop ensure accurate, controlled cutting. A three-position blade mode dial enables scoring cuts, free plunging and easy blade changes, whilst the scoring setting limits the cut to 2.5mm to minimise chipping and tear-out. The supplied 1.4m guide rail features an integrated splinter guard for clean, precise cuts, alongside rubber strips for secure positioning and workpiece protection. Paired with a portable 25-litre M Class dust extractor, featuring automatic filter cleaning every 20 seconds, auto start and four operating modes, the system delivers consistently high suction performance for a cleaner working environment.

Plunge Saw with 1.4m Guide Rail
The Rutlands® corded plunge saw comes with a 1.4m guide rail and features a high torque, 1200W motor that maintains consistent speed and power under load. The saw features a bevel cutting range of -1° to 47° for under/overcutting, and the anti-tip lock within the baseplate locks the saw onto the guide rail, preventing the saw from lifting or tipping over. A 2-position depth stop shows the current depth of cut both with and without a guide rail. The maximum depth of cut with a guide rail is 54mm at 90° and 38mm at 45°.

A three position blade mode dial allows quick switching between scoring cuts, free plunging and blade change modes. The scoring cut setting locks the depth of cut to 2.5mm, providing a shallow, preliminary pass on melamine or veneer faced boards to minimise chipping and tear-out. The free plunge mode is selected for normal operation, whilst the blade change mode locks the blade height in position to perform quick and easy blade changes using the onboard hex key. The supplied ultra-thin, 1.6mm kerf blade is specially designed to remove less material whilst cutting, reducing the load on the motor whilst allowing you to work faster.

The 1.4m single piece guide rail features two full length rubber strips on the underside, protecting the workpiece from damage whilst increasing friction to prevent movement. A sacrificial rubber strip on the edge of the rail acts as a splinter guard, applying downward pressure onto the material to minimise tear-out. Once trimmed to the blade kerf on first use, the splinter guard indicates the exact cutting edge, allowing the guide rail to be positioned precisely at the scribe mark. The guide rail is compatible with other leading brands. Included is a 165mm, 48T thin kerf TCT blade, 1.4m guide rail, blade change key and dust port adaptor. ©

M Class Dust Extractor with Auto Start and Auto Filter Cleaning - 25 Litre
The highly portable 25L M class dust extractor combines consistently high suction power, auto filter cleaning and auto start functionality, ensuring a safer, dust-free work environment. Included is a filter bag, HEPA filter, 3.5m flexible hose and telescopic tube with floor brush, round brush and small crevice attachments.

Four operating modes (manual, manual & clean, auto, auto & clean) provide the flexibility to work how you want. Auto filter cleaning pulsates the HEPA filter every 20 seconds, shifting accumulated dust to prevent clogging, prolong filter life and maintain maximum suction power. Auto start functionality activates the dust extractor simultaneously with the sander, running for a further 5 seconds after the sander is switched off to clear any dust left in the hose.

The extractor should not be operated for more than 20 minutes continuously. After 20 minutes of continuous operation, turn off the unit and allow a 15 minute resting period before next use. Clean the body, filter and dust bag after use. ©
