Plunge Saw with 2 x 1.4m Guide Rails

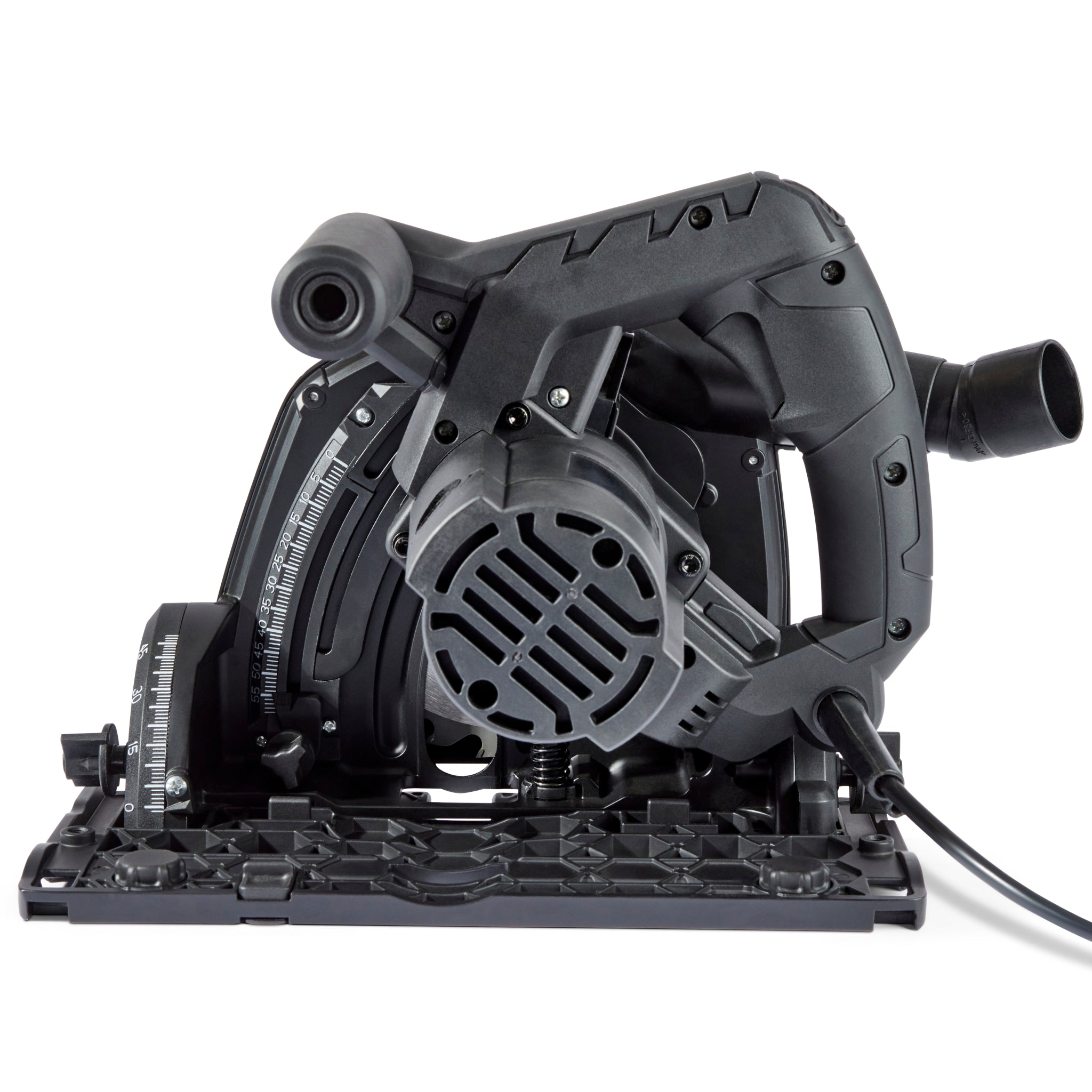

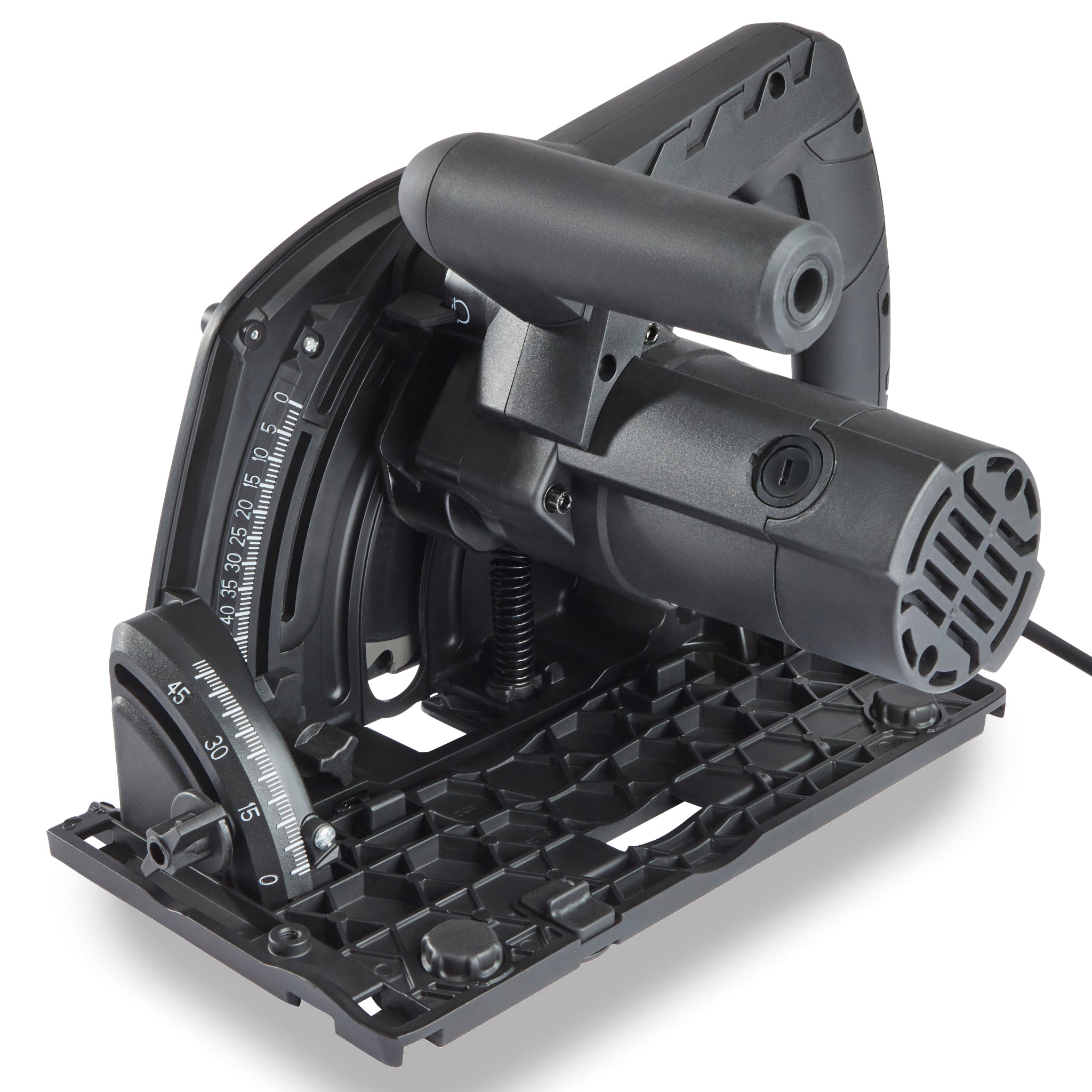

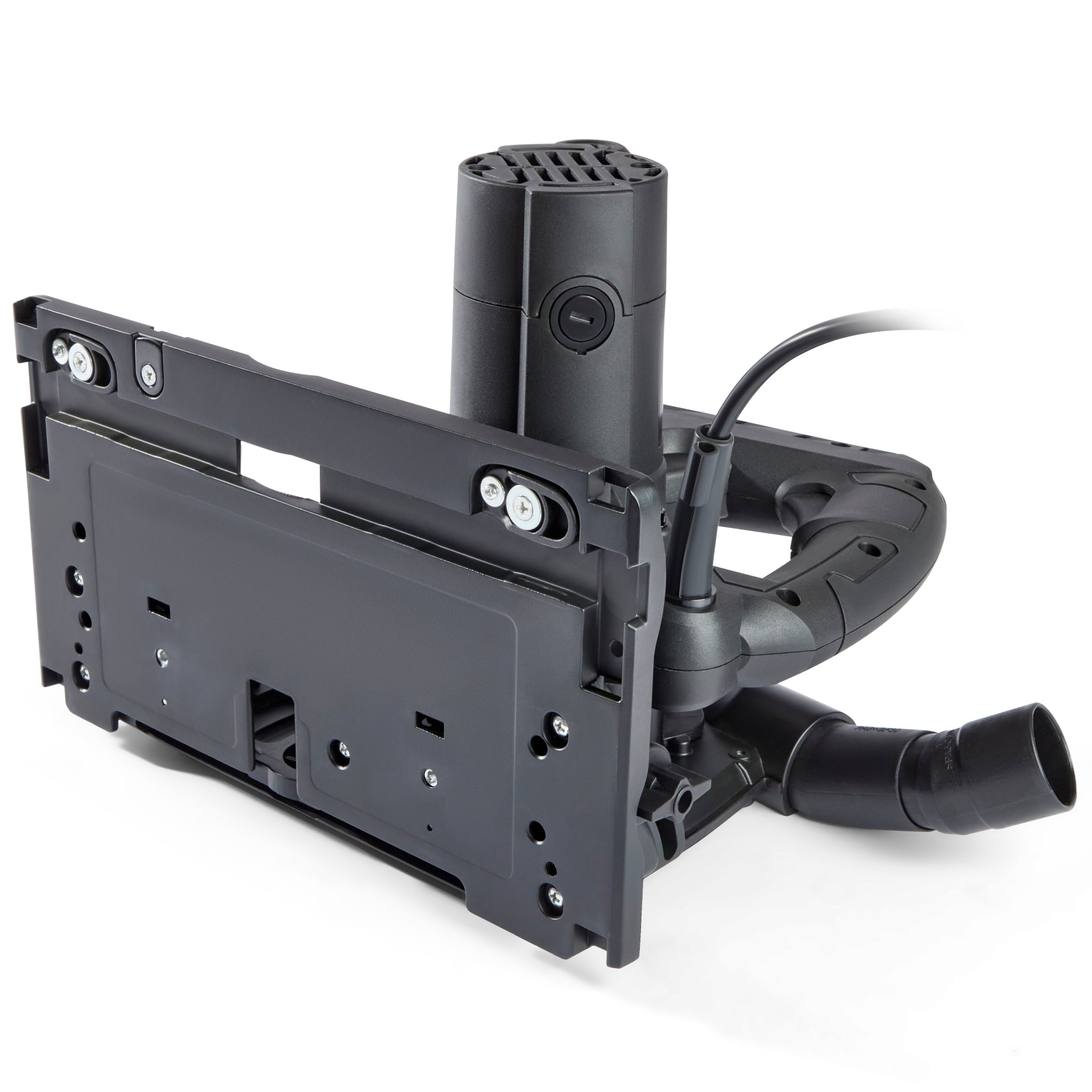

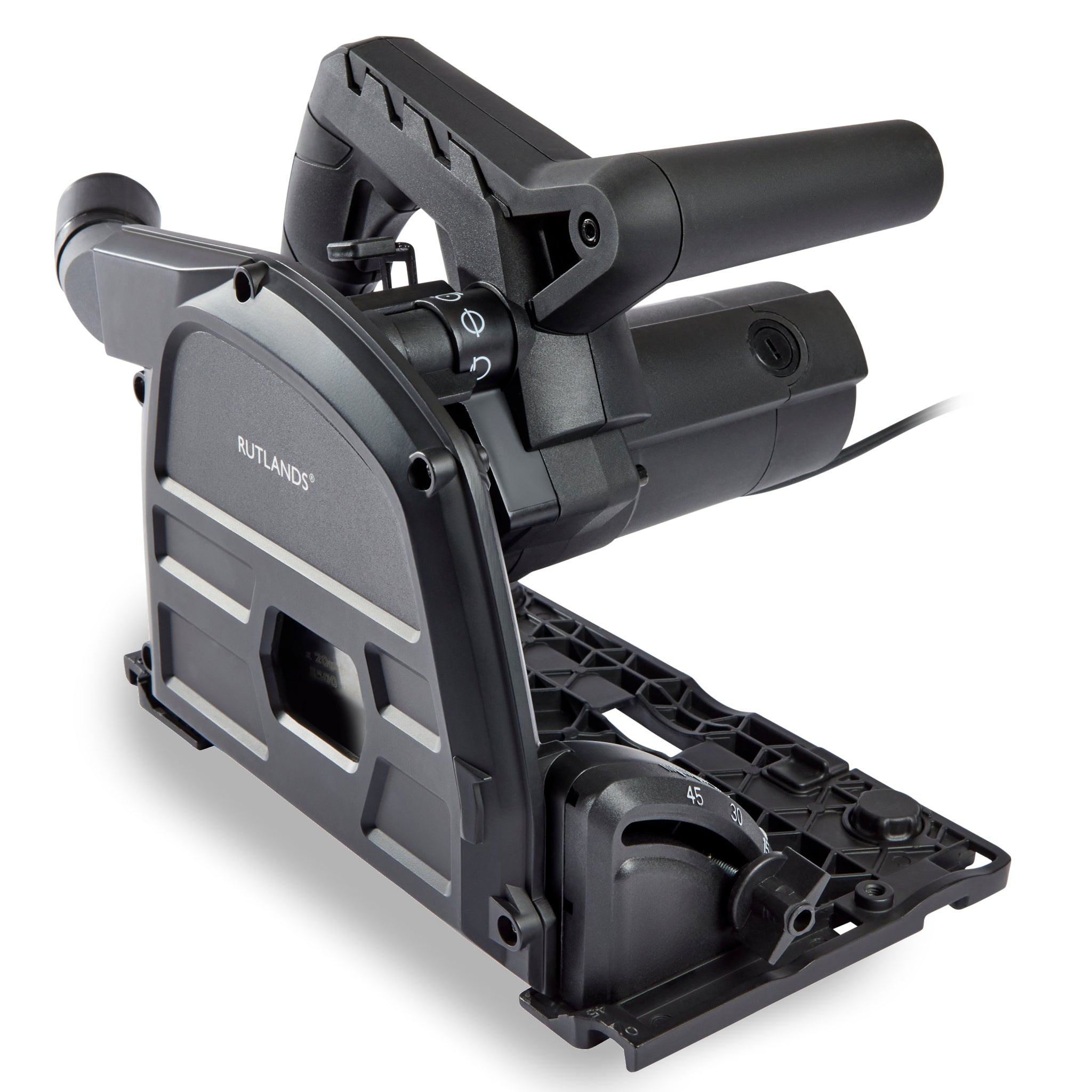

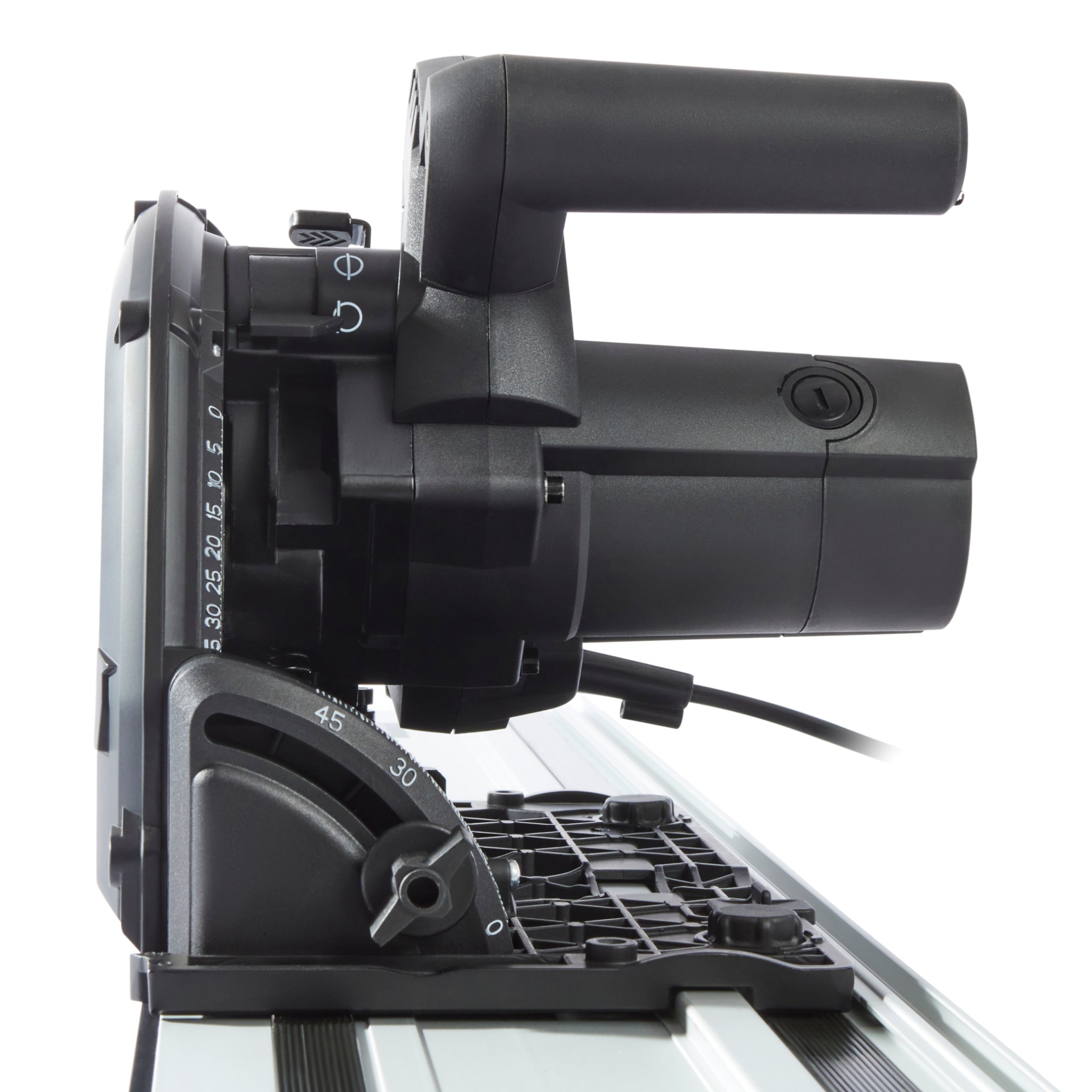

The Rutlands® corded plunge saw comes with 2 x 1.4m guide rails and connector bar, and features a high torque, 1200W motor that maintains consistent speed and power under load. The saw features a bevel cutting range of -1° to 47° for under/overcutting, and the anti-tip lock within the baseplate locks the saw onto the guide rail, preventing the saw from lifting or tipping over. A 2-position depth stop shows the current depth of cut both with and without a guide rail. The maximum depth of cut with a guide rail is 54mm at 90° and 38mm at 45°.

A three position blade mode dial allows quick switching between scoring cuts, free plunging and blade change modes. The scoring cut setting locks the depth of cut to 2.5mm, providing a shallow, preliminary pass on melamine or veneer faced boards to minimise chipping and tear-out. The free plunge mode is selected for normal operation, whilst the blade change mode locks the blade height in position to perform quick and easy blade changes using the onboard hex key. The supplied ultra-thin, 1.6mm kerf blade is specially designed to remove less material whilst cutting, reducing the load on the motor whilst allowing you to work faster.

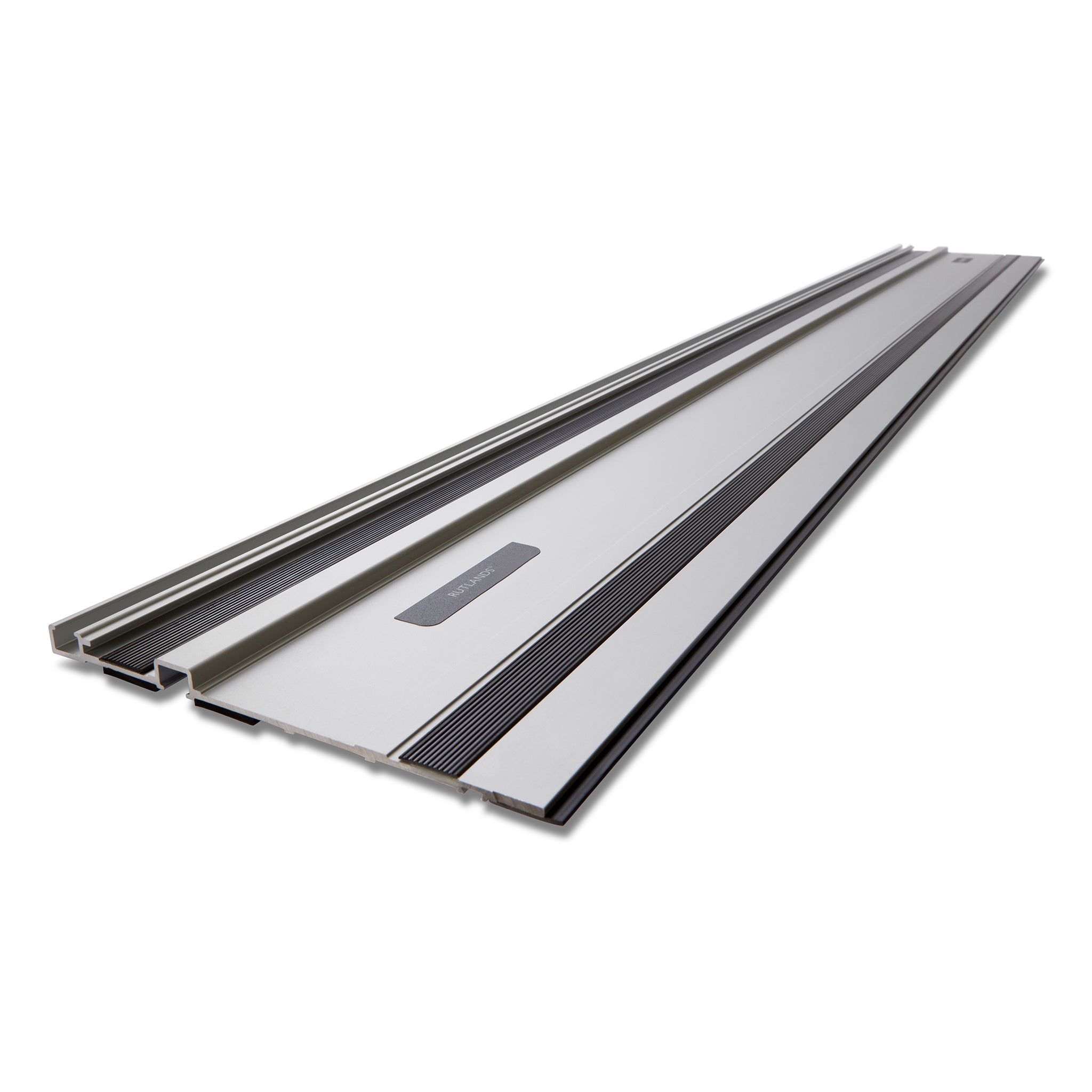

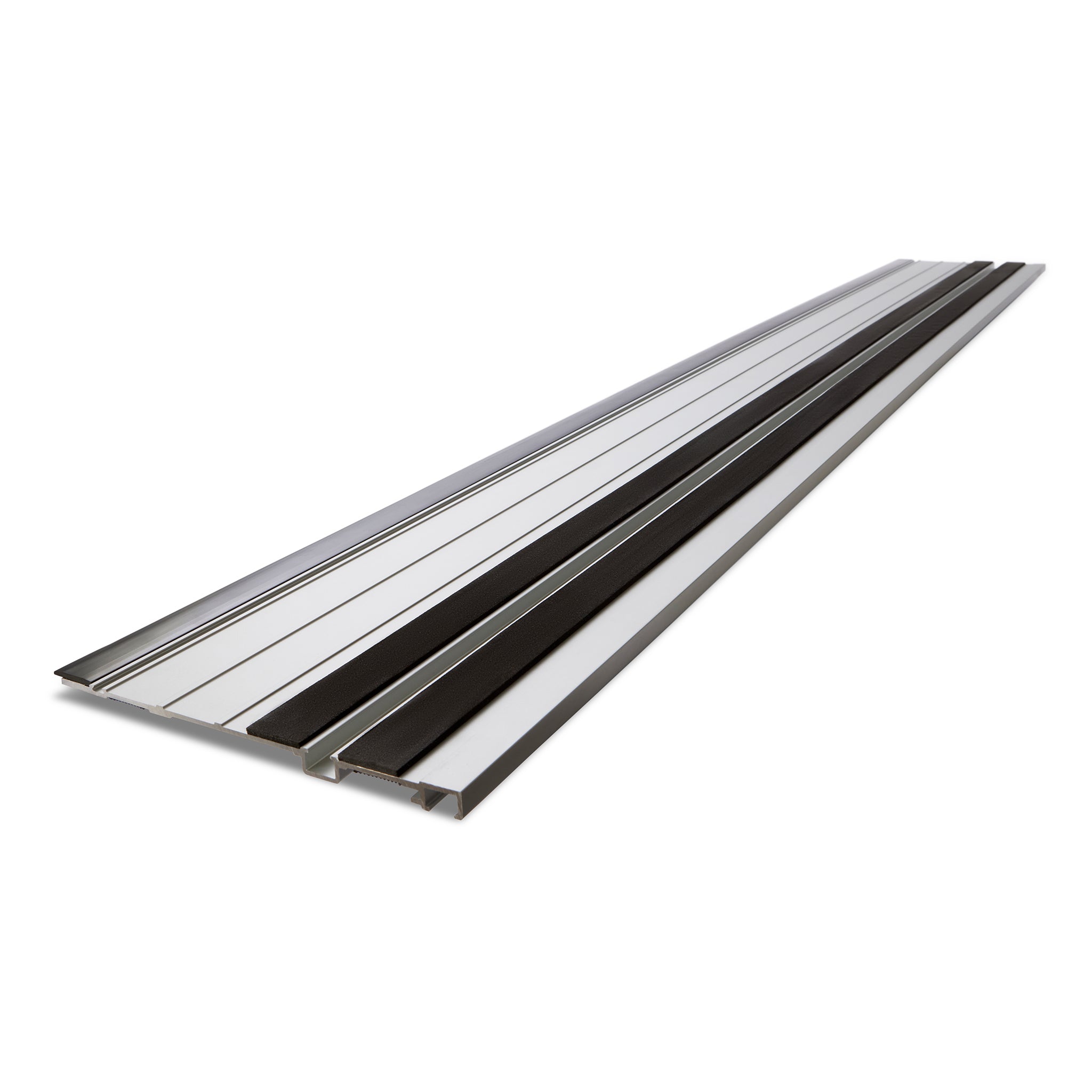

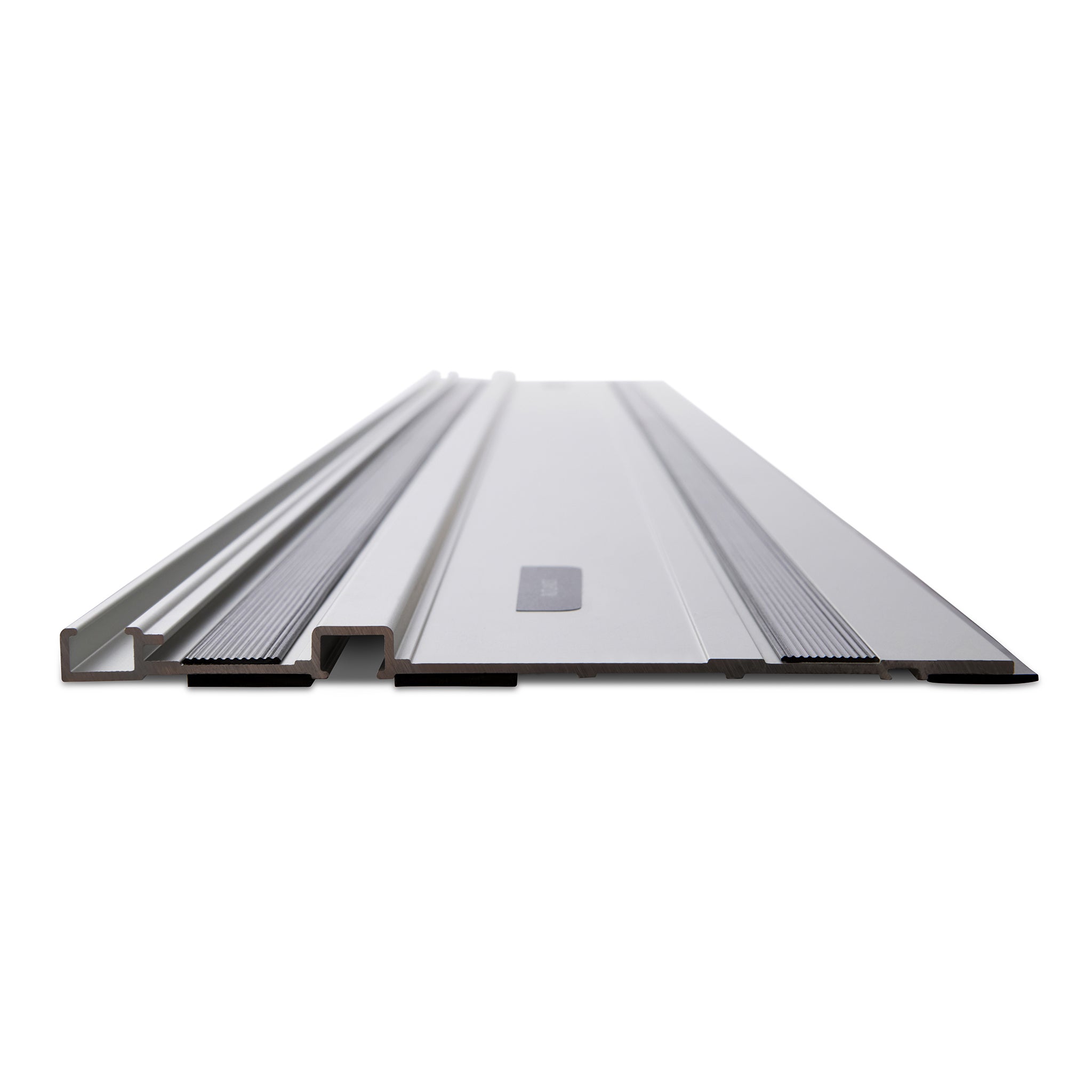

The 1.4m single piece guide rail features two full length rubber strips on the underside, protecting the workpiece from damage whilst increasing friction to prevent movement. A sacrificial rubber strip on the edge of the rail acts as a splinter guard, applying downward pressure onto the material to minimise tear-out. Once trimmed to the blade kerf on first use, the splinter guard indicates the exact cutting edge, allowing the guide rail to be positioned precisely at the scribe mark. The guide rail is compatible with other leading brands. Included is a 165mm, 48T thin kerf TCT blade, 2 x 1.4m guide rails, guide rail connector bar, blade change key and dust port adaptor. ©
