Pocket Hole Jig - Mini - Portable

Regular price £25.00
Regular price £0.00Sale price £25.00
In Stock for delivery by
Order within
This mini pocket hole jig works as a workshop jig for jointing standard frames, and as a portable jig, jointing work too big to fit in a clamped-in pocket hole jig. It is also great for repair work where an existing joint cannot be dismantled.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,564 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Pocket Hole Jig - Mini - Portable
Regular price £25.00
Regular price £0.00Sale price £25.00
KEY FEATURES
  • 3 Year Warranty
  • Portable jig, ideal for site use or confined spaces
  • Tackle workpieces too big to fit in a clamped-in pocket hole jig
  • Ideal for restoration use, to strengthen drawers or shelving without dismantling
  • Strong, inset magnets help hold jig in place while clamping
  • Tool steel guide bushes eliminate wear and play, for a true and consistent drilling line
FULL DESCRIPTION
Pocket hole jigs have become a standard workshop tool over the past decade and as such an array of low budget, entry level units have arrived on the market. This is definitely not one of them. This is a premium performance pocket hole jig made from CNC aircraft-grade aluminium which will allow you to produce incredibly strong, precise and clean joints when making kitchen cabinets, wardrobes, book cases and other furniture.

As pocket hole joints require no glue, the joints can be easily dismantled at any time. This jig is designed to produce fast and accurate pocket holes in timbers from 12.7mm to 38mm thick. It has the advantage that it works as a workshop pocket hole jig for jointing standard frames and as a portable jig when jointing work that is too big to fit in a clamped-in pocket hole jig. It is also great for repair work where the existing joint cannot be dismantled.

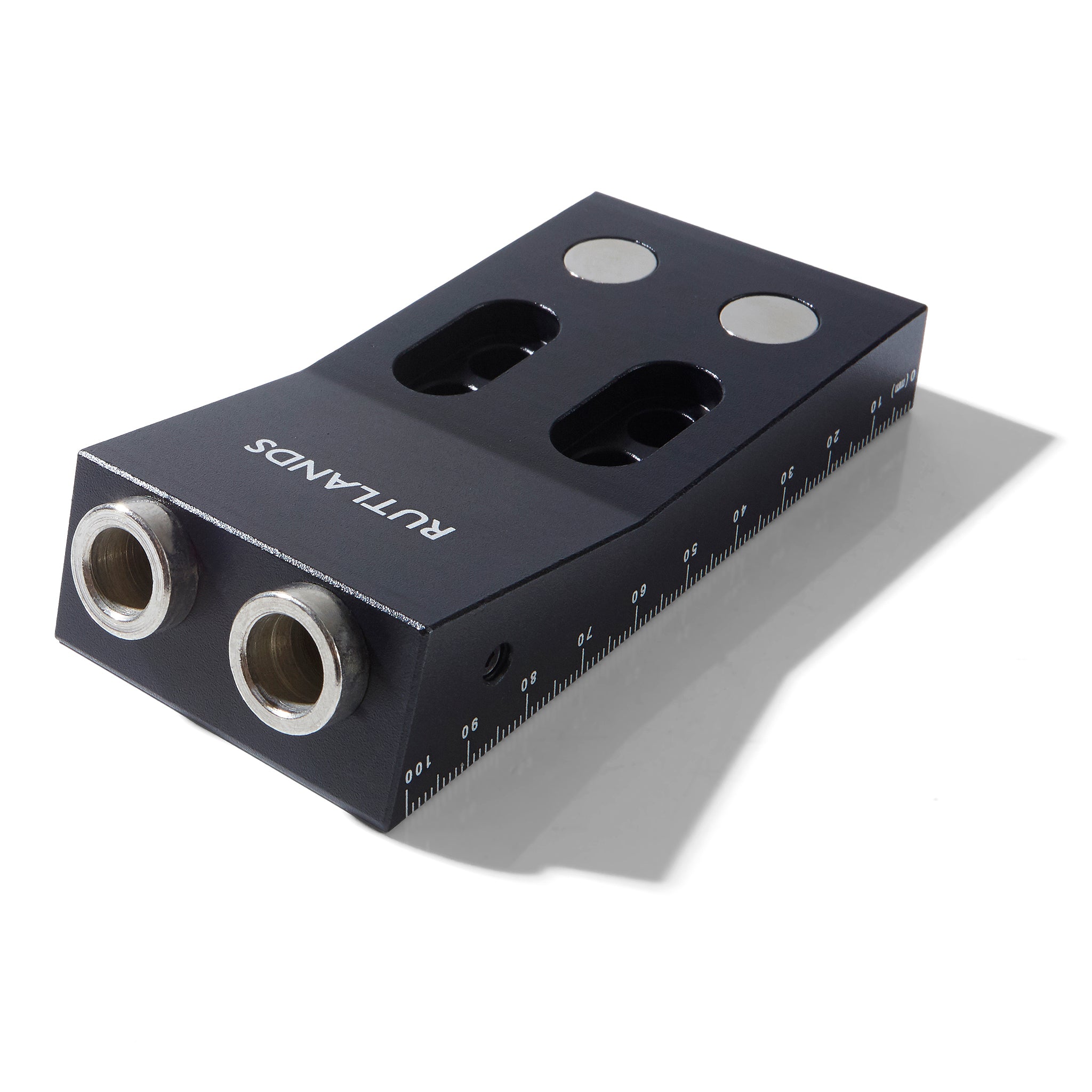

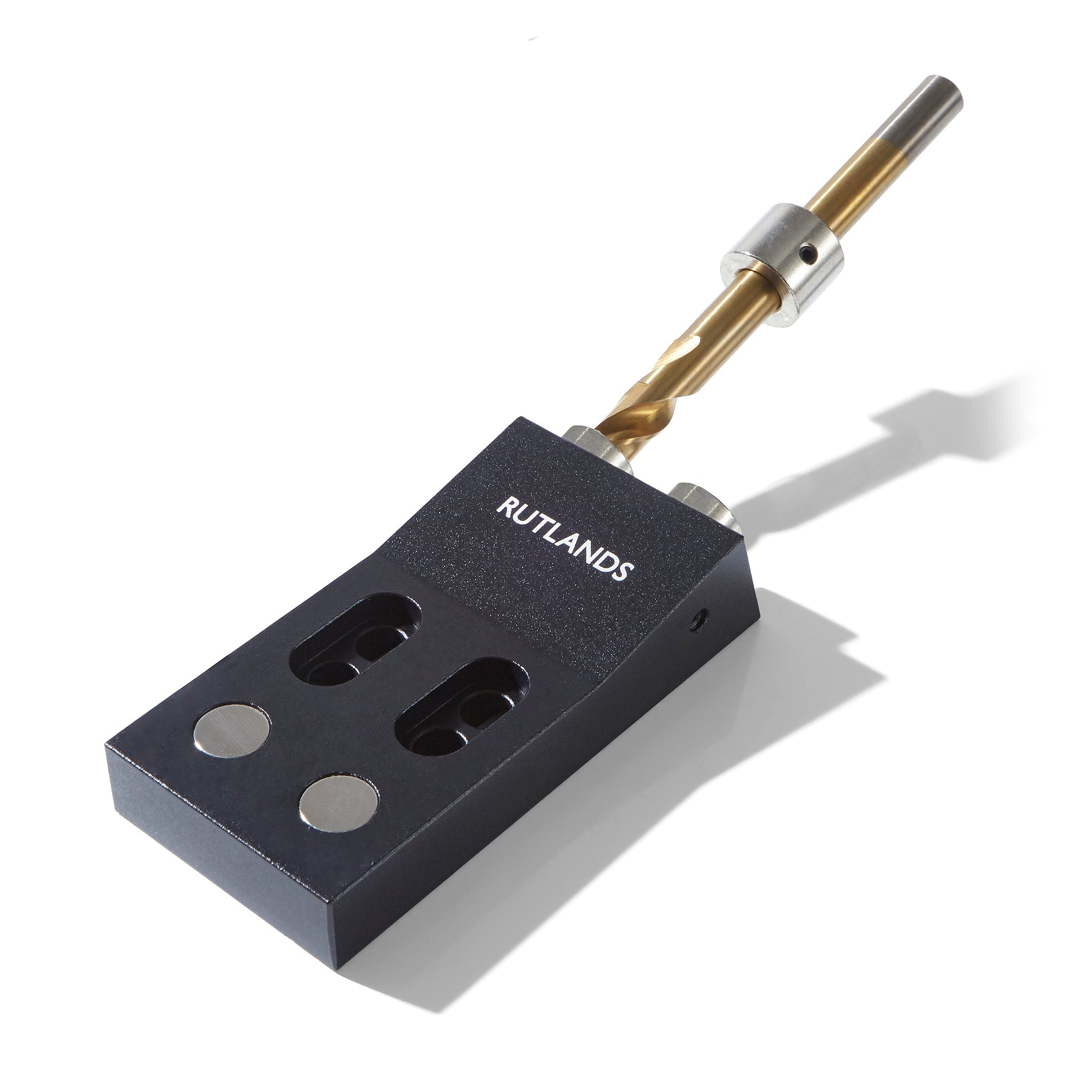

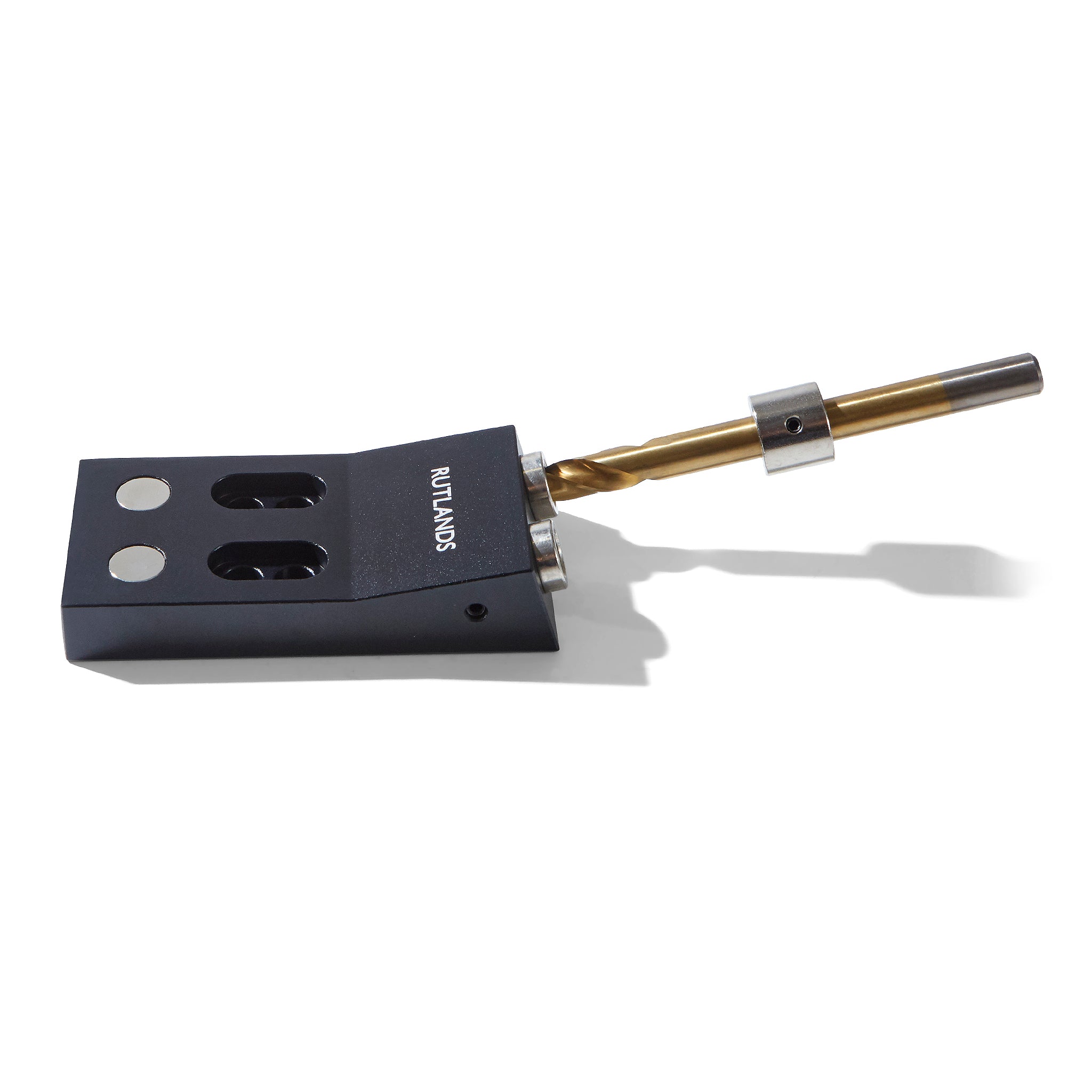

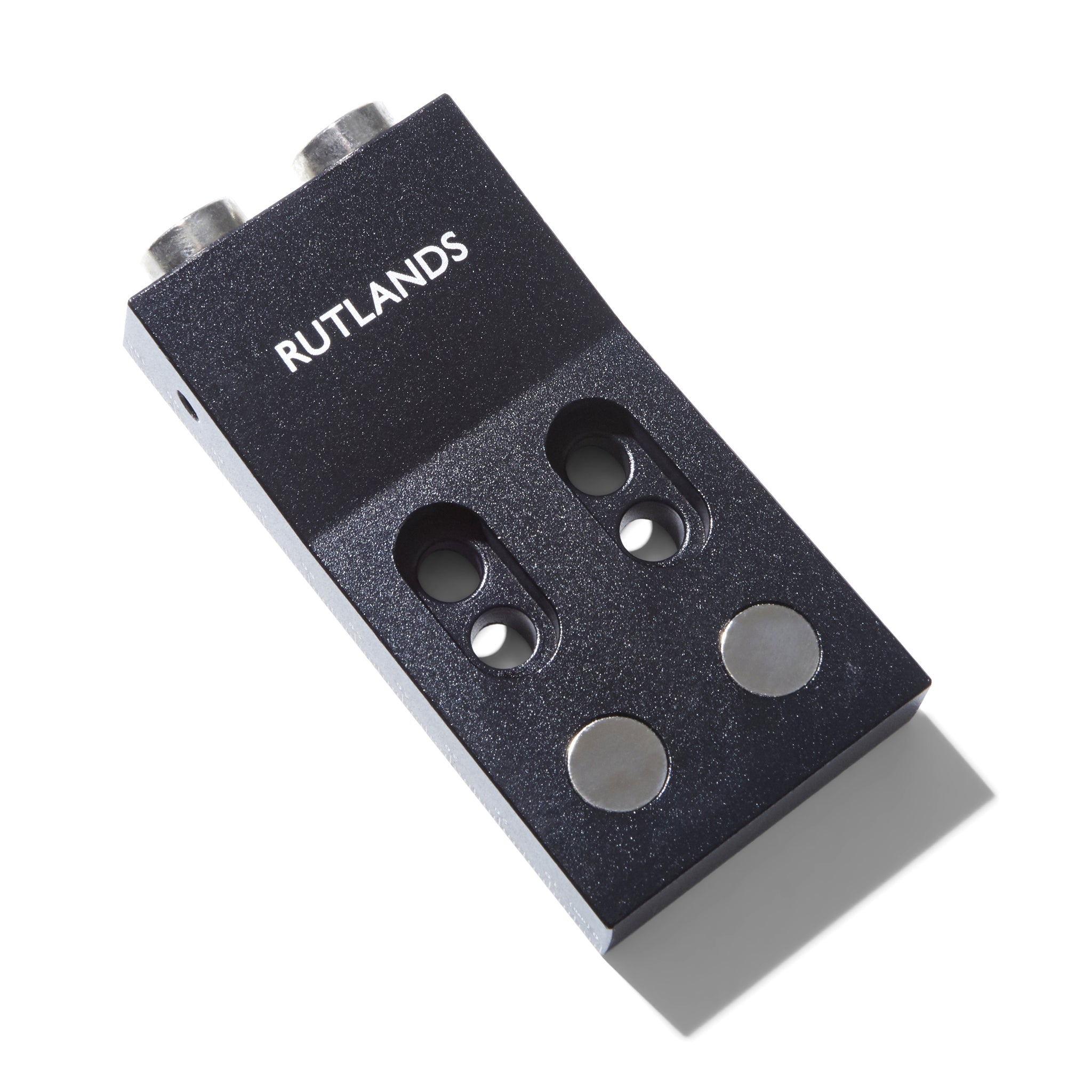

The aluminium body of the jig features two rare earth magnets allowing face clamps to be quickly positioned to lock the work piece in position. Once in place simply drill your pocket hole using the tapered HSS drill bit and depth stop. The drilling block features two hardened steel bushes to accept and guide the HSS stepped drill bit. Additional holes machined into the face of the jig act as dust ports to prevent swarf from becoming trapped in the flutes of the drill bit. This portable pocket hole kit comes complete with the aircraft-grade aluminium jig, titanium coated stepped drill bit, depth collar, and square driver bit. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR6002
  • Dimensions105mm x 50mm x 25mm
  • Minimum Wood Thickness12.7mm
  • Maximum Wood Thickness38mm
  • Bit Length150mm
  • Bit Diameter9.5mm
