< TCT Router Bit Sets

Router Bit Set - Railway Track

Regular price £85.00
Regular price £0.00Sale price £85.00
This railway track router bit set is used to produce straight, curved and intersecting custom wooden railway tracks, unrestricted in length, quantity and layout. Each bit features diamond ground, micro-grain tungsten carbide tipped blades for long lasting hardness and superior edge retention.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 29,221 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Router Bit Set - Railway Track
Regular price £85.00
Regular price £0.00Sale price £85.00
KEY FEATURES
  • 3 Year Warranty
  • Used for the production of straight or curved custom wooden railway tracks
  • Micro-grain tungsten carbide ensures long lasting hardness and superior edge retention
  • Perfectly balanced, vibration free bodies for a smoother cut
  • Shear angle blades slice the wood for a feather free finish
  • Anti kick back design for maximum operator safety
FULL DESCRIPTION

TCT Router Bits
Each router bit features diamond ground, micro-grain tungsten carbide tipped blades. This tighter micro-grain structure means the blades offer long lasting hardness and superior edge retention. The body of each bit has been turned and then milled with uncompromising precision from a single piece of 4140 high tensile steel to give perfect balance for reduced vibration and therefore smoother cuts. 4140 steel has been chosen because of its toughness, high fatigue strength, and abrasion and impact resistance. The tungsten carbide tips are then brazed onto the bodies using induction to create an extremely strong joint that safely holds under the high stresses that occur when routing. The router bits are suitable for use on softwoods, hardwoods, veneers, laminates and composite materials.

Railway Track Set

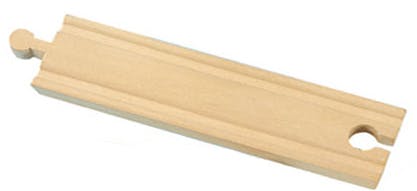

Unleash your inner child and produce your own custom wooden railway tracks, unrestricted in length, quantity and layout, and at a fraction of the cost of ready-made products. This set contains single and double grooving bits, for the creation of straight, curved or intersecting track grooves. Also included are male and female coupling bits, producing perfectly fitting connecting profiles on the ends of each track section. For router table use only.

Superior Finish and Performance
The shearing angle of the cutting edges ensure they remain in constant contact with the workpiece to allow a smoother, slicing cut which eliminates tear-out and gives a mirror finish. The bits feature right hook angles which further enhances the cut due to the fast removal of chips. These bits feature an anti-kickback design which limits the feed rate of the material being cut to decrease the likelihood of a kickback, meaning each bit conforms to strict German DIN standards to ensure maximum operator safety. Each router bit features a lifetime warranty, if any bit fails due to a materials or manufacturing defect it will be replaced free of charge. ©

SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR5478
  • Single Groove BitD1=12.7mm, D2=6.35mm, H=8mm, R=3.6mm, L=52mm, S=1/2"
  • Double Groove BitD=28.6mm, H=38.6mm, R=3.18mm, L=79.6mm, S=1/2"
  • Male Coupling BitD1=30.5mm, D2=21mm, H=23.9mm, R=6.5mm, L=62mm, S=1/2"
  • Female Coupling BitD1=14.3mm, D2=13mm, H1=11.9mm, H2=28mm, R=6.5mm, L=60mm, S=1/2"
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Bob R.
I'm already a Rutlands router bit convert

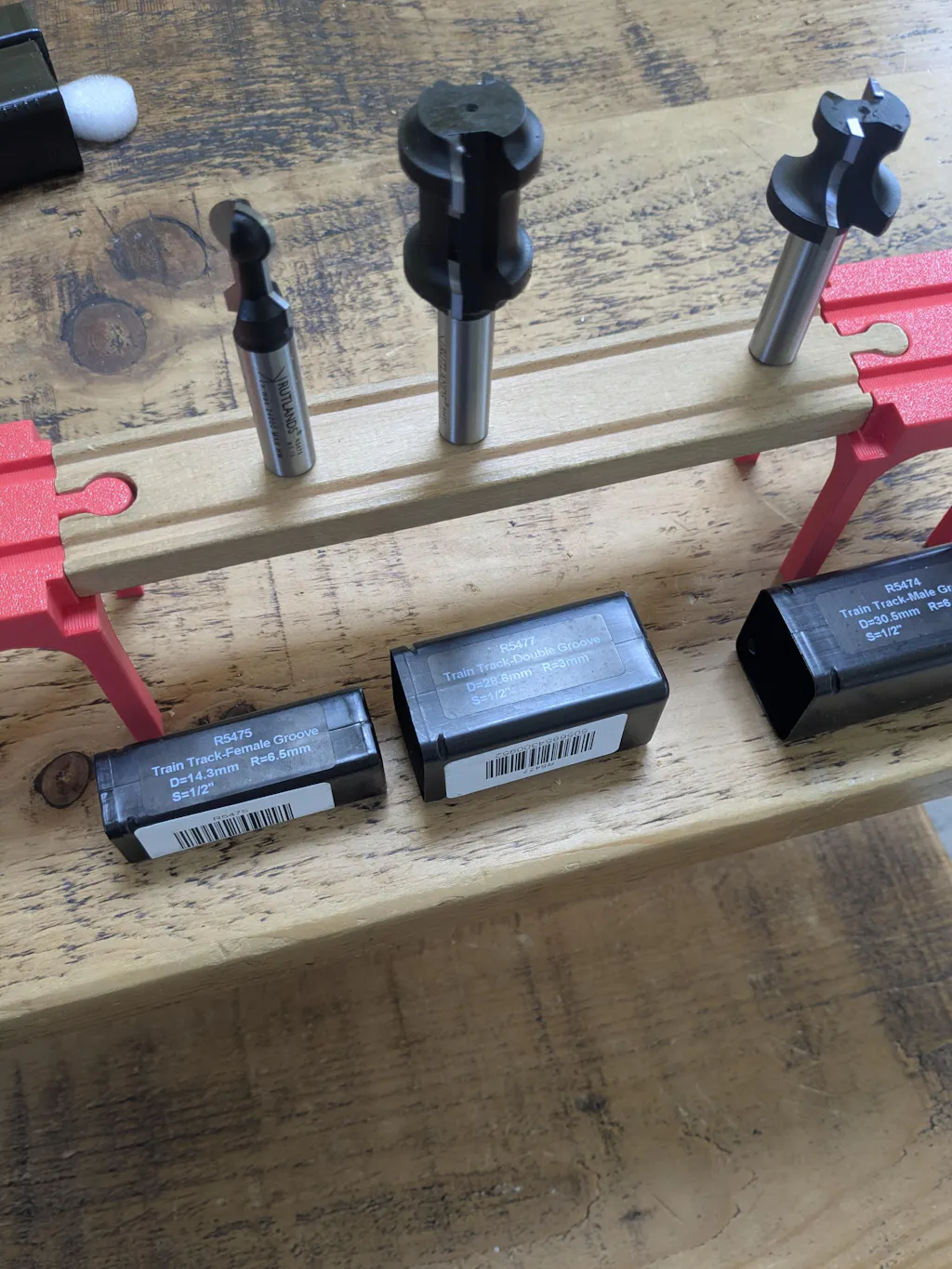

I'm already a Rutlands router bit convert, so made no hesitation when I saw this new set available. The straight tracks are really straightforward on a router table, but the curved pieces are a bit more involved, however once dialled in you are choo choo churning out tracks!

G
Graham M.
From scrap to track

What a novel idea. I've now begun producing something for my granddaughter similar to what I enjoyed playing with in my youth. The finish is superb, as I've come to expect from Rutlands, and I now have a new use for all of the scrap pieces of wood which accumulate after every project.

C
Claus L.
Great fun

I made my grandson a circular track with a bridge. Took me a few attempts to master the height settings on my router table but now i am an expert. Next is making the train and carriages

J
James H.
Rutlands - my go to place for router bits

Tried many brands over the years, but happy to say I now won't go anywhere else for router bits. I've thrown everything at them, including the hardest walnut and ash, and they continue to impress with the quality of finish left behind. If you're serious about routing then investing in quality bits is a must.

D
Dave T.
Thoroughly impressed

Cheap bits tend to tear the wood & blunt quickly. These on the other hand have kept an ultra sharp edge & given me a beautifully clean cut - no burn marks & very little sanding required, if any at all. Thoroughly impressed.
