Router Bit Set - Raised Panel Door with Backcutter - Bevel
- Shop with confidence with our 3 Year Warranty
- Rated excellent by Trustpilot based on 27,077 reviews
- Over 2.5 million Rutlands® premium woodworking tools sold worldwide
- 3 Year Warranty
- Used to produce custom panel doors featuring a modern bevel profile
- Micro-grain tungsten carbide ensures long lasting hardness and superior edge retention
- Perfectly balanced, vibration free bodies for a smoother cut
- Shear angle blades slice the wood for a feather free finish
- Anti kick back design for maximum operator safety
Each router bit features diamond ground, micro-grain tungsten carbide tipped blades. This tighter micro-grain structure means the blades offer long lasting hardness and superior edge retention. The body of each bit has been turned and then milled with uncompromising precision from a single piece of 4140 high tensile steel to give perfect balance for reduced vibration and therefore smoother cuts. 4140 steel has been chosen because of its toughness, high fatigue strength, and abrasion and impact resistance. The tungsten carbide tips are then brazed onto the bodies using induction to create an extremely strong joint that safely holds under the high stresses that occur when routing. The router bits are suitable for use on softwoods, hardwoods, veneers, laminates and composite materials.
Raised Panel Door Set with Backcutter - Bevel
This 3 piece raised panel door making set is the perfect solution to creating custom panel doors that feature bevelled profiles for modern style panel doors. The rail and stile bits will form strong, perfect fitting frame joints with deep grooves to accept the edges of panels, which are produced using the raised panel bit. The raised panel with backcutter bit combines a panel raising bit with rabbeting bit and cuts both the front and back of the panel in the same cut, always creating a 6.35mm tongue. The rail and stile router bits cut a slot width of 6.35mm for the tongues created by the panel bit to fit snugly inside. Shanks are 1/2".
Superior Finish and Performance
The shearing angle of the cutting edges ensure they remain in constant contact with the workpiece to allow a smoother, slicing cut which eliminates tear-out and gives a mirror finish. The bits feature right hook angles which further enhances the cut due to the fast removal of chips. These bits feature an anti-kickback design which limits the feed rate of the material being cut to decrease the likelihood of a kickback, meaning each bit conforms to strict German DIN standards to ensure maximum operator safety. ©
- Product CodeR5919
- Rail BitD=41.3mm H=17.5mm A=25° L=76mm n.max=18,000 S=1/2"
- Stile BitD=41.3mm H=23.8mm A=25° L=75.2mm n.max=18,000 S=1/2"

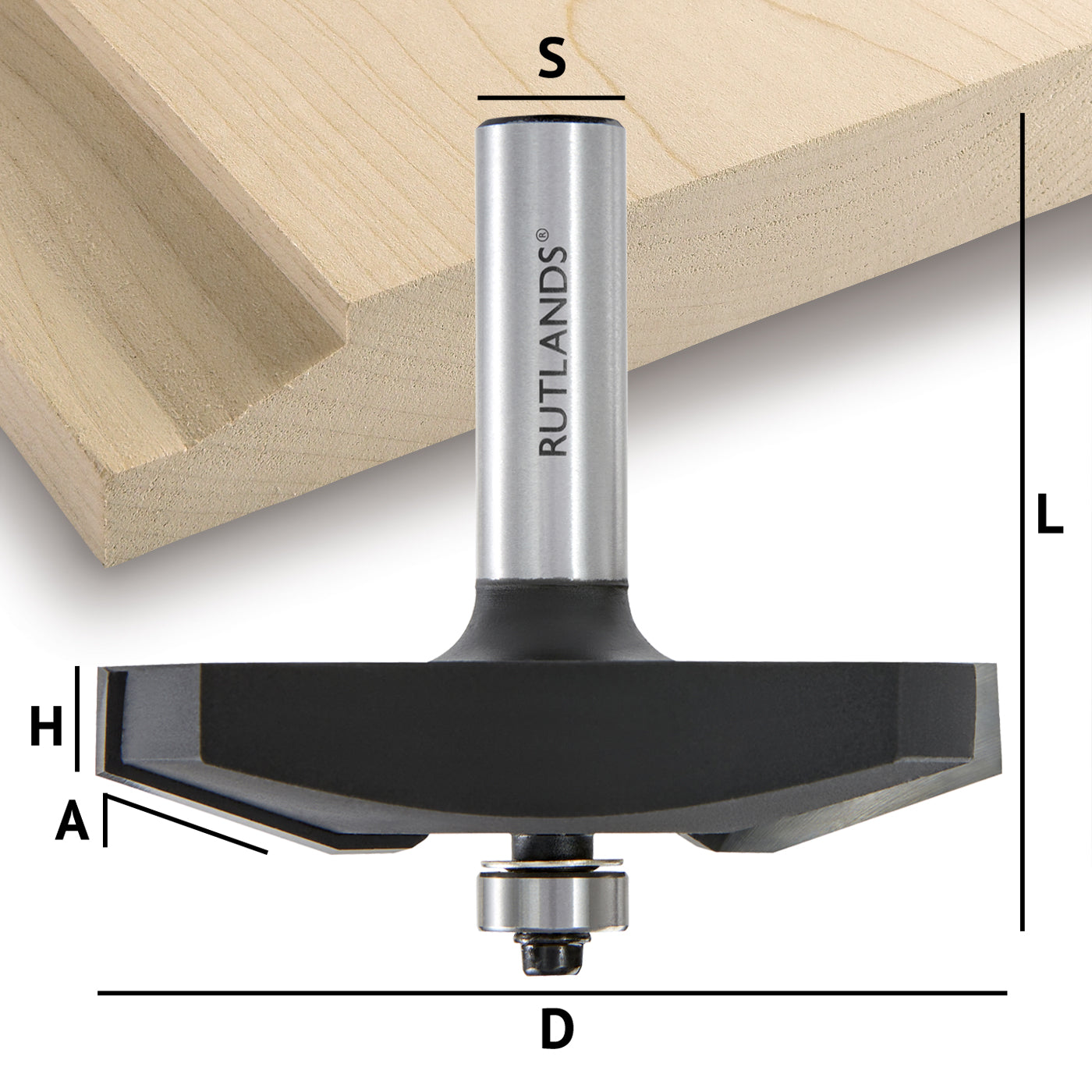

- Panel BitD=79.4mm H=30.2mm A=18°
