T Rule - 300mm

Name: T Rule - 300mm
Brand: Rutlands®
SKU: R9012
Price: 25.00 GBP
Availability: InStock

£25.00

~~£0.00~~ £25.00

In Stock for delivery by

Order within

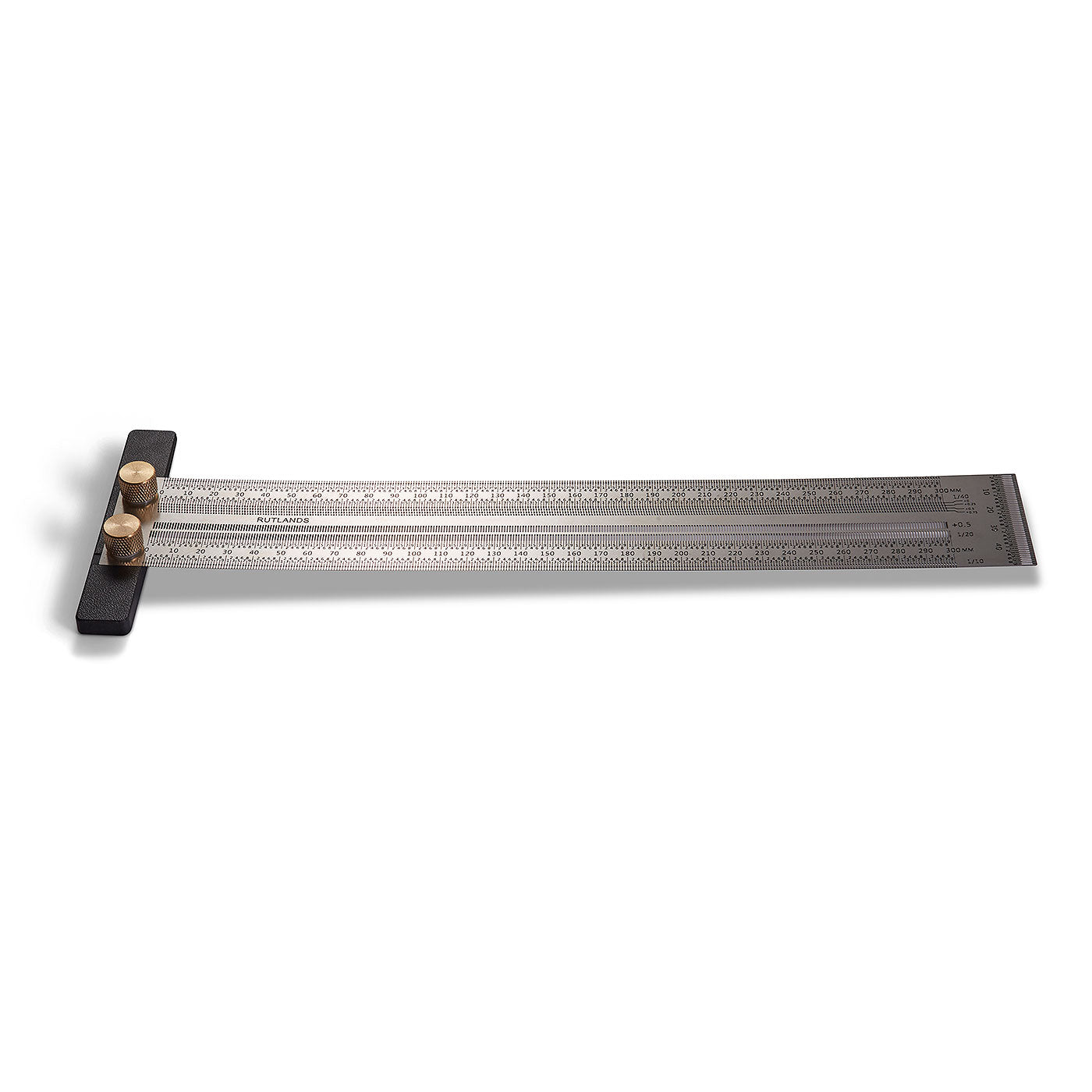

This ultra-thin laser-cut T rule eliminates parallax error and allows precise measuring or edge marking in increments of 0.25mm. Featuring a multitude of different scales, the rule has micro fine marking slots for height and distance and guide holes for drawing parallel lines.

Product variants

Shop with confidence with our 3 Year Warranty
Rated excellent by Trustpilot based on 30,289 reviews
Over 2.5 million Rutlands® premium woodworking tools sold worldwide

T Rule - 300mm

£25.00

~~£0.00~~ £25.00

3 Year Warranty
Draw perfectly straight and parallel lines, every 0.25mm from the workpiece edge
Micro fine guide holes instantly locate your pencil, with zero risk of error
Removable stop allows use as a conventional rule
Laser cut, stainless steel rule ensures scratch, wear and corrosion resistance
Ready to use, supplied with 0.5mm pencil and 12 refills

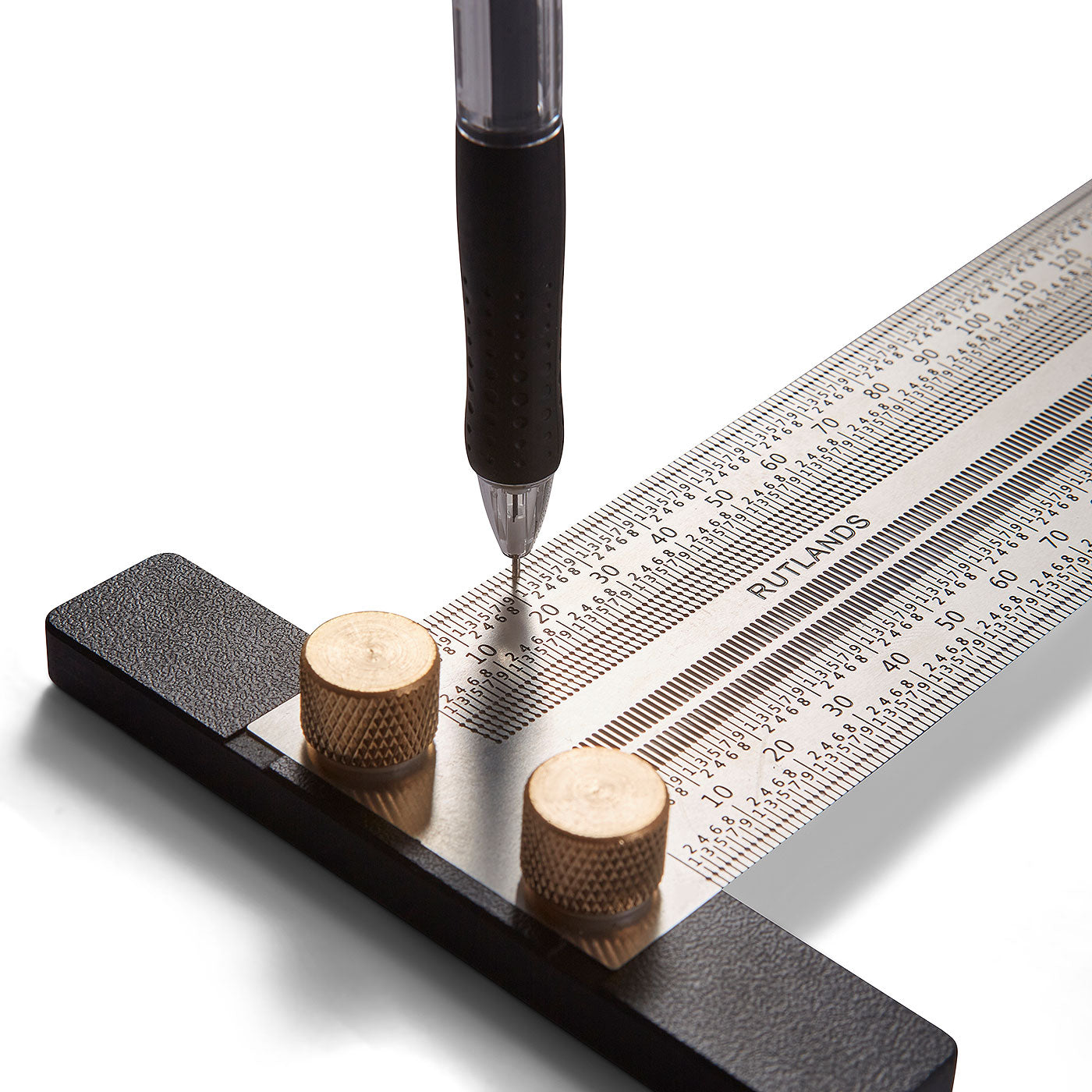

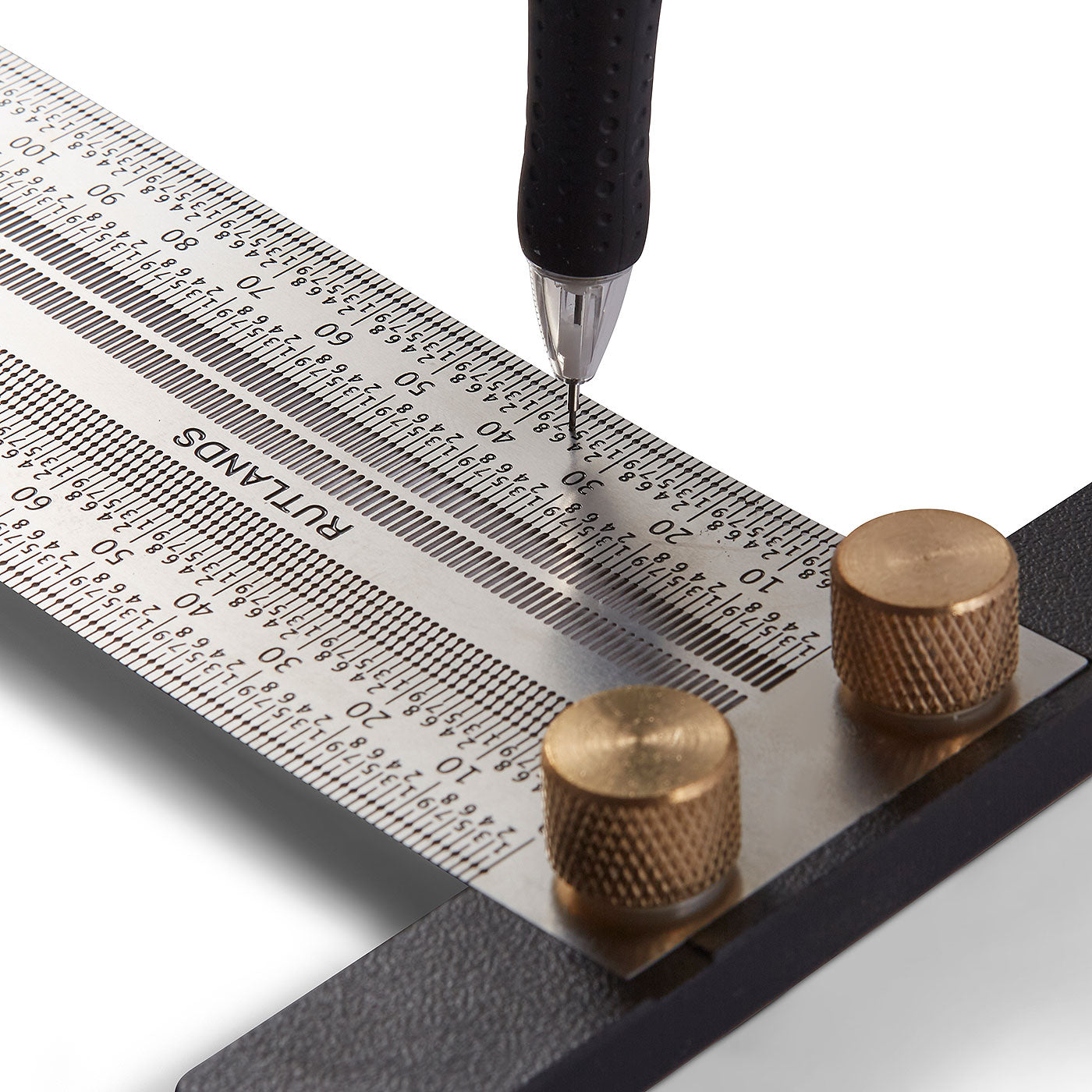

This steel T rule is the most accurate way to mark a point from the edge of your workpiece, there is a marking hole every 0.25mm along the entire length of the blade. The rule also allows precise, straight, and parallel lines to be drawn at every 0.25mm from the workpiece edge. Simply insert a precision pencil into a hole and slide the T rule and pencil along to generate the line. Because the rule itself is 0.2mm thick there is zero parallax error which would be common with thicker rulers. The rule features a multitude of different scales: 0 to 50mm height marking slots on the edge of the rule, 0 to 200mm distance marking slots with a marking slot every 0.5mm and 0 to 200mm guide holes with a guide hole every 0.25mm for drawing parallel lines.

The rule has been laser cut from stainless steel making it incredibly accurate and it will not rust or degrade because of the durable nature of the stainless steel. The crisp and clear precision etched graduations are very easy to read so you will not strain your eyes. The rule is secured to the T with two copper thumbscrews, these can be removed meaning the rule can be used as a conventional measuring rule for use throughout the workshop.

The complete kit includes the 300mm T rule, a 0.5mm precision pencil and 12 refills. This is our most precise and best selling T rule which is intuitively easy to use and can be used for many setup and marking out applications. ©

BrandRutlands®
Product CodeR9012
MaterialStainless steel
Length Scale300mm
Overall Length350mm
Ruler Thickness0.2mm
ScaleMetric
Width Scale20mm
T Thickness8mm
T Width110mm

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

T rule extraordinare

Super precise bit of kit.
Beautifully made - including a clutch pencil is a nice touch. It looks the job and does it impeccably - pretty hard to make a mistake with this rule.
I love technical woodworking tools and this stands out from the rest.

An excellent piece of precise engineering

A really useful tool for accurate marking out on small pieces. Crazy number of holes! As others have said, it’s flimsy, but handled carefully it should be durable enough

Great idea

Bought this t-rule for accuracy it offered. Overall very happy with it. Only minor criticism would be that it's a little flexible, I can see the reason for being thin, it offers more accurate marking, but I feel if it had a central spine running down the length of the ruler to stiffen it up you would still have the same thin ruler but it would be easier to handle and less prone to bending. That said it does it's job well and worth it's money.

Steel rule

Lovely peice of kit, well manufactured and works like a treat when doing joinery and many many holes to suit your needs.

Nice alternative to a marking gauge

This is a brilliant piece of kit. It is far better than a marking gauge for laying out mortice joints and the like.Works equally well with a scribe (how about supplying one Rutland). Especially useful for model makers where high accuracy is required. A point to note is that the measurement is to the stock side of the drawn line, not the centre, and is very accurate.
