Precision 75 Woodturning Chuck Kit
- 1" x 8tpi $160.00
- 33mm x 3.5mm $160.00
- 3/4" x 16tpi $160.00
- 1" x 12tpi $160.00
- 1 1/4" x 8tpi $160.00
- 1 1/2" x 8tpi $160.00
- Shop with confidence with our 3 Year Warranty
- Rated excellent by Trustpilot based on 26,998 reviews
- Over 2.5 million Rutlands® premium woodworking tools sold worldwide
- 3 Year Warranty
- All you need to get straight into turning a wide array of projects
- Turn spindles, bowls, goblets, candlesticks, pepper mills, pens and more
- Class leading clamping force and excellent load bearing capability
- Excellent concentricity, minimising vibration for a chatter-free, super fine finish
- Engineered from a special grade of corrosion resistant medium-tensile steel
The chuck is specifically designed so the jaws cut into the wood to provide a class leading clamping force, unlike other woodturning chucks that use engineering jaw profiles which crush the wood fibres and do not grip the workpiece as securely. The precision machined scroll mechanism and the high ratio gearing combine to ensure for a strong grip irrespective of workpiece size. The four jaws open and close using a T-handled key, allowing for one handed operation, leaving one hand free to support and balance your workpiece when mounting and dis-mounting the workpiece. Measuring 70mm in diameter, this chuck can be used on all sizes of lathe from large capacity professional lathes through to midi and mini lathes.

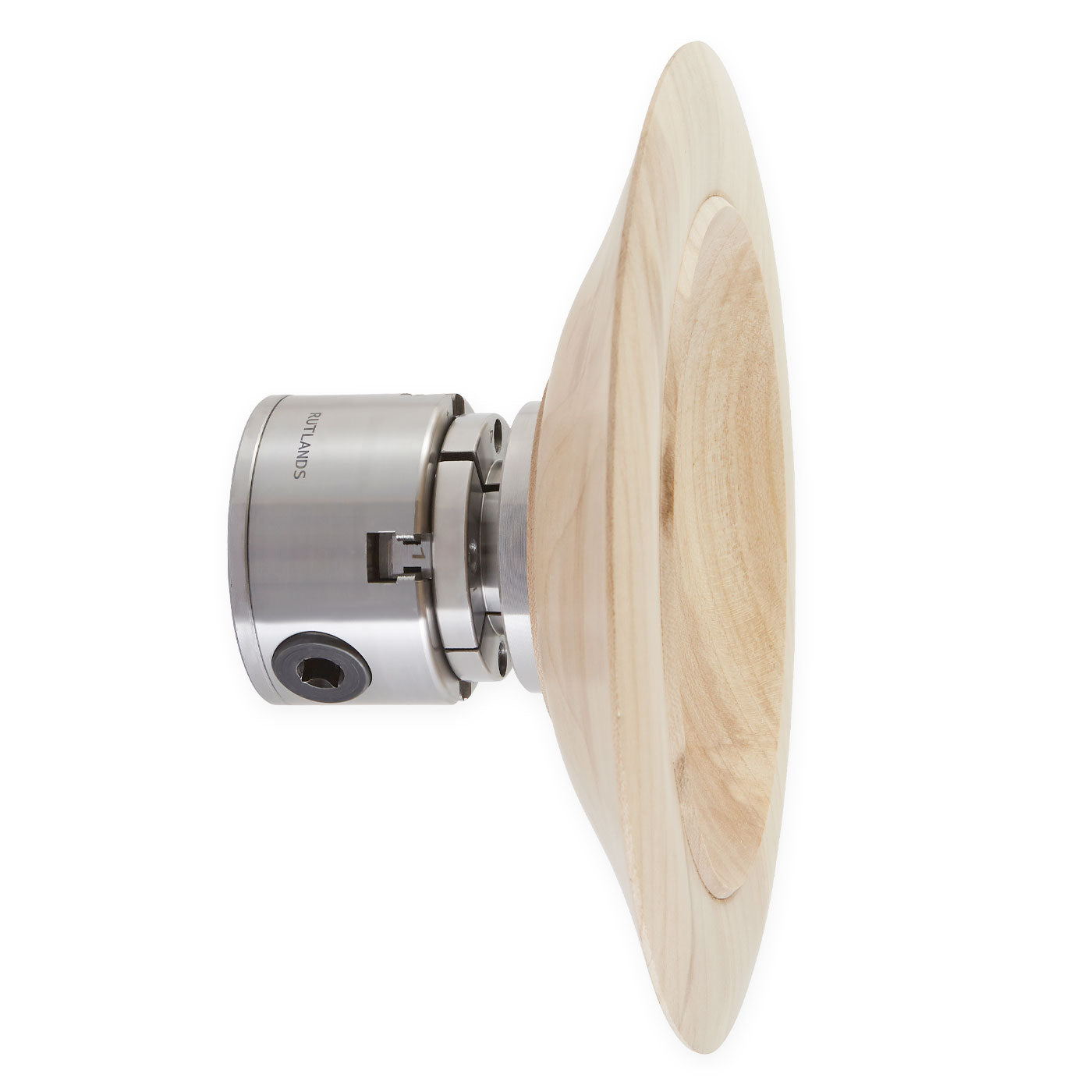

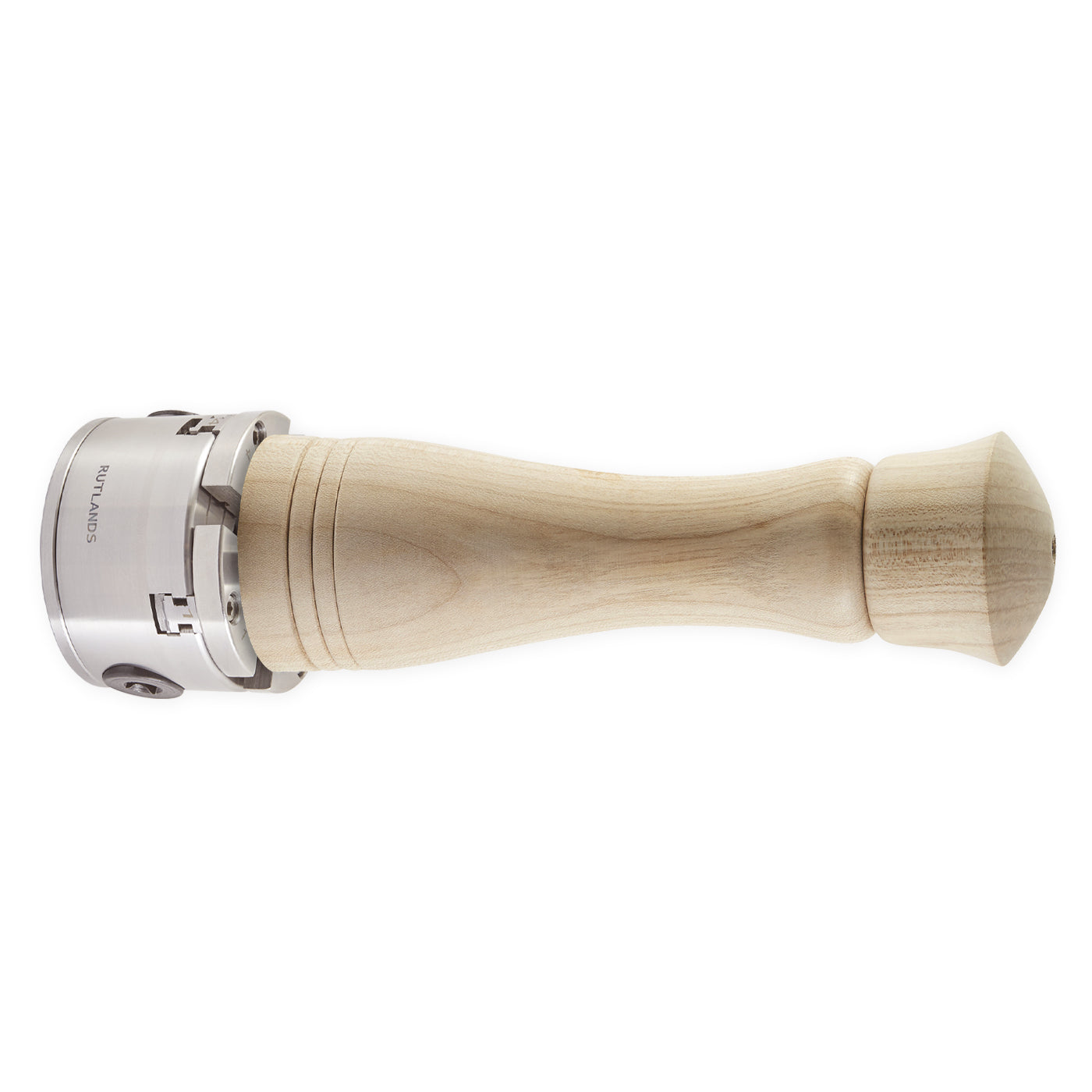

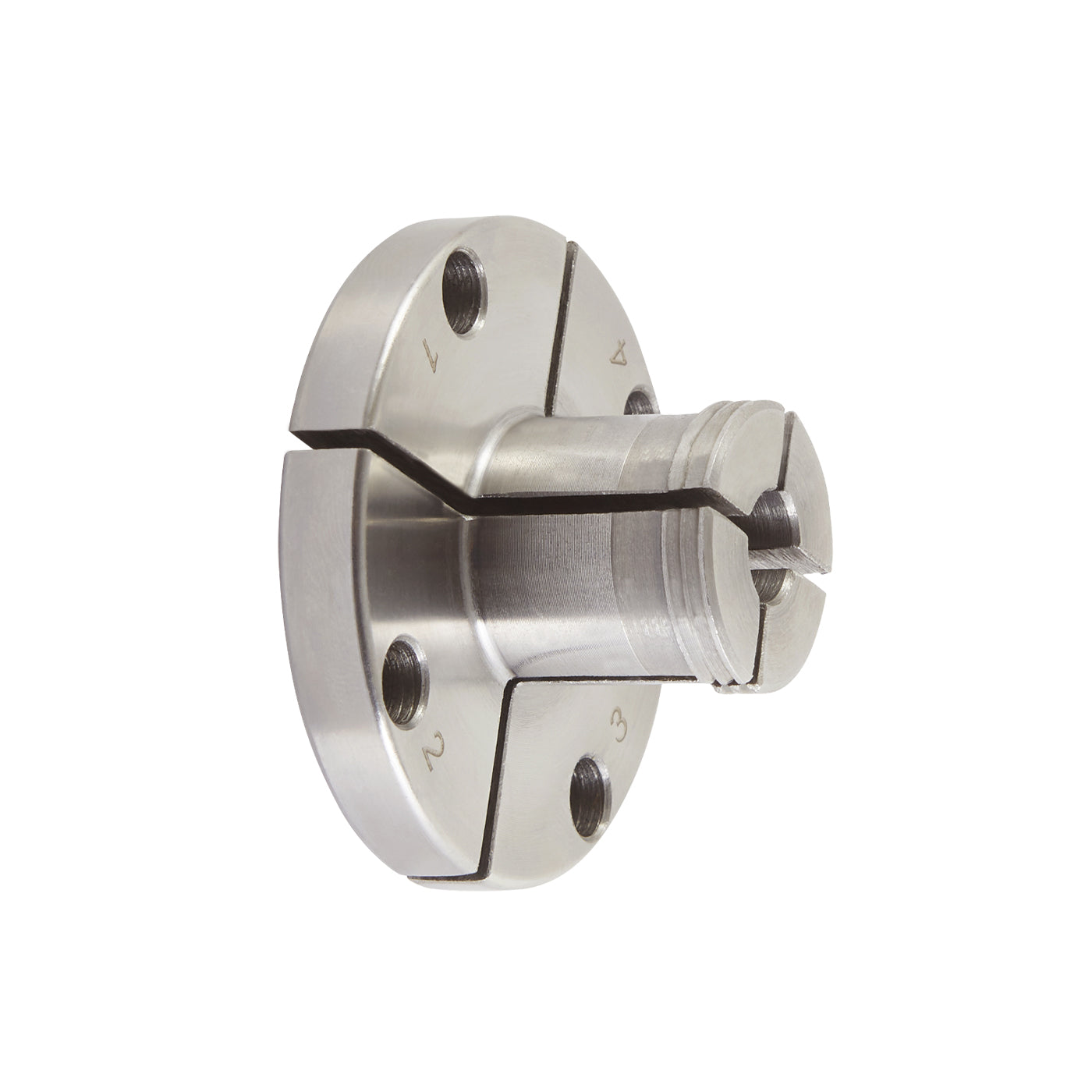

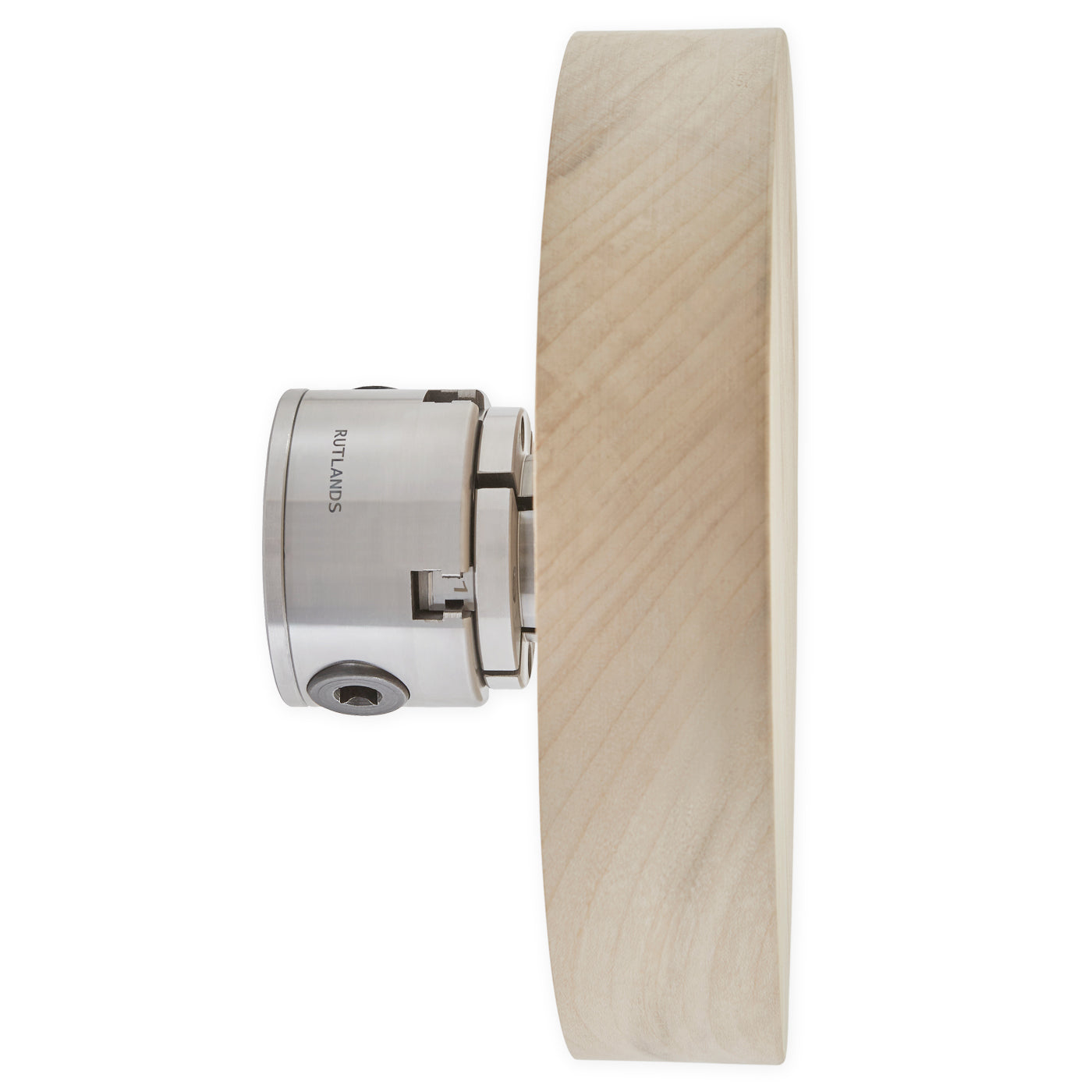

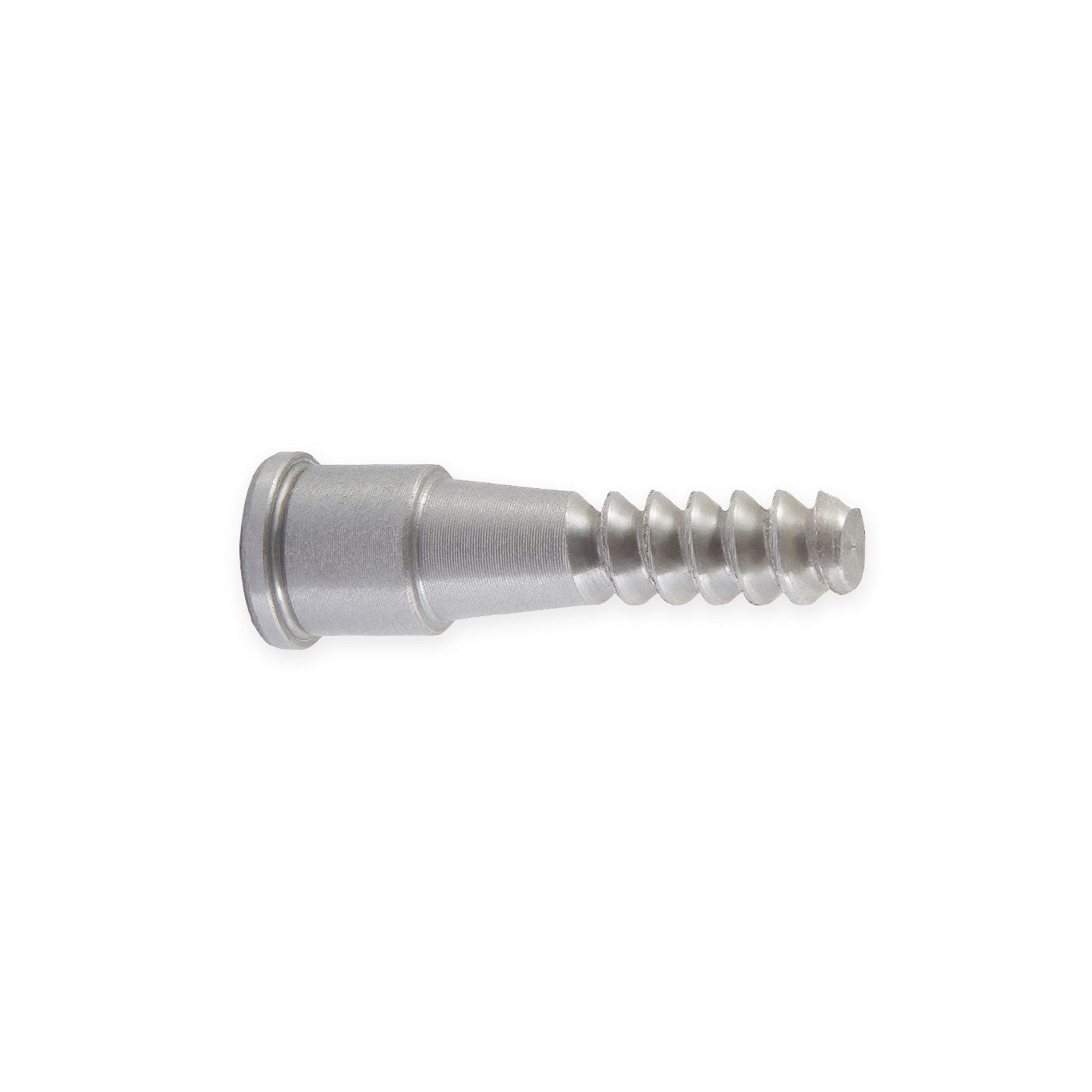

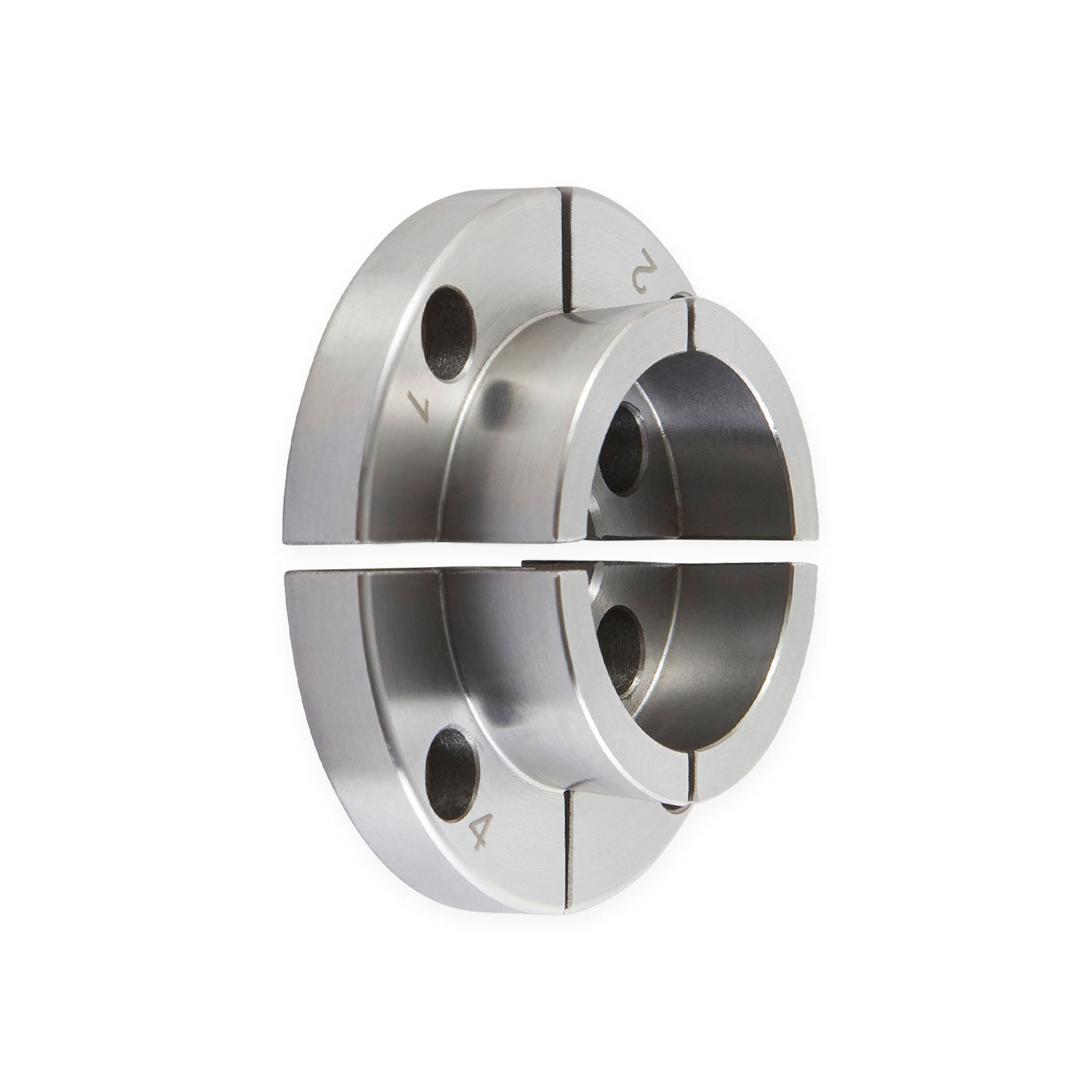

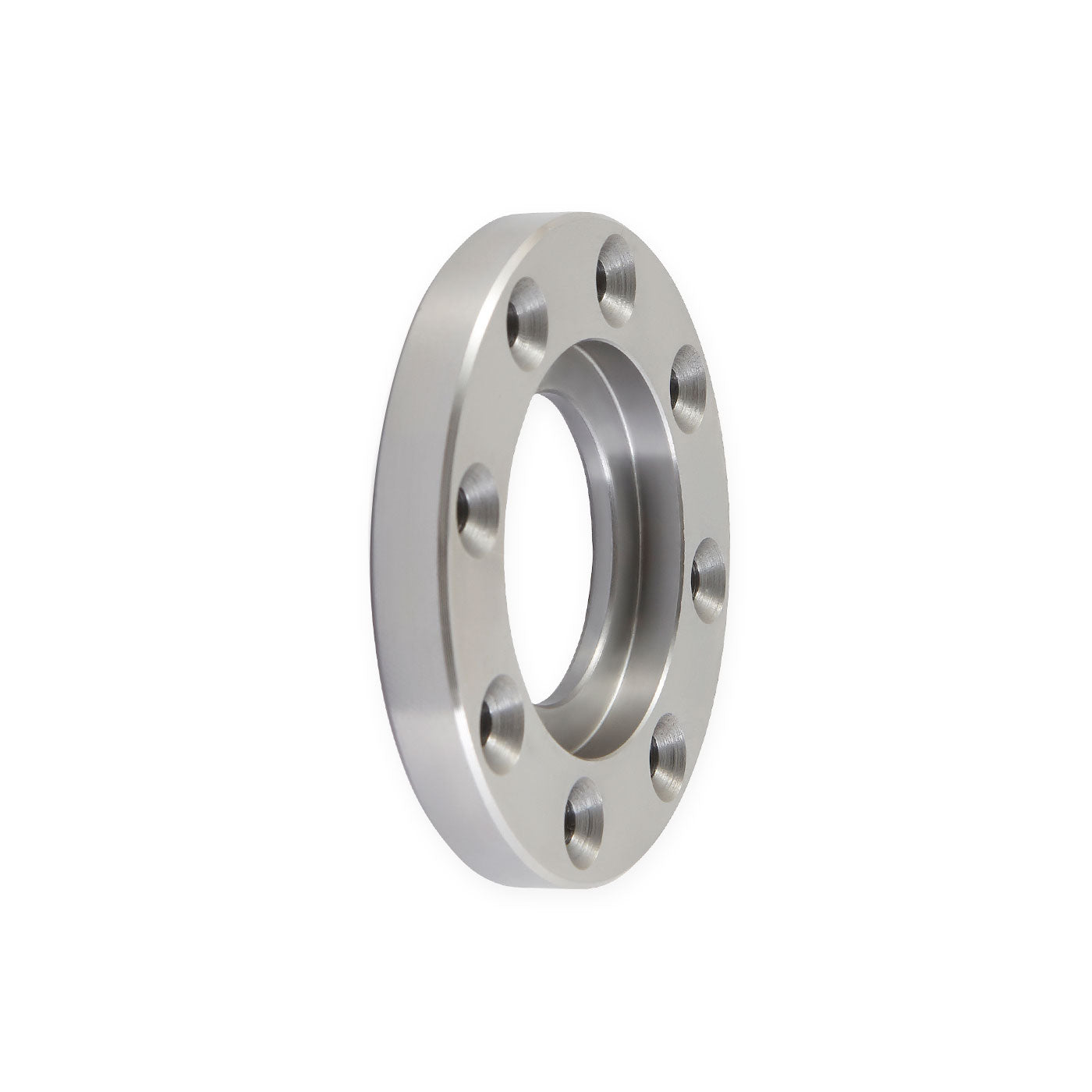

The chuck kit contains the Precision 75 chuck body, 50mm dovetail jaws, 65mm faceplate ring, 35mm pin jaws and screw chuck. This wide array of jaws allows for all popular turning projects including; spindles, bowls, goblets, candlesticks, pepper mills, pens and pencils up to 20kg and more. The chuck and jaws are presented in a box set, which features a dedicated foam cut out to aid protection when not in use. The 1" x 8tpi chuck is direct threaded, 33 x 3.5mm, 3/4" x 16tpi, 1" x 12tpi, 1 1/4" x 8tpi and 1 1/2" x 8tpi chucks are supplied with precision thread adaptors.
This is without doubt the finest chuck system we have offered and allows for a multitude of operations to be carried out without removing the chuck from the lathe. It is precision made, has excellent concentricity and has a wide range of jaws. The optional jaw pack is a firm favourite as it allows you to further develop your turning skills and broadens the range of projects that you can turn. ©
- Product CodeR2500
- Thread1" x 8tpi
- Chuck Body Diameter70mm
- Dovetail Jaws Compression Grip40mm
- Dovetail Jaws Expansion Grip38mm
- Pin Jaws Compression Grip20mm
- Pin Jaws Expansion Grip23mm
- Faceplate Ring65mm
- Woodscrew Chuck30mm
UK orders placed before 4pm will be delivered the next working day with shipping costing £6. Visit our Shipping page.
Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.
Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.
We accept all major credit cards and mobile payment methods. Visit our Payment page.
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.
Precision enginereed to the tightest tolerances, ensuring excellent concentricity and minimising vibration, for a fine, chatter-free finish.
