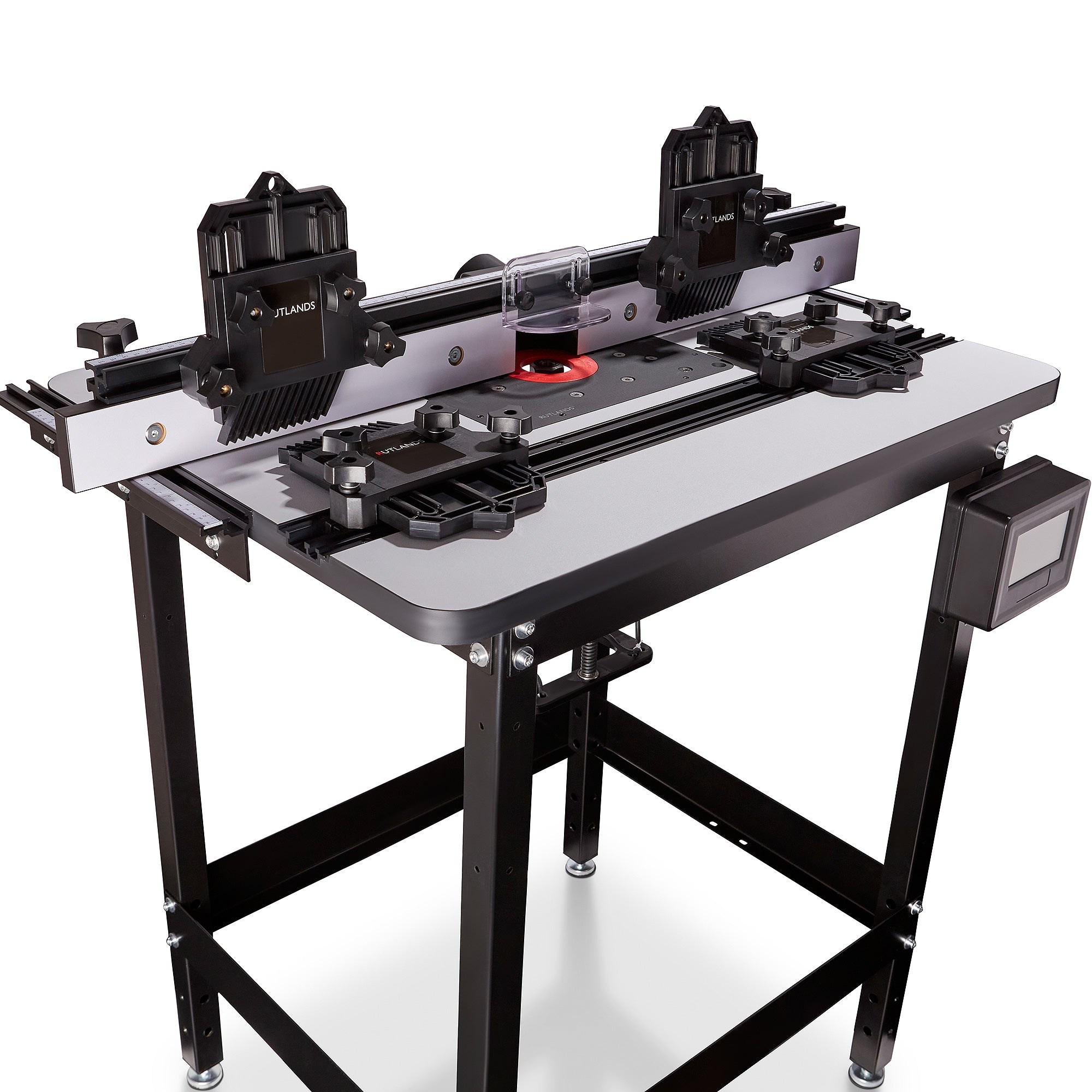

Router Table GTS - R20 Electronic Lift and Motor

This premium performance Rutlands® router table features the R5008 router table stand, R5007 router table top, R5009 router table fence, R5063 electronic router lift, R5018 router motor, two R5015 double feather boards, R5012 sliding carriage and a pack of two R5067 router bit holders.

Router Table Stand
The legs and braces on this router table stand are made from 38mm wide x 2mm thick box-section steel for guaranteed strength and rigidity. The stand has been specifically designed to ensure that the legs and braces fit perfectly square to each other, via a series of pre-welded locking nuts and stainless-steel fixings.

Router Table Top

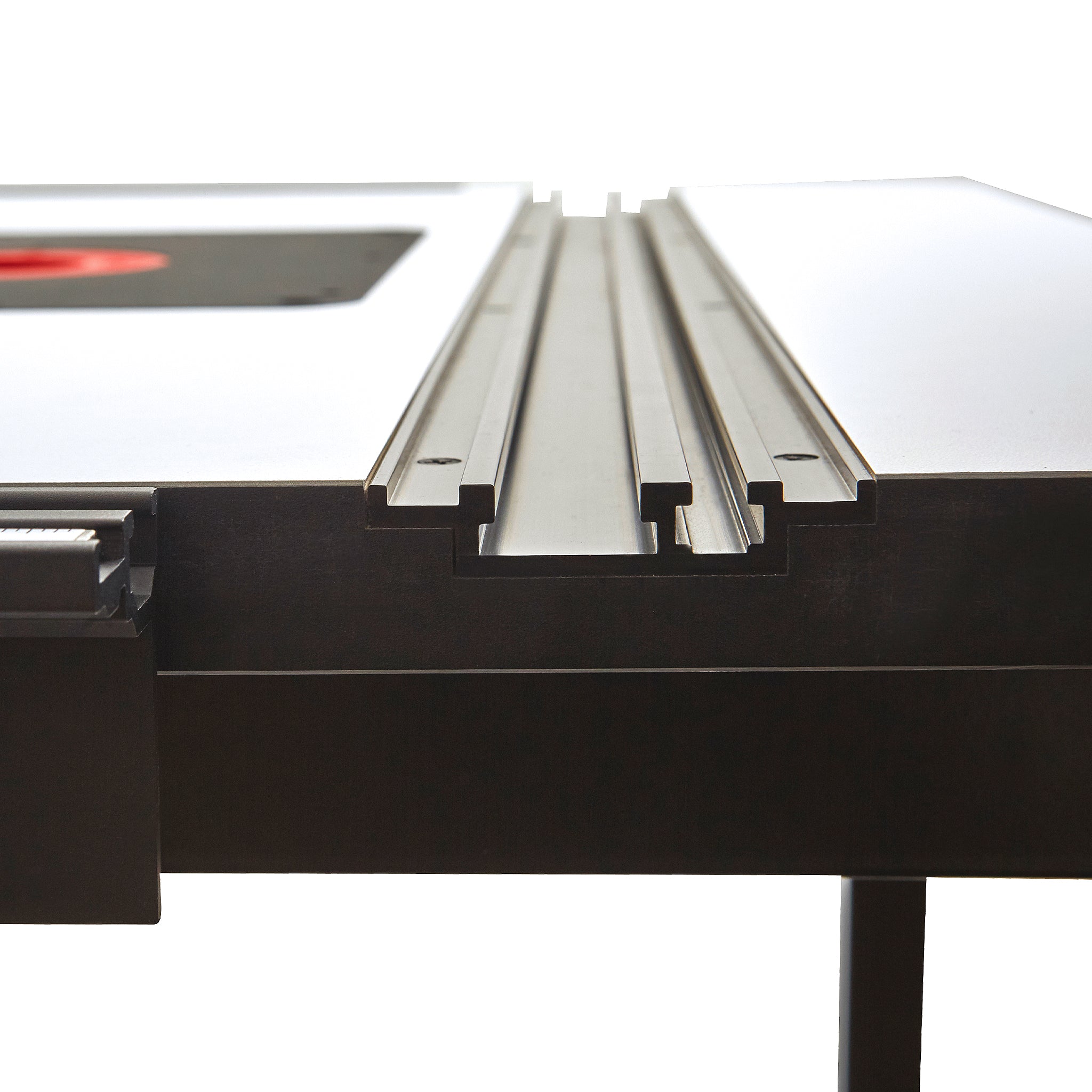

This table top is laminated on both faces with a low friction, premium-grade, phenolic which is highly wear resistant and allows the workpiece to glide smoothly through the router bit. The phenolic laminate is sandwiched around a 27mm solid moisture-resistant composite core which prevents the absorption of atmospheric moisture, eliminating the risk of warping or distortion of the table surface when working in cold or damp workshops. Set into the top is an extruded aluminium, double T track which includes a standard 19mm track for use with mitre gauges and feather boards, and a 6.3mm T slot for use with stops and homemade jigs.

Router Table Fence

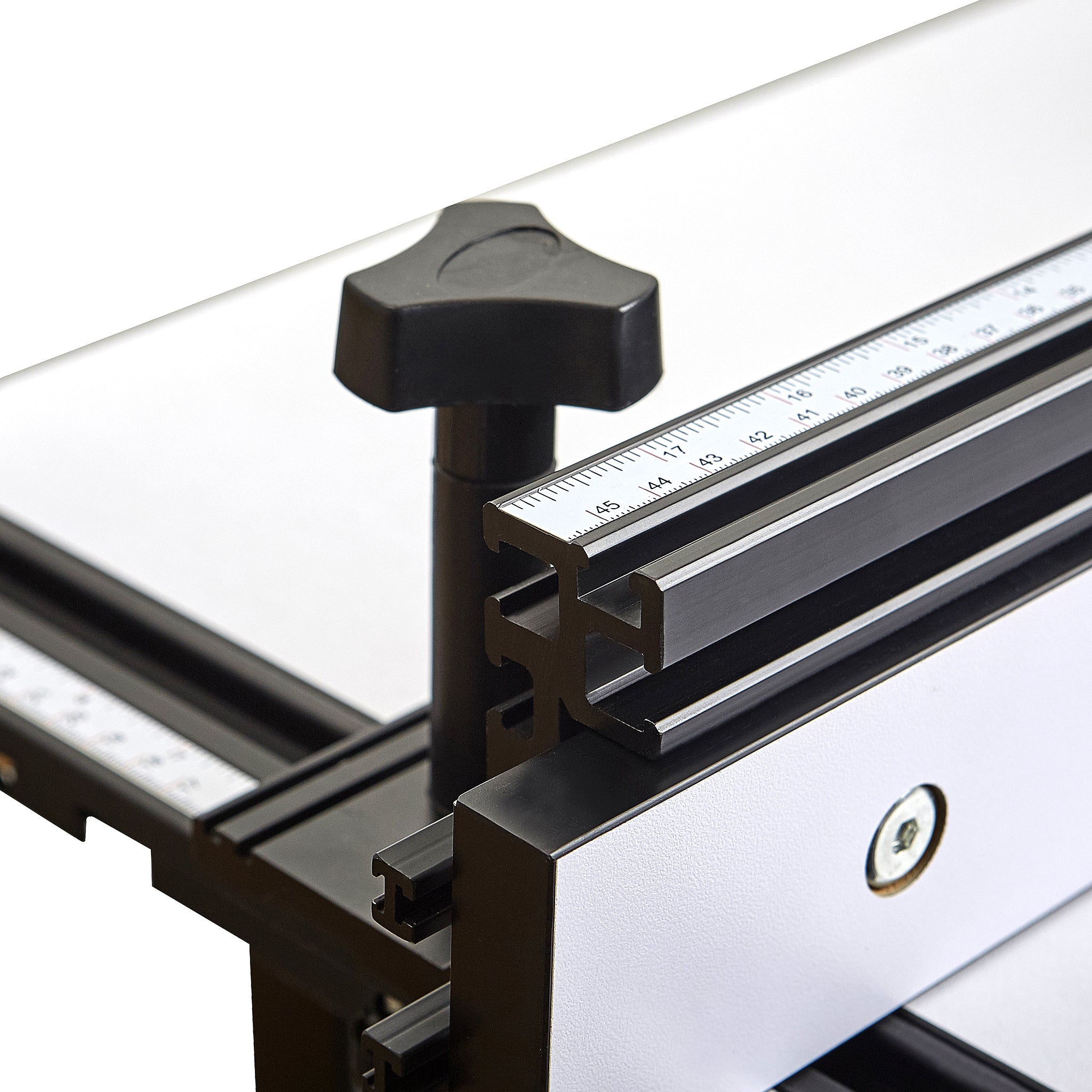

This router table fence is precision CNC machined from aircraft-grade aluminium with a black anodized finish. On the top face of the fence is a metric scale and an 8.3mm T Track for use with Rutlands® flip stops and on the front face there is another 8.3mm T Track for mounting Rutlands® feather boards and the height adjustable router bit guard. The two sub-fences are made from a solid composite with a low friction, phenolic laminate surface to ensure smooth movement of the workpiece. The fences can be adjusted, tool free, to accommodate any router bit from 10mm to 115mm in diameter and the outfeed sub-fence can be off-set to allow for edge planing.

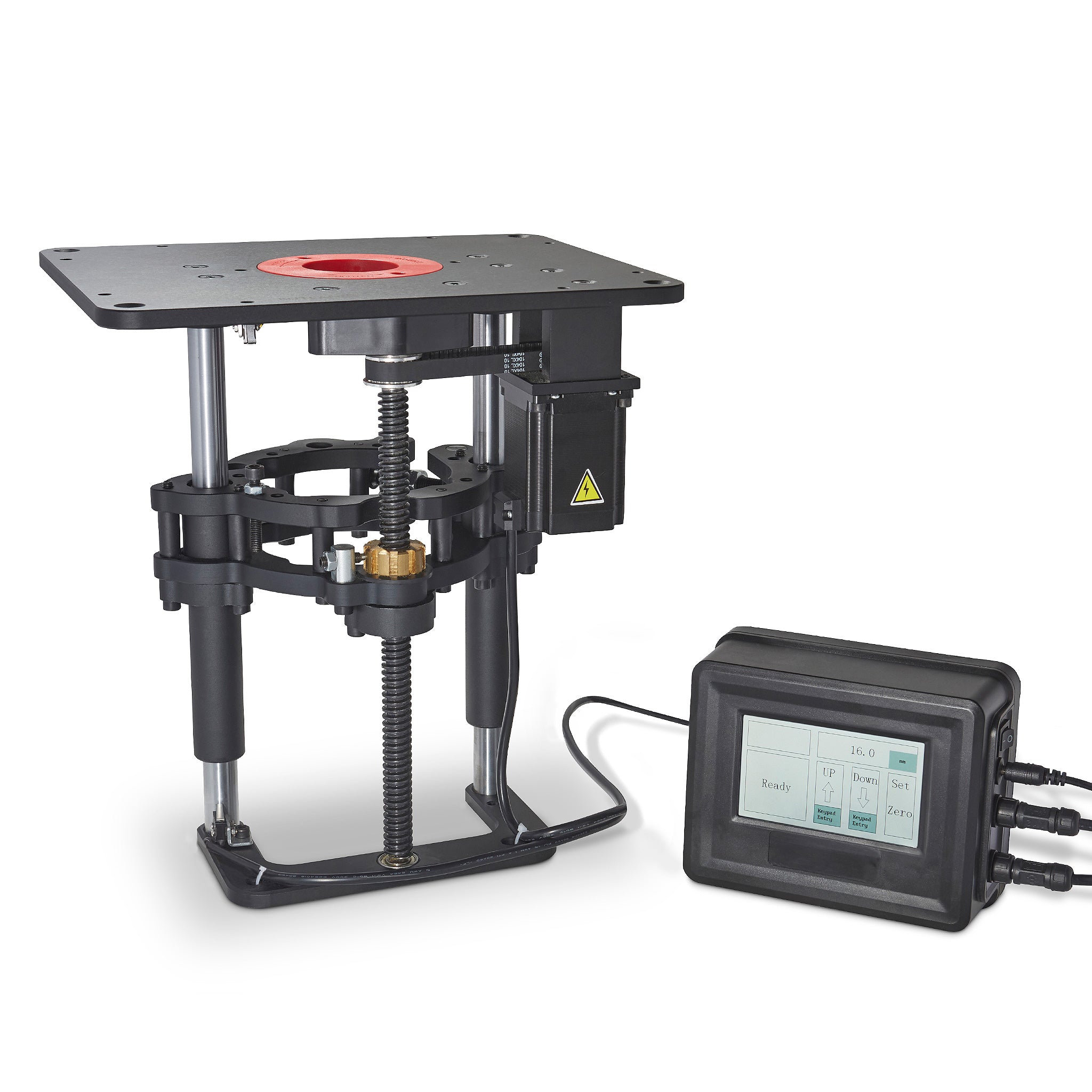

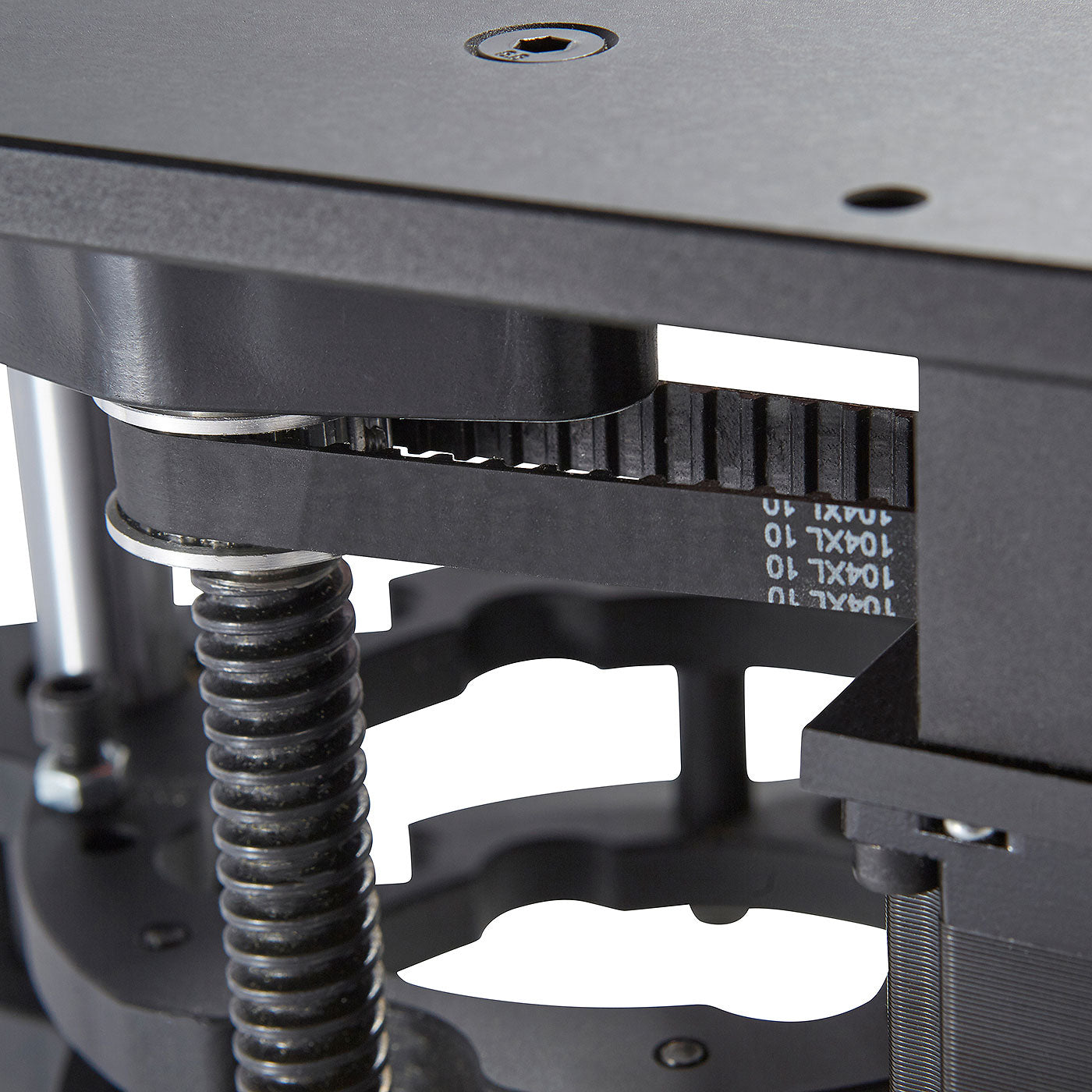

Electronic Router Lift - R20

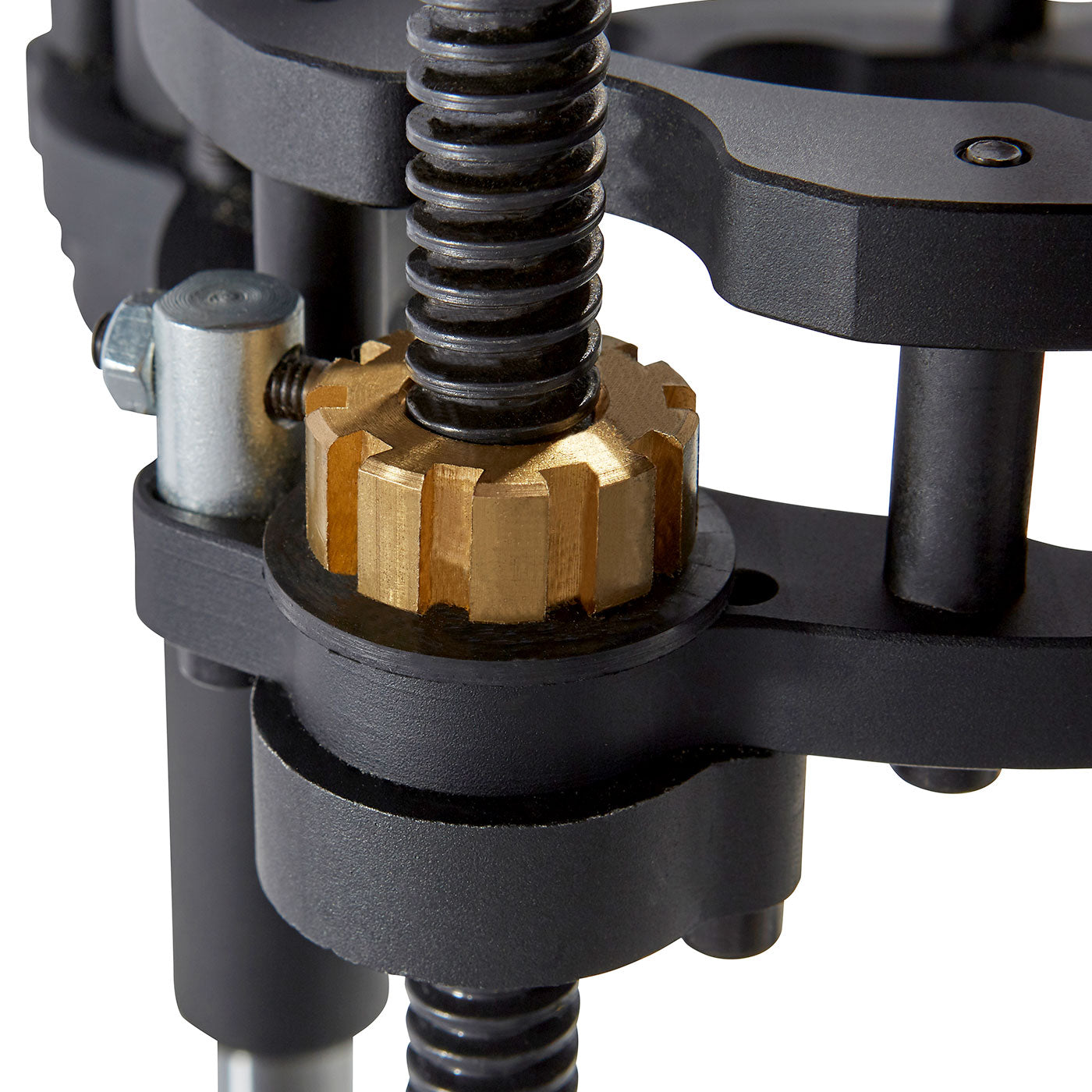

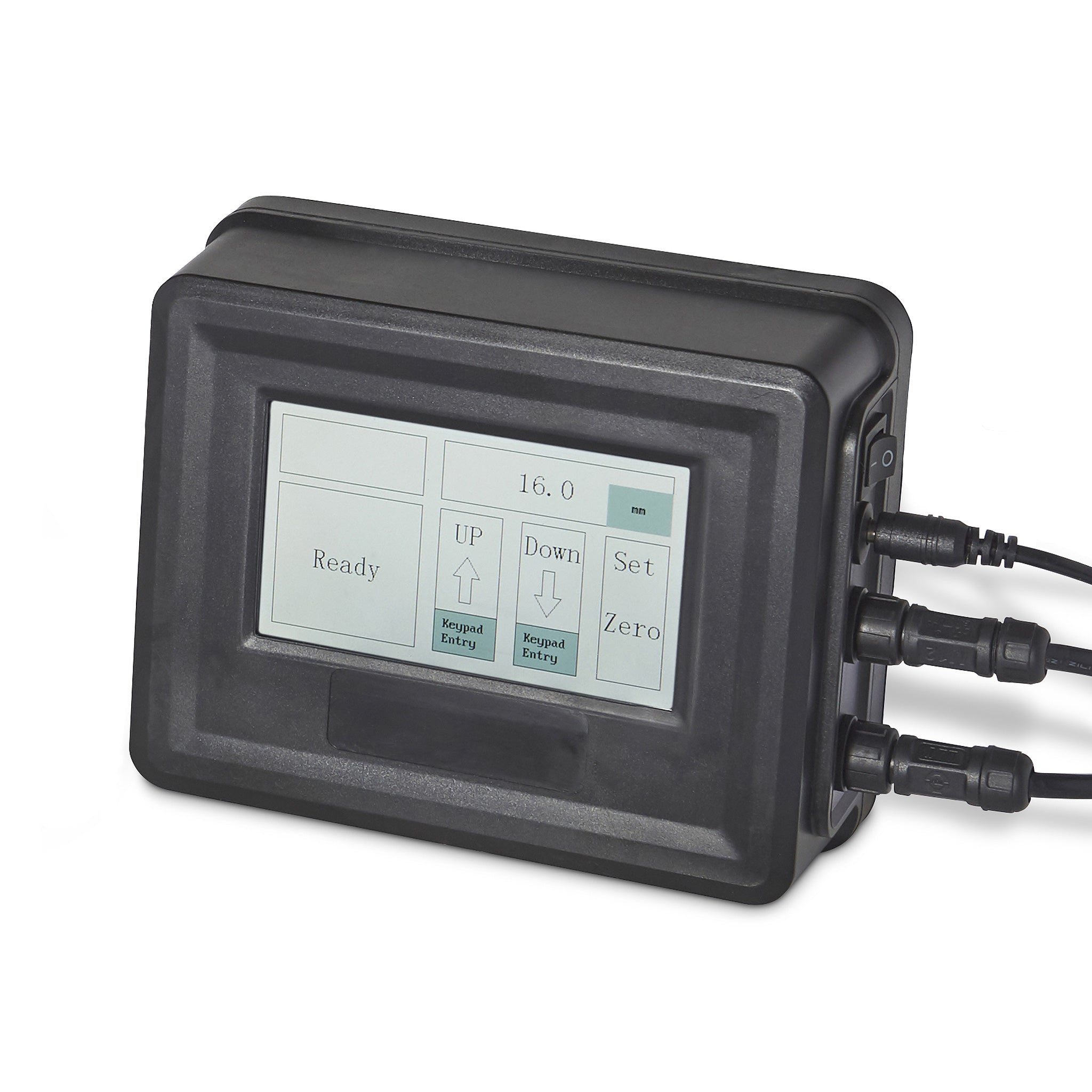

This electronic router lift significantly reduces set up time and ensures pin point accuracy when table routing. The rise and fall is operated by the digital control box which features an LED display. You simply press the start button on the control box and then select either metric or imperial graduations. Metric settings are displayed in 0.1mm increments and imperial settings in 0.001" increments. There are two operating modes, the first method is by pressing and holding the up or down button on the key pad until you reach your desired height. The second method is to raise or lower the lift by a specific increment by entering into the keypad the amount of height adjustment required. You can re-set to zero at any height. The lift will automatically lock in position after setting the cutting height, eliminating the risk of unwanted travel during routing. The carriage and threaded arms of the lift are CNC machined and feature sealed-for-life bearings to allow for smooth movement of the router motor.

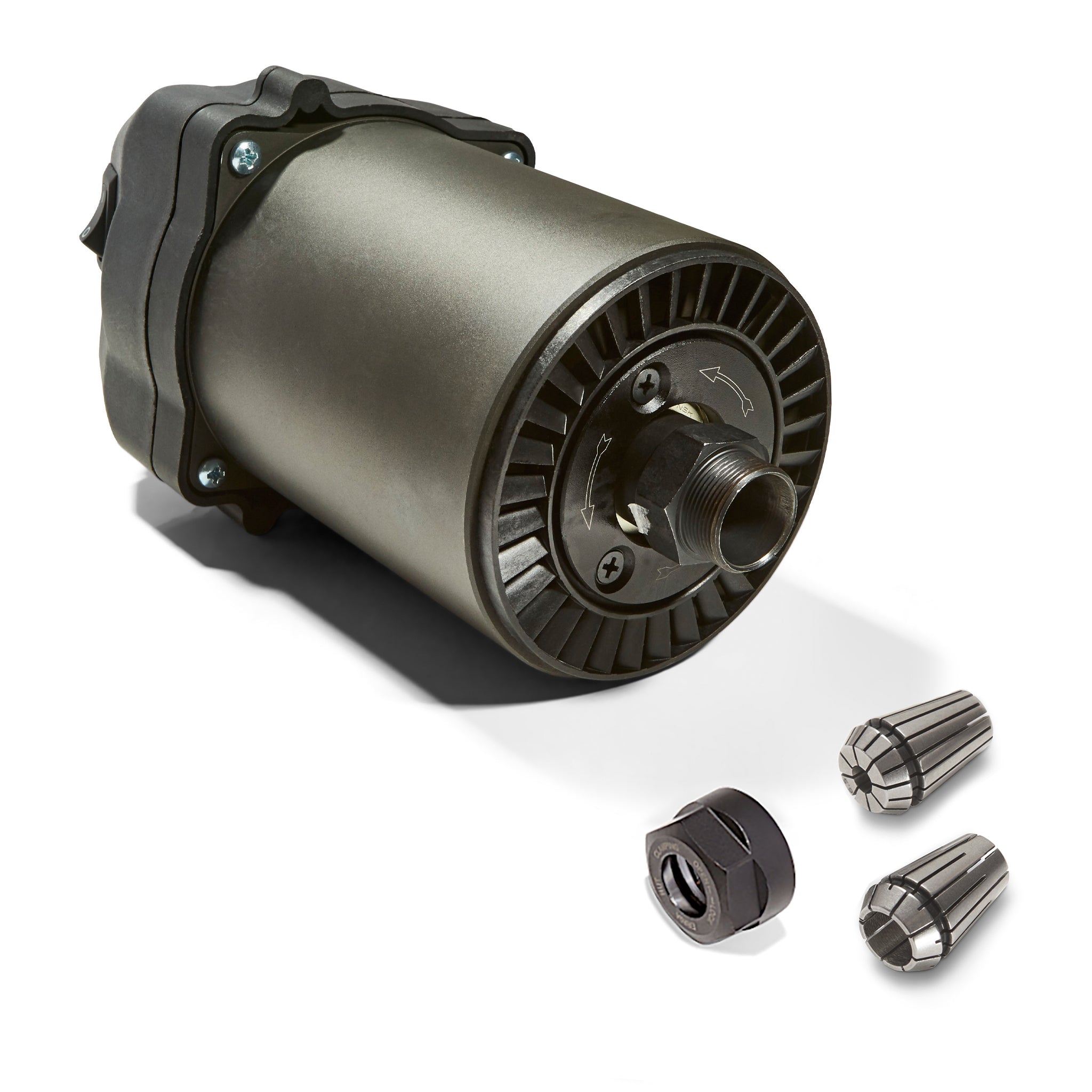

Router Lift Motor
This powerful, 2400W variable speed motor features a torque control system that prevents the motor from slowing under load, ensuring that the rotational speed remains constant, no matter what diameter of router bit you are using or how hard the wood, resulting in a superior workpiece finish. A variable speed control dial, conveniently positioned on the bottom of the motor for easy-reach, allows you to select speeds from 10,000 to 22,000 rpm. With soft start technology, the router motor gradually increases the speed from zero to the desired level for a safer, more enjoyable routing experience. An air cool system ensures a constant flow of fresh air to prevent the risk of the motor overheating, when installed in the Rutlands® dust box or in a close-sided router table.

Double Feather Board
These feather boards are an essential tool and provide even, consistent pressure on your workpiece up against the fence. They allow you to apply pressure closer to the router bit, at the most critical point, without risking injury to your fingers.

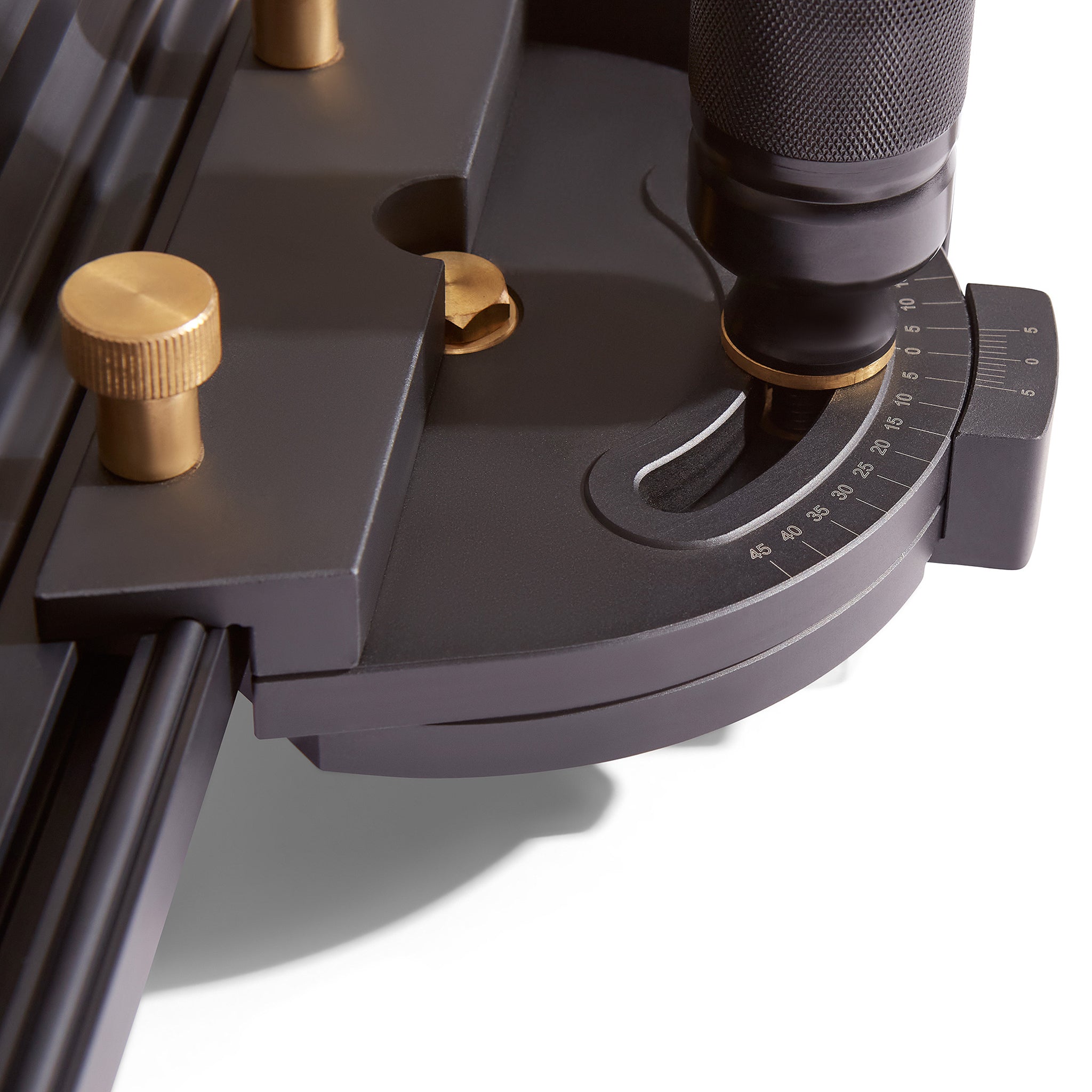

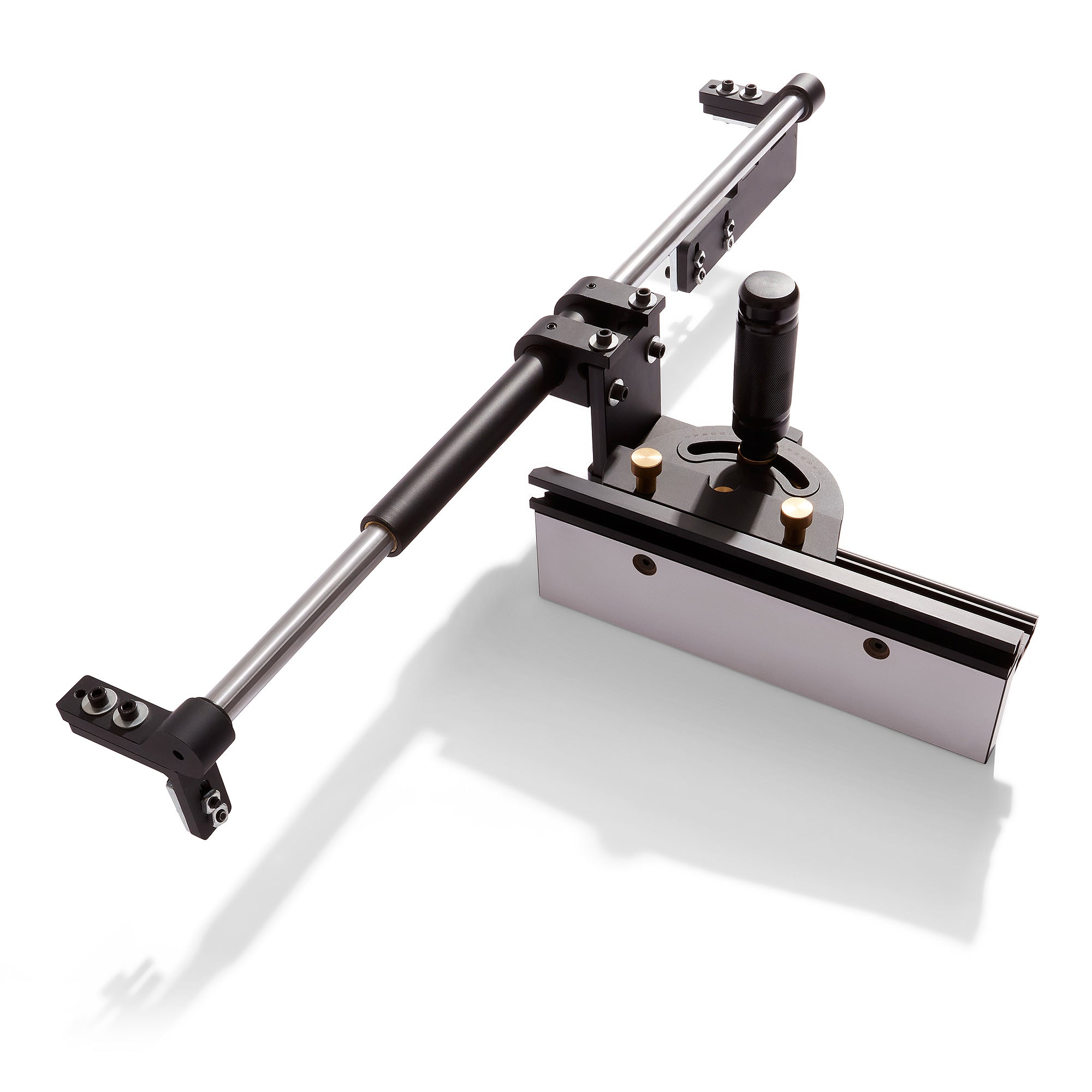

Router Table Sliding Carriage
This router table sliding carriage takes the concept of traditional mitre gauges to the next level, giving you a higher level of accuracy when coping and cross-cutting end grain, producing tighter fitting joints.

Router Bit Holders
These router bit holders are the perfect solution to organise and store your router bits. The holder will eliminate the need to search around in the back of drawers for bits, you will now be always able to have your collection within arm's length.©
