R2 Lathe Variable Speed - 305mm x 610mm

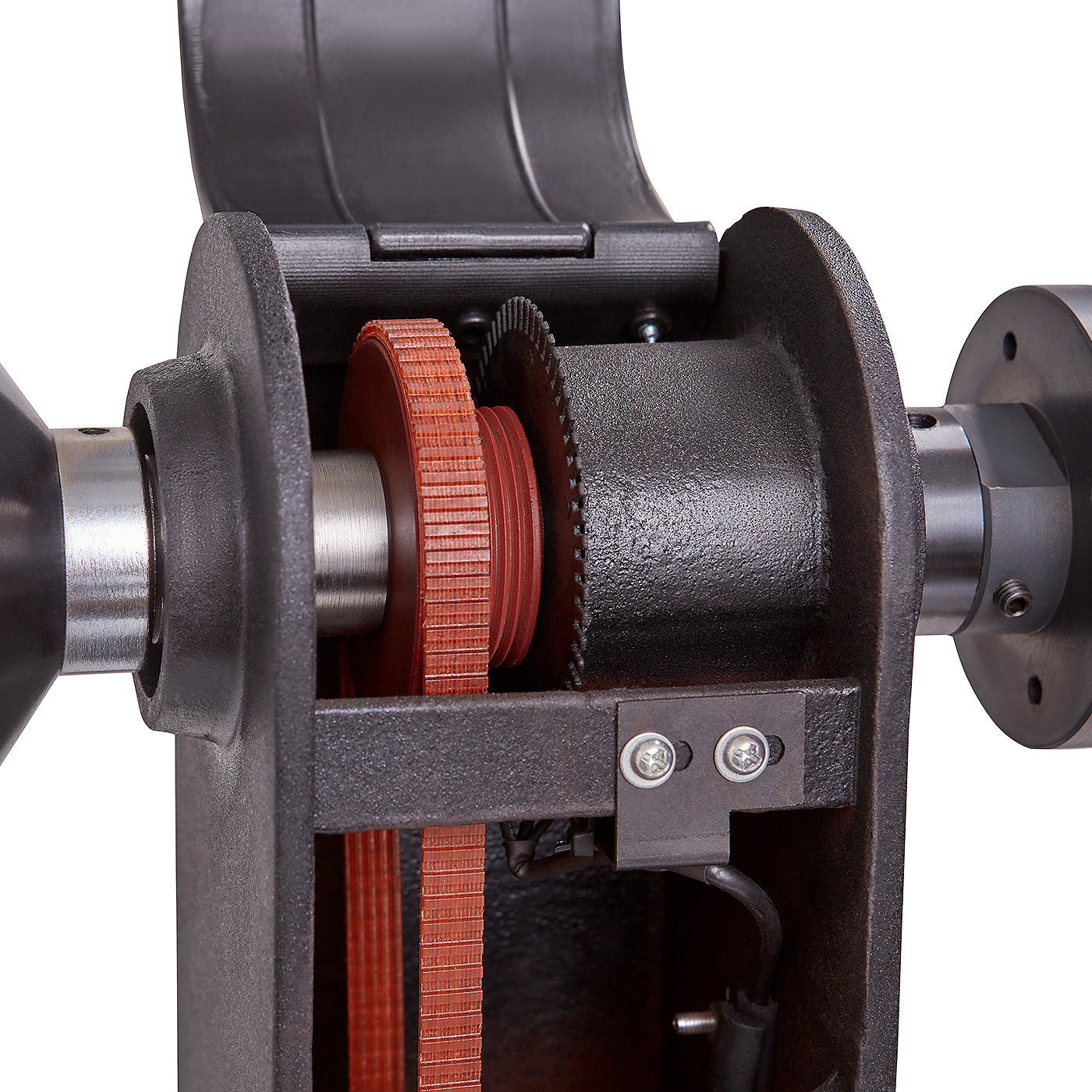

This is an exceptional woodturning lathe. Compared to many other bench top lathes it has greater work holding capacity allowing for 305mm bowl turning and 610mm spindle turning and has the advantage that you can extend the bed at a later stage to increase spindle turning to 1300mm. It is powered by a high torque, DC motor which is extremely quiet in use, even at maximum speed and under full load. A non-slip poly V belt efficiently transmits power from the motor whilst the motor controller automatically increases the level of torque to maintain the speed, as load on the workpiece is increased.

The two step pulley, in conjunction with the variable speed control results in two speed ranges of 250 to 1300rpm and 700 to 3450rpm, allowing you to fine tune the speed to suit small, medium and large turnings. The digital read out is ideally positioned on the tailstock to offer perfect visibility. The level of vibration is remarkable low, due to the substantial grey iron castings which have the mass needed to dampen and absorb vibration. The cast iron headstock is CNC machined for the precise alignment of the drive spindle and the extra wide roller bearings, ensuring class leading concentricity.

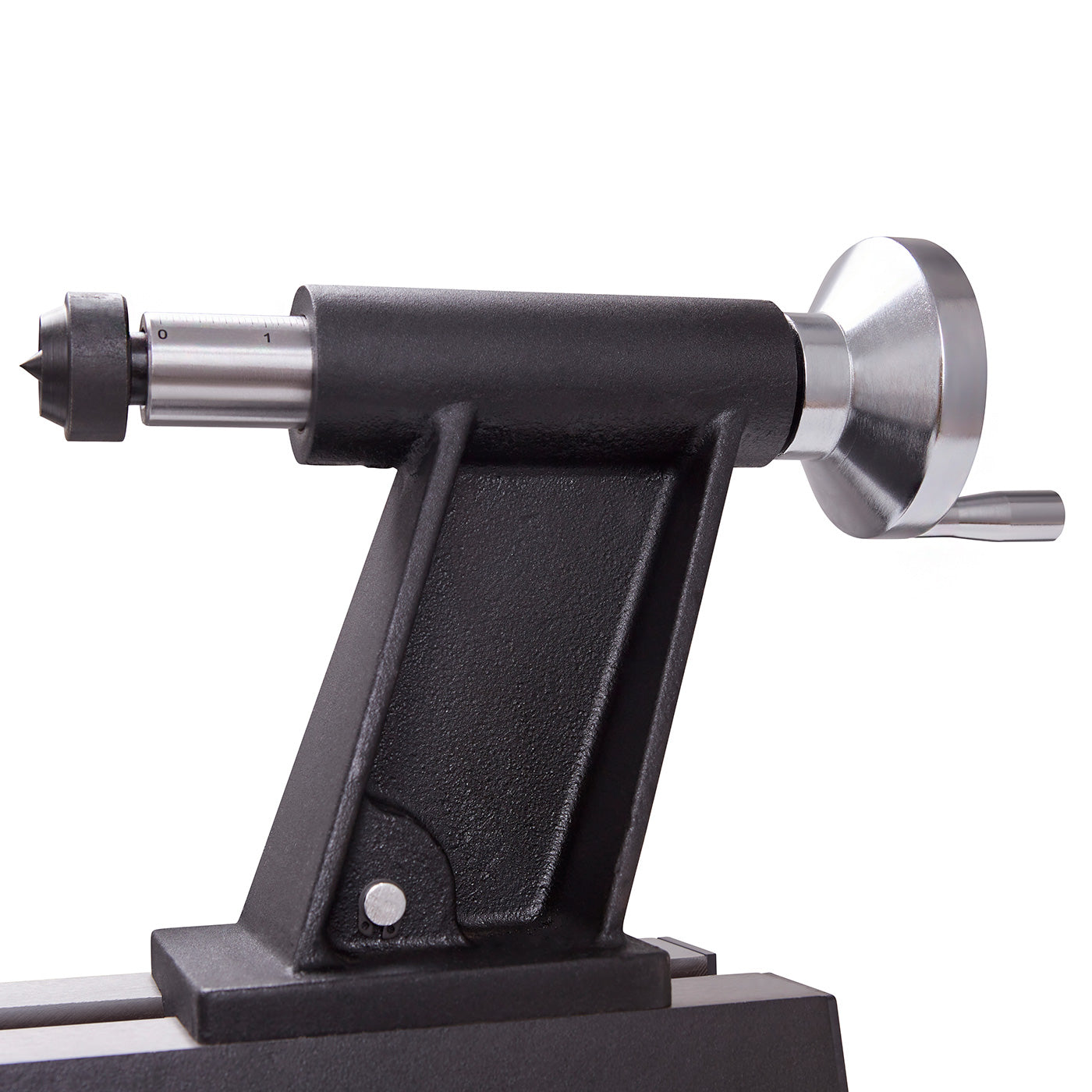

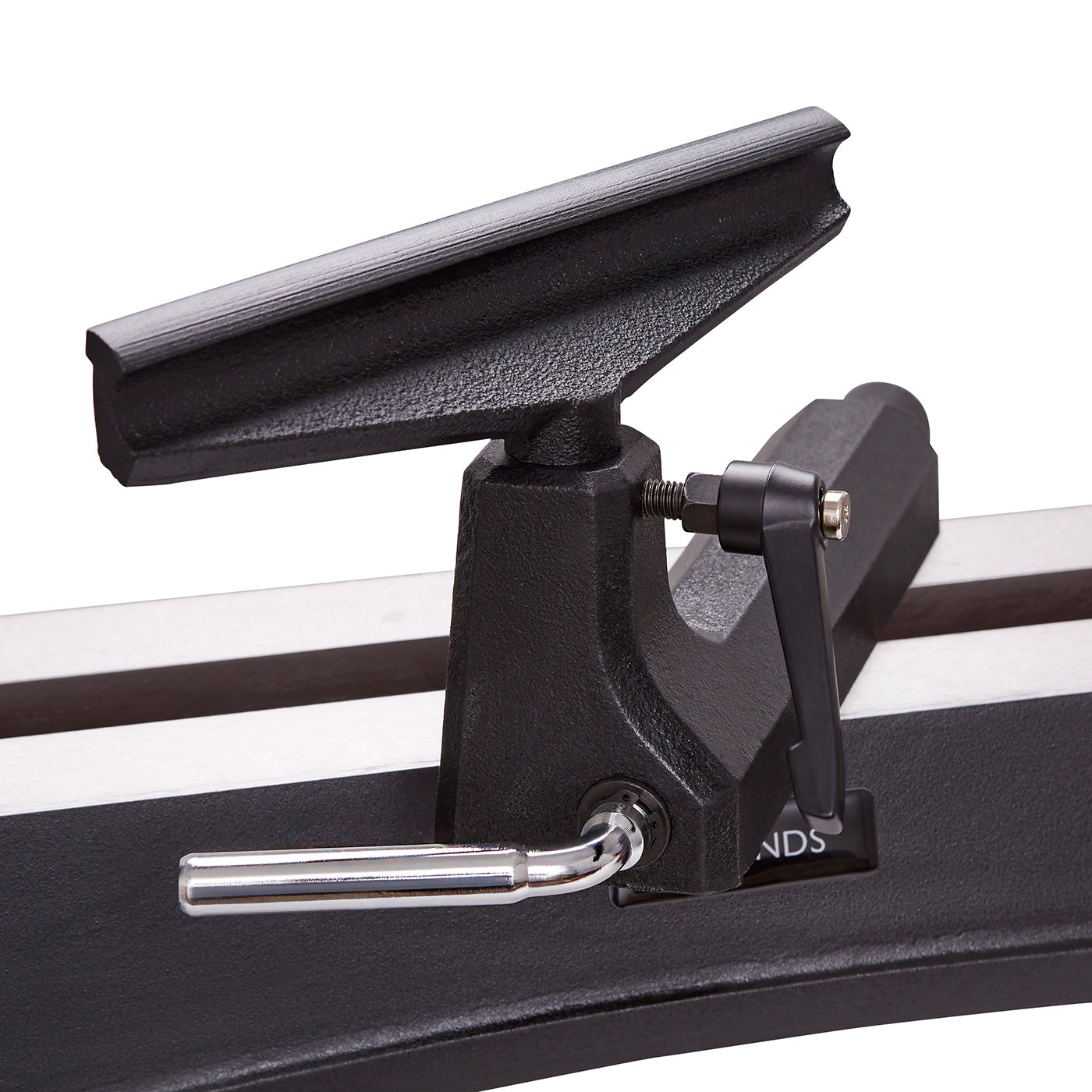

The drive spindle has a 1" x 8tpi thread with a No 2 morse taper to allow for the fitting industry standard chucks and attachments. The tailstock has No 2 morse taper which is hollowed out to accept drill bits when turning standard and bed side lamps. The tool rest is held firmly in the non-slip banjo and will not wander when roughing out or turning large bowls and platters. The bed of the lathe is finely ground for smooth tool rest positioning. All of the adjustment handles are ergonomic and can be locked off to prevent obstruction with the turning tool.

The lathe comes complete with a revolving centre, four prong centre, face plate, knock out rod and spindle locking wrenches . This lathe is ideal for bowl and platter turning, goblet, vase and egg cup turning, pen turning and all between centres work. The reverse rotation is ideal for sanding and polishing when final finishing. This is a premium performance lathe that is extremely quiet in operation, virtually vibration free and features a variable speed, high torque motor and control unit. ©
