< Digital Height and Depth Tools

Digital Height and Depth Gauge

Regular price £20.00
Regular price £0.00Sale price £20.00
In Stock for delivery by
Order within

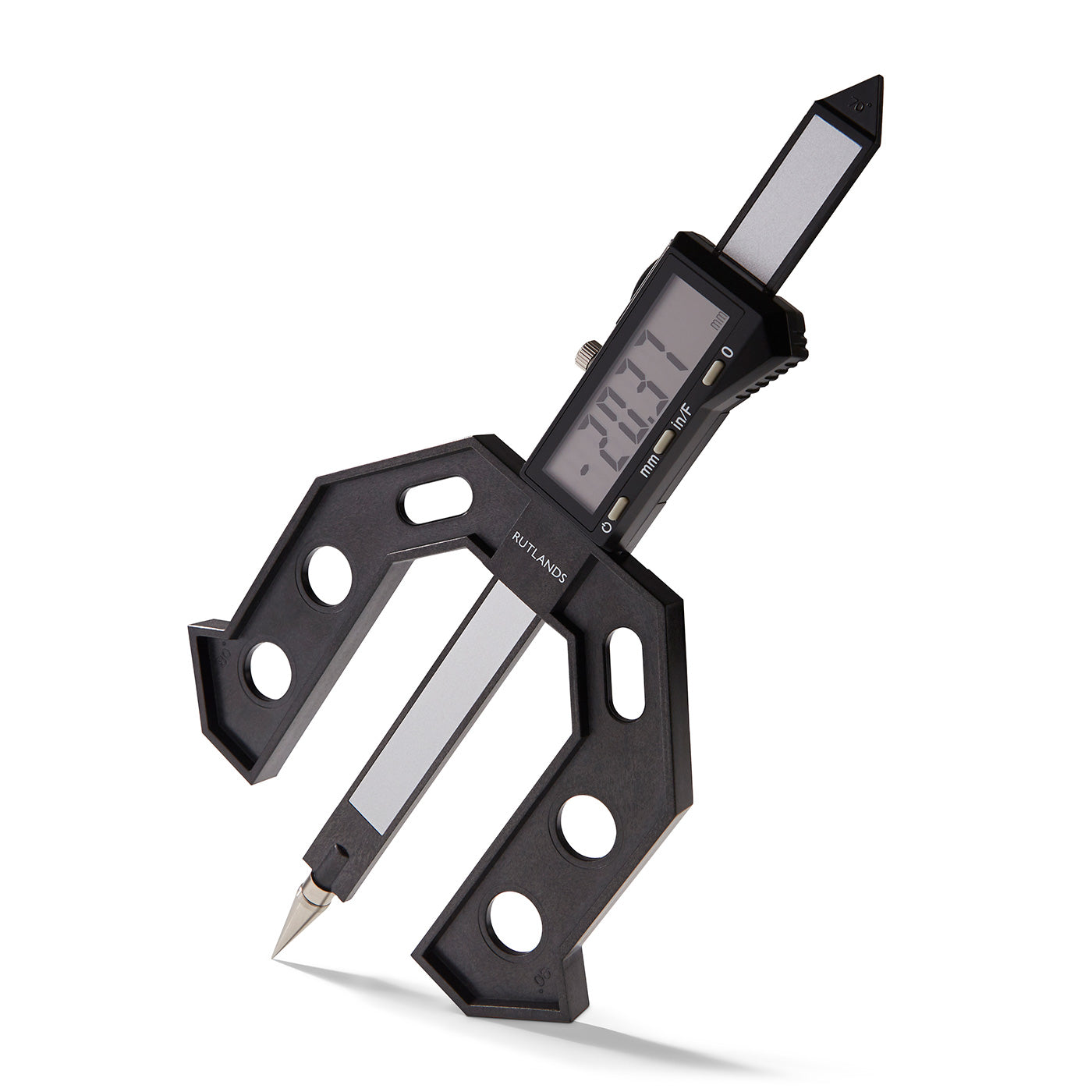

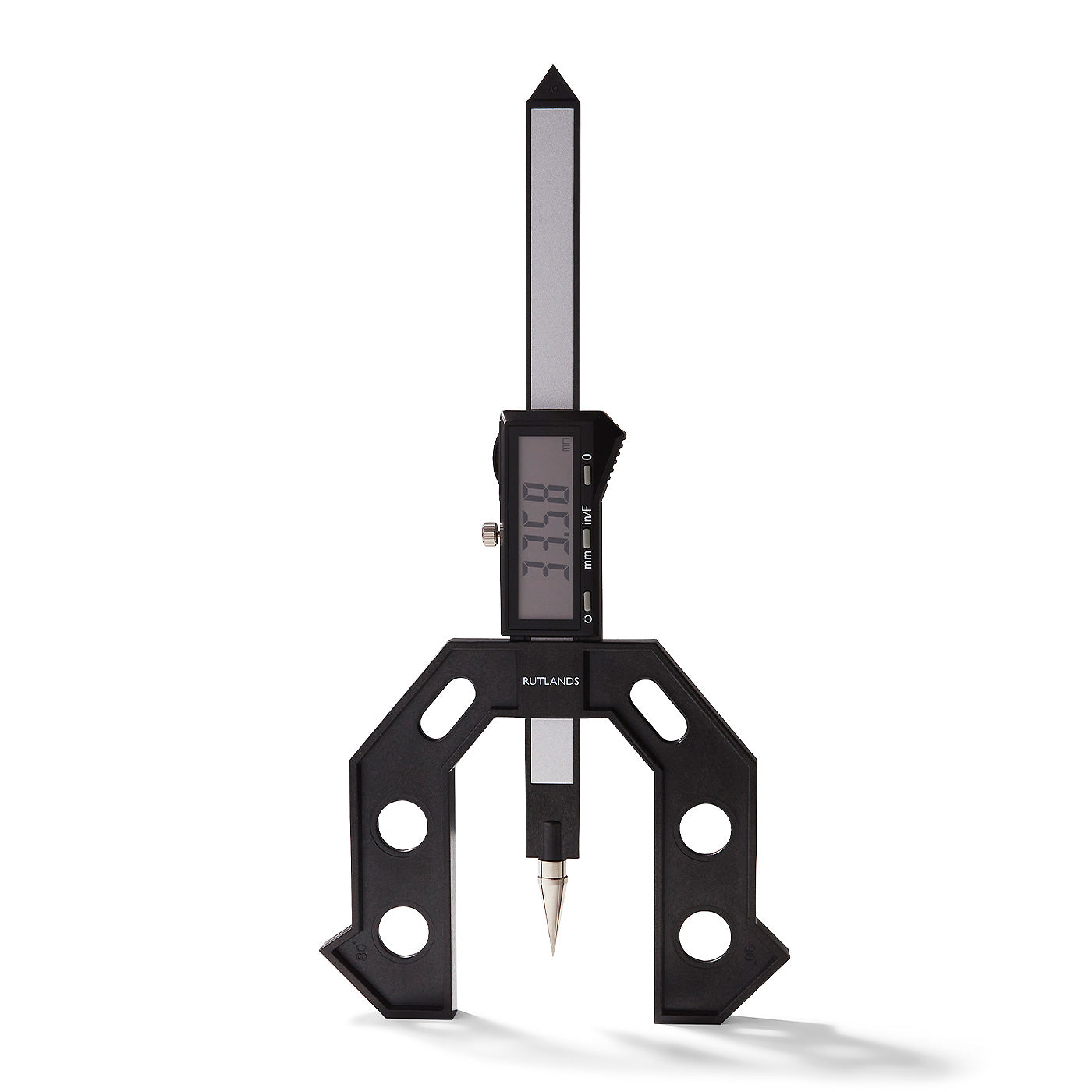

This digital height and depth gauge allows you to set saw blade and router bit heights, as well as measure mortice or slot depths, to an accuracy of 0.01mm. Self-standing for ease of use, the gauge is supplied with an interchangeable pin for precise depth measurements.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,564 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Digital Height and Depth Gauge
Regular price £20.00
Regular price £0.00Sale price £20.00
KEY FEATURES
  • 3 Year Warranty
  • Fast and accurate setting of saw blade and router bit heights
  • Pinpoint precision with a resolution of 0.01mm
  • Removable pin for mortice or slot depth measurements of up to 70mm
  • Easy to read, LCD display reads in both metric and imperial
  • Display can be zeroed for taking relative measurements
FULL DESCRIPTION
This digital height and depth gauge has been specifically designed for woodworkers to allow you to set saw blade and router bit heights, as well as measure mortice or slot depths, with exact precision. There is an interchangeable pin supplied for use when you are required to make depth measurements, with depths of up to 70mm being able to be measured. A large, easy to view LCD display reads in inches, fractions or millimetres. Precise accuracy can be achieved as millimetres are displayed in 0.01mm increments, decimal inches are displayed in 0.0005" increments and fractions in 64th's. The display can be zeroed, ideal for making relative adjustments.

A polycarbonate frame enables the gauge to be self standing for ease of use and it has the added benefit of a low profile for back fence adjustments. The frame also features 70, 80 and 90° angles gauges if you need to quickly measure an angle. You can switch between the pre-set and zero set measurement modes for total accuracy up to 0.01mm. The router cutter depth measuring range is 0 to 80mm and the gauge has an internal width of 60mm.

The overall height of the gauge is 250mm and its overall width is 140mm. Supplied with an extra-long life 3V CR2032 lithium ion battery, it also has auto shut off for preserving battery life. This is our most popular height and depth gauge for woodworkers and cabinetmakers. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR9101
  • Overall Height250mm
  • Accuracy0.02mm
  • Resolution0.01mm
  • Height Range0mm - 80mm
  • Depth Range0mm - 50mm
  • BatteryCR2032
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 13 reviews
100%
(13)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Steve G.
Neat little product with multiple uses that will d...

Neat little product with multiple uses that will definitely increase my levels of precision!

P
Philip B.
Great gauge, use it for setting up my planer blade...

Great gauge, use it for setting up my planer blades. Superb accuracy, much better than the gauges sent with my new blades. Great price too.

P
Peter B.
Eventually got one as Rutlands don't appear to kee...

Eventually got one as Rutlands don't appear to keep much stock. I've used it twice now and it works perfectly fine. I'm sure I will be using it more when I eventually finish building my Router table. As a previous reviewer said it looks fragile, but it's like anything if you treat this tool with respect I'm sure it will last a lifetime.

J
James K.
I bought this height gauge because I was strugglin...

I bought this height gauge because I was struggling to see the graduations on my steel rule. This has the biggest of the LCD readout that I have seen and makes setting the blade height on my Jet bench fast and accurate.

W
William H.
One of the most useful gauges i have bought as my ...

One of the most useful gauges i have bought as my eye sight is not as good as it used to be for reading the tape measure ,great piece of kit for setting up table saw and router table, a good investment for aging eyes and an excellent price.
