< Solid Carbide Router Bits

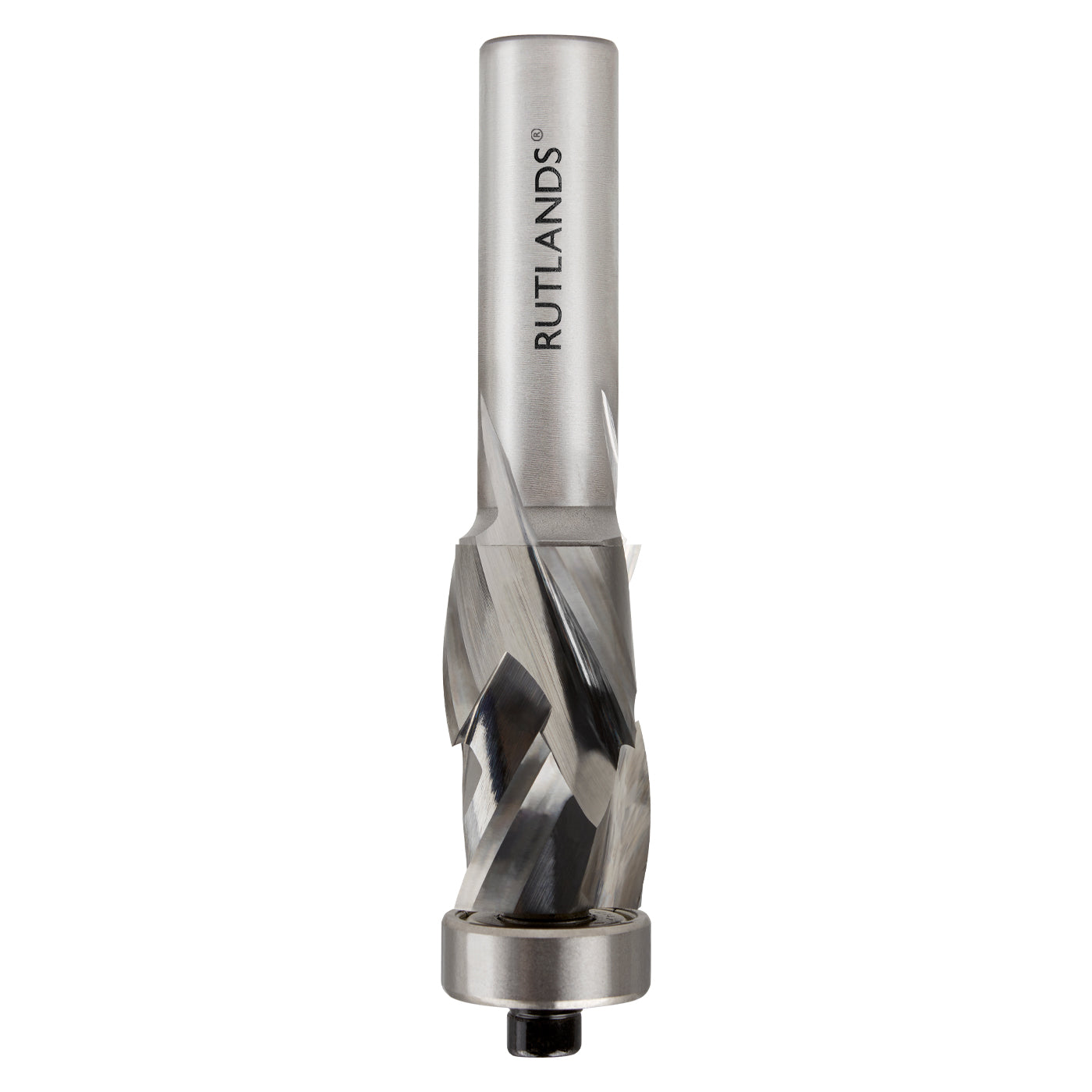

Solid Carbide Router Bit - Spiral Compression Bottom Bearing - D=19mm H1=16mm H2=16mm L=78mm S=1/2"

Regular price £100.00
Regular price £0.00Sale price £100.00
In Stock for delivery by
Order within
These spiral compression router bits feature a bottom bearing, used to flush trim overlaying edges of material or follow a pre-cut template. Compression geometry ensures an ultra-fine finish on both faces. Precision ground from solid micro-grain tungsten carbide, for the longest possible tool life and edge retention.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,610 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Solid Carbide Router Bit - Spiral Compression Bottom Bearing - D=19mm H1=16mm H2=16mm L=78mm S=1/2"
Regular price £100.00
Regular price £0.00Sale price £100.00
KEY FEATURES
  • 3 Year Warranty
  • Up and down shear cutting edges on the same bit, ensuring an ultra fine finish on both faces
  • Pulls fibres towards the centre of the board, eliminating tearing & chipping
  • Precision ground, micro-grain solid tungsten carbide provides exceptional tool life
  • Solid carbide bits run cooler during use, retaining a sharper edge for longer
  • Superior edge retention ensures cleaner and more accurate cuts, for the ultimate finish
FULL DESCRIPTION
Solid Carbide Router Bits
Each router bit has been precision ground from a single piece of super micro-grain solid tungsten carbide. This ultimate micro-grain carbide formulation gives the longest tool life and edge retention ensuring a very clean and accurate cut that leads to the ultimate finish. These STC router bits are suitable for use on softwoods, hardwoods, veneers, plastic materials, laminates, and composite materials.

Spiral Compression Two Flute with Bottom Bearing Bits
Spiral compression two flute bits leave the ultimate finish on your project. These bits have a bearing on the bottom of the bit meaning they can be used as a flush trim bit to trim overlaying edges of material, the bits can also be used with a pre-cut template to copy and trim a workpiece to an existing profile. The compression bits feature both up and down shear cutting edges on the same bit to provide down-cutting on the top faces of material and up-cutting on the bottom. This action pulls fibres towards the centre of the board, eliminating tearing & chipping, whilst ensuring an ultra fine finish on both faces.

Superior Finish and Performance
Each spiral has been specifically designed to give the optimum cutting angle to ensure the wood is sheared cleanly as well as providing efficient chip ejection. This leads to the bits running cooler during use as solid carbide dissipates heat more uniformly, even at high speeds, meaning the edges remain as sharp as possible and are retained for longer. Each bit conforms to strict German DIN standards to ensure maximum operator safety. ©

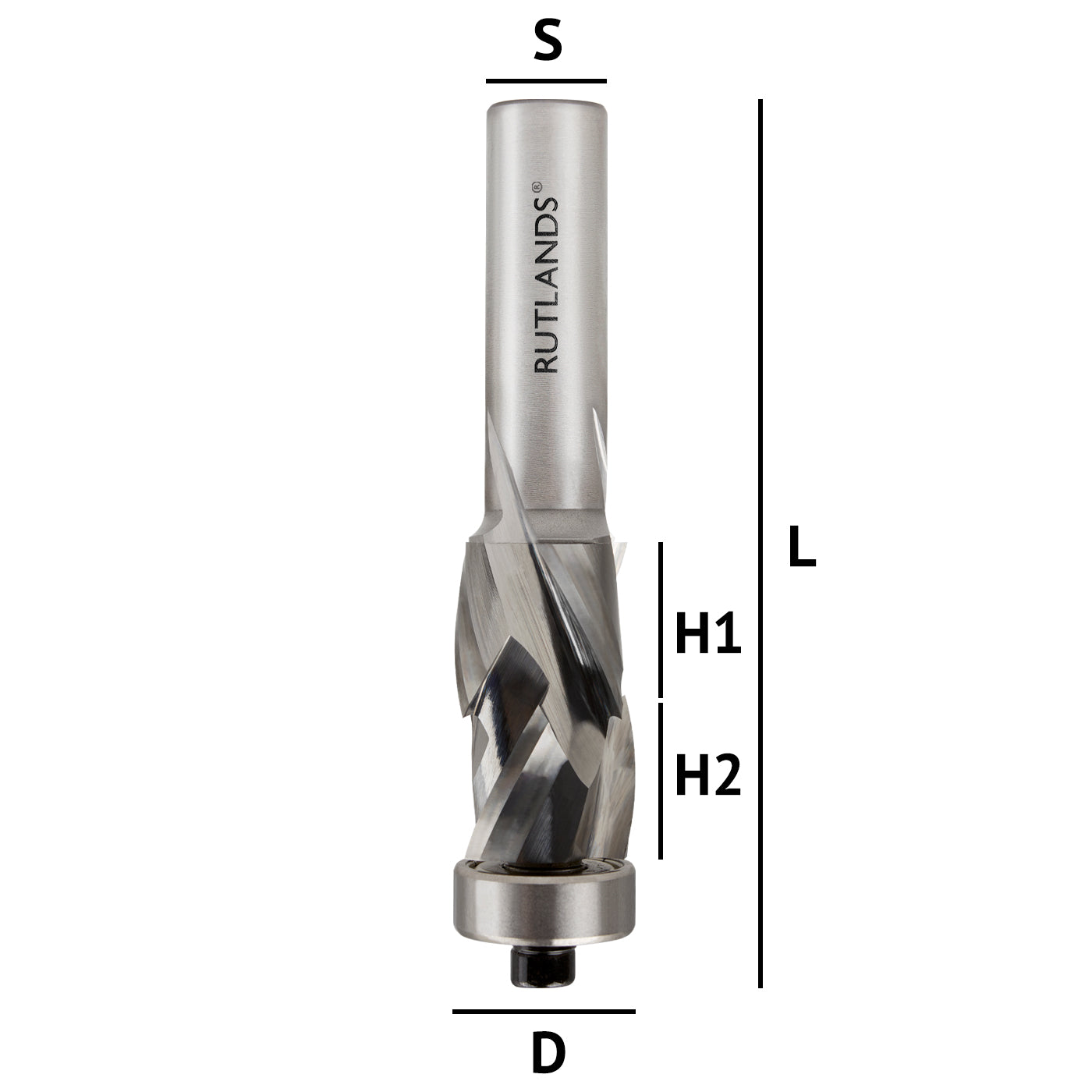

SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR5883
  • D19mm
  • H1 (Down Cut)16mm
  • H2 (Up Cut)16mm
  • L78mm
  • n.max24,000
  • S1/2"
