Dual Wheel Marking Gauge

Regular price £40.00
Regular price £0.00Sale price £40.00
In Stock for delivery by
Order within
This dual wheel marking gauge ensures highly accurate measurement transfer and marking of your workpiece. Two sharp, brass cutting wheels pull the gauge against the stock, ensuring no drifting, and two independently adjustable stainless steel rods enable precise mortice and tenon marking out.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,998 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Dual Wheel Marking Gauge
Regular price £40.00
Regular price £0.00Sale price £40.00
KEY FEATURES
  • 3 Year Warranty
  • Fast and accurate edge marking and measurement transfer
  • Independently adjustable rods, ideal for mortice and tenon marking
  • Large reference face sits securely against the edge of the workpiece
  • Single sided wheel bevels pull the gauge against the stock, eliminating drifting
  • Sharp, hardened brass wheels cut the wood fibres cleanly, for a highly accurate line
FULL DESCRIPTION
A wheel marking gauge is undoubtedly one of the most used tools by all woodworkers. It ensures accurate marking on your workpiece and allows measurement transfer as opposed to taking repeated measurements which reduces any kind of error. Two precision brass cutting wheels cut the wood fibres cleanly, rather than tearing to prevent the marked line from wandering to give highly accurate lines, even on cross grain. The large rectangular face of the gauge gives a solid platform against the workpiece edge, to aid stability when marking. There are two independently adjustable stainless-steel rods, enabling precise mortice and tenon marking out, or you can set the two rods at different measurements and you can switch between them. One of the rods has a marking wheel with an inward facing bevel which pulls the face of the gauge against the stock, heightening the accuracy and ensuring a true parallel line.

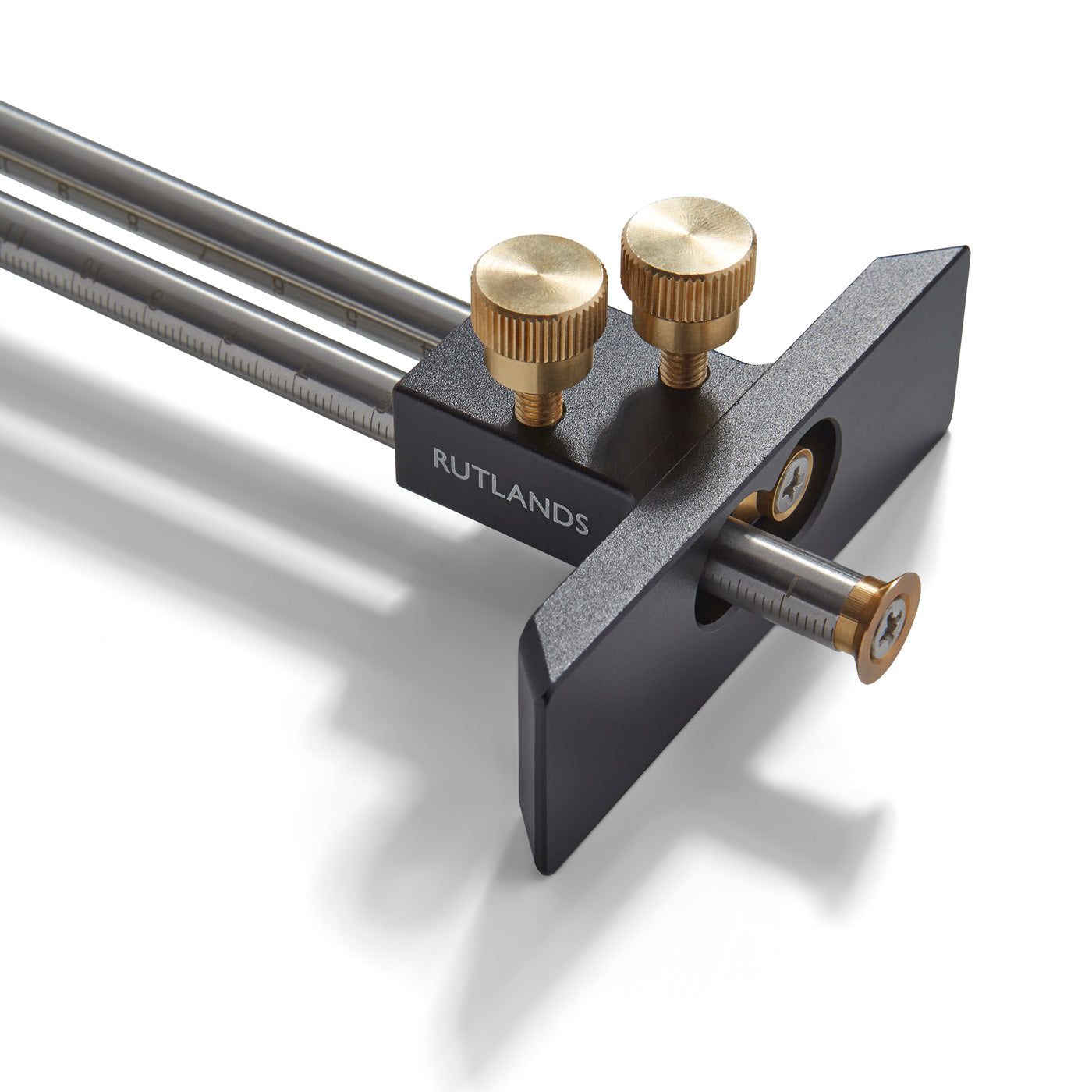

The body of the gauge has been produced from a single piece of aircraft grade aluminium that is precision machined to ensure the face sit true to the workpiece. The face of the body of the gauge is considerably larger than conventional marking gauges and offers the benefit of greater stability and improved accuracy. The body has been beautifully finished by electrochemical anodisation making it corrosion and scratch resistant. The two brass knurled locking knobs secure and hold the stainless-steel rods in place until released, ensuring the measurements do not differ. The hardened brass blades are stored inside the face of the gauge for protection.

The rods measure 215mm in length with the face of the marking gauge measuring 85mm x 25mm. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR9042
  • Overall Length220mm
  • Wheel Diameter12mm
  • Head Dimensions85mm x 25mm
  • Rod Diameter8mm
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
N
Neil J.
Use mine for marking out mortise and tenon joints...

Use mine for marking out mortise and tenon joints

C
Chris H.
Nicely made with a solid feel...

Nicely made with a solid feel.

A
A D.
The marking gauge is really well though out...

The marking gauge is really well though out. I like the design, it's nice a compact for my toolbar. The rectangular face is still large enough to be able to get a clean reference from your work piece. It feels really well made and good quality.

T
Tim S.
Very, very good gauge...

Very, very good gauge. It is manufactured to a high standard which increases its accuracy. Very sharp cutting blades. The two arms mean I can transfer two measurements at once, making working twice as quick!

R
Ronald K.
I began woodworking a year ago using wood scraps t...

I began woodworking a year ago using wood scraps to make toys and measured everything using a metal tape and squareness by eye. Over time I have realised how important it is to be accurate in measurement, squaring and marking. This marking gauge is brilliant in allowing me to accurately achieve the sizings I require. Combine this with great price and quality and it now forms a key part of my kit.

Dual Wheel Marking Gauge

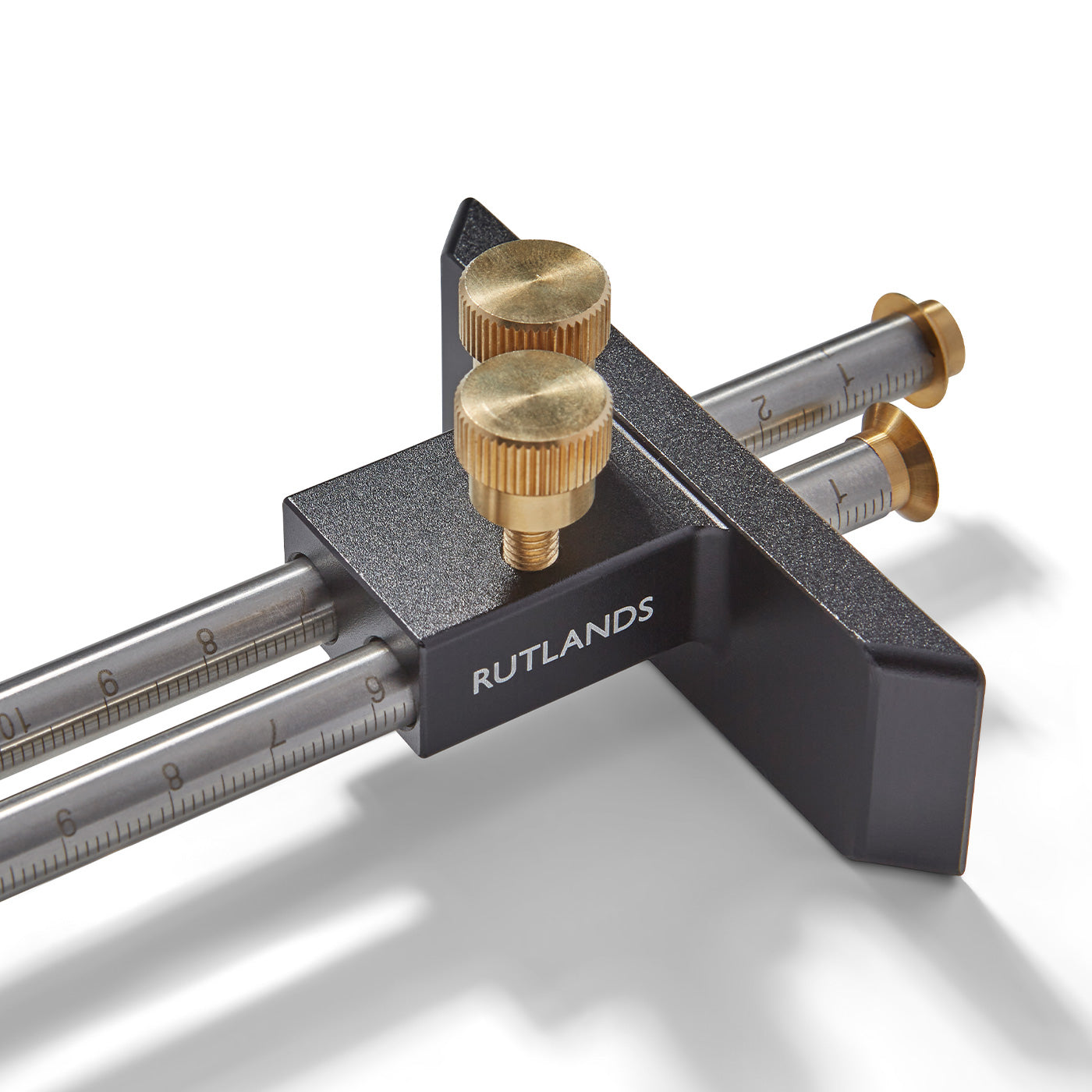

Dual wheel design

Two independently adjustable rods are ideal for mortice and tenon marking.
