No 95 Edge Plane

Regular price £120.00
Regular price £0.00Sale price £120.00
In Stock for delivery by
Order within
This edge plane features an integral 90° precision machined fence, designed to precisely and squarely trim the edges of stock or joint boards, with the low effective angle of 37° ensuring a fine finish on both cross and end grain.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,581 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
No 95 Edge Plane
Regular price £120.00
Regular price £0.00Sale price £120.00
KEY FEATURES
  • 3 Year Warranty
  • 90° precision machined fence squarely trims the edges of stock
  • Low 37° cutting angle allows fine planing on both cross and end grain
  • Fine pitch blade adjustment screw quickly and accurately sets the depth of cut
  • Unbreakable CR40 steel castings ensure the sole is flat and square to the fence
  • T10 carbon steel blade, hardened for maximum edge retention
FULL DESCRIPTION
Edge Planes
Manufactured to British Standards, Rutlands® hand planes are recommended by discerning cabinetmakers and carpentry instructors for their superb construction, finish and performance. Using world leading manufacturing techniques, each precision ground plane represents a serious alternative to the premium brands produced in North America. The renowned design has a screw mechanism that easily allows the blade to be varied in depth relative to the sole to change the depth of cut. An edge plane is designed to precisely and squarely trim the edges of stock or jointing boards and due to the low angle blade ensures fine planing on both cross and end grain at exactly 90° to the face.

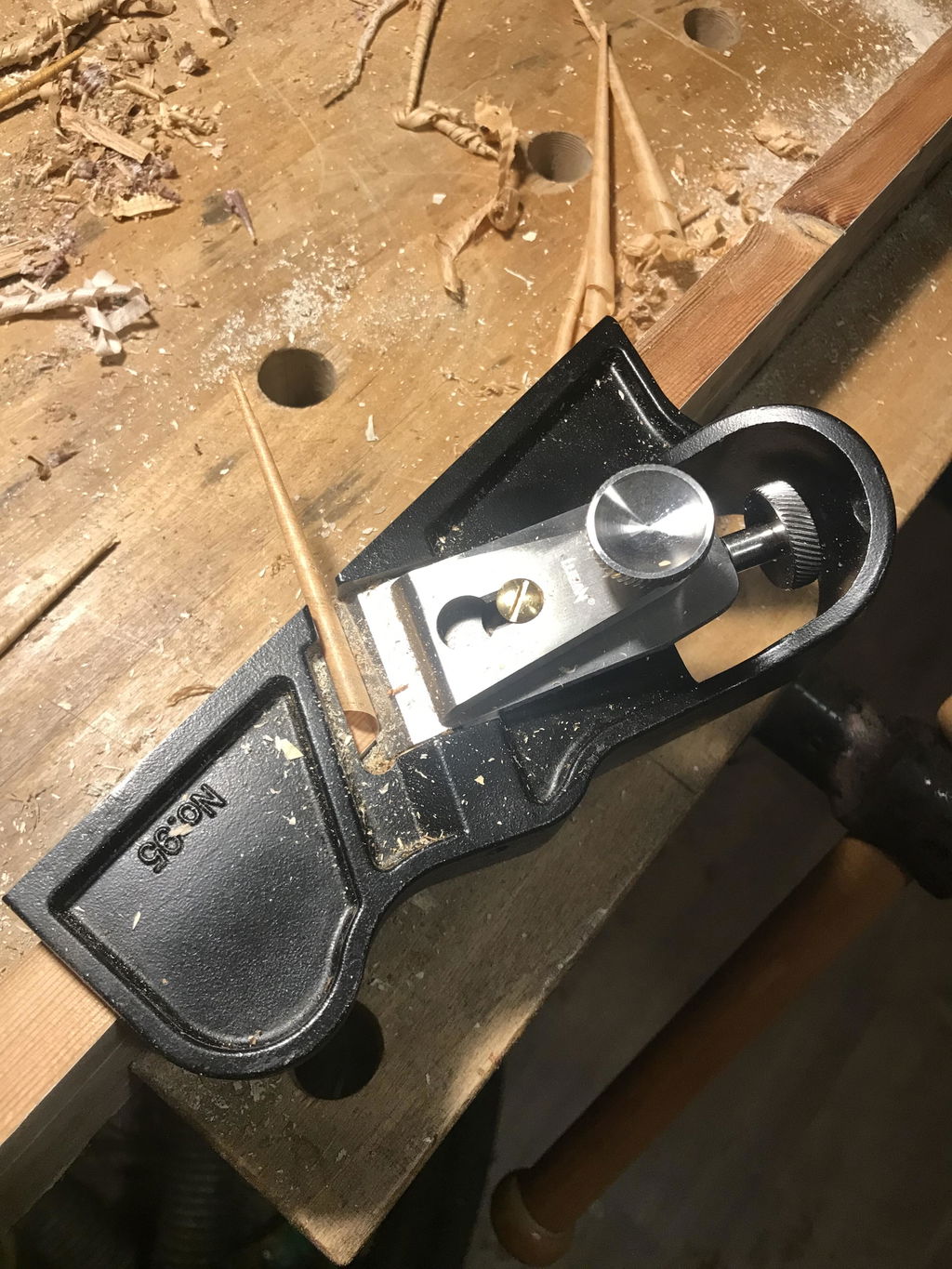

No 95 Edge Plane
This edge plane is designed for right handed use, but can easily be used by left handers. The integral 90° precision machined fence ensures the planing always occurs squarely to the face of stock. Two grub screws at either side of the blade keeps it from moving if it hits a knot and it has a fine pitch blade adjustment thread for improved blade setting accuracy. Different angles can be planed if required by adding home made wooden blocks to the inner face of the fence. A 32mm wide, 25° bevelled blade that is skewed by 30° is seated at 12° within the plane, giving an effective angle of 37° for fine planing of both cross and end grain. The plane has an overall length of 165mm and weighs 850g.

Materials & Manufacturing
The plane body features unbreakable CR40 steel castings which are precision machined to ensure the sole is flat and square to the fence. It has been finished in an epoxy powder coat for protection and durability. The plane is fitted with a T10 high carbon steel tool blade which can take a keen edge, and that has been hardened to RC60-64 for maximum edge retention. The blade is held in position by a polished stainless steel lever cap and knurl screw. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR1713
  • Plane Length165mm
  • Fence Height25mm
  • Fence Width25mm
  • Bed Angle12°
  • Blade Angle25°
  • Blade Thickness3mm
  • Blade Width32mm
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Colin W.
Great for the price, a nice hefty feel , blade is ...

Great for the price, a nice hefty feel , blade is nice and thick and once honed seems to hold its edge well, cuts across and with the grain smoothly, all in all a nice addition to the workshop.
