< Gap Gauges

Gap Gauge

Regular price £20.00
Regular price £0.00Sale price £20.00
In Stock for delivery by
Order within
This gap gauge eliminates measuring errors, providing the precise corresponding dimensions of mating joints. Whichever end is used to measure, the opposite end will automatically give the mating joint dimension, ideal for mortice & tenon or dado & groove joinery.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 28,815 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Gap Gauge
Regular price £20.00
Regular price £0.00Sale price £20.00
  • 3 Year Warranty
  • Quickly and easy gauging of material thickness or inside dimension of a joint
  • Ideal for common joints like dados, grooves and mortise & tenons
  • Opposing end automatically sets the corresponding joint dimension
  • Eliminates trial and error, saving time and reducing waste
  • Durable, anodised finish ensures scratch, wear and corrosion resistance

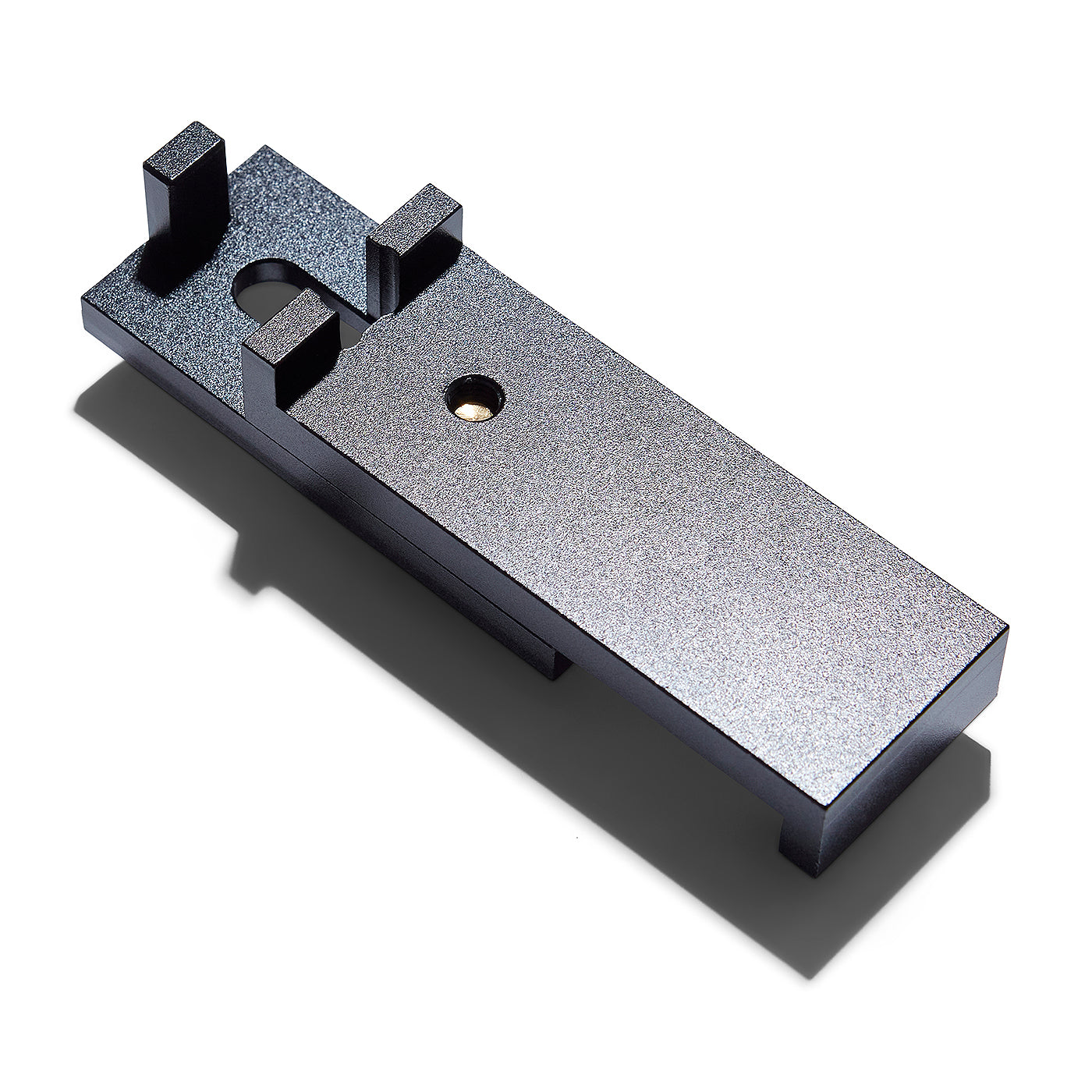

This precision gap gauge is a great tool to use for mortice & tenon joinery, dado & groove joinery, dado blade set up and more. The tool is designed so that the gap opening automatically changes with the spacing of the fingers and vice versa, which means whichever is measured the opposite end gives the corresponding mating joint dimension. By using the gap gauge, you are eliminating measuring errors as you are getting the precise corresponding dimensions of mating joints.

The gap gauge has a measuring range of 5mm to 40mm and is 30mm wide which is small enough for use in mortices but large enough to give a larger supporting surface on bigger joints for greater accuracy. To use, simply place the fingers inside joint, or the gap opening on the outside of a joint and open or close the gauge. Lock off the gauge using the knurled brass locking knob and the opposite end will automatically have the corresponding joint dimension. The gauge is made from aircraft grade aluminium and is beautifully finished in a black anodisation. The overall length of the gauge is 80mm. ©
  • BrandRutlands®
  • Product CodeR9076
  • MaterialAluminium
  • Length Scale40mm
  • Overall Length80mm
  • ScaleMetric
  • Width30mm
  • Gap Range40mm

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

We accept all major credit cards and mobile payment methods. Visit our Payment page.

We will happily accept returns within 30 days. For more information about returns, visit our Returns page.


Customer Reviews

Based on 1 review
R W.
Ordered this as a basket filler because I liked th...

Ordered this as a basket filler because I liked the idea and I do a lot of mortice and tenon joinery when making furniture. I have found myself using it a lot in the workshop and I am very happy, well made and accurate too.
